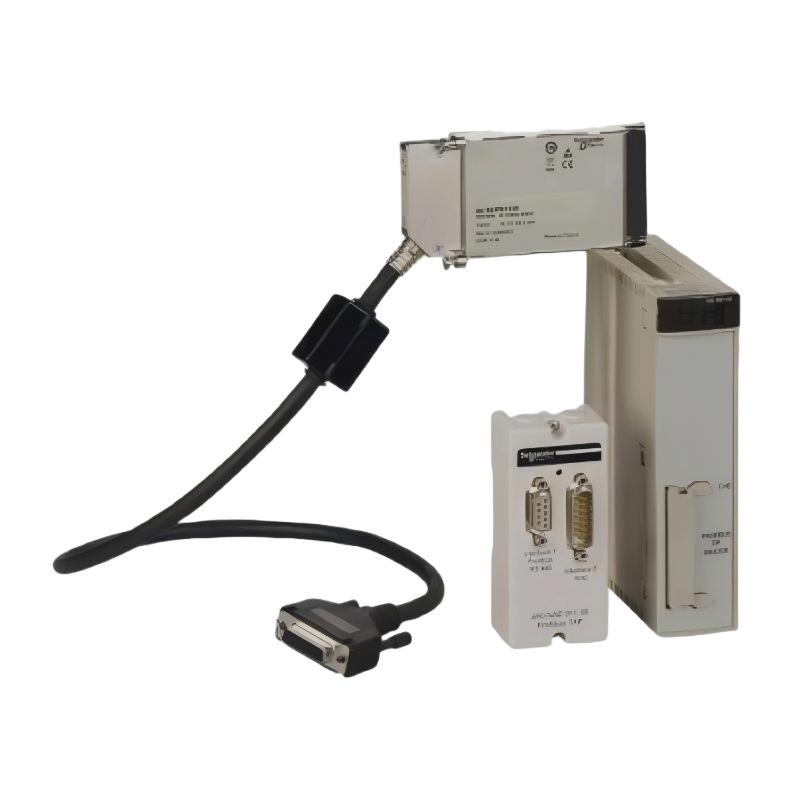

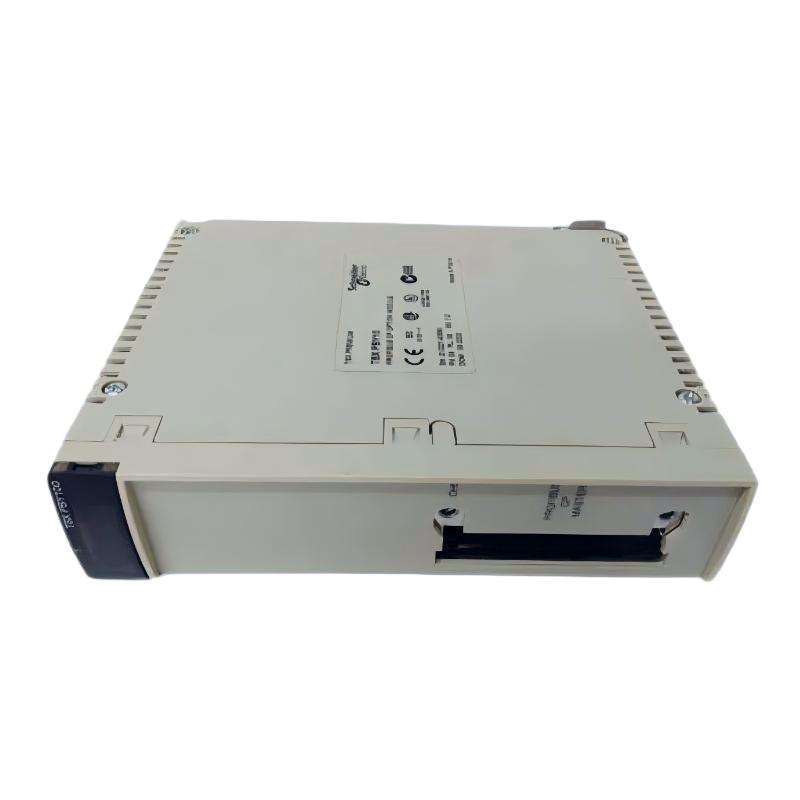

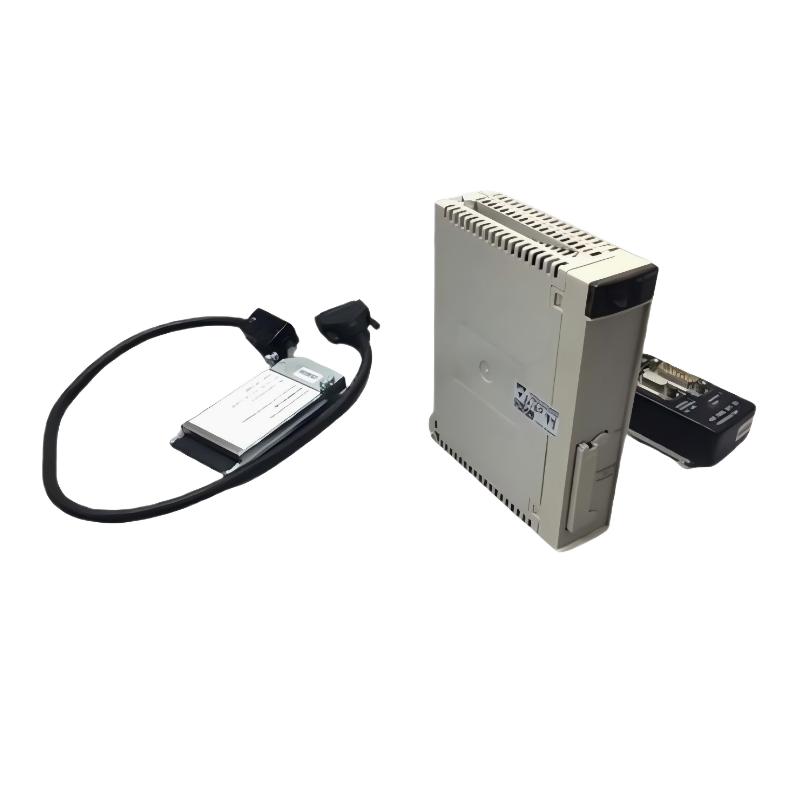

Q1: What is the main function of the TSXPBY100 PROFIBUS DP Master Communication Kit?
A: The TSXPBY100 is designed to enable PROFIBUS DP master communication within a Modicon Premium PLC system. Its primary function is to manage and control communication with multiple PROFIBUS DP slave devices such as remote I/O stations, variable frequency drives, sensors, and actuators. Acting as the master station, it initiates all data exchanges on the network, ensuring deterministic and synchronized communication. This allows industrial systems to achieve real-time data acquisition and control across distributed field devices, which is essential for process automation and machine coordination.

Q2: How does this module integrate into a Modicon Premium PLC system?
A: The TSXPBY100 is installed directly into the PLC rack and communicates with the CPU via the system backplane. Once integrated, it becomes part of the PLC’s communication layer, handling all PROFIBUS DP traffic independently from the main processor. This separation of responsibilities allows the CPU to focus on control logic execution while the communication module manages fieldbus data exchange. Configuration is typically performed through engineering software, where slave devices and network parameters are defined.

Q3: What types of devices can be connected through PROFIBUS DP?
A: The module supports a wide range of PROFIBUS DP slave devices, including distributed I/O modules, motor drives, industrial sensors, actuators, and process instrumentation. These devices must comply with the PROFIBUS DP standard to ensure compatibility. By connecting these devices through a single high-speed fieldbus network, the system reduces wiring complexity while enabling centralized communication control and real-time data exchange across the entire automation system.

Q4: What is the role of a PROFIBUS DP master in industrial automation?
A: A PROFIBUS DP master, such as the TSXPBY100, is responsible for initiating and controlling all communication cycles on the fieldbus network. It polls slave devices in a deterministic sequence, ensuring that data is exchanged at predictable intervals. This allows industrial systems to maintain synchronized operation across distributed devices. The master also manages network configuration, monitors device status, and handles communication errors, ensuring stable and reliable system performance.

Q5: How is network diagnostics handled in this module?
A: The TSXPBY100 includes built-in diagnostic functions that continuously monitor the health of the PROFIBUS network. It can detect issues such as node failure, communication timeouts, wiring faults, or configuration mismatches. Diagnostic information is reported back to the PLC system, allowing operators to quickly identify and resolve network issues. This improves system uptime and reduces troubleshooting time in complex industrial environments.

Q6: What happens if a PROFIBUS slave device fails or disconnects?
A: If a slave device fails or disconnects from the network, the TSXPBY100 immediately detects the communication loss during its polling cycle. The system generates diagnostic alarms and logs the fault information for maintenance purposes. Depending on the system configuration, affected process outputs may be placed into a predefined safe state to ensure operational safety. Other devices on the network continue to operate normally, minimizing overall system disruption.

Q7: What types of industrial applications typically use this communication kit?
A: The TSXPBY100 is widely used in industrial automation environments that require distributed control and high-speed communication. Common applications include manufacturing lines, packaging systems, material handling, automotive production, and process industries such as water treatment and energy management. It is especially useful in systems where multiple field devices must be coordinated in real time across long distances using a reliable fieldbus network.

Q8: What are the key advantages of using PROFIBUS DP with this module?
A: Using PROFIBUS DP through the TSXPBY100 provides several advantages, including deterministic communication, reduced wiring complexity, and improved system scalability. It allows multiple devices to be connected over a single network while maintaining precise timing and data synchronization. The master-controlled architecture ensures predictable communication cycles, which is critical for industrial automation. Additionally, built-in diagnostics and robust industrial design enhance reliability and simplify maintenance in demanding environments.
