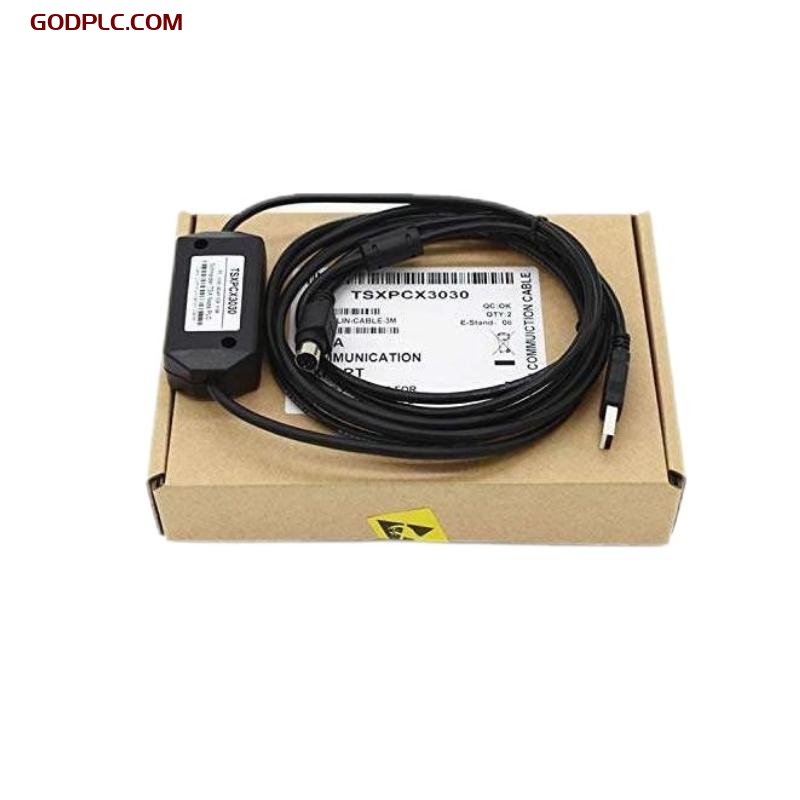

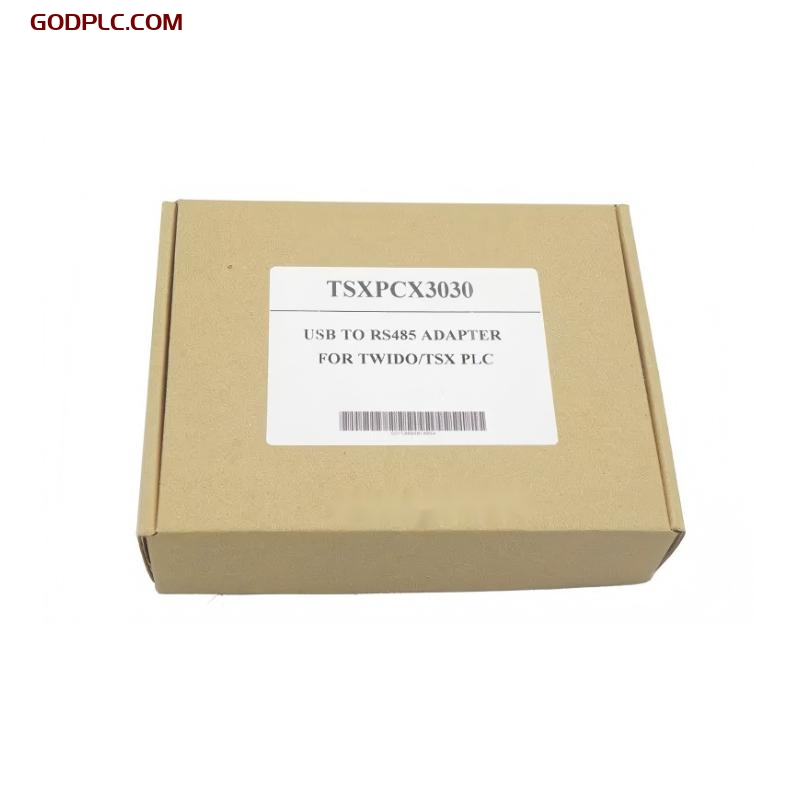

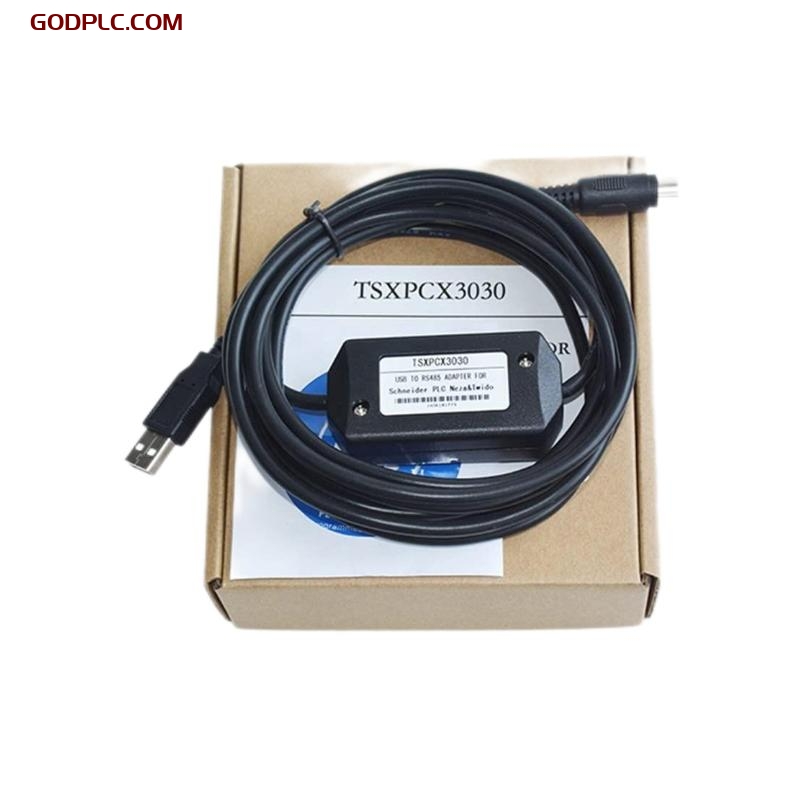

Schneider TSXPCX3030 Multi-function USB Programming Cable
1. Product Overview
The Schneider TSXPCX3030 is a multifunctional USB programming cable designed to connect a PC to Schneider Electric Modicon PLCs for configuration, monitoring, and programming. This intelligent adapter provides a virtual serial COM port over a USB interface, allowing modern computers to communicate with legacy PLC devices that use RS-232 or RS-485 communication standards.
It supports a wide range of Schneider PLC models including TSX, Twido, and Premium series. Featuring plug-and-play installation, auto baud rate detection, and driver support for major Windows operating systems, the TSXPCX3030 is a critical tool for engineers and technicians working with Schneider automation systems.
2. Key Features
-
USB to Serial Interface: Converts USB to RS-232/RS-485, enabling communication with legacy PLCs.
-
Wide PLC Compatibility: Supports Schneider TSX, Twido, Premium, and Micro series PLCs.
-
Plug-and-Play Setup: Easy installation with automatic driver recognition under Windows OS.
-
Built-in Communication Protection: Equipped with optical isolation and surge protection for safe use in industrial environments.
-
Status Indicators: Integrated LEDs for power and data transmission monitoring.
-
Driver Support: Compatible with Windows XP, 7, 10 (32/64-bit).
-
Portable Design: Compact and lightweight, ideal for field service and maintenance work.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Length:2.5m |
| Weight | 0.3kh |
3.2 General Information
| Item | Specification |
|---|---|
| Model | TSXPCX3030 |
| Manufacturer | Schneider Electric |
| Connector Type | USB Type-A to DB9 (RS-232/RS-485) |
| Supported Devices | Modicon TSX, Twido, Premium, Micro PLCs |
| Operating Temp | 0°C to +50°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 10%–90% RH (non-condensing) |
3.3 Electrical & Interface Specs
| Item | Specification |
|---|---|
| Input Voltage | Powered via USB (5V) |
| Communication Ports | RS-232 and RS-485 |
| Isolation | Optical isolation |
| Data Rate | Auto baud rate (up to 115.2 kbps) |
| Driver Support | Windows XP/7/10 (32/64-bit) |
4. Industry Applications
The Schneider TSXPCX3030 USB Programming Cable is widely used by engineers, system integrators, and maintenance teams in various industrial sectors:
-
Industrial Automation: For PLC programming and diagnostics in automated machinery and systems.
-
Manufacturing: Enables communication with PLCs for production line control and adjustments.
-
Utilities and Energy: Used in field operations for configuring remote power management systems.
-
Process Industries: Essential for real-time monitoring and troubleshooting of control systems in oil & gas, chemicals, and pharmaceuticals.
-
OEM and System Integration: Facilitates commissioning and integration of Schneider PLCs into larger control architectures.
With its robust design, wide compatibility, and ease of use, the TSXPCX3030 is an indispensable tool for professionals working with Schneider Electric PLCs.
Schneider TSXPCX3030 Multi-function USB Programming Cable is in stock. Please contact us for a quick quote and competitive pricing.
