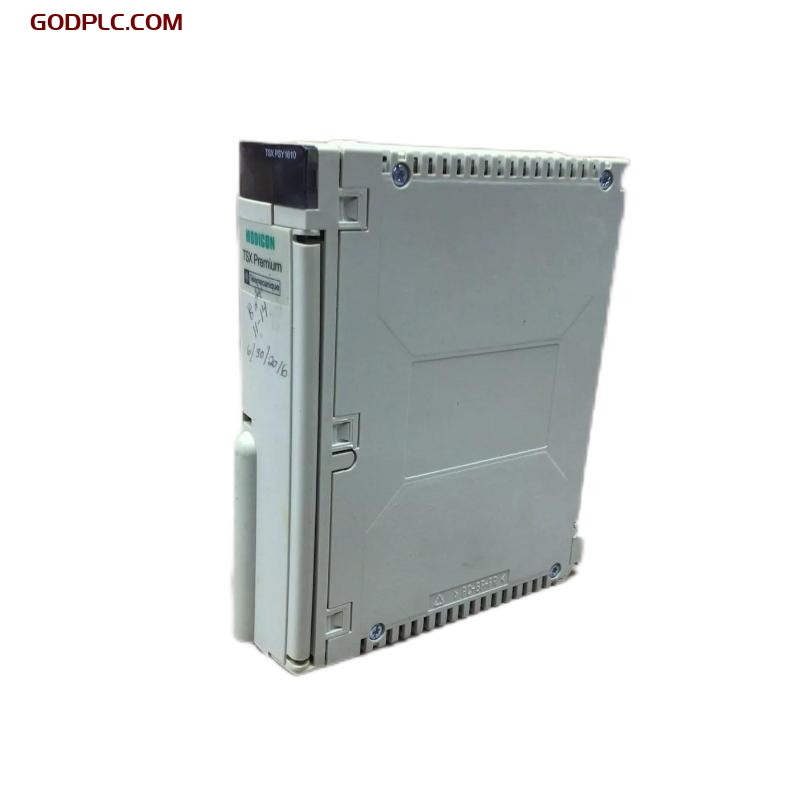

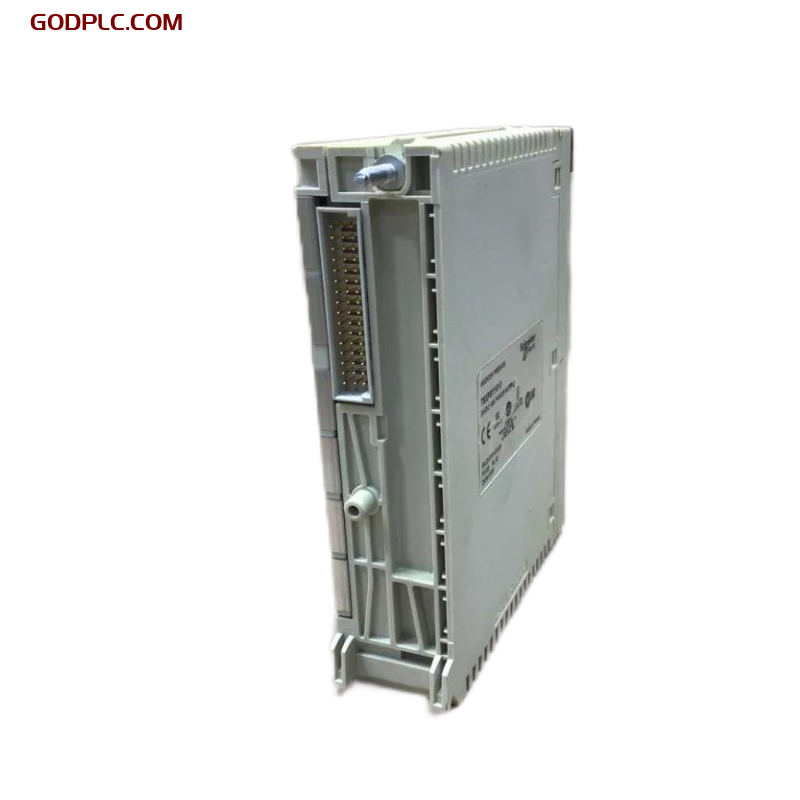

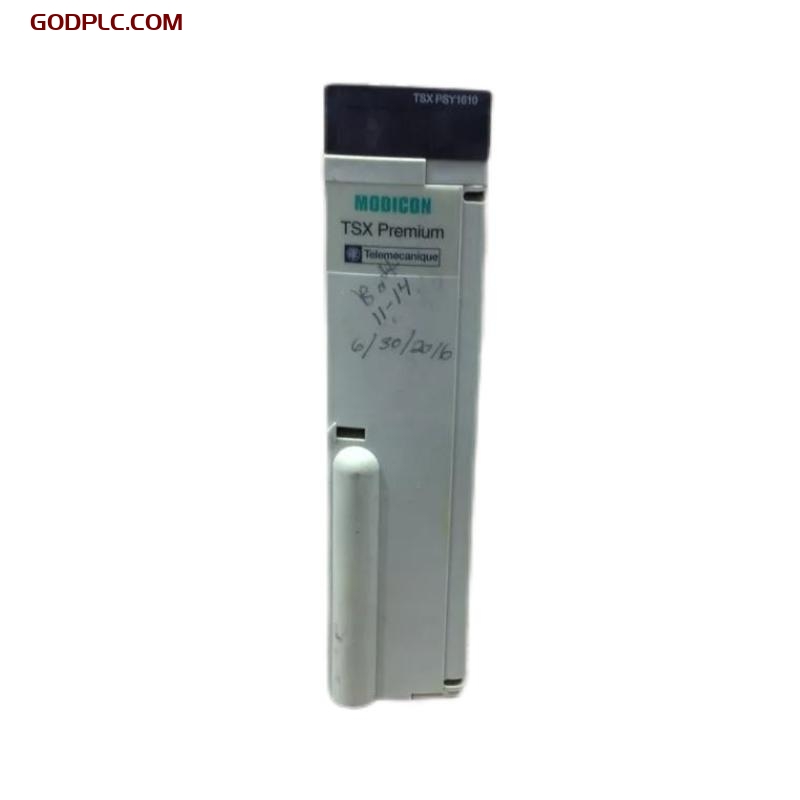

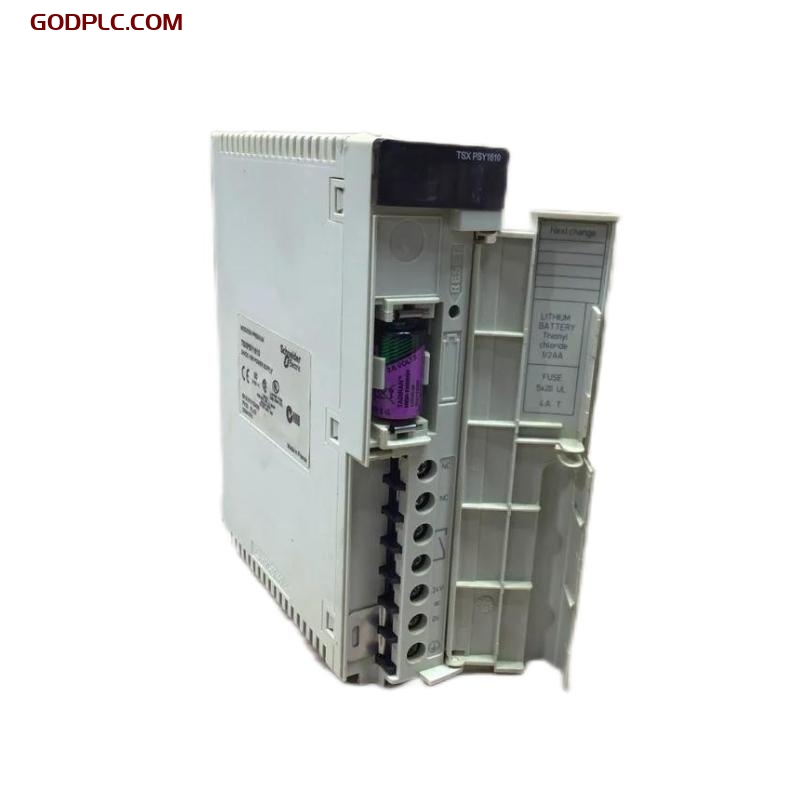

Schneider TSXPSY1610 Power Module
1. Product Overview
The Schneider TSXPSY1610 Power Module is a robust and reliable power supply designed for use with Schneider Electric’s Modicon TSX PLC systems. This power module ensures the stable conversion of AC input to DC output, maintaining consistent voltage to control systems and connected devices. With advanced overload and short-circuit protection features, it safeguards the system against electrical faults, ensuring long-term reliable operation.
The TSXPSY1610 is designed for use in demanding industrial environments and supports a wide input voltage range, making it ideal for applications in manufacturing, process control, and automation. Its compact and efficient design makes it a great choice for space-constrained installations while providing essential power to the PLC system.
2. Key Features
-
Stable Power Supply: Delivers reliable and regulated DC power to Modicon TSX PLC systems and associated devices.
-
Wide Input Voltage Range: Supports 100-240 VAC input for flexible installation options.
-
Overload and Short-Circuit Protection: Includes safety features to prevent damage to the system and ensure safe operation.
-
Efficient Power Conversion: Reduces energy consumption while maintaining stable DC output.
-
Compact Design: Optimized for installation in tight spaces, making it suitable for various control panel configurations.
-
Status Monitoring: Equipped with LED indicators to display power status, operation, and fault conditions.
-
Hot Swapping: Allows for easy replacement of the power module without shutting down the system, enhancing system uptime.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 55 ×180 ×260 mm |
| Weight | 0.54kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | TSXPSY1610 |
| Manufacturer | Schneider Electric |
| Installation | DIN Rail / Rack Mount |
| Power Source | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Input/Output Performance
| Item | Specification |
|---|---|
| Input Voltage | 100-240 VAC |
| Output Voltage | 24V DC |
| Current Rating | 4.0 A |
| Power Rating | 96W |
| Frequency | 50/60 Hz |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC ±10% |
| Power Consumption | Max 96W |
| Operating Current | ≤ 0.2 A |
| Status Indicators | LEDs for power, run, fault |
4. Industry Applications
The Schneider TSXPSY1610 Power Module is widely used in a range of industrial applications requiring reliable and stable power to control systems:
-
Manufacturing: Ideal for powering automation and control systems in production environments.
-
Process Control: Supports industries such as food, chemical, and pharmaceuticals for stable control of processes.
-
Energy Management: Powers control systems for energy generation and distribution networks.
-
Industrial Automation: Suitable for applications in automated systems across various industries, ensuring continuous operation.
With its efficient design, reliable performance, and advanced protection features, the TSXPSY1610 is a crucial component for Schneider Electric’s Modicon PLC systems, ensuring the continuous and safe operation of industrial automation systems.
Schneider TSXPSY1610 Power Module is in stock. Please contact us for a quick quote and competitive pricing.
