Schneider TSXPSY2600M Power Module
1. Product Overview

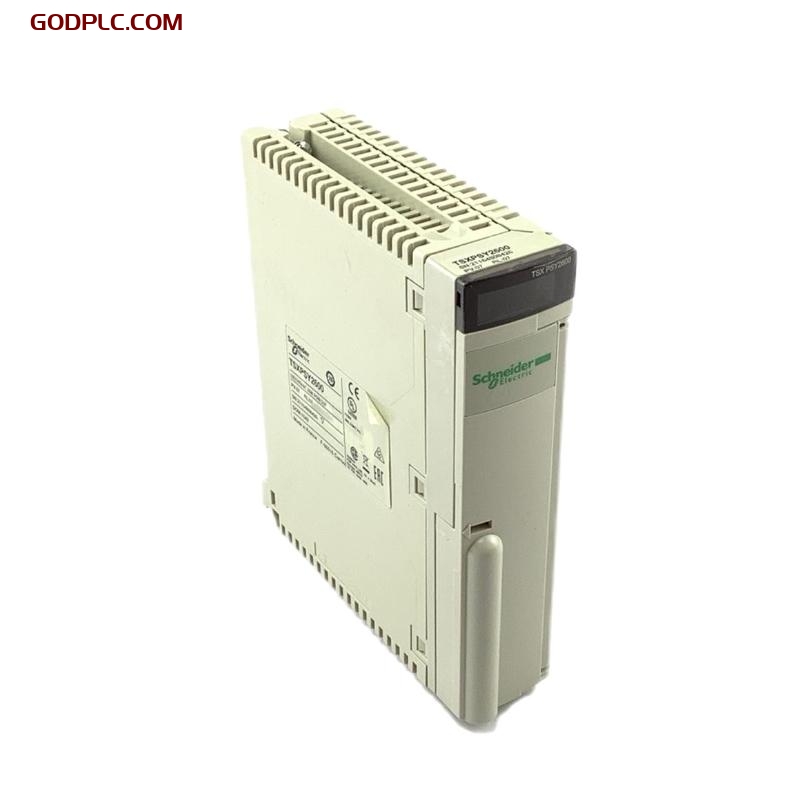

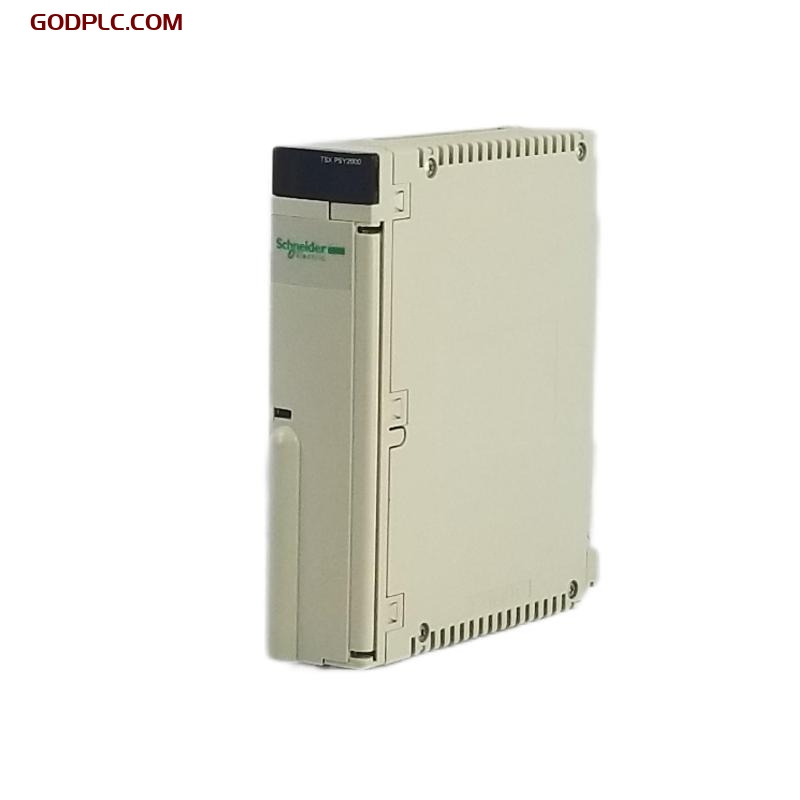

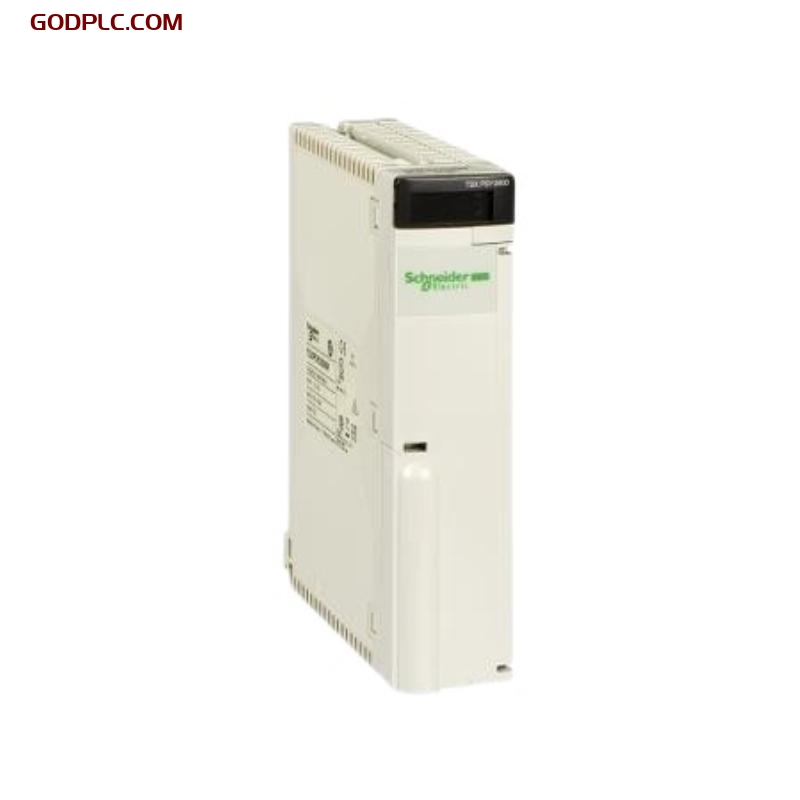

The Schneider TSXPSY2600M Power Module is a high-performance power supply designed to provide stable and regulated power to Schneider Electric’s Modicon TSX PLC systems. This power module is integral for ensuring the proper functioning of control systems by converting AC input to DC output and maintaining a constant voltage supply. It features overload and short-circuit protection, providing robust performance in industrial automation applications.
With its compact design and wide input voltage range, the TSXPSY2600M is suitable for a variety of applications in industries such as manufacturing, process control, and energy management. It is engineered for reliability and efficiency, making it an essential component in the TSX family of programmable controllers.
2. Key Features
-
Reliable Power Supply: Provides consistent DC power to Modicon TSX PLC systems and modules.
-
Wide Input Voltage Range: Supports both 100-240 VAC input, offering flexible installation options.
-
Overload and Short-Circuit Protection: Built-in protection safeguards the system against power failures or faults.
-
High Efficiency: Features energy-efficient power conversion, reducing energy loss during operation.
-
Compact Design: Space-saving design that allows for easy installation in control cabinets.
-
LED Status Indicators: Clear LED indicators provide real-time feedback on power status and faults.
-
Hot Swapping: Enables the replacement of modules without system shutdown, reducing downtime.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 60 × 180 × 260 mm |
| Weight | 0.51kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | TSXPSY2600M |
| Manufacturer | Schneider Electric |
| Installation | DIN Rail / Rack Mount |
| Power Source | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Input/Output Performance
| Item | Specification |
|---|---|
| Input Voltage | 100-240 VAC |
| Output Voltage | 24V DC |
| Current Rating | 5.0 A |
| Power Rating | 120W |
| Frequency | 50/60 Hz |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC ±10% |
| Power Consumption | Max 120W |
| Operating Current | ≤ 0.25 A |
| Status Indicators | LEDs for power, run, fault |
4. Industry Applications
The Schneider TSXPSY2600M Power Module is ideal for industries where reliable power is crucial for the operation of automated control systems:
-
Manufacturing: Ensures reliable power to automation systems in production lines.
-
Process Control: Provides stable power for control processes in chemical, food, and pharmaceutical industries.
-
Energy Management: Supports control and monitoring systems in power generation and distribution networks.
-
Industrial Automation: Powers PLC systems in various automated applications across diverse industrial sectors.
With its compact design, high efficiency, and advanced protection features, the TSXPSY2600M is a key component in Schneider Electric’s industrial control solutions, providing stable and efficient power to ensure continuous operation.
Schneider TSXPSY2600M Power Module is in stock. Please contact us for a quick quote and competitive pricing.
