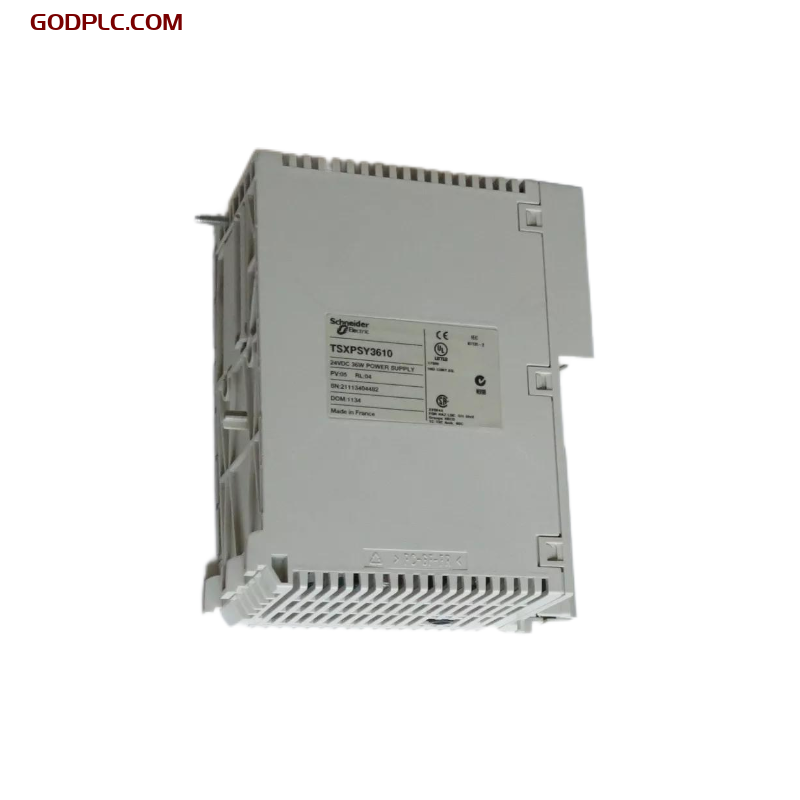

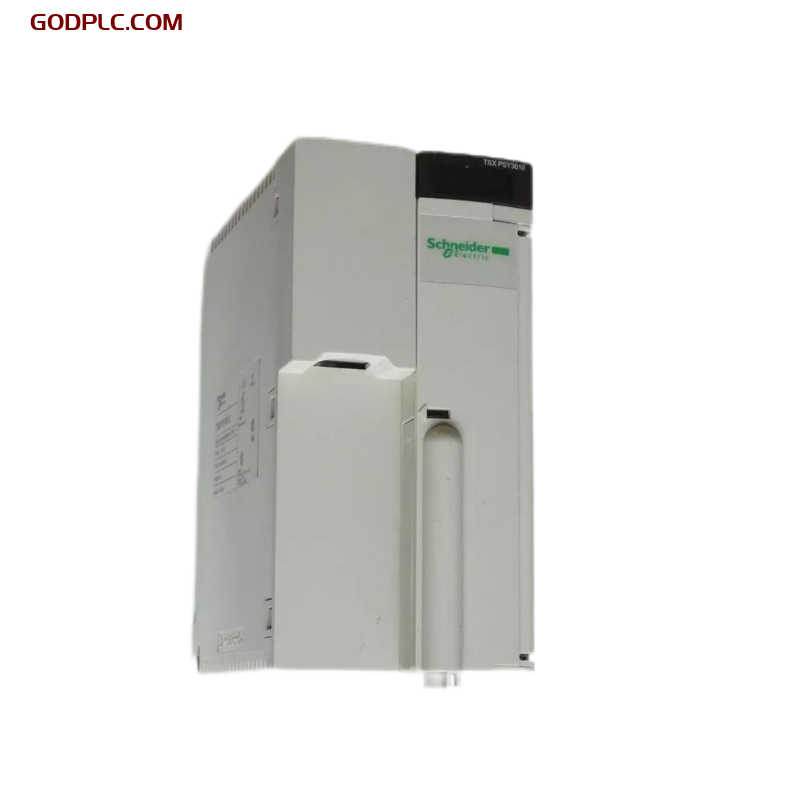

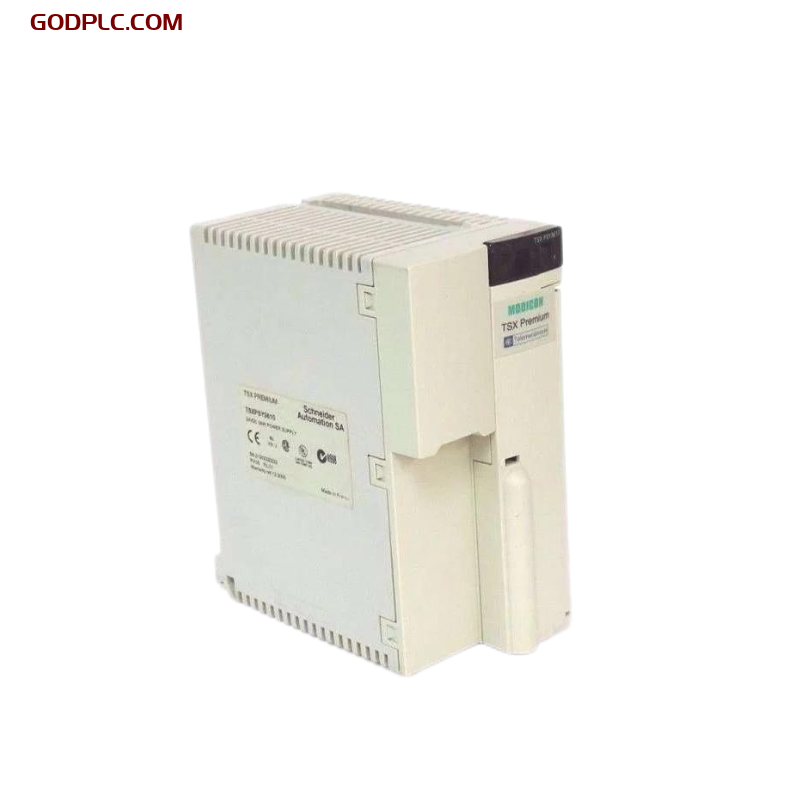

Schneider TSXPSY3610 Power Module
1. Product Overview
The Schneider TSXPSY3610 power module is a key component in Schneider’s Modicon PLC series, designed to provide efficient and reliable power supply to automation systems. This module ensures the stable operation of PLCs and other control system components by offering a consistent 24V DC power output. The TSXPSY3610 is suitable for a variety of industrial environments, including automated production lines, building automation, and energy management systems.
This power module provides high power output and is designed with excellent electromagnetic interference (EMI) resistance, making it ideal for use in demanding industrial environments. Its compact form factor allows for easy installation and maintenance, and it supports DIN rail mounting, ensuring a high level of reliability and convenience.
2. Key Features
-
Efficient Power Supply: Provides stable 24V DC power to ensure the efficient operation of PLCs and other control systems.
-
Strong EMI Resistance: Designed to meet industrial standards, the module is resistant to electromagnetic interference (EMI), ensuring stable operation in complex environments.
-
Compact Design: Small footprint for installation in limited space, saving valuable equipment space.
-
High Power Output: Supports higher power requirements for large automation systems and equipment.
-
DIN Rail Mounting: Standard DIN rail mounting for easy and quick installation and maintenance.
-
High Reliability: Designed to meet industrial-grade standards, suitable for operation in extreme temperatures and humidity conditions.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | 95 x 180 x 260 mm |
| Weight | 0.62kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | TSXPSY3610 |
| Supplier | Schneider |
| Power Input | 24V DC ±10% |
| Installation | DIN Rail Mount |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Communication Protocol | Supports Modicon PLC power module protocols |
3.3 Performance and Functions
| Item | Value |
|---|---|
| Output Voltage | 24V DC ±10% |
| Output Power | Max power output 40W |
| Power Factor | ≥0.95 |
| Output Current | Max 1.7A |
| Response Time | ≤ 1ms |
| Current Protection | Overcurrent protection |
| Temperature Protection | Overtemperature protection |
3.4 Electrical Specifications
| Item | Value |
|---|---|
| Power Supply Voltage | 24V DC ±10% |
| Power Consumption | ≤ 40W |
| Operating Current | 1.7A |
4. Industry Applications
The Schneider TSXPSY3610 power module is widely used in industrial automation systems where stable power supply is critical. Key applications include:
-
Automation Production Lines: Provides reliable power supply to PLCs and other control systems, ensuring smooth operation of automated production lines.
-
Building Automation: Supplies power to various building management systems, ensuring the proper functioning of environmental control and security monitoring.
-
Energy Management Systems: Provides stable power for energy management, optimizing energy usage and reducing consumption.
-
Industrial Equipment Monitoring: Supplies power to remote monitoring and control systems, ensuring efficient and accurate device monitoring.
-
Traffic Systems: Supports traffic signal control and monitoring systems, ensuring continuous power supply and system stability.
The TSXPSY3610 module offers essential support for a wide range of industrial applications, serving as a critical component in modern automation control systems.
Schneider TSXPSY3610 Power Module is in stock. Please contact us for a quick quote and competitive pricing.
