1. What is the main function of the Schneider TSXPSY3610M Power Supply Module?

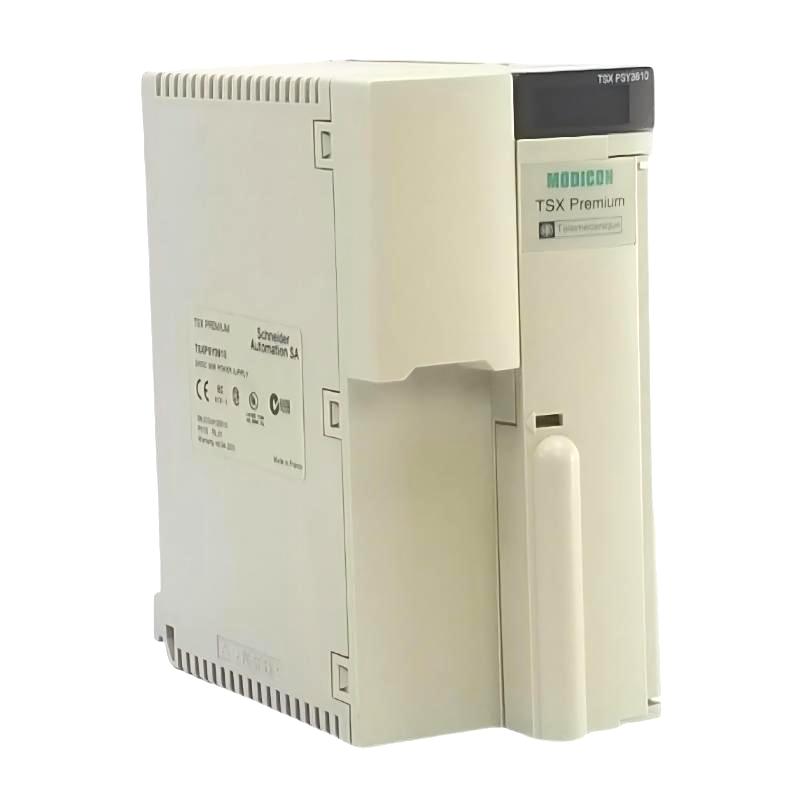

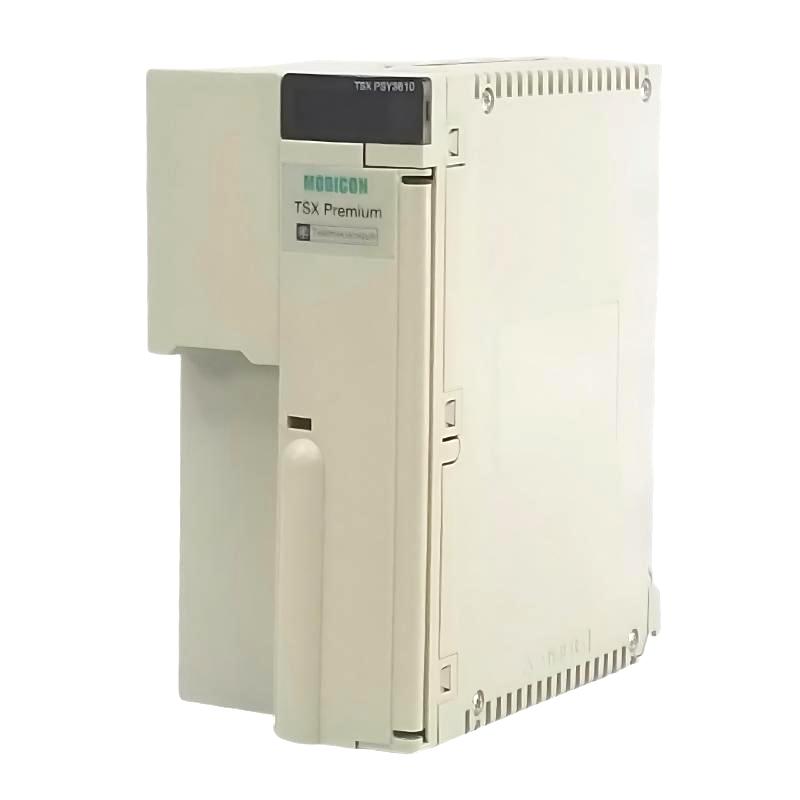

The Schneider TSXPSY3610M is a power supply module designed for Schneider Modicon Premium PLC systems.

Its main function is to provide stable electrical power for PLC processors, I/O modules, and other system components.

A reliable power supply module ensures that the PLC system can operate continuously and prevents control interruptions caused by unstable power conditions.

2. What role does the Schneider TSXPSY3610M play in a PLC system?

The TSXPSY3610M acts as the power management component of the Modicon Premium PLC system.

It converts the incoming industrial power source into regulated power required by PLC modules and maintains stable operation of the automation system.

The module supports reliable communication and control performance by ensuring consistent power delivery.

3. What are the common causes of Schneider TSXPSY3610M power supply faults?

Common causes of TSXPSY3610M faults include:

• Unstable input power;
• Overload conditions;
• Short circuits in connected modules;
• Incorrect wiring;
• Environmental factors;
• Internal component aging.

When a fault occurs, engineers should check power indicators, input connections, and PLC system diagnostics to identify the problem.

4. How should the Schneider TSXPSY3610M be installed correctly?

The TSXPSY3610M should be installed according to Schneider Modicon Premium PLC installation requirements.

The general installation steps include:

1. Confirming compatibility with the PLC rack system.
2. Switching off system power before installation.
3. Installing the power supply module in the correct rack position.
4. Connecting power wiring correctly.
5. Checking system operation after startup.

Proper installation ensures safe and stable power supply for the entire PLC system.

5. What protection functions does the Schneider TSXPSY3610M provide?

The TSXPSY3610M includes protection functions designed to improve system safety and reliability.

These functions typically include:

• Overload protection;
• Short-circuit protection;
• Power monitoring;
• Operating status indication.

These protection features help prevent damage to PLC components and improve system availability in industrial environments.

6. How can Schneider TSXPSY3610M faults be diagnosed?

Fault diagnosis of the TSXPSY3610M requires checking both the power module and connected PLC components.

Engineers should inspect:

• Power input condition;
• Module status indicators;
• PLC diagnostic information;
• Connected module conditions;
• Wiring connections.

A systematic inspection process can help determine whether the problem is caused by the power module, external wiring, or another PLC component.

7. Why is the Schneider TSXPSY3610M important for industrial automation systems?

The power supply module is a critical component of any PLC control system.

The TSXPSY3610M provides stable power for PLC processors and expansion modules, ensuring reliable execution of control programs and communication functions.

In industrial automation applications, stable power management helps reduce downtime, improve equipment reliability, and maintain continuous production operations.

8. How can the reliability of the Schneider TSXPSY3610M be improved?

To maintain reliable operation of the TSXPSY3610M, proper installation and regular maintenance are recommended.

Best practices include:

• Checking power connections regularly;
• Monitoring PLC diagnostic information;
• Avoiding overload conditions;
• Maintaining a clean control cabinet environment;
• Inspecting system operation periodically.

Following correct maintenance procedures helps extend service life and ensures stable performance of the Schneider Modicon Premium PLC system.
