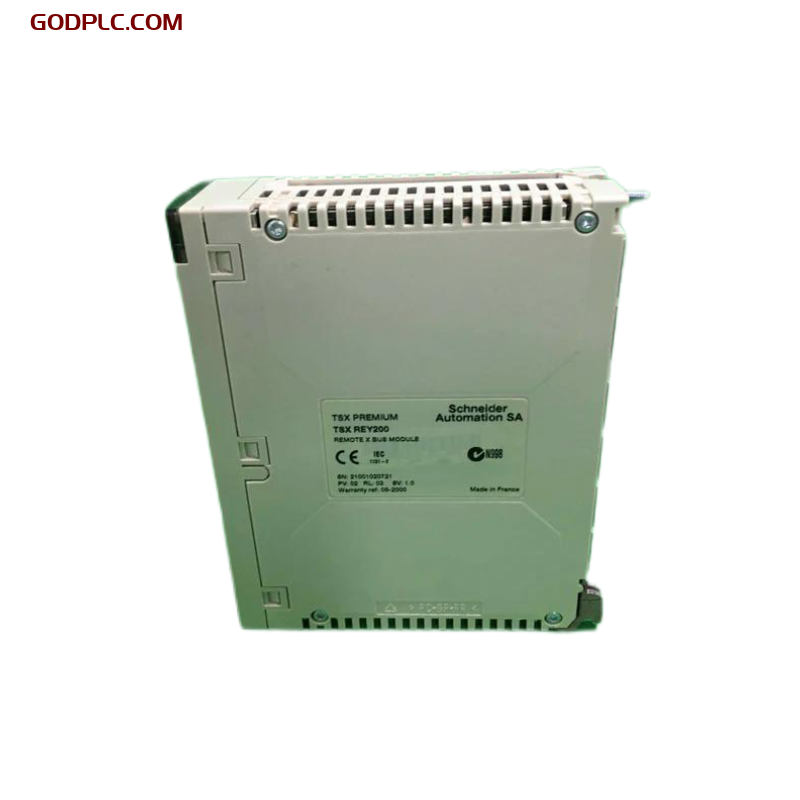

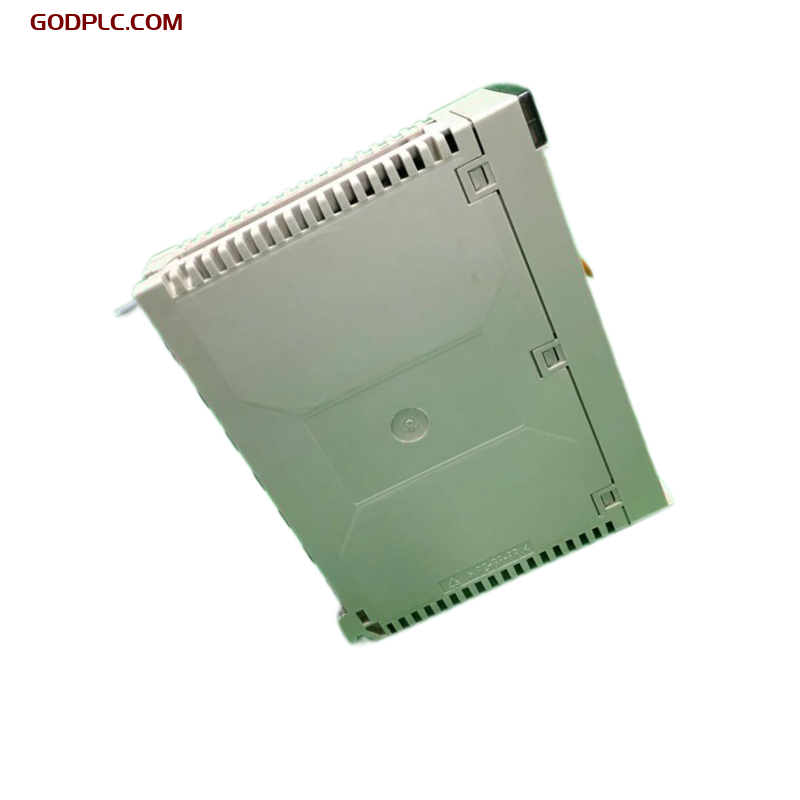

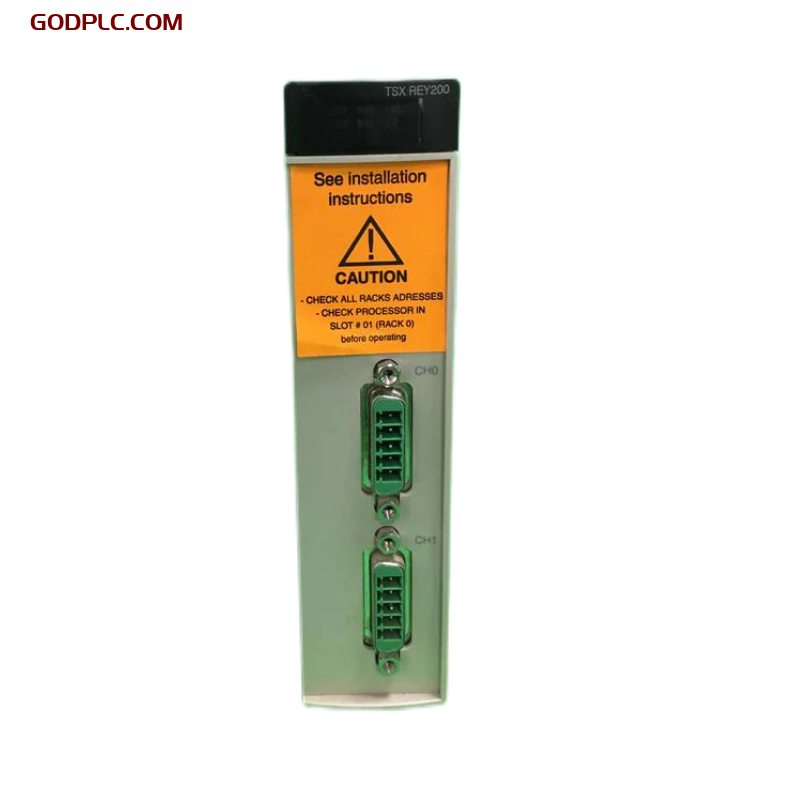

Schneider TSXREY200 Bus X Remote Rack Master Module
1. Product Overview
The Schneider TSXREY200 Bus X Remote Rack Master Module is a critical component designed to provide connectivity between Schneider Modicon PLC systems and remote I/O devices. It facilitates high-efficiency data transmission and processing, enabling the PLC to interface with devices located at a distance, ideal for automation systems that require remote connections. The TSXREY200 supports seamless integration with various remote I/O devices, ensuring stable operation even in complex industrial environments.
Designed with a compact form factor, high reliability, and strong resistance to electromagnetic interference, the TSXREY200 is capable of meeting the demands of various industrial applications. It offers flexible system expansion capabilities, supporting a wide range of communication protocols, and is an essential part of distributed automation systems.
2. Key Features
-
Efficient Data Communication: Supports high-bandwidth data transfer to ensure seamless communication between remote devices and PLC systems.
-
Remote I/O Expansion: Connects to remote I/O devices, expanding system input/output capabilities for scalable automation systems.
-
High Reliability: Built to industrial standards with strong EMI resistance, ensuring stable operation in harsh environments.
-
Flexible Network Connectivity: Supports multiple industrial communication protocols, ensuring compatibility with various devices.
-
Compact Design: Space-saving design ideal for installation in confined spaces, suitable for industrial environments.
-
Ease of Installation and Maintenance: Supports DIN rail mounting for quick and convenient installation and maintenance.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | 55 ×180 × 260 mm |
| Weight | 0.425 kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | TSXREY200 |
| Supplier | Schneider |
| Power Input | 24V DC ±10% |
| Installation | DIN Rail Mount |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Communication Protocol | Modbus, Profibus, Ethernet |
3.3 Performance and Functions
| Item | Value |
|---|---|
| Max Input Channels | 32 |
| Max Output Channels | 32 |
| Data Transfer Rate | 10 Mbps |
| Max Connected Devices | 128 |
| Response Time | ≤ 10 ms |
| Remote I/O Device Support | Up to 32 remote I/O devices |
3.4 Electrical Specifications
| Item | Value |
|---|---|
| Power Supply Voltage | 24V DC ±10% |
| Power Consumption | ≤ 10W |
| Operating Current | 0.5A |
4. Industry Applications
The Schneider TSXREY200 Remote Rack Master Module is used in various industrial automation systems, especially in applications requiring remote monitoring and control. Key industries and applications include:
-
Automation Production Lines: Provides reliable connectivity with remote I/O devices, ensuring smooth operations on automation production lines.
-
Energy Management Systems: Integrates with PLC systems and remote I/O devices to efficiently manage energy consumption.
-
Building Automation: Used for environmental monitoring, security control, and building management in smart buildings.
-
Oil and Gas Industry: Ensures remote monitoring and control of critical equipment, enhancing safety and performance.
-
Water Treatment and Environmental Protection: Used in water treatment facilities for remote control and monitoring, ensuring compliance with environmental standards.
The TSXREY200 module offers stable and reliable connectivity, providing flexibility and expandability for industrial systems. It is an essential part of modern automation systems.
Schneider TSXREY200 Bus X Remote Rack Master Module is in stock. Please contact us for a quick quote and competitive pricing.
