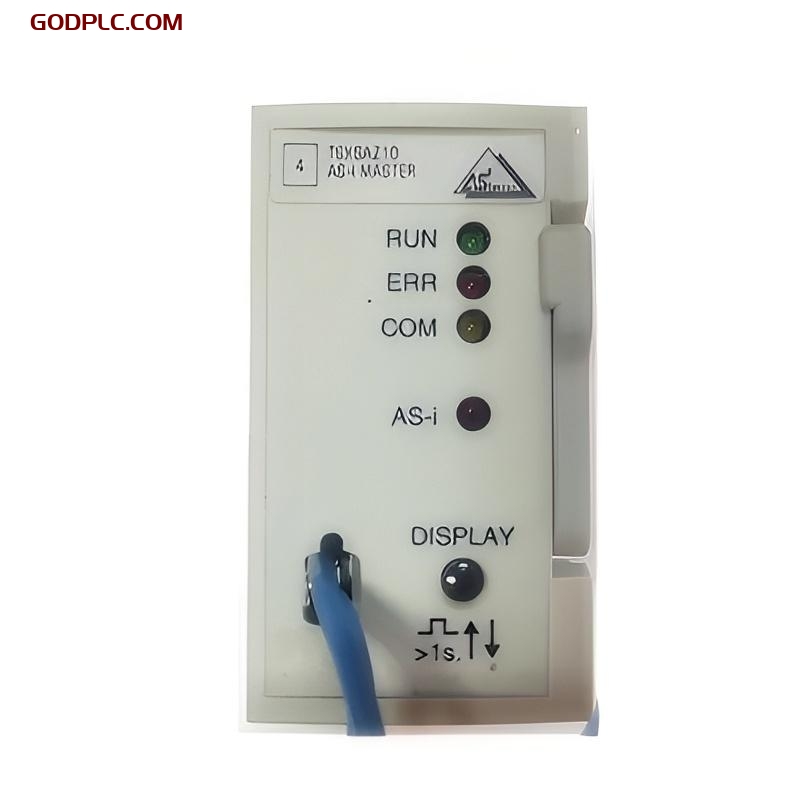

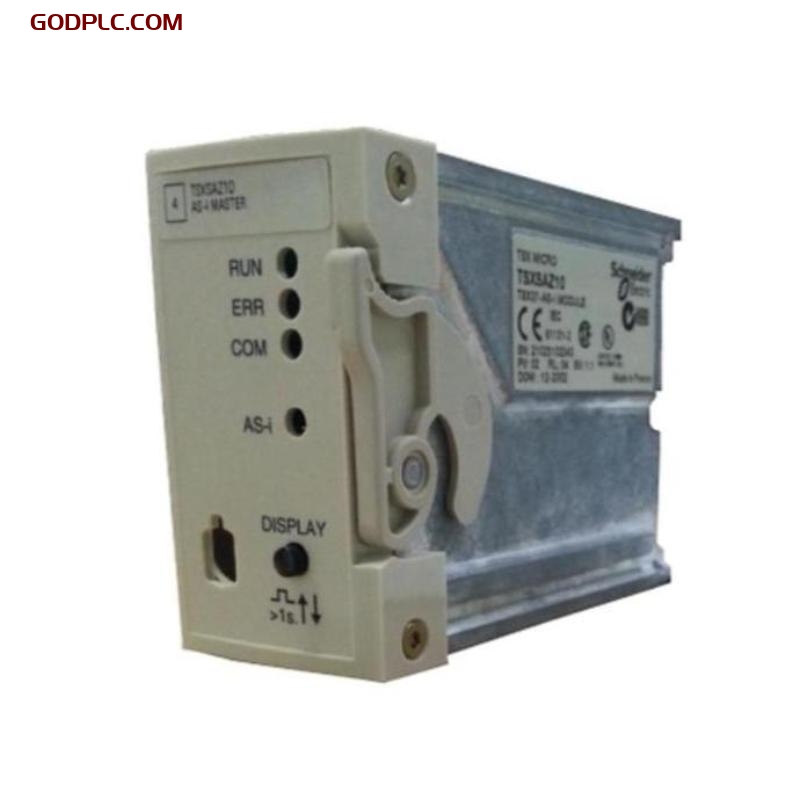

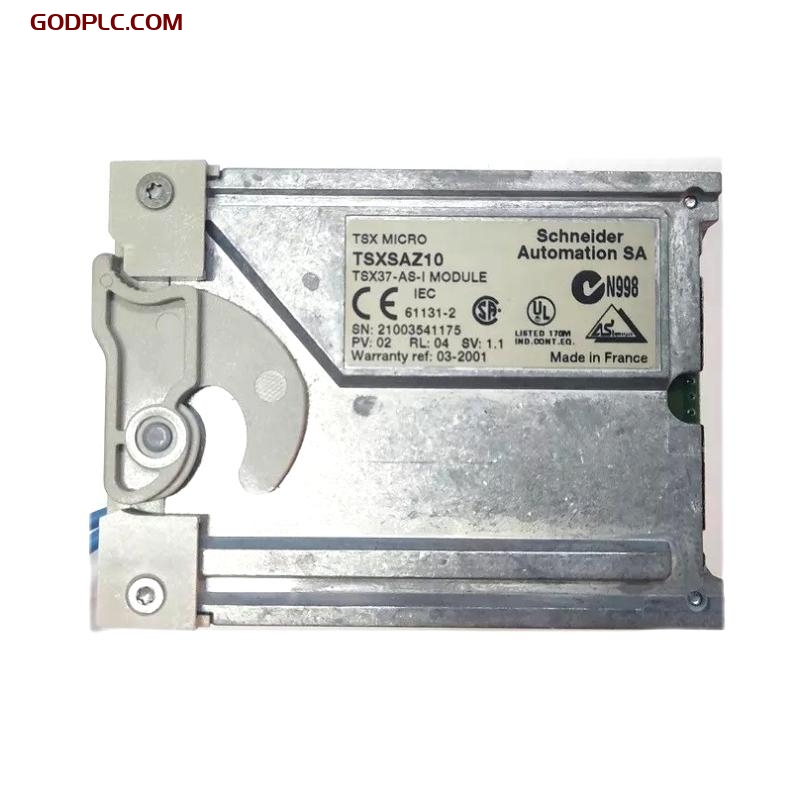

Schneider TSXSAZ10 AS-Interface Master Module
1. Product Overview
The Schneider TSXSAZ10 AS-Interface Master Module is an advanced communication interface solution designed for use in industrial automation systems. It acts as the master interface between the AS-Interface (AS-i) network and the PLC, enabling efficient data exchange between various devices and controllers within an automation system. The TSXSAZ10 module integrates seamlessly with Schneider Electric’s Modicon PLC systems, providing a flexible and reliable solution for controlling and monitoring I/O devices in various industrial applications.
This module supports a broad range of I/O devices such as sensors, actuators, and other AS-i compatible devices, facilitating the development of decentralized control systems. With its robust design, easy integration, and efficient data handling capabilities, the TSXSAZ10 module ensures high performance and reliability in demanding industrial environments.
2. Key Features
-
AS-Interface Protocol: Supports AS-Interface, enabling easy integration of sensors, actuators, and other field devices.
-
High-Speed Data Exchange: Provides fast and reliable data communication between the PLC and field devices, ensuring efficient process control.
-
Easy Configuration: Simple and intuitive configuration for quick installation and setup, reducing system integration time.
-
Diagnostic Functionality: Equipped with advanced diagnostics for real-time monitoring, troubleshooting, and maintenance.
-
Compact and Durable: Designed for industrial environments, the module is compact, robust, and built to withstand harsh operating conditions.
-
Modular Integration: Compatible with Schneider Electric’s Modicon PLC systems, enabling modular and scalable automation setups.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size:55 ×57 × 255 mm |
| Weight | Package weight:0.324 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | TSXSAZ10 |
| Manufacturer | Schneider Electric |
| Power Supply | 24 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Installation | DIN Rail Mount |
3.3 Performance Parameters
| Item | Specification |
|---|---|
| Supported Protocols | AS-Interface |
| I/O Devices | Supports up to 31 AS-i devices |
| Data Exchange Speed | Fast cycle time (≤ 10 ms) |
| Response Time | ≤ 5 ms |
| Diagnostics | Built-in diagnostic tools |
| Communication Type | Master-Slave Communication |
3.4 Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Maximum Power Consumption | ≤ 5 W |
| Operating Current | ≤ 0.2 A |
4. Industry Applications
The Schneider TSXSAZ10 AS-Interface Master Module is a versatile and essential component in various industrial automation systems. Its reliable communication capabilities and ease of integration make it suitable for a wide range of applications:
-
Manufacturing: Used in production lines for controlling sensors and actuators, optimizing processes and system performance.
-
Energy Management: Facilitates energy monitoring and control by connecting various field devices in energy systems.
-
Building Automation: Integrates with HVAC, lighting, and other building systems for efficient facility management.
-
Water Treatment: Applied in water treatment plants for real-time monitoring and control of water flow, treatment, and distribution systems.
-
Logistics: Enhances automation in warehouse and distribution systems, improving process efficiency and tracking.
-
Process Control: Ideal for controlling and monitoring processes in industries such as food & beverage, chemical, and pharmaceuticals.
With its high reliability, ease of integration, and efficient data management, the TSXSAZ10 module offers an effective solution for decentralized control and automation in various industrial applications.
Schneider TSXSAZ10 AS-Interface Master Module is in stock. Please contact us for a quick quote and competitive pricing.
