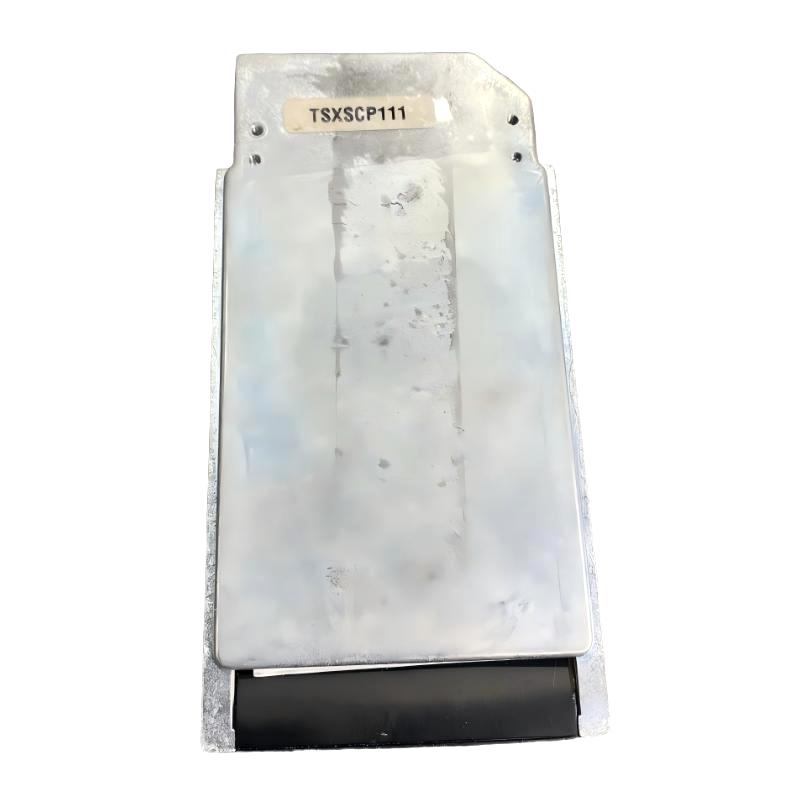

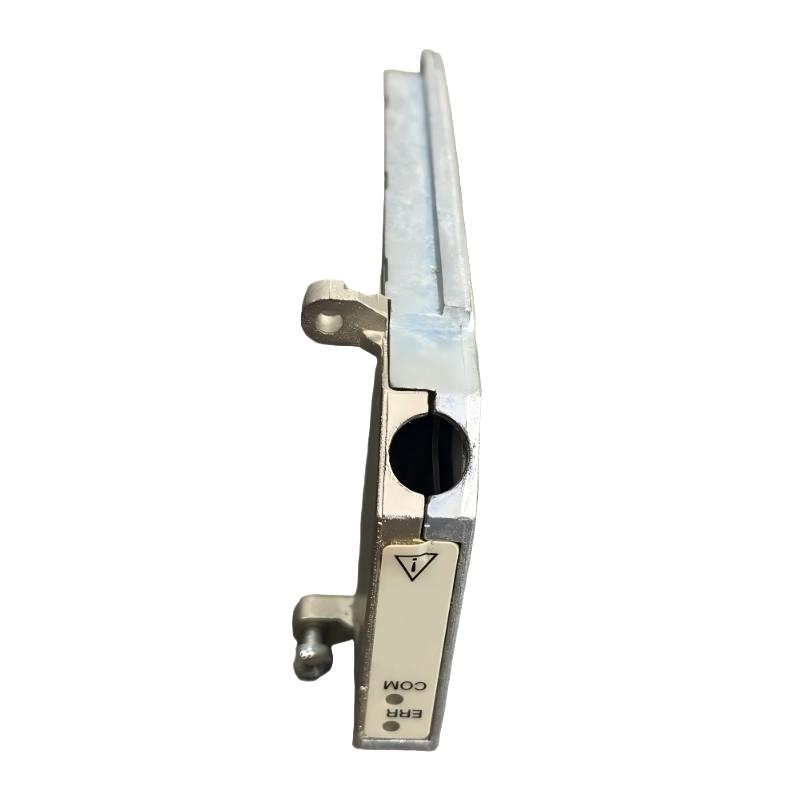

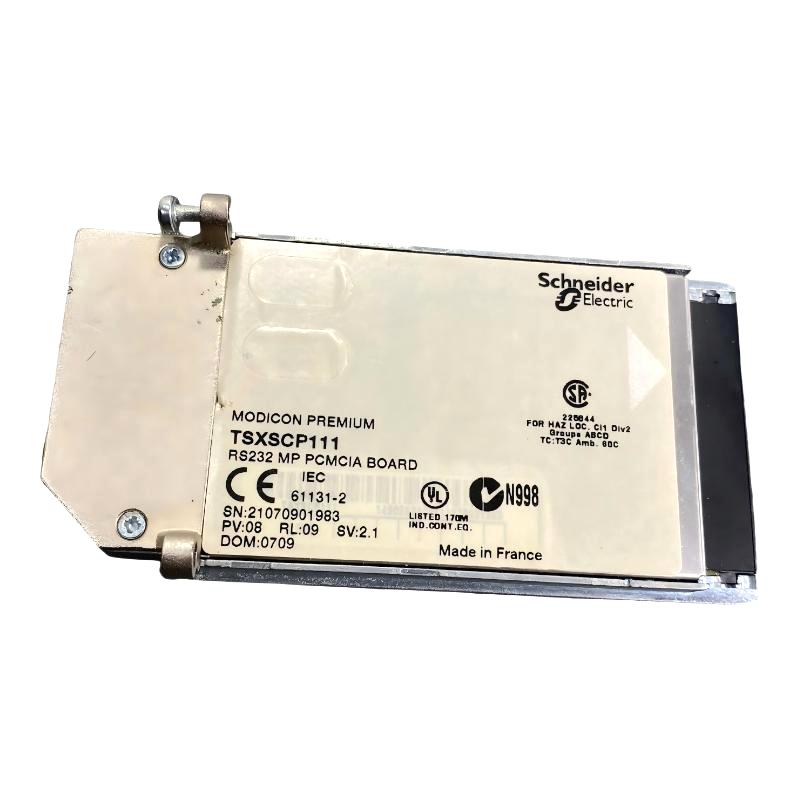

Schneider TSXSCP111 PCMCIA Card
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Type | PCMCIA Card |
| Model | TSXSCP111 |
| Product Series | Modicon Premium Automation Platform |
| Application Function | Provides communication expansion capability for PLC systems and enables data exchange between control systems and external devices |
| Card Type | PCMCIA communication expansion card |
| Communication Function | Provides industrial communication capability for connecting PLC systems with external equipment |
| System Compatibility | Schneider Electric Modicon Premium PLC systems |
| Data Transfer Function | Enables data transmission and information exchange between the control system and communication devices |
| Installation Method | Installed through the dedicated PCMCIA card slot of the PLC system |
| Interface Type | PCMCIA standard interface |
| Operating Environment | Suitable for industrial automation, equipment communication and control system expansion applications |
| System Function | Expands PLC communication capability and improves automation system data exchange performance |
| Application Areas | Manufacturing, machine automation, process control, energy systems, infrastructure and industrial communication networks |
| Maintenance Features | Modular design for convenient installation, replacement and system maintenance |
| Reliability | Industrial-grade communication design for stable long-term operation |
| Dimensions | 170 × 155 × 35 mm |
| Weight | 0.105 kg |
FAQ
1. What is the primary function of the Schneider TSXSCP111 PCMCIA Card?
The Schneider TSXSCP111 PCMCIA Card is a communication expansion card designed for Schneider Electric Modicon Premium PLC systems. Its main function is to extend PLC communication capabilities and enable data exchange between the control system and external devices.
The communication card allows the PLC to connect with compatible communication equipment, exchange operational data and improve system integration capability.
In industrial automation applications, the TSXSCP111 helps engineers build more flexible control architectures by adding communication functions without replacing the existing PLC system.
2. What communication applications can the Schneider TSXSCP111 be used for?
The Schneider TSXSCP111 is mainly used in Modicon Premium PLC systems that require additional communication capabilities.
It can support applications involving PLC communication expansion, connection with external automation equipment, industrial data exchange and system integration projects.
Typical applications include connecting controllers with field devices, monitoring systems, industrial communication networks and automation equipment.
By adding the TSXSCP111, users can improve the ability of the PLC system to communicate with other components in an industrial environment.
3. What are the advantages of using the Schneider TSXSCP111 PCMCIA Card?
The Schneider TSXSCP111 provides a convenient solution for expanding PLC communication functions.
Instead of replacing the entire control system, engineers can install a communication card to increase system connectivity and support additional automation requirements.
Its modular design allows easier installation, maintenance and future upgrades.
For industrial automation projects, the TSXSCP111 helps improve system flexibility, enhance data communication efficiency and support more advanced control solutions.
4. How should the Schneider TSXSCP111 be installed and configured?
Before installation, technicians should confirm that the TSXSCP111 is compatible with the existing Schneider Modicon Premium PLC system.
During installation, the communication card should be inserted correctly into the dedicated PCMCIA slot and securely connected.
After hardware installation, communication parameters should be configured according to the connected equipment and network requirements.
The system should then be tested to verify that the PLC can communicate correctly with external devices.
Proper installation and configuration help ensure reliable communication performance and reduce potential connection problems.
5. How can communication faults on the Schneider TSXSCP111 be diagnosed?
When communication problems occur with the TSXSCP111, troubleshooting should begin by checking the card installation status and communication connections.
Technicians should verify that communication cables are properly connected and that the connected devices are operating normally.
The communication settings in the PLC configuration software should also be reviewed to ensure they match the requirements of the connected equipment.
If the problem continues, system diagnostic information can be checked to identify communication errors or configuration issues.
A systematic inspection of hardware connections, software parameters and device status can help locate faults efficiently.
6. How can the reliability of the Schneider TSXSCP111 PCMCIA Card be improved?
To maintain reliable operation, the Schneider TSXSCP111 should be installed in a suitable industrial control environment.
The PLC cabinet should provide protection against dust, moisture, excessive vibration and electromagnetic interference.
Regular maintenance should include checking communication status, reviewing diagnostic information and verifying that connected devices operate correctly.
Keeping updated communication configuration records can also help technicians quickly restore system operation when problems occur.
Proper installation and preventive maintenance improve communication stability and reduce unexpected downtime.
7. What industries commonly use the Schneider TSXSCP111 PCMCIA Card?
The Schneider TSXSCP111 is widely used in industrial automation systems that require PLC communication expansion.
Common application areas include manufacturing equipment, automotive production, energy management, water treatment, process industries, infrastructure control and factory automation systems.
In these industries, the communication card helps connect PLC controllers with external devices, enabling data monitoring, system integration and automated control.
Its flexible communication capability makes it suitable for various industrial control applications.
8. What should be considered when replacing the Schneider TSXSCP111 PCMCIA Card?
Before replacing the Schneider TSXSCP111, technicians should back up the PLC program and record all communication configuration settings.
During maintenance, the system should be placed in a safe condition before removing the existing communication card.
After installing the replacement TSXSCP111, engineers should confirm that the card is correctly recognized by the PLC system.
A communication test should then be performed to verify that data exchange with connected devices is functioning normally.
Following a proper replacement procedure helps minimize system downtime and ensures stable operation of the industrial automation network.
Schneider TSXSCP111 PCMCIA Card is in stock. Please contact us for a quick quote and competitive pricing.
