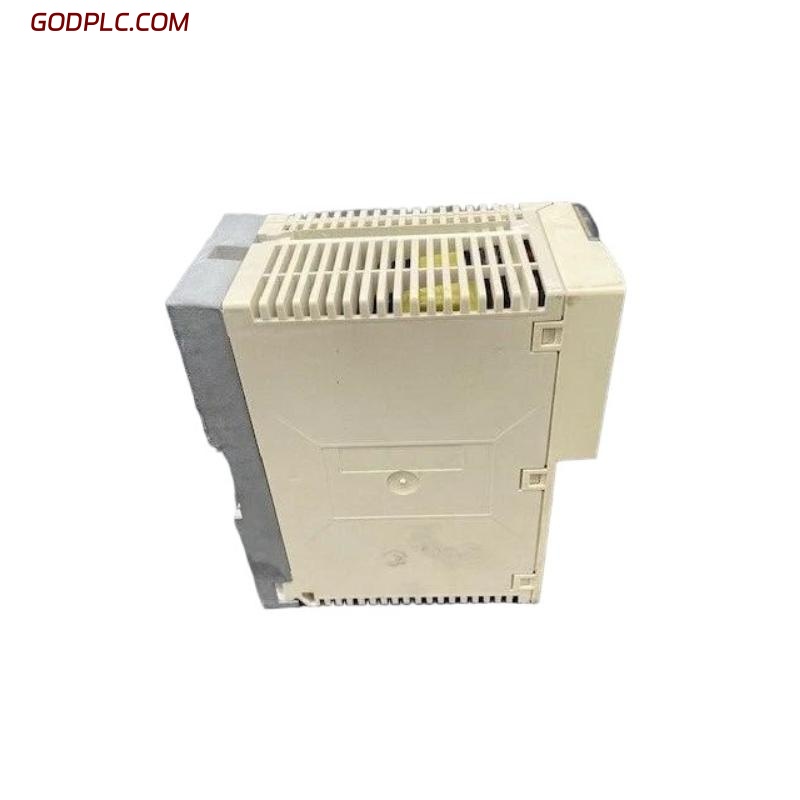

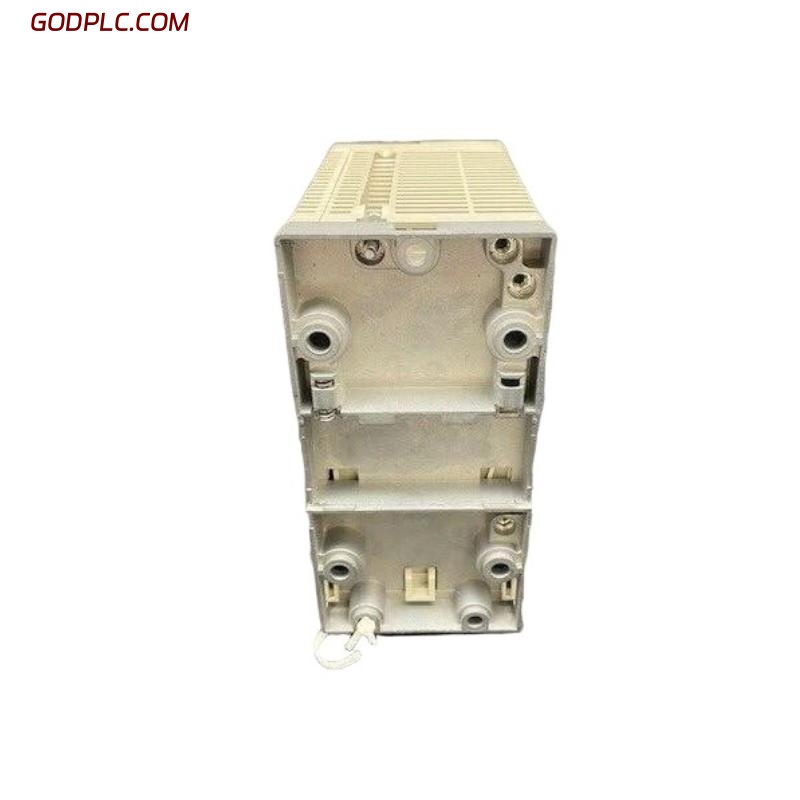

Schneider TSXSUP1051 Ethernet TCP/IP Module
Product Overview
The Schneider TSXSUP1051 Ethernet TCP/IP Module is designed to provide seamless Ethernet connectivity for Schneider’s Modicon programmable logic controllers (PLCs). As part of the Modicon TSX series, this module enables communication via TCP/IP protocol, allowing for efficient data transfer between industrial automation systems and remote devices over an Ethernet network. Ideal for applications in manufacturing, process control, and other industrial environments, the TSXSUP1051 ensures real-time data exchange, system monitoring, and control at a high performance level.
With its robust Ethernet communication capabilities, the TSXSUP1051 enhances system flexibility, allowing users to integrate various devices and networks for streamlined communication and control. The module supports both standard Ethernet and TCP/IP protocols, offering compatibility with a wide range of devices and systems.
Key Features
-
Seamless Integration: Easily integrates with Modicon PLC systems for enhanced network communication.
-
High-Speed Data Transfer: Supports fast and reliable Ethernet communication for real-time monitoring and control.
-
Wide Compatibility: Supports a wide range of devices and networks, ensuring flexibility in system design.
-
Advanced Network Diagnostics: Includes built-in diagnostics for monitoring network health and troubleshooting communication issues.
-
Secure Communication: Ensures secure data transfer over TCP/IP networks, minimizing the risk of data breaches.
-
User-Friendly Configuration: Simplifies setup and configuration with intuitive software tools.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size:60 × 180 × 260 mm |
| Weight | 0.34 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | TSXSUP1051 |
| Part Number | 140XTSXSUP1051 |
| Module Type | Ethernet TCP/IP Communication Module |
| Mounting | Panel or DIN Rail Mount |
| Communication Protocol | TCP/IP, Ethernet |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 Network Compatibility
| Item | Specification |
|---|---|
| Ethernet Standard | IEEE 802.3 |
| Supported Networks | TCP/IP-based Ethernet networks |
| Communication Speed | 10/100 Mbps |
| Network Topology | Star, Tree, and Bus topology |
Industry Applications
-
Manufacturing Automation: Enables real-time data exchange between PLCs and devices, improving production efficiency and control.
-
Process Control: Supports high-speed communication in process monitoring systems, ensuring seamless control of industrial processes.
-
Building Automation: Integrates building systems like HVAC, lighting, and security for unified control via Ethernet.
-
Energy Management: Facilitates integration of energy monitoring devices into centralized control systems for better management of energy consumption.
-
Water Treatment: Provides communication between remote field devices and centralized control systems, ensuring optimal operation of water treatment plants.
The Schneider TSXSUP1051 Ethernet TCP/IP Module provides robust and high-performance Ethernet communication for Modicon PLC systems. With its wide compatibility, advanced diagnostics, and secure data transfer capabilities, it is an ideal solution for a range of industrial applications where seamless network integration is essential for efficient automation and control.
Schneider TSXSUP1051 Ethernet TCP/IP Module is in stock. Please contact us for a quick quote and competitive pricing.
