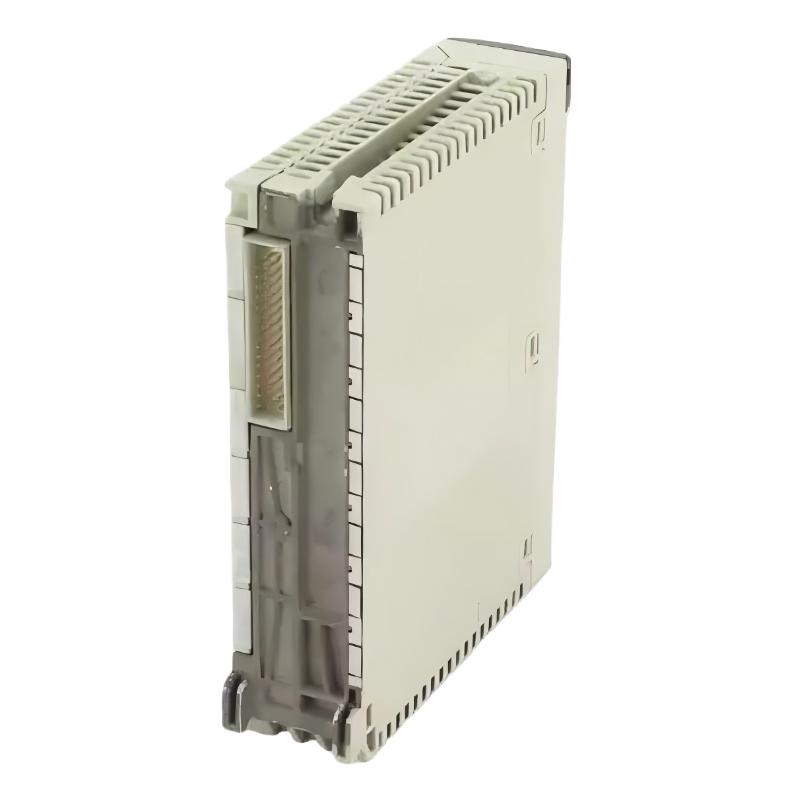

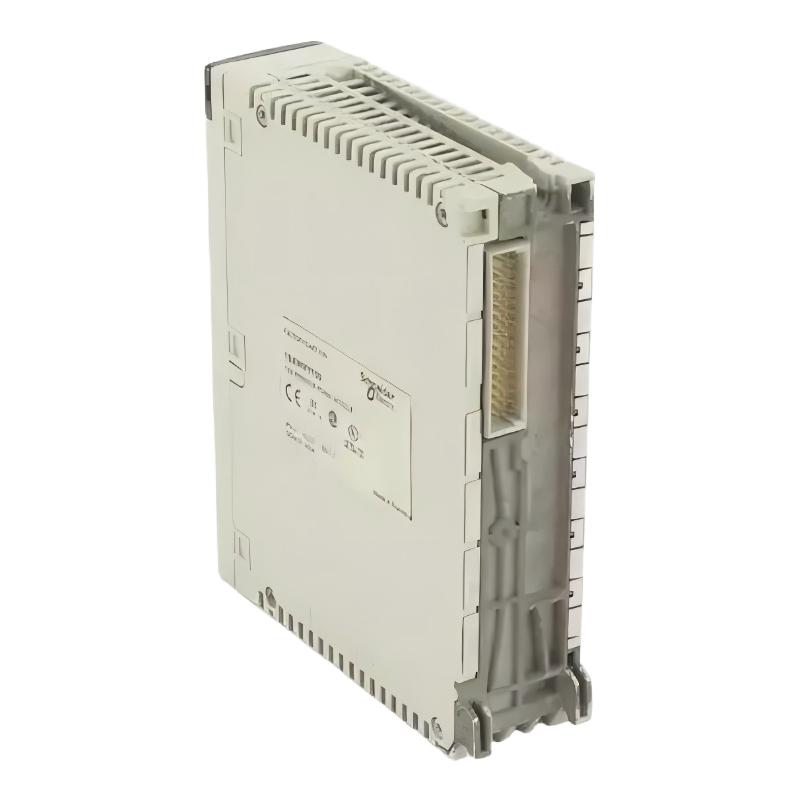

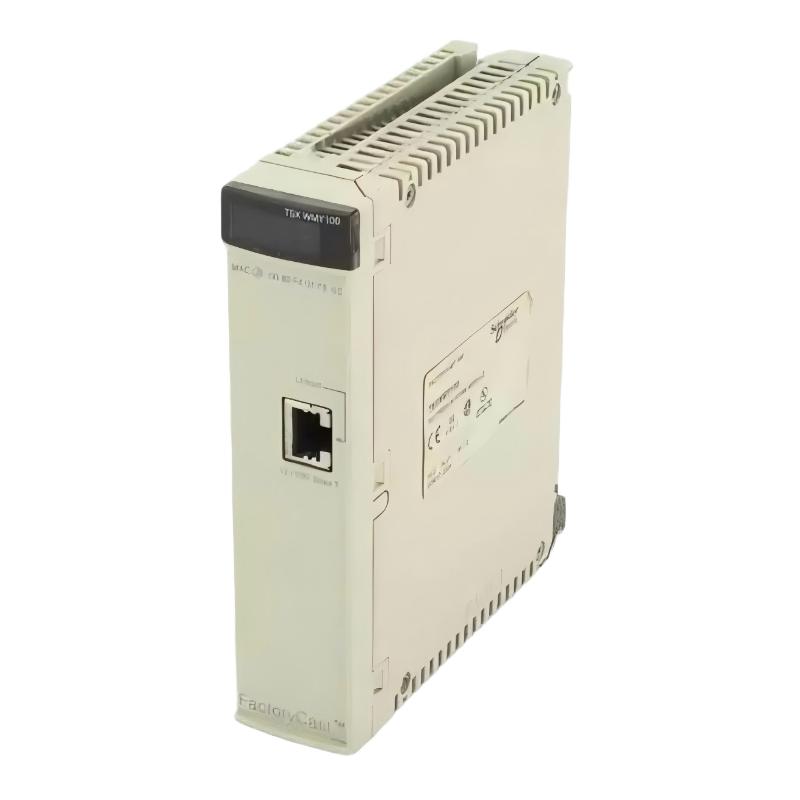

1. What is the main function of the TSXWMY100 Ethernet TCP/IP module?

The TSXWMY100 is designed to provide Ethernet TCP/IP communication capability for Modicon TSX PLC systems. Its primary function is to enable data exchange between PLC controllers and external systems such as SCADA platforms, HMI stations, and other PLCs. By converting internal PLC data into standardized Ethernet communication, it allows industrial systems to integrate into modern networked architectures, supporting real-time monitoring, control, and data acquisition across distributed automation environments.

2. How does this module improve industrial communication systems?

This module significantly enhances communication speed, flexibility, and system integration capability. Traditional PLC systems often rely on proprietary or limited communication protocols, whereas Ethernet TCP/IP provides a universal industrial networking standard. With TSXWMY100, data can be transmitted more efficiently across different layers of the automation system, enabling centralized monitoring, remote diagnostics, and easier integration with enterprise-level systems such as MES and ERP platforms.

3. What types of systems can connect through this module?

The TSXWMY100 allows connectivity between PLC systems, SCADA control stations, engineering workstations, and distributed I/O systems. It also supports communication with higher-level industrial management systems. This makes it suitable for multi-layer automation architectures where real-time data sharing between field devices and supervisory systems is required for process coordination and production optimization.

4. How is the module configured in a PLC system?

Configuration is typically performed through Schneider engineering software used for Modicon TSX systems. Engineers assign network parameters such as IP address, communication parameters, and data exchange settings. Once configured, the module becomes part of the PLC communication structure, enabling it to send and receive data packets over the Ethernet network. Proper configuration ensures stable and deterministic communication behavior in industrial environments.

5. Why is Ethernet TCP/IP important in PLC systems?

Ethernet TCP/IP is important because it provides a standardized, high-speed, and scalable communication method for industrial automation systems. It allows different devices from various vendors to communicate within the same network infrastructure. In PLC systems, this means faster data exchange, easier system integration, and improved scalability for expanding production lines or connecting remote facilities.

6. Can this module be used for remote monitoring?

Yes, the TSXWMY100 supports remote monitoring capabilities by enabling PLC data to be accessed over Ethernet networks. Operators can monitor system status, process variables, and diagnostics from remote locations using SCADA or HMI systems. This improves operational efficiency by allowing centralized supervision of distributed industrial assets without requiring physical presence at the control cabinet.

7. What role does the module play in system architecture?

Within a TSX PLC system, the TSXWMY100 acts as a communication gateway. It bridges the internal PLC backplane data with external Ethernet networks, allowing seamless data exchange between control-level and supervisory-level systems. This role is essential in modern automation architectures where data transparency and cross-system communication are required for optimized production control.

8. What practices help ensure stable Ethernet communication performance?

Stable performance depends on proper network design, correct IP configuration, and adherence to industrial networking standards. Shielded Ethernet cables should be used to reduce electromagnetic interference, and network topology should be designed to avoid congestion or unnecessary traffic. Regular monitoring of network diagnostics helps detect latency or packet loss early. Additionally, maintaining proper grounding and isolating industrial networks from office IT networks improves communication stability in harsh industrial environments.
