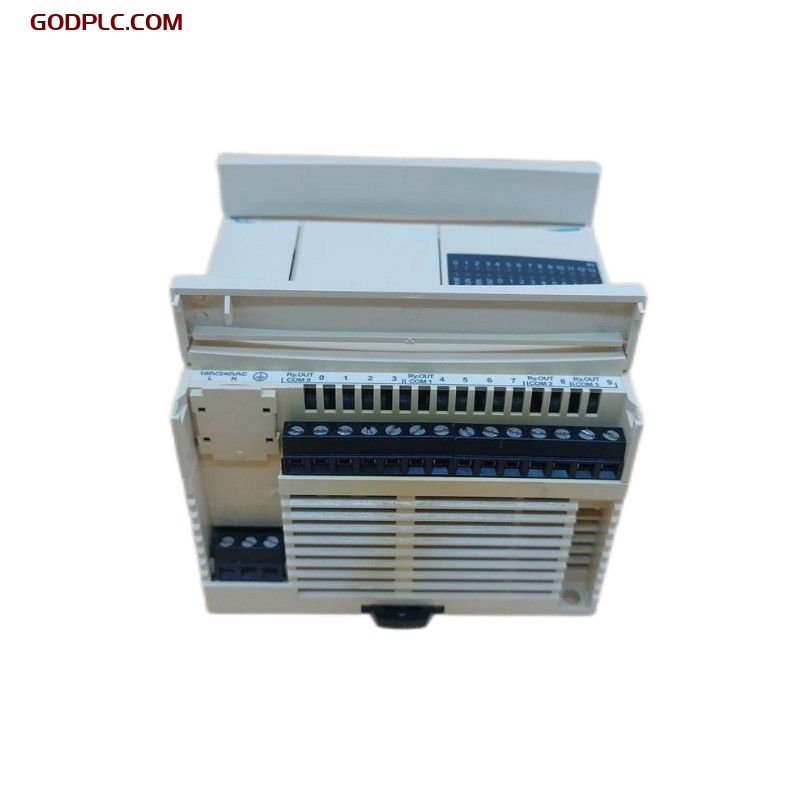

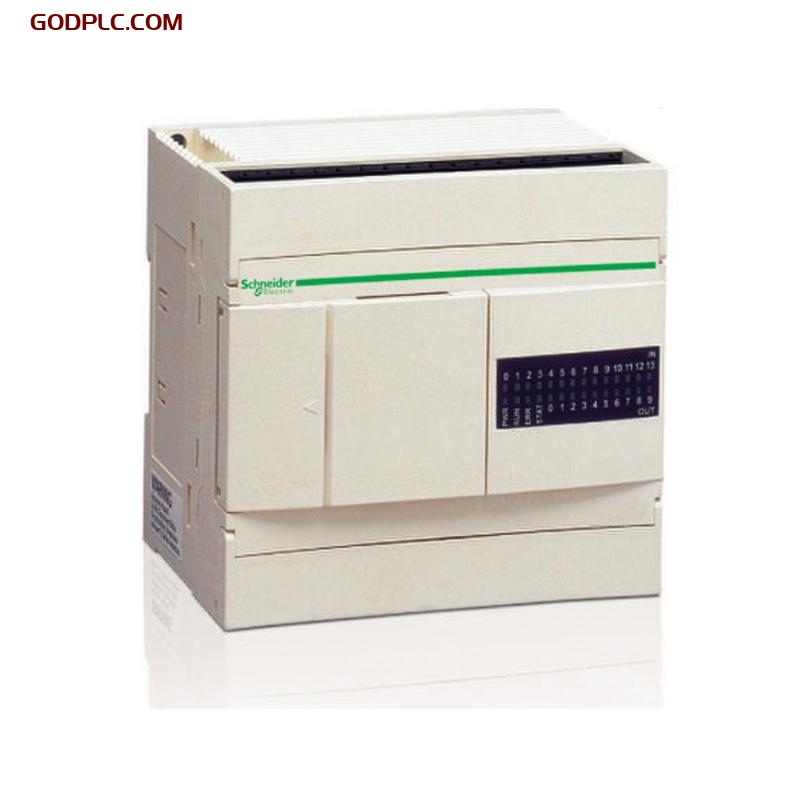

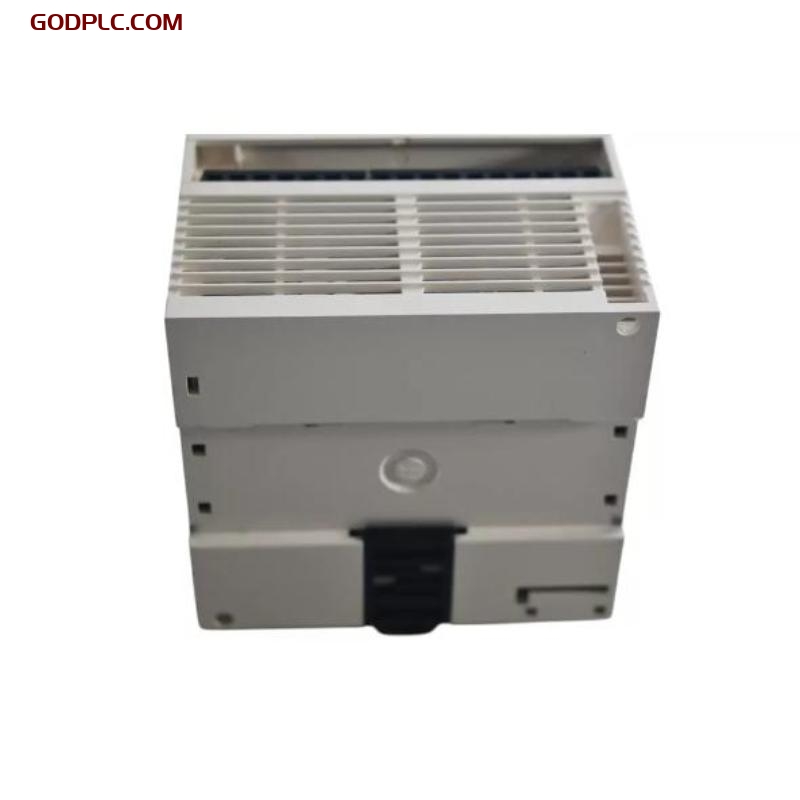

Schneider TWDLCAA240RF Compact Basic Controller
Product Overview
The Schneider TWDLCAA240RF is a compact basic controller designed to provide essential control and automation capabilities in small to medium-sized industrial applications. Featuring the Modicon TWD series, this controller is highly flexible, allowing it to be easily integrated into a wide range of systems. The TWDLCAA240RF is optimized for ease of use and offers a high-performance solution for controlling processes in industries such as manufacturing, building automation, and infrastructure.
With 16 digital inputs and 8 digital outputs, the TWDLCAA240RF can handle a variety of basic control tasks, from simple machine control to more complex applications that require a programmable logic controller (PLC). Its modular design allows for expansion, and it can integrate seamlessly with other Schneider Electric automation products, offering a scalable solution for a variety of control systems.
Key Features
-
Compact Design: Small form factor ideal for applications with limited space without compromising performance.
-
Integrated Communication: Built-in Ethernet port for communication with other automation devices, allowing for easy network integration.
-
Flexible I/O Configuration: Features 16 digital inputs and 8 digital outputs, offering flexibility for various control applications.
-
Expandable System: Allows for future expansion with the addition of extra I/O modules, enabling system growth as needed.
-
Real-Time Processing: High-speed processing to ensure real-time control and monitoring of industrial systems.
-
Easy Programming: Compatible with EcoStruxure™ Control Expert and SoMachine Basic, providing user-friendly programming environments for fast system setup.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95 x 90 x70 mm |
| Weight | Package weight 0.443kg |
3.2 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC ±20% |
| Power Consumption | 3 W |
| Operating Temp. | -25°C to +55°C |
| Storage Temp. | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.3 I/O and Communication
| Item | Specification |
|---|---|
| Digital Inputs | 16 (24 V DC) |
| Digital Outputs | 8 (Relay outputs) |
| Communication Ports | 1 x Ethernet (Modbus TCP/IP) |
| Programming | EcoStruxure™ Control Expert or SoMachine Basic |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Modicon TWD Series Automation Systems |
| Software | EcoStruxure™ Control Expert or SoMachine Basic |
| Expansion Modules | Compatible with Modicon TWD Expansion I/O |
Industry Applications
-
Manufacturing: Ideal for controlling machines, conveyors, and small production lines, optimizing throughput and minimizing downtime.
-
Building Automation: Used for HVAC systems, lighting control, and security systems, ensuring efficient building operation.
-
Infrastructure: Suitable for traffic management systems, water treatment facilities, and other infrastructure monitoring and control systems.
-
Energy: Helps control power distribution and monitoring in energy management systems for small facilities and substations.
-
Automated Systems: Integrates with other Schneider Electric automation devices to provide centralized control for complex automation systems.
The Schneider TWDLCAA240RF Compact Basic Controller is a versatile and powerful solution for a wide range of industrial automation needs. Its compact design, real-time processing, and flexible I/O configuration make it an excellent choice for controlling simple to moderately complex systems. Its easy integration with other Schneider Electric products allows for future scalability and expansion, ensuring it can meet the evolving needs of industrial environments.
