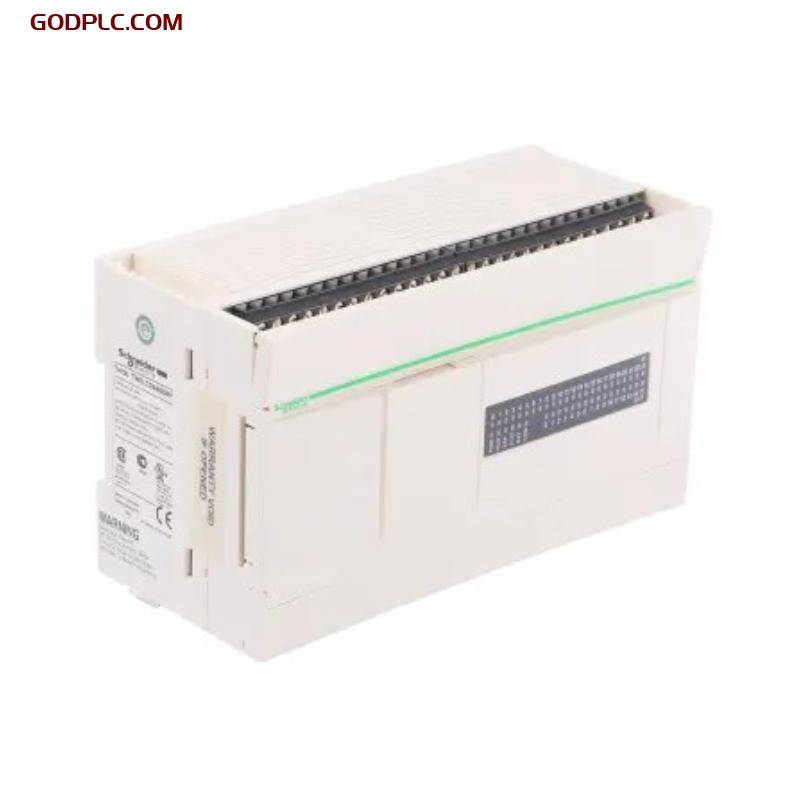

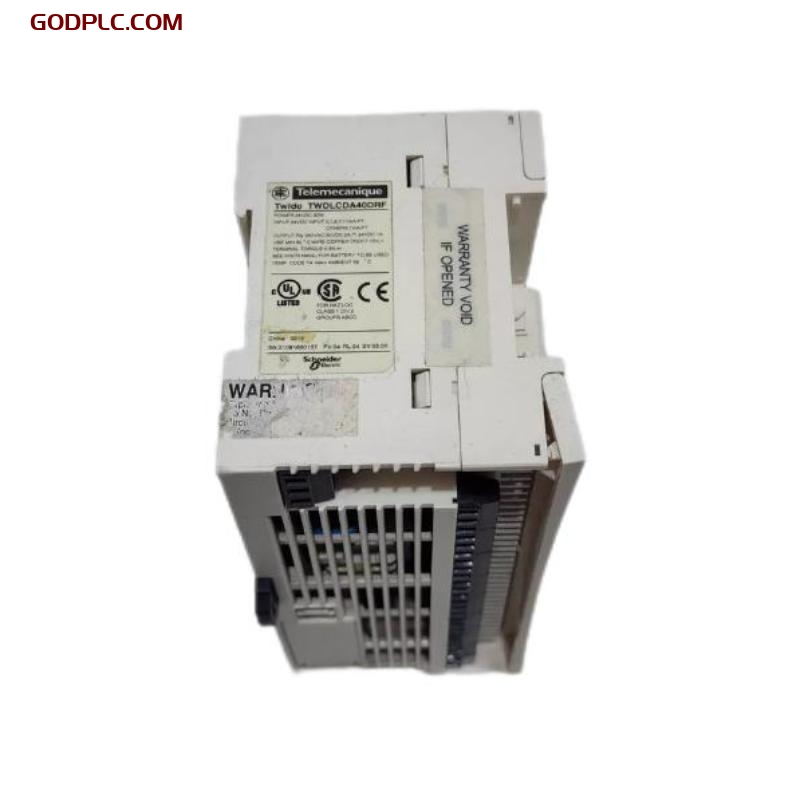

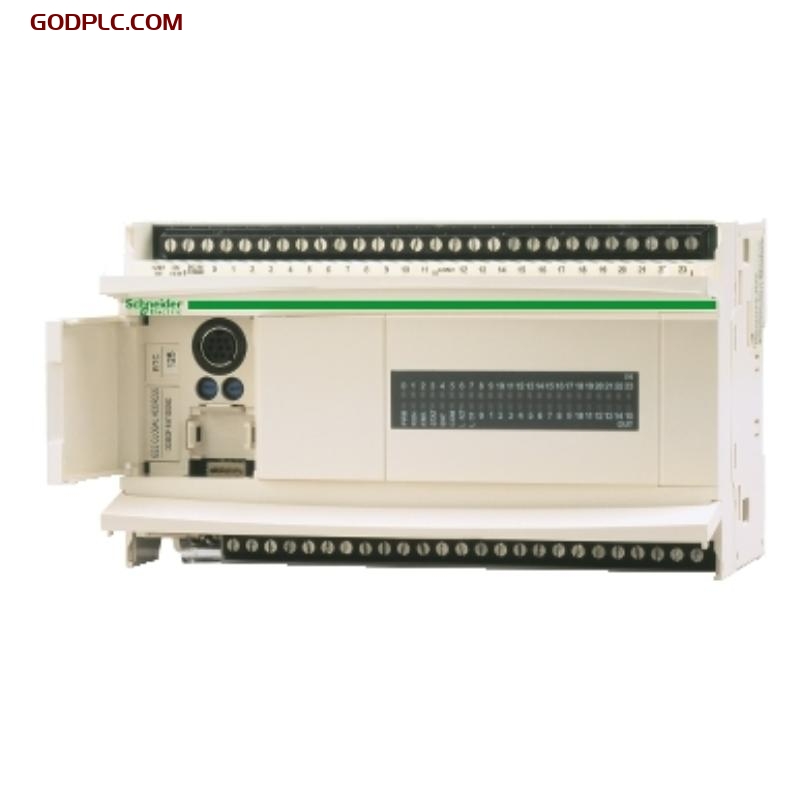

Schneider TWDLCDA40DRF Compact Basic Controller
Product Overview
The Schneider TWDLCDA40DRF is a highly efficient Compact Basic Controller designed to provide advanced automation control capabilities in various industrial applications. Part of the Modicon TWD series, this controller offers a flexible and modular design to accommodate both simple and complex control tasks. The TWDLCDA40DRF is equipped with a range of I/O points and a high-performance processor, making it ideal for controlling machinery, systems, and processes within manufacturing plants, infrastructure facilities, and building automation systems.
The controller supports seamless integration with other Schneider Electric devices and is highly configurable, enabling it to address the needs of various industries. With features such as Ethernet communication and an expandable I/O system, the TWDLCDA40DRF ensures maximum operational efficiency and scalability for future growth.
Key Features
-
Compact Form Factor: Designed for applications where space is limited, offering full control in a compact device.
-
Ethernet Communication: Equipped with Modbus TCP/IP support for efficient communication with other devices and systems.
-
Scalable and Modular: The controller can be expanded with additional I/O modules to meet the growing needs of industrial automation applications.
-
High-Speed Processing: Real-time processing of control signals, ensuring minimal response time for operational commands.
-
Flexible I/O Configuration: Includes a variety of digital inputs and outputs and can be integrated with analog inputs and outputs for advanced control applications.
-
User-Friendly Programming: Compatible with EcoStruxure™ Control Expert or SoMachine Basic, offering intuitive programming environments for rapid deployment.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95 x 90 x70 mm |
| Weight | 0.525 kg |
3.2 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC ±20% |
| Power Consumption | 3 W |
| Operating Temp. | -25°C to +55°C |
| Storage Temp. | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.3 I/O and Communication
| Item | Specification |
|---|---|
| Digital Inputs | 16 (24 V DC) |
| Digital Outputs | 8 (Relay outputs) |
| Communication Ports | 1 x Ethernet (Modbus TCP/IP) |
| Programming | EcoStruxure™ Control Expert or SoMachine Basic |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Modicon TWD Series Automation Systems |
| Software | EcoStruxure™ Control Expert or SoMachine Basic |
| Expansion Modules | Compatible with Modicon TWD Expansion I/O |
Industry Applications
-
Manufacturing: Used to control machinery, assembly lines, conveyors, and production cells in small to medium-sized facilities.
-
Building Automation: Integrates with HVAC, lighting, and security systems to provide centralized control for energy management and operational efficiency.
-
Infrastructure: Suitable for monitoring and controlling systems in water treatment plants, power distribution, and traffic control systems.
-
Energy: Ideal for use in energy management systems for small facilities, optimizing power consumption and reducing operational costs.
-
Small-to-Medium Scale Automation Systems: Provides the scalability required for various automation projects across different industries.
The Schneider TWDLCDA40DRF Compact Basic Controller is a powerful and versatile solution for a wide range of industrial applications. It offers an easy-to-use, compact control system with real-time processing capabilities and flexible I/O configurations. Its seamless integration with Schneider Electric’s broader automation product line allows for future expansion, making it an ideal choice for small to medium-sized automation systems. With its proven reliability, easy integration, and intuitive programming, the TWDLCDA40DRF is designed to meet the evolving demands of modern industrial environments.
Schneider TWDLCDA40DRF Compact Basic Controller is in stock. Please contact us for a quick quote and competitive pricing.
