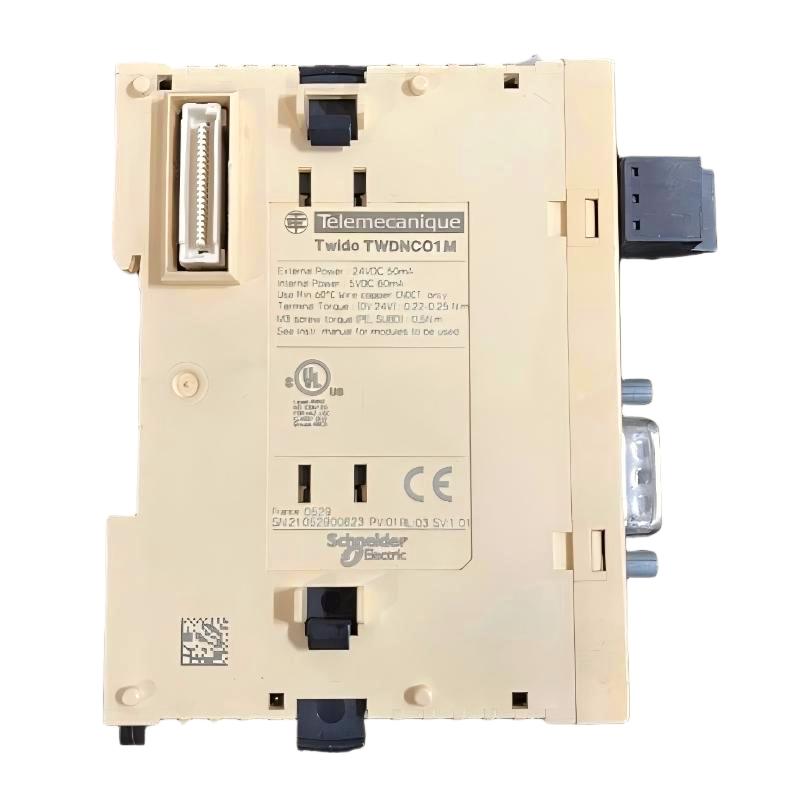

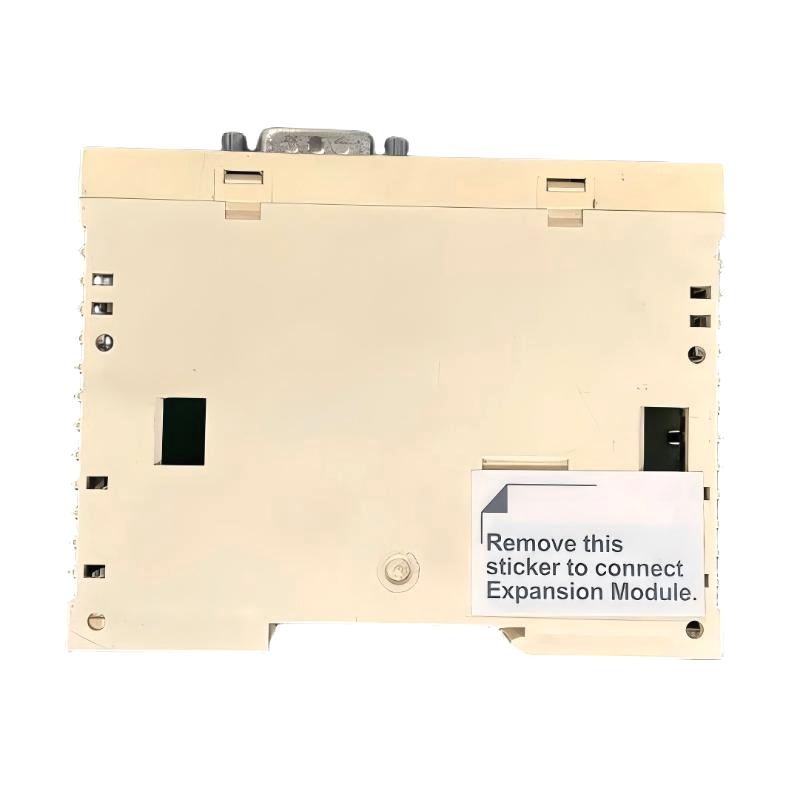

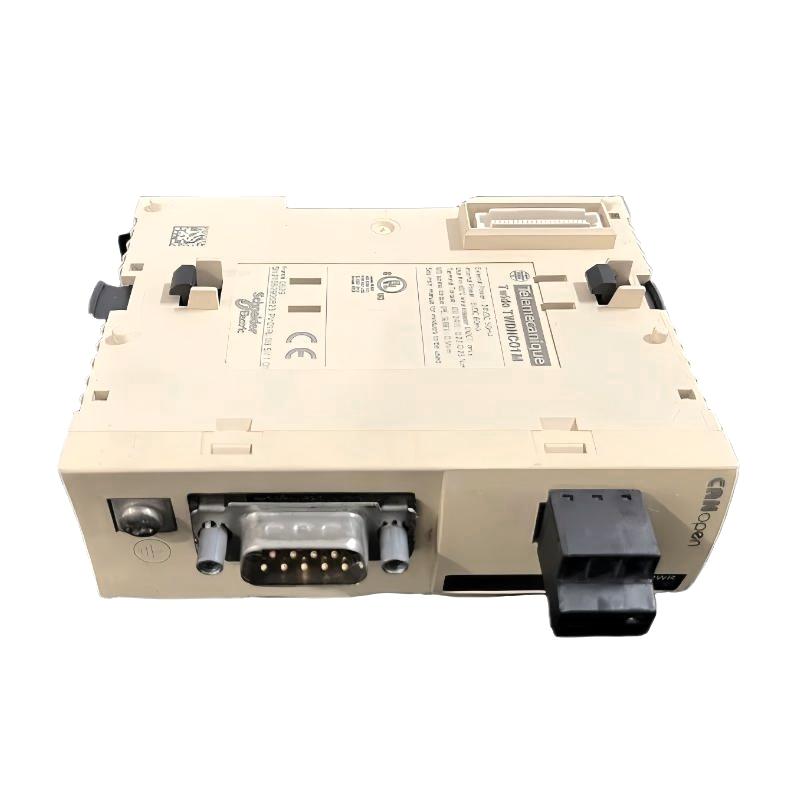

Schneider TWDNCO1M CANopen Bus Master Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TWDNCO1M |
| Product Type | CANopen Bus Master Module |
| Series | Schneider Twido |
| Module Type | CANopen Communication Expansion Module |
| Application | Used to provide CANopen network communication capability for Schneider Twido PLC systems |
| Main Function | Enables Twido controllers to communicate with CANopen devices and manage distributed field devices |
| Communication Protocol | CANopen |
| Communication Interface | CANopen bus interface |
| Network Function | Acts as a CANopen master for controlling and exchanging data with connected slave devices |
| Connected Devices | Supports CANopen-compatible sensors, drives, I/O modules, and other field devices |
| Data Exchange Method | Cyclic and event-driven communication between PLC and CANopen devices |
| Communication Management | Supports CANopen network configuration and device management functions |
| Integration Method | Installed as an expansion module on Schneider Twido PLC systems |
| Programming Method | Configured through Schneider Twido programming software |
| Diagnostic Function | Supports communication status monitoring and fault diagnosis |
| Expansion Capability | Extends Twido PLC communication capability through CANopen networking |
| Installation Method | Mounted on Twido modular PLC systems |
| System Compatibility | Schneider Twido PLC series |
| Operating Environment | Suitable for industrial automation communication applications |
| Typical Applications | Motion control systems, distributed I/O networks, machine automation, and industrial field communication |
| Product Features | Reliable CANopen communication, flexible network expansion, efficient data exchange, and easy PLC integration |
| Dimensions | 94.5 × 84.6 × 33.5 mm |
| Weight | 0.1 kg |
FAQ
1. What is the primary function of the Schneider TWDNCO1M CANopen Bus Master Module?
The Schneider TWDNCO1M CANopen Bus Master Module is a communication expansion module designed for Schneider Twido PLC systems.
Its main function is to provide CANopen master communication capability, allowing the PLC to exchange data with distributed CANopen devices.
The module enables Twido controllers to manage field devices such as remote I/O modules, sensors, and drives through a CANopen network.
By expanding communication capability, the TWDNCO1M improves system flexibility and supports more advanced automation applications.
It is widely used in machine automation and distributed control systems.
2. What type of devices can be connected to the TWDNCO1M?
The TWDNCO1M supports CANopen-compatible field devices.
Typical connected devices include remote I/O modules, motor drives, intelligent sensors, motion control devices, and other industrial automation components.
The module allows the Twido PLC to exchange control commands and status information with these devices.
Before integration, users should confirm that connected equipment supports the required CANopen communication features.
Proper network configuration ensures reliable communication between the PLC and field devices.
3. How does the TWDNCO1M communicate with CANopen devices?
The TWDNCO1M operates as a CANopen master within the network.
It manages communication with connected slave devices by exchanging process data and device information according to CANopen communication standards.
The module supports cyclic data exchange for real-time control applications and event-based communication for device status changes.
Through proper configuration, the PLC can monitor and control multiple distributed devices efficiently.
This makes it suitable for industrial systems requiring reliable field communication.
4. What are the common faults of the TWDNCO1M?
Common TWDNCO1M problems include communication failure, incorrect device detection, network configuration errors, and unstable data exchange.
Possible causes include incorrect CANopen parameters, wiring problems, incorrect node settings, or incompatible slave devices.
When a fault occurs, users should check network status, device configuration, and communication parameters.
The PLC program and CANopen network settings should also be reviewed.
A systematic troubleshooting process can help quickly locate communication issues.
5. How should the TWDNCO1M be configured in a Twido PLC system?
The TWDNCO1M should be configured using Schneider Twido programming software.
Users need to define CANopen network parameters, configure connected slave devices, and set communication data mapping.
After configuration, the application program should be downloaded to the PLC and tested.
Engineers should verify that all CANopen devices are correctly recognized and communicating.
Proper configuration ensures stable operation of the entire automation network.
6. How can CANopen communication problems with the TWDNCO1M be diagnosed?
When CANopen communication problems occur, first check the module status and PLC diagnostic information.
Verify CANopen network parameters, device addresses, and communication settings.
The physical network wiring and connected device status should also be inspected.
If devices are not responding, check whether the slave devices are powered correctly and configured properly.
Following a step-by-step diagnostic procedure can effectively resolve communication failures.
7. Why is the TWDNCO1M important in industrial automation systems?
The TWDNCO1M provides an efficient communication solution for connecting Twido PLC systems with CANopen field devices.
It allows distributed devices to exchange data with the PLC, improving system scalability and reducing wiring complexity.
CANopen communication is widely used in industrial automation because of its reliability and real-time data handling capability.
The module helps build flexible automation networks for machines and production systems.
It is an important component for expanding Twido PLC communication functions.
8. How can the service life of the TWDNCO1M be extended?
To extend the service life of the TWDNCO1M, users should maintain proper installation and operating conditions.
Regularly inspect CANopen communication wiring, connectors, and network performance.
Ensure that the PLC system operates in a stable industrial environment and avoid excessive electrical interference.
Backup communication configuration parameters to simplify recovery during maintenance.
With proper maintenance and network management, the TWDNCO1M can provide reliable long-term performance in automation systems.
Schneider TWDNCO1M CANopen Bus Master Module is in stock. Please contact us for a quick quote and competitive pricing.
