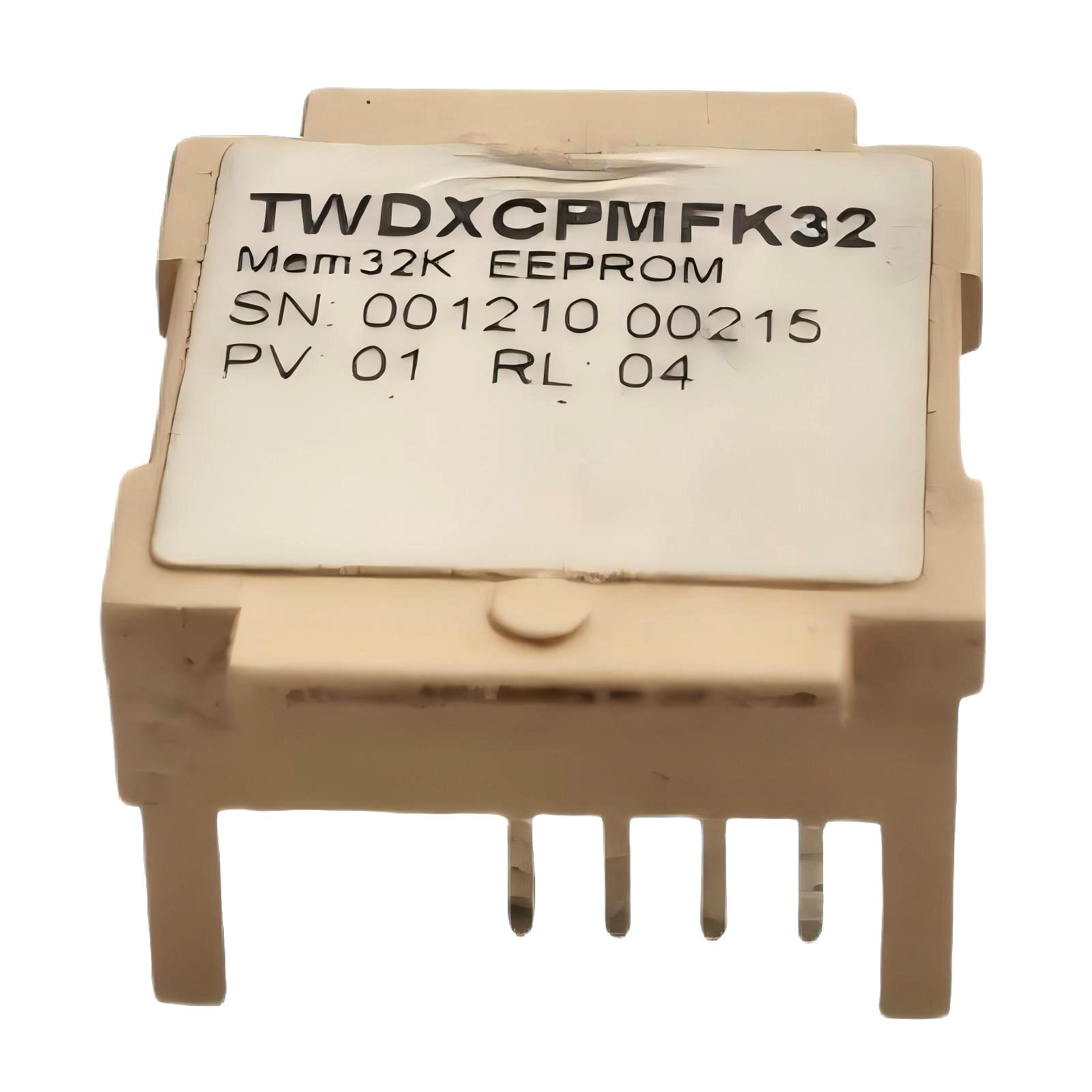

Schneider TWDXCPMFK32 Memory Cartridge
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TWDXCPMFK32 |
| Product Type | Memory Cartridge |
| Manufacturer | Schneider Electric |
| Series | Twido PLC Series |
| Function | Provides program storage, backup, and data transfer capability for Twido PLC systems |
| Compatible System | Schneider Electric Twido automation control system |
| Storage Type | PLC program memory cartridge |
| Storage Function | Used for saving, copying, and restoring user applications and PLC configuration data |
| Main Purpose | PLC program backup, application duplication, system maintenance, and quick recovery |
| Installation Method | Plug-in installation |
| Installation Location | Twido PLC controller memory cartridge interface |
| Data Transfer Method | Data read/write between PLC controller and memory cartridge |
| Configuration Method | Managed through TwidoSuite programming software |
| Supported Functions | Program backup, application copy, system maintenance, and fast equipment replacement |
| Data Storage Method | Non-volatile memory storage |
| Application Areas | Industrial automation, machine control, packaging systems, production line control, and equipment maintenance |
| Operating Environment | Industrial automation control environment |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10% to 95%, non-condensing |
| Key Feature | Provides a convenient PLC program storage and backup solution to improve maintenance efficiency |
| Material | Industrial-grade electronic components and protective housing |
| Dimensions | 70 × 45 × 25 mm |
| Weight | 0.005 kg |
FAQ
1. What is the primary function of the Schneider TWDXCPMFK32 Memory Cartridge?
The Schneider TWDXCPMFK32 Memory Cartridge is designed for program storage, backup, and recovery applications in Twido PLC systems.
It allows engineers to save PLC user programs, configuration settings, and application data, making it easier to maintain and manage automation systems.
During industrial equipment maintenance, the TWDXCPMFK32 helps reduce downtime by allowing quick restoration of PLC programs without requiring complete reprogramming.
It is especially useful when replacing controllers, upgrading equipment, or deploying identical automation systems across multiple machines.
2. What applications are suitable for the TWDXCPMFK32 Memory Cartridge?
The TWDXCPMFK32 is mainly used in automation projects based on Schneider Electric Twido PLC systems.
Typical applications include machine control systems, packaging equipment, conveyor systems, automated assembly machines, and small industrial control applications.
In these systems, the memory cartridge provides a convenient method for storing PLC programs and transferring application data between controllers.
For projects requiring fast commissioning or multiple identical machines, the TWDXCPMFK32 improves programming efficiency and simplifies system management.
3. How is the TWDXCPMFK32 used for PLC program backup?
To back up a PLC program using the TWDXCPMFK32, the memory cartridge must first be installed correctly in the Twido PLC memory interface.
Using TwidoSuite programming software, engineers can transfer the PLC application program and configuration data to the memory cartridge.
After the backup process is completed, the stored program can be used for future restoration or duplication purposes.
During backup operations, it is important to maintain stable PLC power and avoid interruptions during data transfer to prevent program corruption.
4. What should be checked if the PLC cannot recognize the TWDXCPMFK32?
If the Twido PLC cannot recognize the TWDXCPMFK32 memory cartridge, the first step is to check whether the cartridge is installed correctly.
Engineers should verify that the memory cartridge model is compatible with the installed Twido PLC controller.
The PLC diagnostic information in TwidoSuite should also be checked for possible memory communication errors or data-related problems.
If the issue continues, removing and reinstalling the cartridge or checking the cartridge condition can help determine whether the problem is caused by connection issues or hardware failure.
5. Can the TWDXCPMFK32 be used for PLC program duplication?
Yes. The TWDXCPMFK32 supports PLC application duplication functions for Twido systems.
In industrial production environments, when multiple machines require the same control logic, engineers can save a completed PLC program to the memory cartridge and transfer it to other controllers.
This method reduces repeated programming work and improves efficiency during machine production and installation.
Program duplication through the memory cartridge also helps maintain consistency between different automation systems.
6. How can the reliability of TWDXCPMFK32 data storage be improved?
The reliability of TWDXCPMFK32 data storage can be improved through proper operation and maintenance practices.
During program writing or reading operations, the PLC power supply should remain stable to prevent incomplete data transfer.
The memory cartridge should also be protected from excessive vibration, electrostatic interference, and unsuitable industrial environments.
It is recommended to keep backup copies of important PLC programs and maintain proper program management procedures.
Regular data backups help reduce the risk of program loss and improve the reliability of automation system maintenance.
7. Can the TWDXCPMFK32 be used for PLC fault recovery?
Yes. The TWDXCPMFK32 can assist with PLC program recovery after controller replacement or system maintenance.
When a Twido PLC controller needs to be replaced, engineers can use the stored application program in the memory cartridge to restore the original control logic and configuration settings.
This significantly reduces the time required for reprogramming and commissioning.
After restoring the program, system testing should be performed to ensure that the control logic matches the actual machine operation requirements.
8. What are the common problems of the TWDXCPMFK32 and how can they be solved?
Common TWDXCPMFK32 issues include memory cartridge recognition failure, unsuccessful program transfer, data writing errors, and failed program restoration.
When problems occur, engineers should first check cartridge installation and verify PLC compatibility.
The integrity of stored program data should also be confirmed, and TwidoSuite diagnostic information should be reviewed for possible error messages.
If data transfer fails, the backup or restoration process should be repeated while ensuring stable PLC operation.
With correct handling, regular backups, and proper maintenance procedures, the TWDXCPMFK32 can provide reliable program storage and improve PLC system service efficiency.
Schneider TWDXCPMFK32 Memory Cartridge is in stock. Please contact us for a quick quote and competitive pricing.
