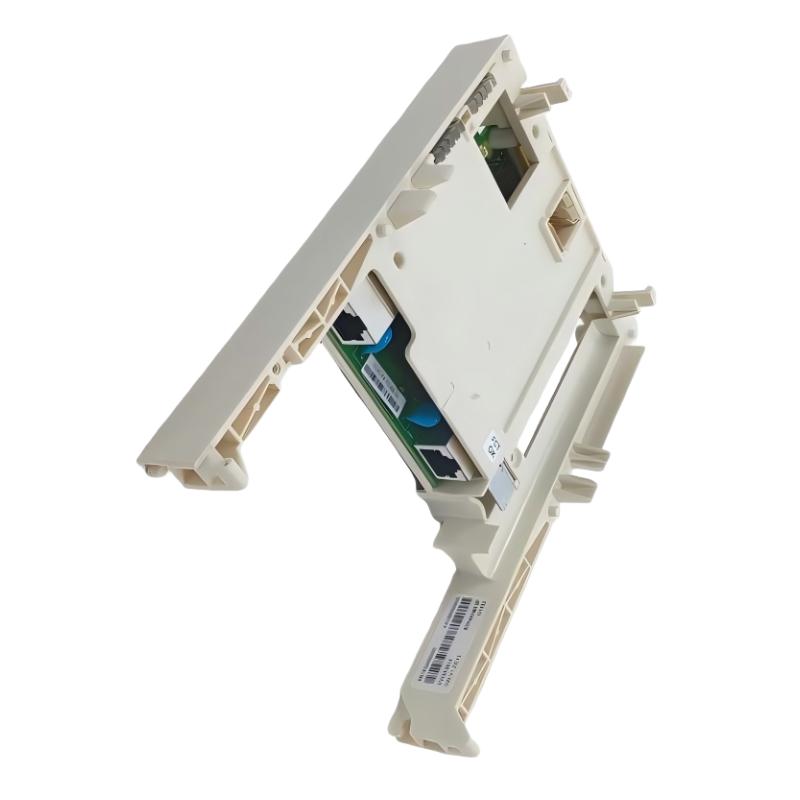

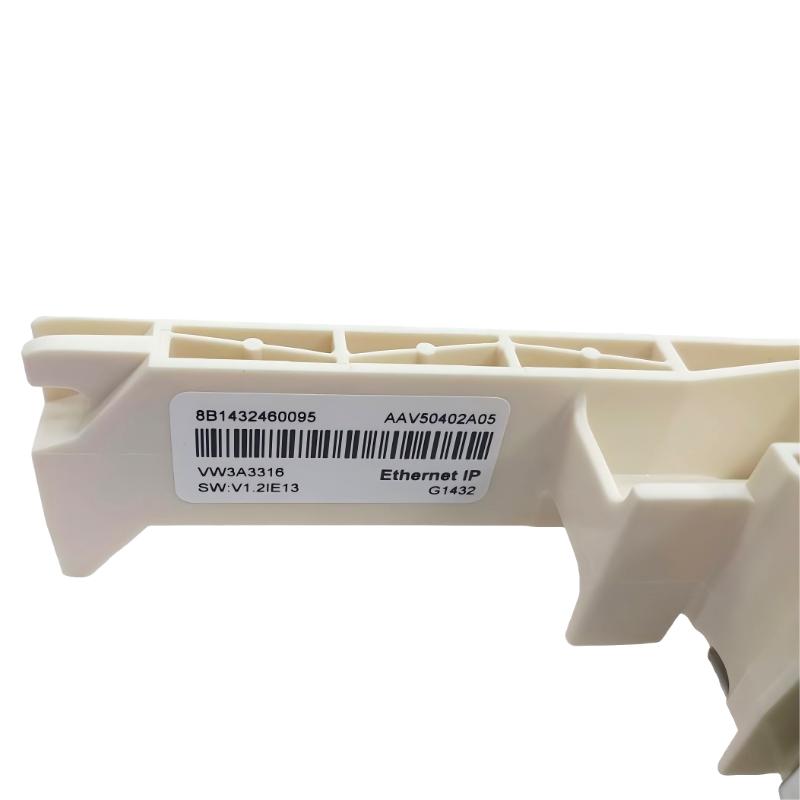

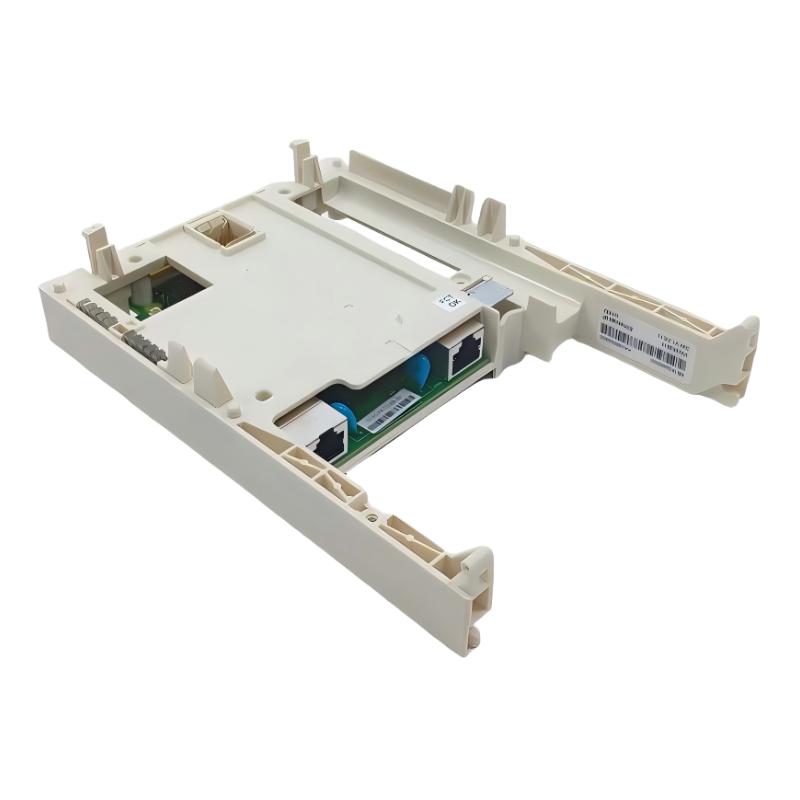

Q1: What is the main function of the Schneider VW3A3316 EtherNet/IP Communication Card?

A: The VW3A3316 is designed to integrate Schneider Electric variable speed drives into an EtherNet/IP industrial network. It enables real-time communication between a PLC and the drive, allowing remote control, monitoring, and configuration. This makes it possible to centralize motor control within a Rockwell Automation or EtherNet/IP-based architecture, improving system integration and reducing hardwired control complexity.

Q2: How does this card communicate within an EtherNet/IP network?

A: The card operates as an EtherNet/IP adapter (slave device), while the PLC acts as the scanner (master). It exchanges cyclic I/O data such as speed reference, actual motor speed, torque, and status bits. It also supports acyclic messaging for parameter access, enabling both real-time control and configuration management through standard industrial Ethernet communication.

Q3: What types of data can be exchanged with this module?

A: The communication includes process data such as run/stop commands, speed reference values, motor feedback signals, and diagnostic status information. It also allows access to configuration parameters depending on system setup. This enables full integration of the drive into automated production systems with both operational and diagnostic visibility.

Q4: Is special software required to configure the communication card?

A: No external software is strictly required. Configuration is primarily done through drive parameters and standard EtherNet/IP network tools used by the PLC system. Network settings such as IP address, communication mode, and data mapping are typically configured during commissioning to match the PLC configuration.

Q5: What are the advantages of using EtherNet/IP for drive control?

A: EtherNet/IP provides high-speed industrial Ethernet communication with standardized object models, making it ideal for integration with PLC systems, especially in Rockwell Automation environments. It simplifies wiring, supports scalable system architectures, and enables deterministic control and monitoring of multiple drives across a single network.

Q6: Can this card be used in multi-drive systems?

A: Yes, it is well suited for multi-drive architectures. Each drive equipped with a VW3A3316 can be assigned a unique IP address and integrated into the same EtherNet/IP network. This allows centralized control of multiple motors, which is commonly used in conveyor systems, packaging lines, and process automation.

Q7: What happens if network communication is lost?

A: In the event of communication loss, the drive will typically follow its configured fallback or fault response strategy. This may include stopping the motor, maintaining the last valid command, or switching to local control depending on safety settings. The module also provides diagnostic feedback to help identify network issues quickly.

Q8: What benefits does this module bring to industrial automation systems?

A: It significantly improves system integration by enabling seamless communication between drives and PLCs over standard Ethernet infrastructure. This reduces wiring complexity, enhances system scalability, and improves real-time monitoring and control capabilities. It is especially valuable in modern automated plants where centralized control and data transparency are critical.
