1. What is VW3E5001R005 used for in a SERCOS III system?

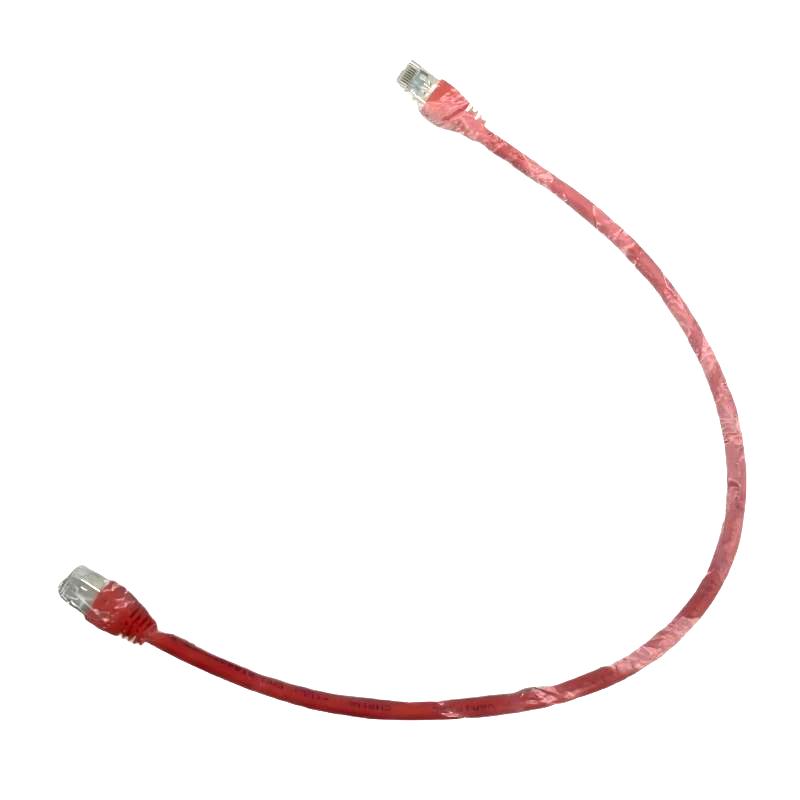

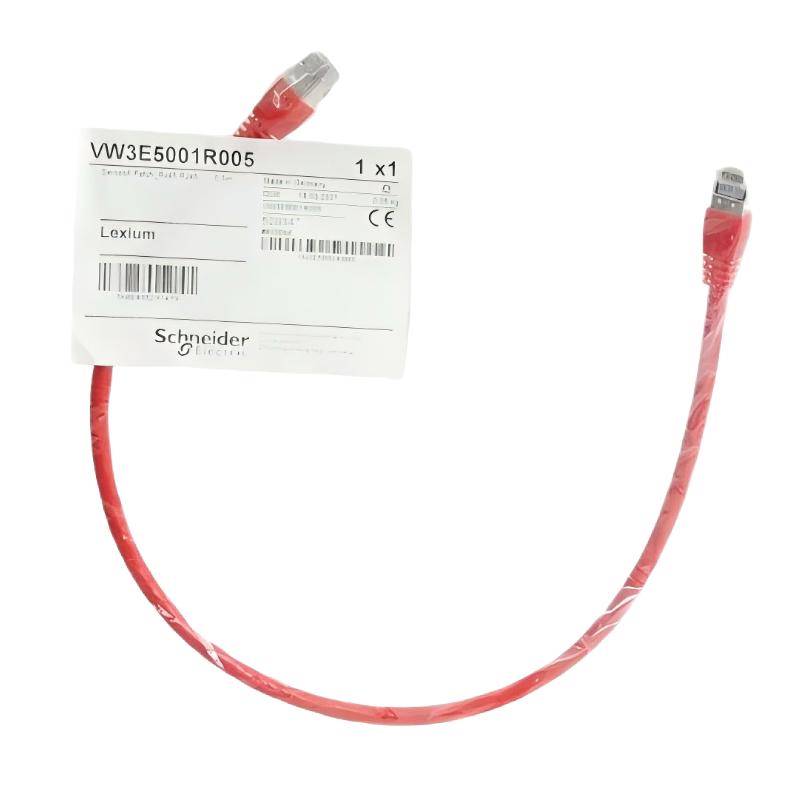

VW3E5001R005 is a preassembled SERCOS III communication cable used to connect compatible motion-control equipment. It provides a direct communication link between devices such as motion controllers, servo drives, and SERCOS III interface modules. The cable is particularly suitable for machine automation systems where deterministic communication between the controller and motion devices is required. Since both ends are already equipped with RJ45 connectors, installation does not require field assembly of communication connectors. This helps simplify cabinet wiring and reduces the possibility of incorrect connector termination during installation.

2. What type of connectors are provided on VW3E5001R005?

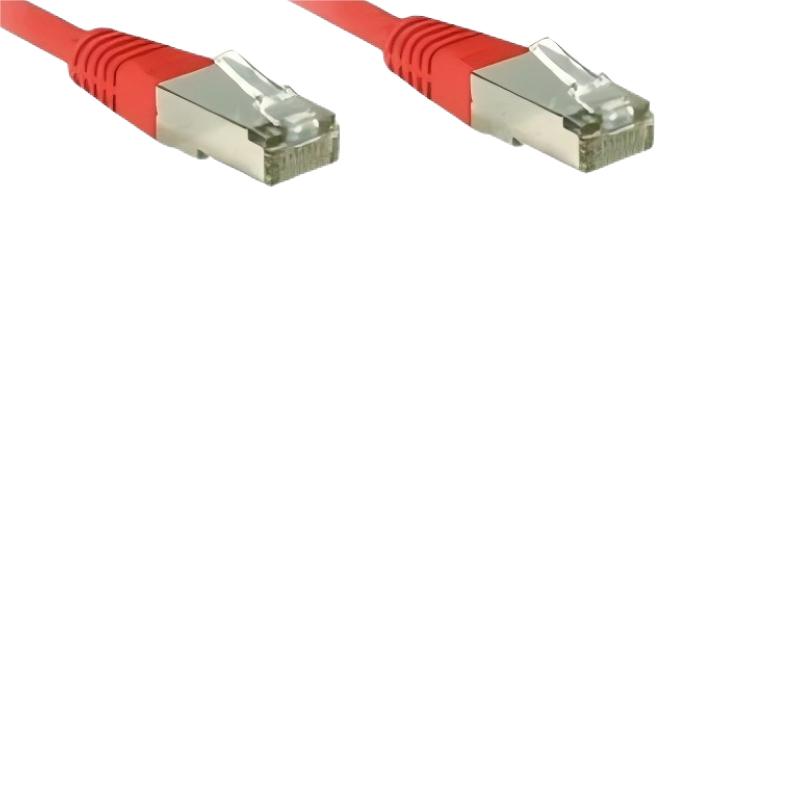

VW3E5001R005 is equipped with an RJ45 connector at each end, providing a straightforward connection between compatible SERCOS III communication ports. The preassembled connector design allows the cable to be connected directly to the corresponding ports on supported controllers, servo drives, or communication modules. Before installation, the communication interface of the connected equipment should be verified because an RJ45 connector does not by itself indicate that the port uses SERCOS III. Correct port identification is important to prevent accidental connection to an incompatible interface.

3. Is VW3E5001R005 a shielded cable?
Yes. VW3E5001R005 is specified as a shielded twisted-pair SERCOS III cable. Shielding helps reduce the influence of electromagnetic interference on high-speed industrial communication signals, which is especially important in motion-control systems containing servo drives, motors, contactors, and other switching equipment. Proper installation of the cable remains important even with shielding. Communication cables should be routed appropriately and should not be unnecessarily exposed to strong interference sources. The connectors should also remain properly seated to maintain a reliable communication connection.

4. Which Schneider Electric product families can use VW3E5001R005?
VW3E5001R005 is associated with Schneider Electric motion-control equipment including Lexium 32S, Lexium 52, Lexium 62, Modicon LMC078, and PacDrive 3 systems. It can also be used with compatible SERCOS III interface equipment and bus coupler modules. The exact compatibility depends on the communication interface of the specific device and the system architecture. Before installation, the complete device reference and communication port should be checked to ensure that the equipment supports SERCOS III and the corresponding RJ45 connection. This is particularly important when working with different generations of Schneider Electric motion-control equipment.

5. Can VW3E5001R005 be used between a motion controller and a servo drive?
Yes. One of the typical applications of VW3E5001R005 is establishing a SERCOS III communication connection between a compatible motion controller and servo drive. In a motion-control system, the controller can use the SERCOS III network to exchange control and status information with connected drives. The cable provides the physical communication path required for this data exchange. However, the cable itself does not configure the motion network or determine the operating parameters of the connected devices. The controller, drive addresses, network configuration, and motion parameters must be correctly configured before the system can operate normally.

6. What should be checked if SERCOS III communication fails after installing VW3E5001R005?
Troubleshooting should begin by checking both RJ45 connectors and confirming that they are fully inserted into the correct SERCOS III ports. Inspect the cable for visible damage, excessive bending, crushing, or other mechanical problems. If the physical connection is correct, check the SERCOS III network configuration, including the connected devices, communication status, network topology, and controller configuration. It is also important to verify that the cable has not been connected to an Ethernet or other RJ45 port that does not support SERCOS III. If the system provides diagnostic indicators or software messages, these should be used to determine whether the communication fault originates from the physical connection, network configuration, or a connected device.

7. Why is a dedicated SERCOS III cable preferable to a standard Ethernet cable?
Although SERCOS III systems use RJ45-style physical connectors, a dedicated SERCOS III cable such as VW3E5001R005 is designed specifically for the requirements of the SERCOS III communication network. It uses a shielded twisted-pair construction and is supplied with the appropriate connectors already installed. Using a suitable dedicated cable helps maintain signal integrity and reduces installation errors. A standard Ethernet cable should not automatically be considered an equivalent replacement simply because it uses RJ45 connectors. The electrical characteristics, shielding arrangement, connector compatibility, and application requirements should all be considered when selecting a cable for a SERCOS III motion-control network.

8. What installation precautions should be followed when using VW3E5001R005?
The cable should be routed carefully to maintain reliable SERCOS III communication in an industrial environment. Avoid placing the communication cable directly alongside high-power motor cables, variable frequency drive output cables, contactor wiring, or other strong sources of electromagnetic interference for extended distances. Avoid excessive bending, pulling, twisting, or mechanical pressure on the cable and connectors. Both RJ45 connectors should be fully inserted into the designated SERCOS III ports before commissioning. The communication network should also be checked for correct device connections and controller configuration. After installation, operate the motion system under normal conditions and monitor the SERCOS III communication status for communication errors or unexpected device disconnections.
