1. What is the Schneider VW3M8D2AR30 Servo Motor Encoder Cable used for?

The VW3M8D2AR30 is designed to provide the encoder feedback connection between a compatible BCH2 servo motor and a Lexium 28 servo drive. It transfers important feedback signals required by the closed-loop motion control system, allowing the drive to monitor motor position, speed, and operating status during machine operation. Stable encoder feedback is essential for applications that require accurate positioning, controlled acceleration and deceleration, and repeatable motion. The cable is therefore an important part of the servo feedback circuit and should be selected according to the motor, drive, encoder type, and connector configuration rather than simply based on cable length.

2. Which servo motors can be connected using the VW3M8D2AR30?

The VW3M8D2AR30 is intended for compatible BCH2 series servo motors and is used as an encoder connection cable in Lexium 28 motion control applications. Compatibility should always be checked against the exact servo motor and drive configuration because different motor families may use different encoder technologies, connector arrangements, or feedback wiring. Before replacing an existing cable, technicians should compare the original part number, motor model, drive model, connector type, and encoder interface. Using the correct cable helps ensure that all feedback signals are transferred according to the intended electrical configuration.

3. What connectors are used on the two ends of the VW3M8D2AR30?

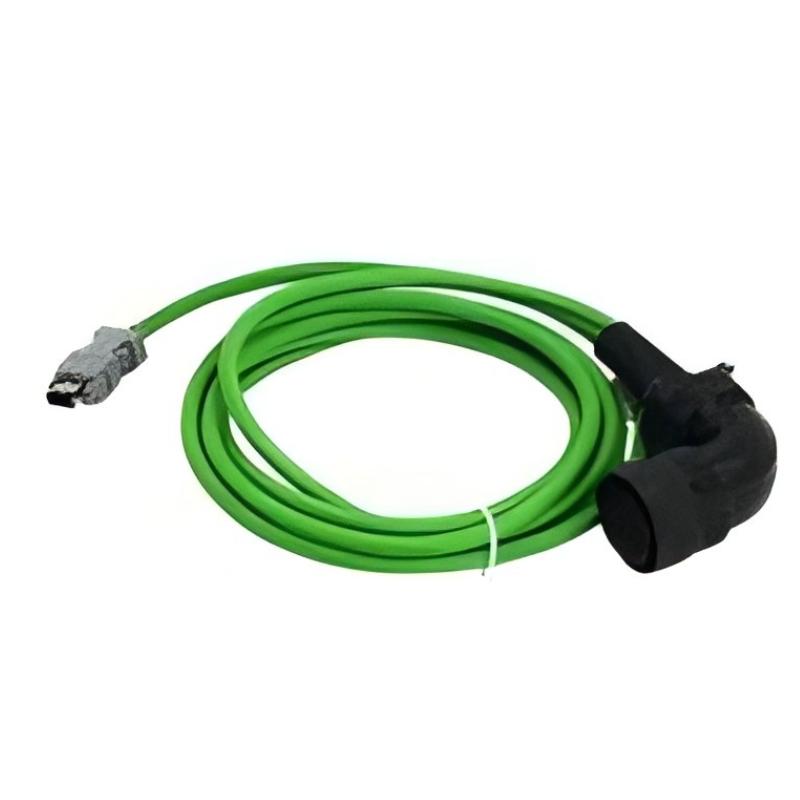

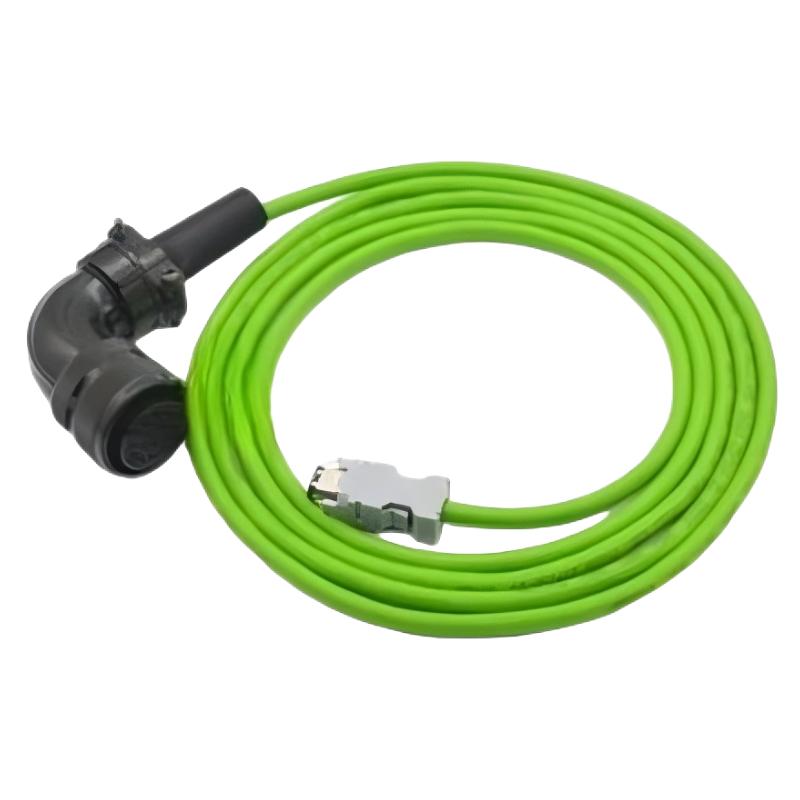

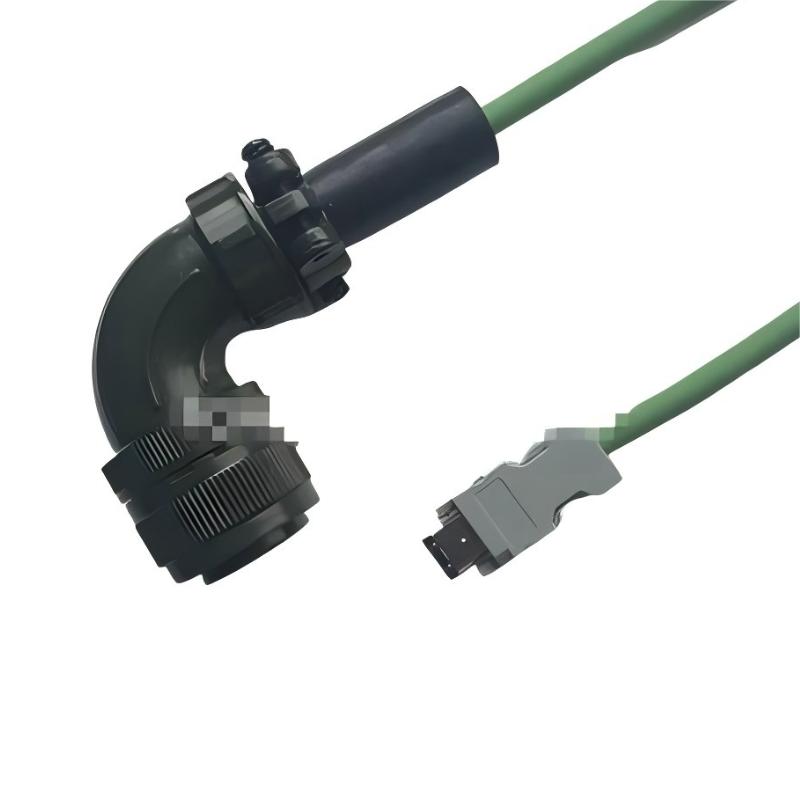

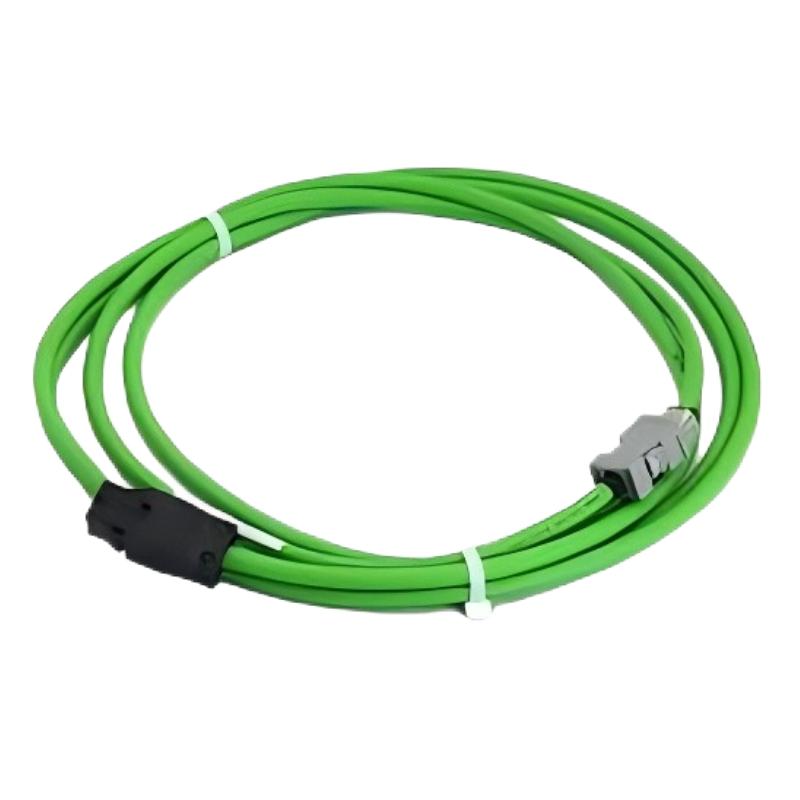

The VW3M8D2AR30 uses different connectors at its two ends to match the corresponding servo system interfaces. The drive side uses a 6-pin FireWire connector, while the motor side uses a 17-pin MIL connector. These connectors are designed for their respective interfaces and provide the required electrical connection for encoder feedback. During installation, both connectors should be inserted correctly and secured properly. A connector that is only partially engaged, incorrectly positioned, or mechanically loose can result in intermittent feedback, encoder communication errors, servo alarms, or unstable motor operation.

4. Why is shielding important for the VW3M8D2AR30 encoder cable?

Encoder signals are relatively sensitive to electrical noise, particularly in industrial environments where servo drives, motor power cables, contactors, switching devices, and other high-power equipment operate nearby. The shielded construction of the VW3M8D2AR30 helps reduce the influence of electromagnetic interference on the encoder feedback signals. Proper installation is equally important because the cable should be routed appropriately and the shielding arrangement should be maintained according to the servo system requirements. If shielding or grounding is handled incorrectly, the system may experience intermittent feedback disturbances even when the cable itself is electrically intact.

5. What should be checked if a VW3M8D2AR30 connection causes encoder feedback problems?

When encoder feedback becomes unstable, the first step should be to inspect both cable connectors for incomplete insertion, looseness, contamination, or visible mechanical damage. The cable should also be checked for excessive bending, crushing, stretching, abrasion, or damage caused by moving machine components. If the physical condition appears normal, technicians should verify the encoder wiring and continuity of the feedback circuits, while also checking whether the motor and drive configuration is correct. It is also important to review any diagnostic or alarm information provided by the servo drive. If the cable passes the electrical and physical checks, the encoder interface on the motor or the feedback input on the drive may require further investigation.

6. Can the VW3M8D2AR30 be replaced with a standard multi-core cable?

A standard multi-core cable should not normally be considered a direct replacement for the VW3M8D2AR30. An encoder cable must meet more than basic conductor-count requirements. Its electrical characteristics, shielding performance, conductor arrangement, connector configuration, and signal integrity all affect the reliability of servo feedback communication. A substitute cable may appear to work during a simple continuity test but still introduce noise or signal instability when the servo operates at higher speeds or under dynamic conditions. For maintenance and replacement work, it is preferable to use a cable with the correct part number or an officially compatible specification.

7. What installation precautions should be followed when installing the VW3M8D2AR30?

The cable should be installed so that it is protected from excessive tensile force, sharp bending, crushing, repeated mechanical stress, and unnecessary twisting. When routed inside an automation cabinet or machine, the encoder cable should be kept appropriately separated from high-power motor cables and other major sources of electromagnetic interference whenever the installation arrangement permits. The connectors should be handled carefully during installation, and the cable itself should not be pulled to force a connector into position. After installation, both ends should be securely connected and the machine should be tested under controlled operating conditions. Checking encoder feedback and servo status during initial commissioning can help identify connection problems before the machine enters normal production.

8. How can the VW3M8D2AR30 help maintain stable servo motor operation?

The VW3M8D2AR30 provides the dedicated feedback connection required between the compatible servo motor encoder and servo drive. Reliable transmission of encoder signals allows the drive’s control system to continuously determine the motor’s actual operating condition and compare feedback information with the commanded motion. This is particularly important for applications involving precise positioning, speed regulation, acceleration control, and repeated movement. A properly installed and correctly matched encoder cable can reduce the risk of feedback interruptions and communication-related servo faults. However, overall system stability also depends on correct motor and drive configuration, proper grounding and shielding, suitable cable routing, and the condition of the encoder and drive interfaces.
