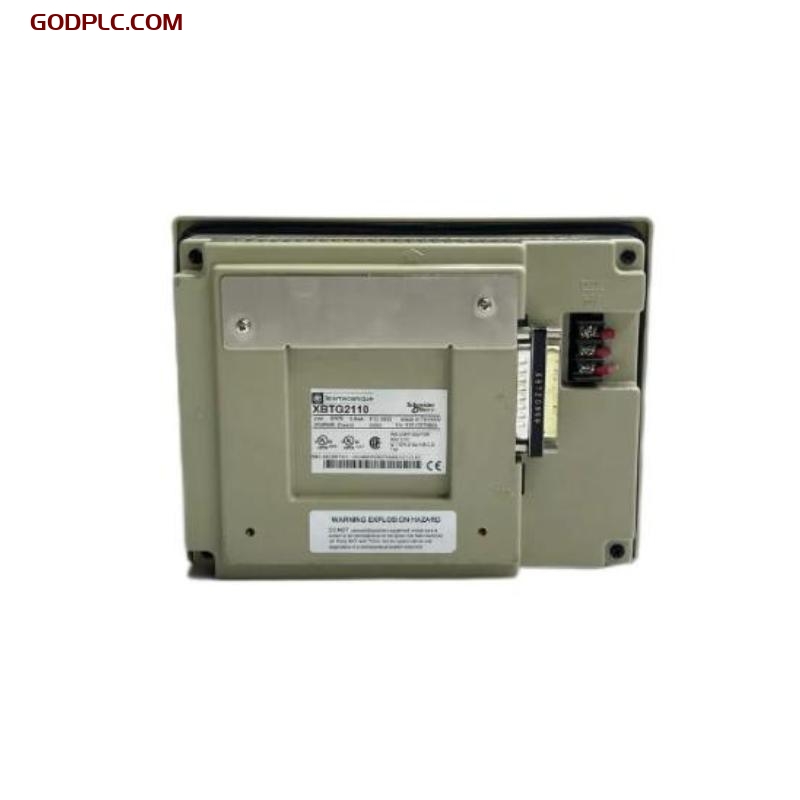

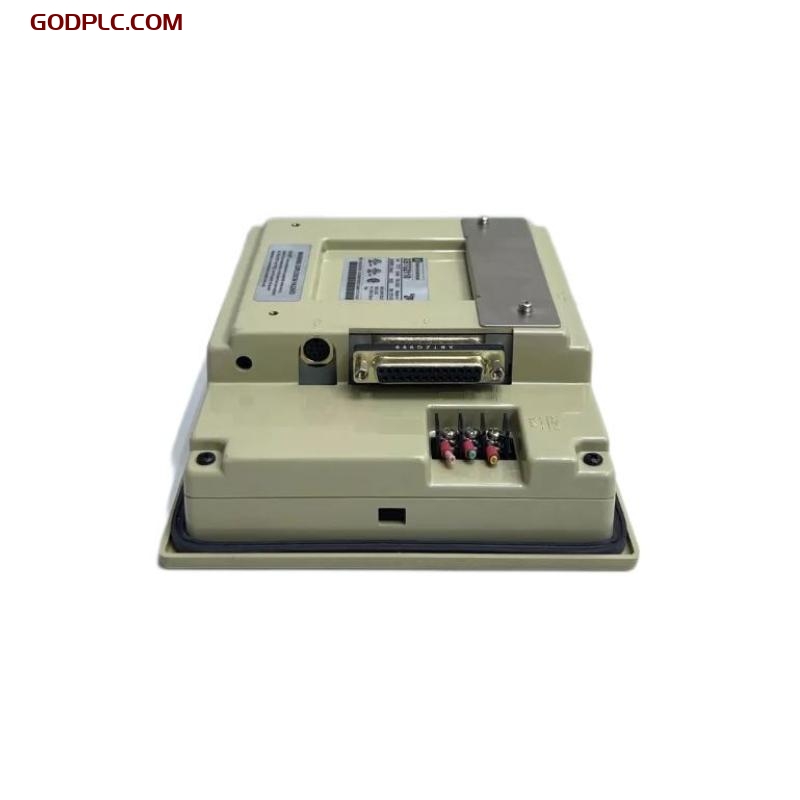

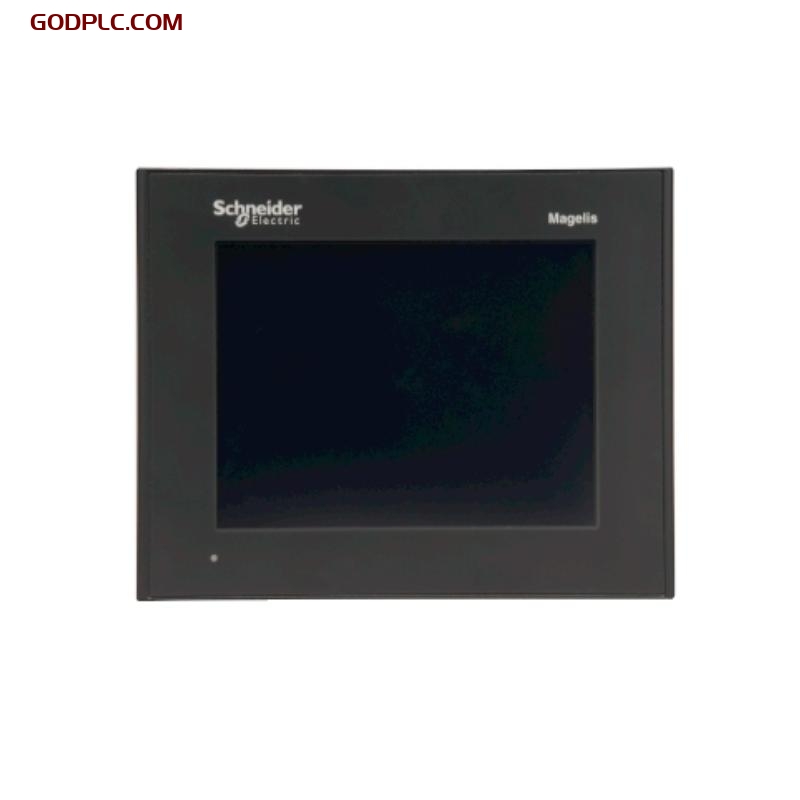

Schneider XBTG2110 Touch Screen Panel
Product Overview
The Schneider XBTG2110 is a high-performance Touch Screen Panel designed for a wide range of industrial applications where reliable and intuitive operator interfaces are critical. Part of the Magelis XBT series, the XBTG2110 combines a user-friendly interface with advanced features for efficient system control and monitoring. With its color display, high resolution, and robust design, the XBTG2110 is ideal for use in both harsh industrial environments and complex automation systems.
This touch screen panel supports extensive connectivity options, including Ethernet and Modbus, allowing it to easily integrate with a variety of automation systems. The XBTG2110 provides real-time data visualization, enabling operators to monitor system performance, adjust parameters, and respond promptly to system events. Additionally, its customizable HMI interface provides the flexibility to design intuitive, user-specific control panels.
Key Features
-
High-Resolution Color Display: Provides clear and vibrant graphical displays for easy monitoring and interaction.
-
Touchscreen Interface: Intuitive touch interface allows for simple and efficient operation, reducing operator error and increasing productivity.
-
Multiple Communication Ports: Includes Ethernet, Modbus RTU, and RS-232/485 ports for seamless integration with a wide range of devices and control systems.
-
Robust and Durable Design: Built to withstand harsh industrial environments with high ingress protection (IP65) and extended operating temperature ranges.
-
Customization Options: Offers flexible configuration and design for creating user-specific interfaces using Vijeo Designer software.
-
Compact Form Factor: Space-saving design makes it ideal for installations in environments with limited space.
-
Flexible Mounting: Supports both panel mount and rear mount installation for versatility in different system layouts.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 167.5 x 135 x 59.5mm |
| Weight | 1 kg |
3.2 Display and User Interface
| Item | Specification |
|---|---|
| Screen Size | 10.4-inch Color TFT |
| Resolution | 640 x 480 pixels |
| Touch Screen | Resistive touchscreen |
| Display Colors | 256 colors |
| Backlight | LED with adjustable brightness |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC ±20% |
| Power Consumption | 15 W |
| Operating Temp. | -10°C to +55°C |
| Storage Temp. | -20°C to +70°C |
| Humidity | 10% to 90% RH, non-condensing |
| Protection Class | IP65 |
3.4 Communication and I/O
| Item | Specification |
|---|---|
| Communication Ports | 1 x Ethernet, 1 x RS-232, 1 x RS-485 |
| Protocols | Modbus RTU, Modbus TCP/IP, J1939 |
| Expansion Slots | 1 x SD Card Slot for storage expansion |
| USB Ports | 1 x USB (for programming and data transfer) |
3.5 Mounting and Installation
| Item | Specification |
|---|---|
| Mounting Type | Panel Mount or Rear Mount |
| Panel Cutout | 237 mm (H) × 287 mm (W) |
| Weight | Approx. 1.6 kg |
Industry Applications
-
Manufacturing: Ideal for controlling and monitoring machinery, assembly lines, and production processes in manufacturing plants.
-
Automotive: Used in vehicle manufacturing facilities to monitor and control various production stages.
-
Energy: Used for monitoring energy management systems, including solar and wind energy setups, for real-time data visualization.
-
Oil & Gas: Used in remote operations and offshore platforms to visualize process data and manage operations efficiently.
-
Food & Beverage: Suitable for monitoring production lines, quality control, and packaging processes in food manufacturing.
-
Building Automation: Controls HVAC systems, lighting, and security systems for energy-efficient building management.
The Schneider XBTG2110 Touch Screen Panel offers a powerful combination of durability, flexibility, and ease of use. It is an excellent choice for various industries where real-time data visualization, efficient system monitoring, and user-friendly interface design are critical. With its advanced features, high resolution, and robust design, the XBTG2110 ensures that operators can efficiently manage processes, improve system performance, and reduce downtime.
Schneider XBTG2110 Touch Screen Panel is in stock. Please contact us for a quick quote and competitive pricing.
