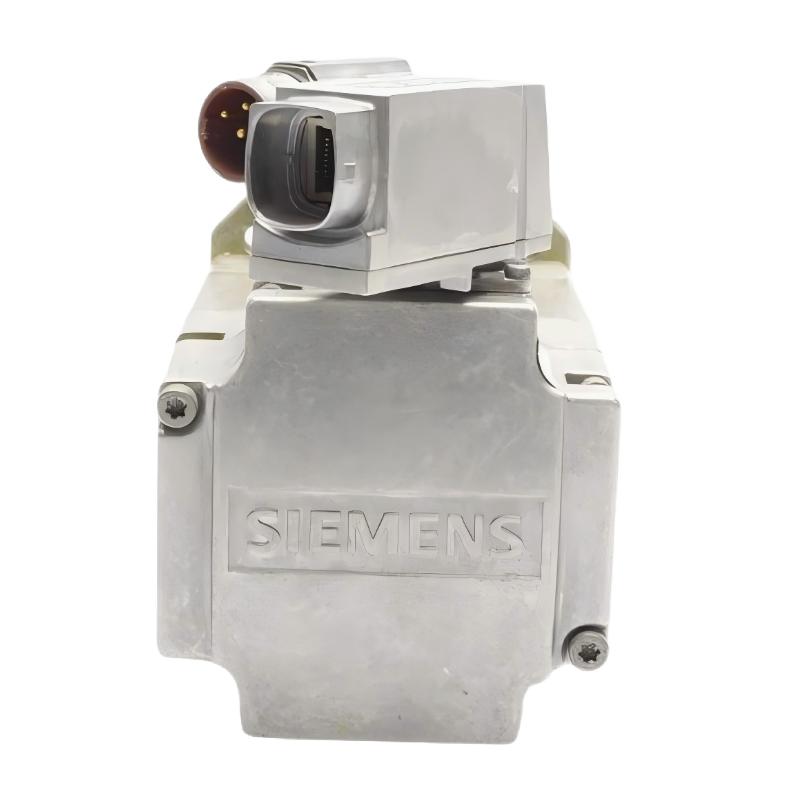

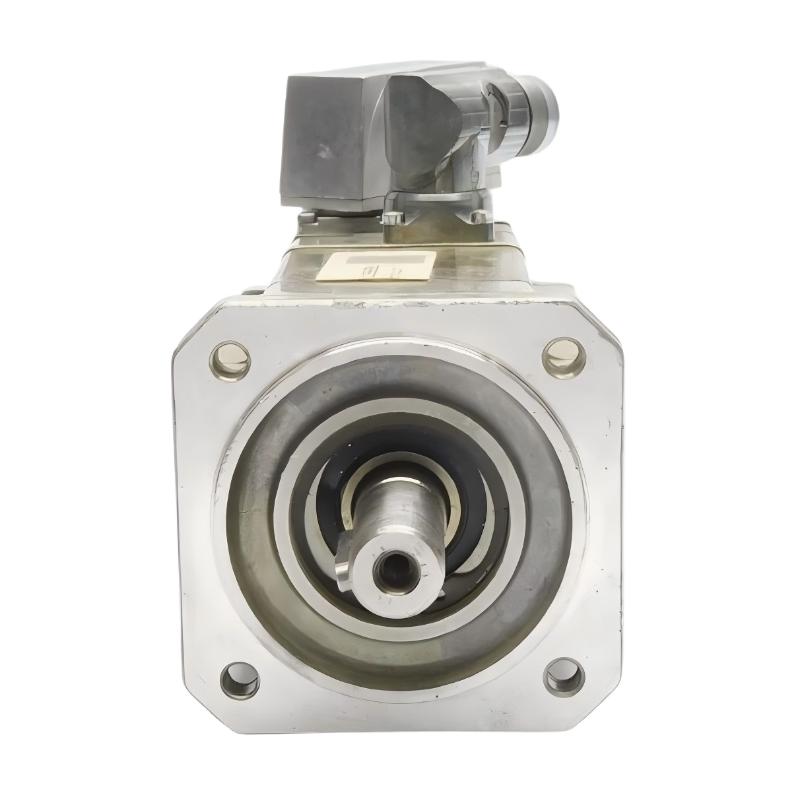

1. What is the main function of the Siemens 1FK7042-5AF71-1UA0 Servo Motor?

The Siemens 1FK7042-5AF71-1UA0 Servo Motor is a high-performance permanent magnet synchronous servo motor designed for precision motion control applications in industrial automation systems.

This motor belongs to the SIMOTICS S-1FK7 series and is designed to provide accurate speed, torque, and position control. With its permanent magnet synchronous structure, the motor offers fast response characteristics, stable torque output, and high operating efficiency.

The integrated feedback system continuously monitors the motor position and speed, allowing the servo drive to adjust operation through closed-loop control. This ensures accurate movement and stable performance even under changing load conditions.

The 1FK7042-5AF71-1UA0 is widely used in CNC machines, robotic systems, automated production equipment, packaging machinery, and other industrial applications where precise and reliable motion control is required.

By working together with Siemens SINAMICS drive systems, this servo motor provides a complete solution for high-accuracy automation applications.

2. What applications are suitable for the Siemens 1FK7042-5AF71-1UA0 servo motor?

The Siemens 1FK7042-5AF71-1UA0 servo motor is suitable for industrial equipment requiring precise positioning, high dynamic response, and continuous operation.

Typical applications include CNC machine tools, industrial robots, automated assembly systems, semiconductor equipment, packaging machines, printing systems, and production line automation equipment.

In CNC applications, the motor provides accurate axis control, allowing machine tools to achieve stable movement and high repeatability during machining operations.

In robotics, the servo motor enables precise movement control of robot joints and mechanisms, supporting complex motion sequences and coordinated operations.

The motor is also suitable for applications requiring frequent acceleration, deceleration, and rapid positioning cycles.

When integrated with Siemens automation controllers and SINAMICS servo drives, the 1FK7042-5AF71-1UA0 delivers reliable motion performance for modern industrial automation systems.

3. How does the Siemens 1FK7042-5AF71-1UA0 achieve accurate motion control?

The Siemens 1FK7042-5AF71-1UA0 achieves accurate motion control through a combination of permanent magnet synchronous motor technology and closed-loop feedback control.

During operation, the encoder continuously detects the motor rotor position and speed. This feedback information is transmitted to the servo drive, which compares the actual motor status with the commanded movement values.

The drive system then automatically adjusts current and torque output to maintain accurate positioning and smooth operation.

The permanent magnet rotor design provides high torque density and rapid response capability, allowing the motor to quickly react to control commands and load changes.

This advanced control method helps reduce positioning errors, improve machine accuracy, and maintain stable performance during complex motion processes.

As a result, the motor is especially suitable for applications requiring high precision, such as CNC machining, robotics, and automated manufacturing systems.

4. What should be checked when the Siemens 1FK7042-5AF71-1UA0 servo motor has operational problems?

When the Siemens 1FK7042-5AF71-1UA0 servo motor experiences abnormal operation, troubleshooting should include checking the power supply, drive parameters, feedback system, and mechanical conditions.

First, verify that the motor power cables are correctly connected and that the supply voltage is stable. Loose connections or incorrect wiring may prevent normal motor operation.

Next, inspect the encoder feedback connection. Encoder communication problems can cause position errors, unstable movement, or drive alarms because the control system cannot receive accurate feedback signals.

The SINAMICS drive parameters should also be checked to ensure that the motor data, control mode, and commissioning settings match the actual motor specifications.

Mechanical conditions should be inspected as well, including excessive load, coupling problems, mechanical resistance, or blocked movement.

A complete inspection of electrical, control, and mechanical components can help identify the cause of the problem and restore normal operation.

5. How is the Siemens 1FK7042-5AF71-1UA0 configured with Siemens SINAMICS drives?

The Siemens 1FK7042-5AF71-1UA0 is normally configured with Siemens SINAMICS servo drives to achieve optimized control performance.

During commissioning, technicians need to enter the correct motor parameters into the drive system, including motor identification data, rated speed, torque information, encoder type, and electrical characteristics.

Siemens engineering software can be used for motor identification, parameter setup, and system optimization.

The encoder interface must be correctly configured so that the drive can accurately read motor position and speed feedback information.

After configuration, a test operation should be performed to verify acceleration, deceleration, positioning accuracy, and overall system response.

Correct configuration ensures stable operation, improves control performance, and reduces potential alarms caused by incorrect parameter settings.

6. What are the common fault causes of the Siemens 1FK7042-5AF71-1UA0 servo motor?

Common fault causes of the Siemens 1FK7042-5AF71-1UA0 servo motor include power supply problems, encoder failures, incorrect drive parameters, excessive mechanical loads, and wiring issues.

Power supply problems such as unstable voltage or incorrect electrical connections may cause startup failures or unstable operation.

Encoder problems can result in incorrect position feedback, causing positioning errors, abnormal movement, or servo drive alarms.

Incorrect drive configuration, including mismatched motor parameters or improper control settings, may reduce performance and cause unstable operation.

Mechanical problems such as excessive load, transmission faults, or increased friction can also affect motor performance.

Regular inspection of electrical connections, feedback signals, and mechanical conditions can help prevent failures and improve system reliability.

7. What are the advantages of the Siemens 1FK7042-5AF71-1UA0 servo motor?

The Siemens 1FK7042-5AF71-1UA0 servo motor provides advantages including high precision, fast dynamic response, efficient operation, and strong compatibility with Siemens automation systems.

Its permanent magnet synchronous design enables stable torque generation and excellent response performance during rapid movement and load changes.

The integrated feedback system allows accurate closed-loop control, improving positioning accuracy and reducing motion errors.

The motor is designed for seamless integration with Siemens SINAMICS drive platforms, making system configuration and commissioning more efficient.

The SIMOTICS S-1FK7 series has been widely applied in industrial automation because of its reliability, durability, and stable operating characteristics.

For applications requiring accurate motion control and continuous operation, the 1FK7042-5AF71-1UA0 provides dependable performance and helps improve overall machine efficiency.

8. What maintenance practices are recommended for the Siemens 1FK7042-5AF71-1UA0 servo motor?

Regular maintenance is important to ensure the Siemens 1FK7042-5AF71-1UA0 servo motor maintains reliable performance during long-term operation.

Maintenance personnel should periodically inspect motor cables, feedback connectors, and electrical connections to ensure there are no loose connections or damaged components.

The operating condition of the motor should be monitored for abnormal vibration, unusual noise, excessive temperature changes, or unstable movement.

The encoder feedback system should be checked during scheduled maintenance to confirm accurate position detection and reliable communication with the drive system.

Mechanical components connected to the motor, such as couplings and transmission mechanisms, should also be inspected to prevent excessive loads caused by mechanical problems.

Reviewing drive diagnostic information and alarm records can help identify potential issues before they develop into serious failures.

Proper preventive maintenance reduces downtime, improves system reliability, and extends the service life of the servo motor in industrial automation applications.
