1. What are the primary applications of the Siemens 1FK7060-5AF71-1AG0 Servo Motor?

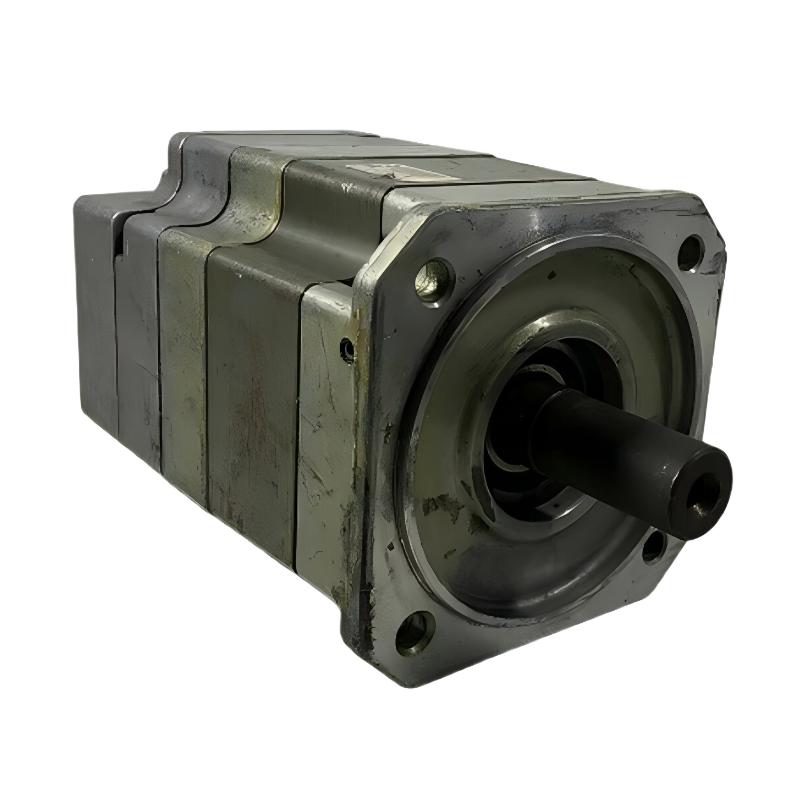

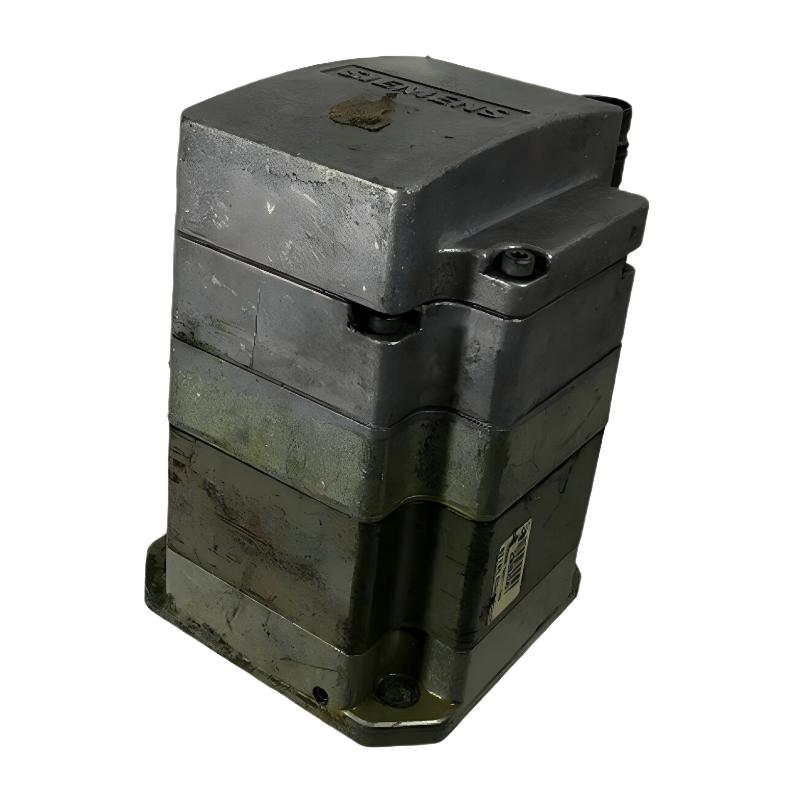

The Siemens 1FK7060-5AF71-1AG0 Servo Motor is a high-performance permanent magnet synchronous servo motor designed for precision motion control in industrial automation systems. As part of the SIMOTICS S-1FK7 series, it delivers outstanding positioning accuracy, fast dynamic response, and stable torque output, making it suitable for demanding industrial applications.

It is widely used in CNC machine tools, industrial robots, automated assembly equipment, packaging machinery, printing systems, semiconductor manufacturing equipment, and intelligent production lines. When combined with Siemens SINAMICS servo drives, the motor provides highly accurate speed, torque, and position control while improving productivity and overall system reliability.

2. Which industrial applications are best suited for the Siemens 1FK7060-5AF71-1AG0?

The Siemens 1FK7060-5AF71-1AG0 is ideal for industrial applications that require high positioning accuracy, rapid acceleration, and continuous operation.

Typical applications include CNC machining centers, robotic arms, automated assembly systems, packaging equipment, textile machinery, printing presses, material handling systems, and semiconductor production equipment.

Its excellent dynamic characteristics allow it to perform frequent start-stop cycles and synchronized multi-axis movements with exceptional precision. This makes it an excellent choice for modern smart manufacturing systems where productivity and precision are equally important.

3. How does the Siemens 1FK7060-5AF71-1AG0 achieve precise motion control?

The motor combines permanent magnet synchronous technology with a high-resolution incremental encoder to form an advanced closed-loop control system.

During operation, the encoder continuously measures rotor position and rotational speed, transmitting this information to the Siemens SINAMICS drive. The drive compares the actual motor status with the commanded motion profile and instantly adjusts the output current and torque to eliminate positioning errors.

This continuous feedback process ensures smooth acceleration, stable speed regulation, and highly accurate positioning even under varying load conditions, making the motor suitable for high-precision manufacturing applications.

4. How should abnormal operation of the Siemens 1FK7060-5AF71-1AG0 be diagnosed?

When abnormal operation occurs, the first step is to review the diagnostic information and fault codes displayed by the Siemens SINAMICS drive.

The power supply should be checked to ensure stable voltage, while all motor power cables, encoder cables, and communication connectors should be inspected for loose connections or physical damage.

Drive configuration parameters should also be verified to confirm that the selected motor model, encoder type, and control settings match the actual motor specifications.

In addition, mechanical components such as couplings, bearings, gearboxes, and driven equipment should be examined for excessive wear, overload, or misalignment that could negatively affect motor performance.

A systematic inspection of the electrical, mechanical, and control systems is the most effective way to identify and eliminate operational issues.

5. How is the Siemens 1FK7060-5AF71-1AG0 commissioned with Siemens SINAMICS drives?

During commissioning, engineers should configure the correct motor model and enter all required motor parameters, including encoder type, rated speed, rated torque, and electrical characteristics, using Siemens engineering software such as TIA Portal or STARTER.

The drive can then perform automatic motor identification to optimize the control parameters for the specific application.

After configuration, commissioning tests should verify motor rotation direction, speed regulation, acceleration and deceleration performance, positioning accuracy, and communication stability.

Proper commissioning significantly improves control performance, reduces the likelihood of configuration errors, and ensures reliable long-term operation.

6. What are the most common causes of failure in the Siemens 1FK7060-5AF71-1AG0 Servo Motor?

Common failures are typically related to encoder communication problems, unstable power supply, incorrect drive parameter settings, damaged cables, excessive mechanical load, or poor environmental conditions.

Encoder faults may result in inaccurate position feedback, causing positioning errors or servo drive alarms. Voltage instability or damaged wiring can prevent the motor from starting correctly or lead to unstable operation.

Improper drive parameters may reduce dynamic performance or create excessive vibration, while overloaded mechanical systems can activate protection functions and shorten equipment life.

Routine inspection of electrical connections, encoder signals, and mechanical transmission components is essential for minimizing unexpected downtime.

7. What are the main advantages of the Siemens 1FK7060-5AF71-1AG0 Servo Motor?

The Siemens 1FK7060-5AF71-1AG0 offers high efficiency, excellent dynamic response, outstanding positioning accuracy, and exceptional operational reliability.

Its permanent magnet synchronous construction provides high torque density and smooth motion over a wide speed range. The integrated high-resolution encoder supports accurate closed-loop feedback, ensuring excellent repeatability and precise motion control.

The motor integrates seamlessly with Siemens SINAMICS drive systems, simplifying installation and commissioning while reducing engineering effort. Its IP65 protection rating also enables reliable operation in demanding industrial environments.

8. What maintenance practices are recommended for the Siemens 1FK7060-5AF71-1AG0?

Preventive maintenance plays an important role in maximizing the service life and operational reliability of the Siemens 1FK7060-5AF71-1AG0.

Maintenance personnel should regularly inspect motor power cables, encoder connectors, and communication interfaces to ensure secure electrical connections. During operation, the motor should be monitored for abnormal vibration, unusual noise, excessive temperature rise, or unstable motion.

Mechanical components such as couplings, bearings, and transmission systems should also be inspected periodically to prevent unnecessary mechanical stress.

Reviewing drive diagnostic records, cleaning electrical connectors, and performing scheduled preventive inspections help identify potential issues before they develop into major failures, improving equipment availability and reducing maintenance costs.
