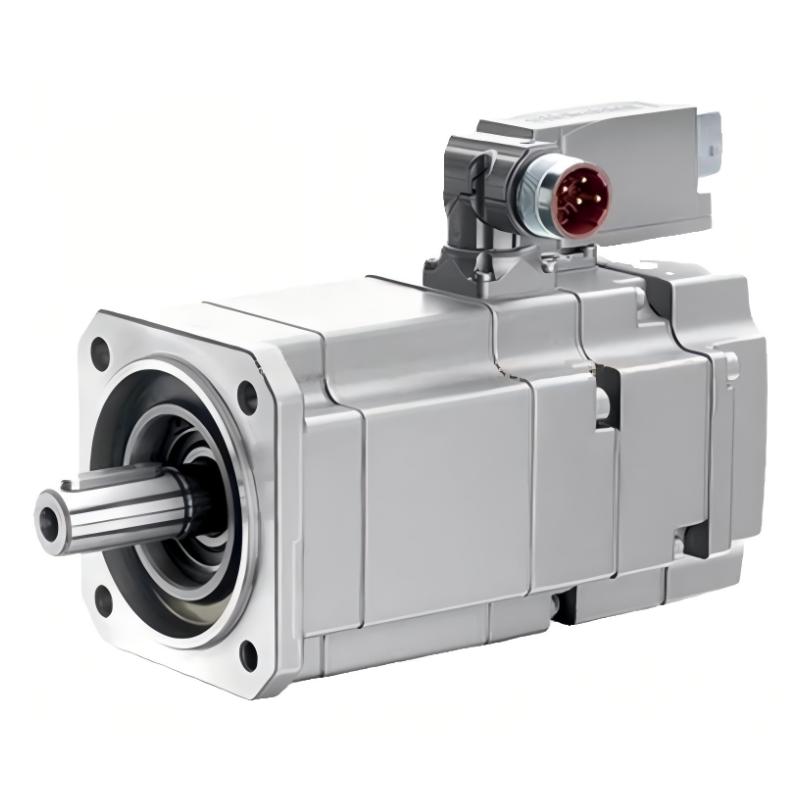

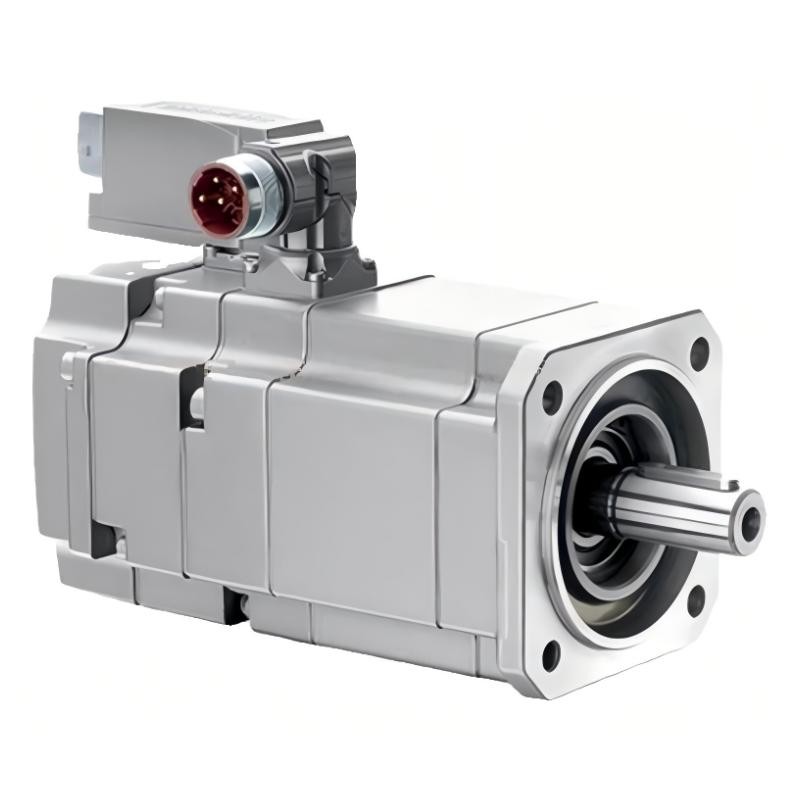

Siemens 1FK7063-2AF71-1RG1 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 1FK7063-2AF71-1RG1 |
| Product Type | Servo Motor |
| Product Family | SIMOTICS S 1FK7 |
| Motor Type | Permanent-Magnet Synchronous Motor |
| Rated Power | 2.3 kW |
| Rated Speed | 3,000 rpm |
| Rated Torque | 7.3 Nm |
| Rated Current | 5.6 A |
| Static Torque at 60 K | 9.1 Nm |
| Static Torque at 100 K | 11.0 Nm |
| Stall Current at 60 K | 6.5 A |
| Stall Current at 100 K | 8.0 A |
| Maximum Mechanical Speed | 7,200 rpm |
| Maximum Torque | 35 Nm |
| Maximum Current | 28 A |
| Number of Poles | 8 |
| Torque Constant | 1.37 Nm/A |
| Voltage Constant at 20°C | 90.5 V/1000 rpm |
| Winding Resistance at 20°C | 0.64 Ω |
| Inductance | 8.5 mH |
| Electrical Time Constant | 13.4 ms |
| Mechanical Time Constant | 1.48 ms |
| Thermal Time Constant | 40 min |
| Moment of Inertia | 1.47 × 10⁻³ kg·m² |
| Shaft Torsional Stiffness | 34,000 Nm/rad |
| Cooling Method | Natural Cooling |
| Shaft Height | 63 mm |
| Mounting Design | IM B5 (IM V1, IM V3) |
| Degree of Protection | IP65 |

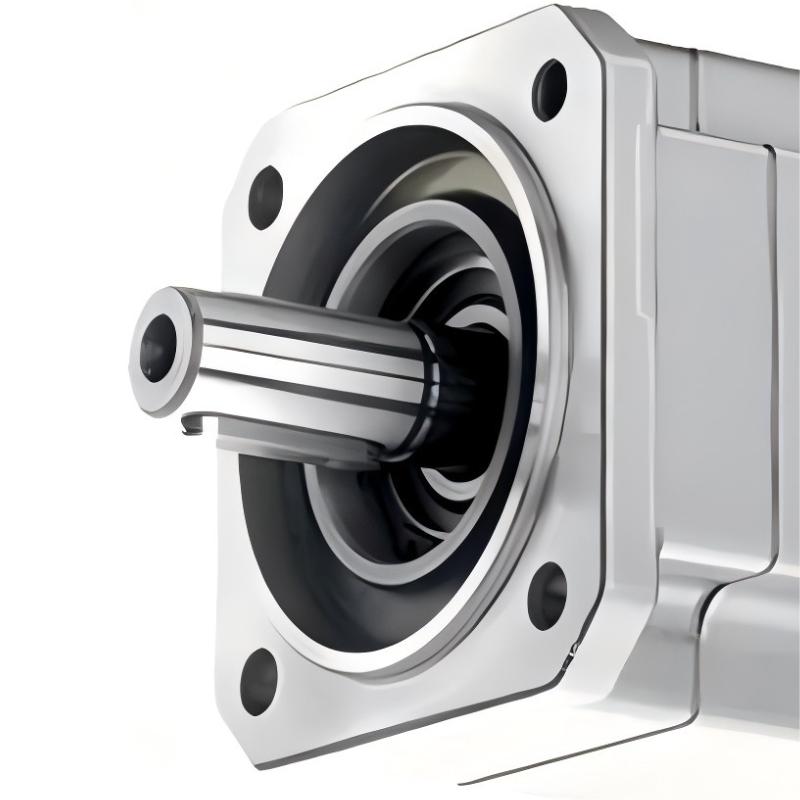

| Shaft End | Smooth Shaft |
| Holding Brake | Without Holding Brake |
| Encoder | AM20DQI Absolute Encoder |
| Encoder Resolution | 20-bit Absolute + 12-bit Multi-turn |
| Multi-turn Range | 4,096 revolutions |
| Temperature Monitoring | Pt1000 Temperature Sensor |
| Power Connector | Rotatable |
| Signal Connector | Rotatable |
| Vibration Severity Grade | Grade A |
| Mechanical Design | Standard mechanical design for SIMOTICS S 1FK7 motors with 63 mm shaft height |
| Weight | 11.101 kg |
FAQ
1. What is the rated power of the Siemens 1FK7063-2AF71-1RG1 servo motor?
The 1FK7063-2AF71-1RG1 has a rated power of 2.3 kW, with a rated speed of 3,000 rpm and a rated torque of 7.3 Nm.
2. What type of motor is the 1FK7063-2AF71-1RG1?
It is a permanent-magnet synchronous servo motor from the Siemens SIMOTICS S 1FK7 family, designed for dynamic motion-control applications.
3. What encoder is installed on the 1FK7063-2AF71-1RG1?
The motor uses an AM20DQI absolute encoder with 20-bit resolution and a 12-bit multi-turn system. The multi-turn range covers 4,096 revolutions.
4. What is the rated current of the 1FK7063-2AF71-1RG1?
The rated current is 5.6 A. The applicable current values should be considered together with the motor temperature rise and operating conditions.
5. What is the maximum mechanical speed of the 1FK7063-2AF71-1RG1?
The maximum mechanical speed is 7,200 rpm. The actual operating speed must remain within the limits specified by the motor and connected drive system.
6. Does the 1FK7063-2AF71-1RG1 have a holding brake?
No. This configuration is supplied without a holding brake. If a holding function is required, the braking requirements should be considered when selecting the motor configuration.
7. What cooling method does the 1FK7063-2AF71-1RG1 use?
The motor uses natural cooling and does not require an external cooling fan in its standard configuration. Sufficient airflow around the motor should be maintained during operation.
8. Which Siemens drive system is suitable for the 1FK7063-2AF71-1RG1?
The motor is designed for use with compatible Siemens SINAMICS drive systems. During commissioning, the motor data and encoder configuration should be correctly assigned in the drive to ensure proper speed, torque, feedback, and protection functions.
Siemens 1FK7063-2AF71-1RG1 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
