1. What type of servo motor is 1FK7083-5AF71-1AH0?

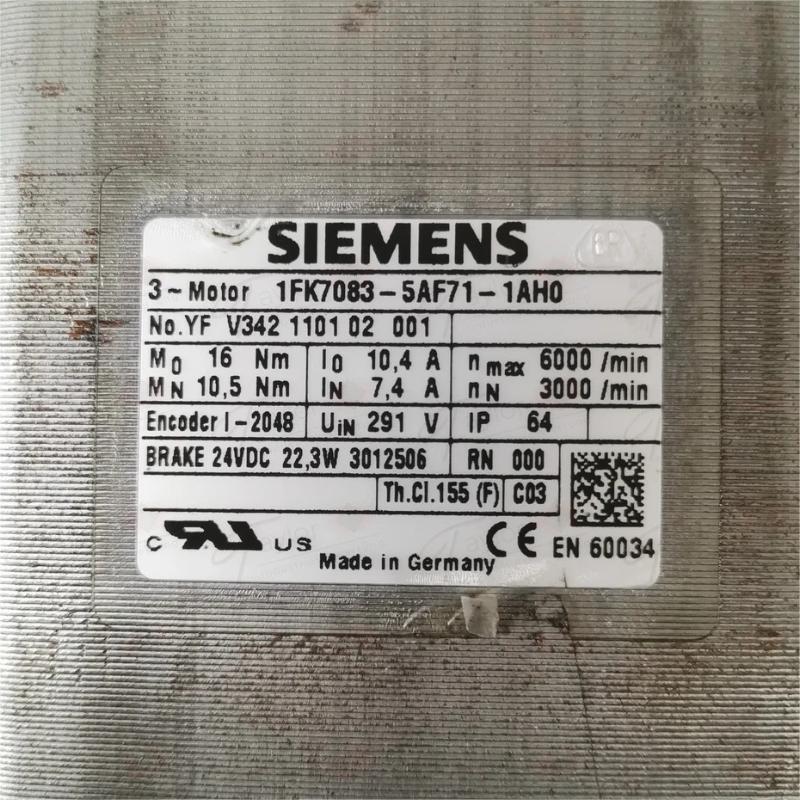

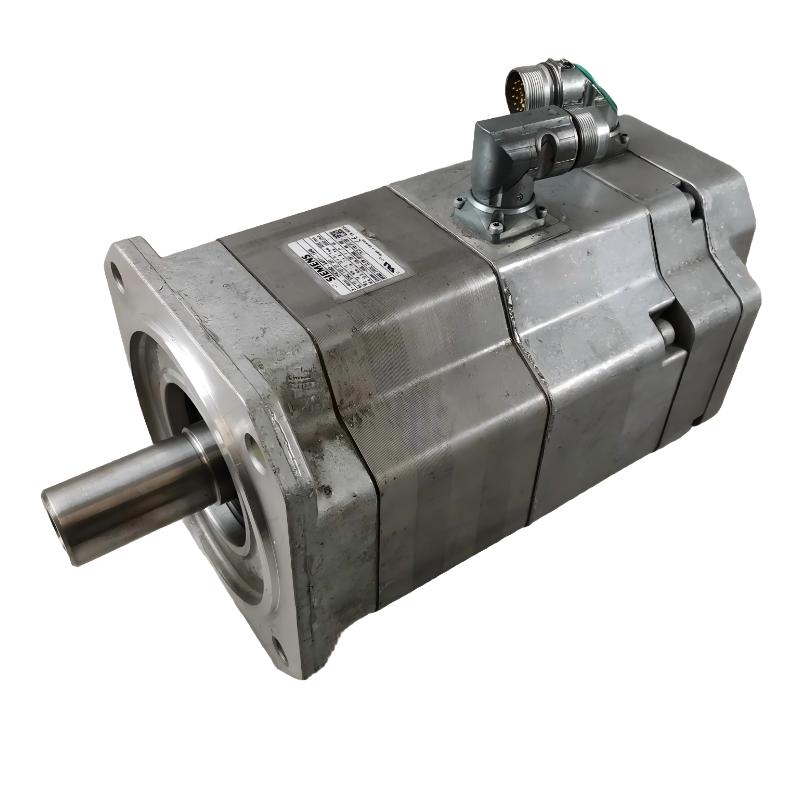

1FK7083-5AF71-1AH0 is a permanent-magnet synchronous servo motor from the SIMOTICS S 1FK7 Compact series. It is designed for industrial automation and precision motion-control applications that require accurate speed, torque, and position control. The motor has a rated power of 3.30 kW, a rated speed of 3000 rpm, and a rated torque of 10.5 Nm. Its natural cooling design allows it to be integrated into machine tools, automated production equipment, positioning systems, and other servo-driven machinery.

2. What are the rated speed and torque of 1FK7083-5AF71-1AH0?
The motor has a rated speed of 3000 rpm and a rated torque of 10.5 Nm. Its static torque is 16 Nm, while the maximum speed is 6000 rpm and the maximum torque can reach 50 Nm under the specified operating conditions. In an actual application, the continuous and peak torque requirements should be evaluated according to the machine load, acceleration, deceleration, and operating cycle. Load inertia should also be considered to ensure stable dynamic performance during frequent positioning and speed changes.

3. What type of encoder is used with 1FK7083-5AF71-1AH0?
The motor uses an incremental SIN/COS encoder with a 1 Vpp signal and a resolution of 2048 pulses per revolution. It provides C-track and D-track signals for motion feedback. The encoder supplies position and speed information to the servo drive, allowing the drive to regulate motor current and torque in a closed-loop control system. During commissioning, the encoder type and related parameters must be configured correctly. If position errors, speed fluctuations, or encoder alarms occur, the feedback cable, connectors, shielding, grounding, and drive parameters should be inspected.

4. Does 1FK7083-5AF71-1AH0 have a holding brake?
Yes. This motor configuration is equipped with a holding brake with a holding torque of 22 Nm and a DC 24 V supply. The holding brake is primarily used to maintain the mechanical position when the motor is stopped or power is removed. It can be useful in applications involving vertical axes or mechanical loads affected by gravity. The brake should be used for holding rather than as a normal dynamic braking device. Its release and engagement sequence should be properly coordinated with the servo drive and motion-control system.

5. What cooling method does 1FK7083-5AF71-1AH0 use?
1FK7083-5AF71-1AH0 uses natural cooling and does not normally require an additional forced-cooling fan. During installation, sufficient space should be provided around the motor to allow heat to dissipate effectively. When the motor operates under high load, frequent acceleration and deceleration, or extended continuous operation, motor temperature should be monitored carefully. The motor includes a KTY84 stator winding temperature sensor, which can provide temperature feedback to the drive system for monitoring and protection.

6. What industrial applications are suitable for 1FK7083-5AF71-1AH0?
This servo motor is suitable for industrial automation equipment requiring accurate speed, position, and torque control. Typical applications include machine-tool feed axes, automated production lines, packaging machinery, material-handling systems, positioning equipment, and precision mechanical systems. For proper motor selection, engineers should consider load inertia, rated torque, peak torque, operating speed, acceleration and deceleration time, duty cycle, and mechanical transmission characteristics rather than selecting the motor based only on rated power.

7. What should be checked when installing and commissioning 1FK7083-5AF71-1AH0?

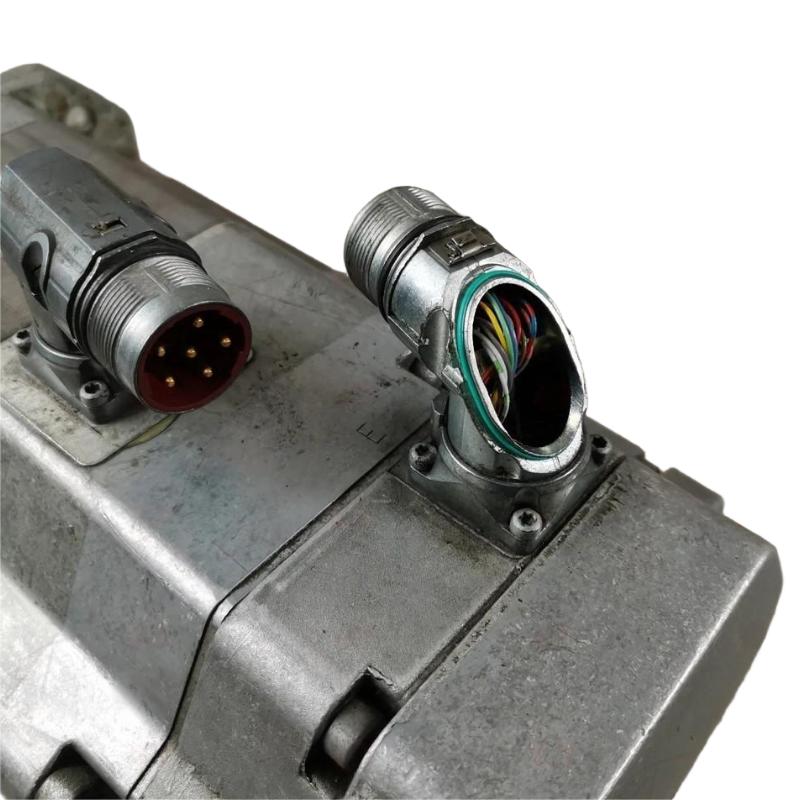

Before installation, verify the motor model, flange mounting arrangement, shaft connection, and coupling specifications. The power cable, encoder feedback cable, and brake wiring must be connected correctly according to the system design. Protective grounding and cable shielding should also be properly implemented. During commissioning, the servo drive should be configured with the correct motor power, rated current, rated speed, encoder type, and brake parameters. The initial test should be performed at low speed and low load to verify rotation direction, feedback signals, and brake operation before gradually increasing speed and load.

8. How should 1FK7083-5AF71-1AH0 be diagnosed if an alarm or abnormal operation occurs?
When an alarm occurs, first identify the specific fault code displayed by the servo drive. This helps determine whether the problem is related to encoder feedback, overcurrent, overload, overheating, brake operation, or mechanical loading. For encoder faults, inspect the feedback cable, connectors, shielding, grounding, and encoder configuration. For overcurrent or overload conditions, check the mechanical load, acceleration and deceleration settings, load inertia, and drive current parameters. For brake-related faults, check the DC 24 V supply, brake coil, and control sequence. Temperature-related alarms should be investigated by checking the actual load, duty cycle, cooling conditions, and KTY84 temperature feedback. A step-by-step inspection of the electrical system, drive parameters, mechanical load, and motor condition can help identify the actual cause without introducing additional configuration errors.
