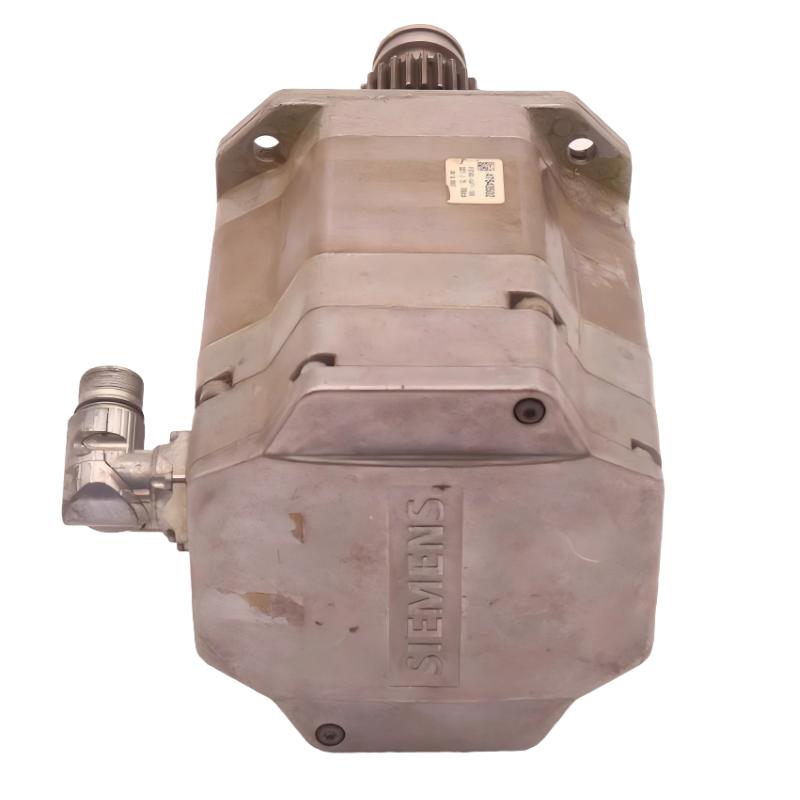

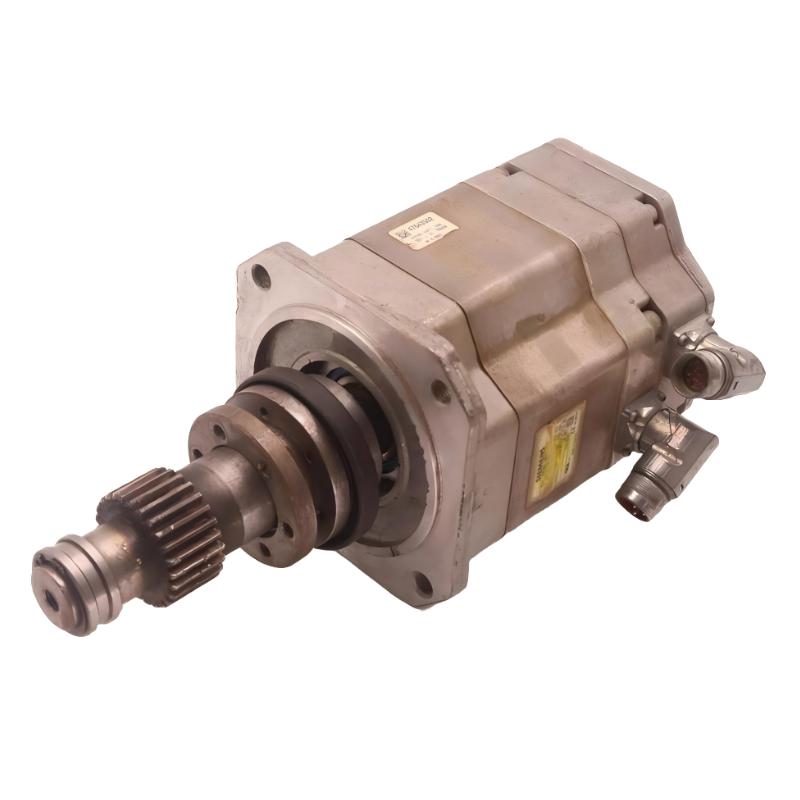

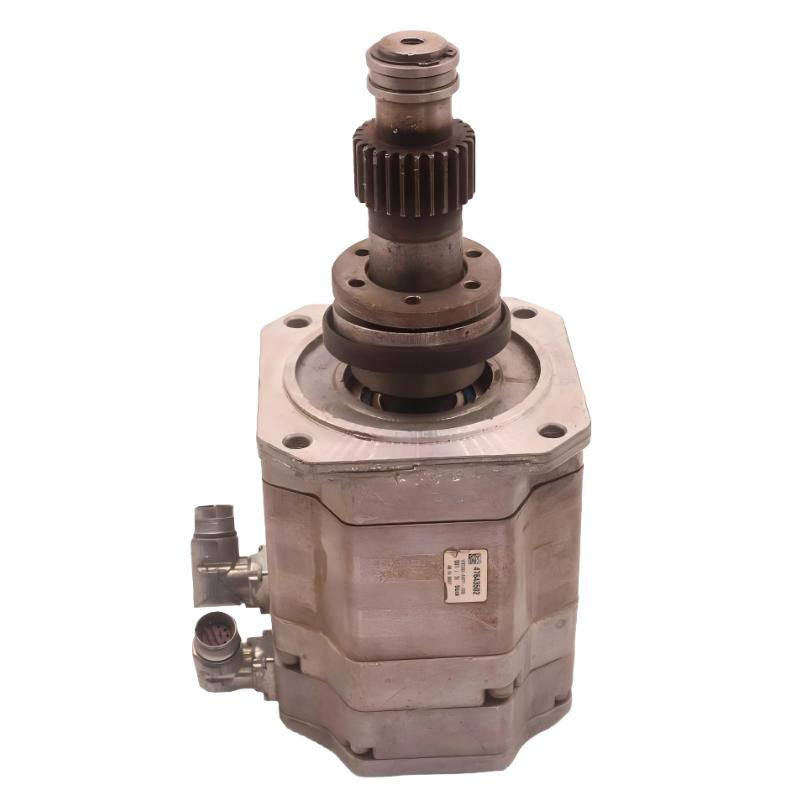

Siemens 1FK7083-5AF71-1SG0 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Servo Motor |
| Manufacturer | Siemens |
| Model | 1FK7083-5AF71-1SG0 |
| Motor Series | SIMOTICS S 1FK7 Compact |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Rated Power | 3.3 kW |
| Rated Speed | 3000 rpm |
| Optimum Speed | 3000 rpm |
| Maximum Mechanical Speed | 6000 rpm |
| Maximum Inverter Speed | 5900 rpm |
| Rated Torque | 10.5 Nm |
| Static Torque at 60 K | 13.30 Nm |
| Static Torque at 100 K | 16.00 Nm |
| Maximum Torque | 50 Nm |
| Rated Current | 7.4 A |
| Maximum Current | 37 A |
| Number of Poles | 8 |
| Moment of Inertia | 27.3 kg·cm² |
| Efficiency | 93.0% |
| Torque Constant | 1.52 Nm/A |
| Voltage Constant at 20°C | 97.0 V/1000 rpm |
| Winding Resistance at 20°C | 0.40 Ω |
| Rotating Field Inductance | 6.0 mH |
| Electrical Time Constant | 15.50 ms |
| Mechanical Time Constant | 1.41 ms |
| Thermal Time Constant | 50 min |
| Shaft Torsional Stiffness | 105,000 Nm/rad |
| Cooling Method | Natural Cooling |
| Shaft Height | 80 mm |
| Mounting Position | IM B5 (IM V1, IM V3) |
| Degree of Protection | IP64 |
| Encoder System | Multi-pole Resolver, Resolver P=4 |
| Holding Brake | Without Holding Brake |
| Shaft End | Plain Shaft, tolerance N |
| Power/Signal Connector | Rotatable by 270° |
| Temperature Monitoring | KTY84 temperature sensor |
| Housing Color | Anthracite, RAL 7016 |
| Weight | 14.003 kg |
FAQ
1. What type of motor is the Siemens 1FK7083-5AF71-1SG0?
The Siemens 1FK7083-5AF71-1SG0 is a SIMOTICS S 1FK7 Compact permanent-magnet synchronous servo motor. It is designed for industrial motion-control applications requiring accurate positioning, controlled speed and reliable torque performance. The motor uses natural cooling and a multi-pole resolver for rotor-position feedback.
2. What are the rated power and rated speed of the 1FK7083-5AF71-1SG0?
The motor has a rated power of 3.3 kW and a rated speed of 3000 rpm. The optimum speed is also 3000 rpm, while the maximum permissible mechanical speed is 6000 rpm. The actual operating speed should be selected according to the drive configuration, machine load and required motion profile.
3. What is the rated torque of the 1FK7083-5AF71-1SG0?
The rated torque is 10.5 Nm. The static torque is 13.30 Nm at a 60 K temperature rise and 16.00 Nm at 100 K. The maximum torque is 50 Nm under the specified operating conditions. Continuous operation should remain within the motor’s thermal and electrical limits.
4. What feedback system does the 1FK7083-5AF71-1SG0 use?
This model uses a multi-pole resolver with four pole pairs for rotor-position feedback. The resolver supplies the servo drive with the position information required for motor commutation and closed-loop speed control. The drive must be configured for the correct resolver characteristics during commissioning.
5. Does the Siemens 1FK7083-5AF71-1SG0 include a holding brake?
No. The 1FK7083-5AF71-1SG0 is supplied without a holding brake. If the machine requires the shaft to remain mechanically secured when the servo system is disabled, an external mechanical holding solution or a suitable motor variant with an integrated brake should be considered.
6. What cooling method does this Siemens servo motor use?
The motor uses natural cooling. It does not require a separate external fan or liquid-cooling system for normal operation. Sufficient clearance and heat dissipation around the motor should nevertheless be maintained, particularly during continuous operation at high torque or in enclosed machinery.
7. Which mounting positions are supported by the 1FK7083-5AF71-1SG0?
The motor supports IM B5 mounting and can also be installed in IM V1 and IM V3 positions. The mounting flange should be securely fixed and the motor shaft accurately aligned with the driven equipment. Proper alignment helps reduce bearing loads, vibration and mechanical stress during operation.
8. What should be checked when commissioning the 1FK7083-5AF71-1SG0?
Before commissioning, check the motor order number, drive compatibility, resolver wiring, power connections, grounding and mechanical coupling. Confirm correct feedback detection and rotation direction at low speed before increasing the operating speed and load. Current, torque, vibration and motor temperature should also be monitored during the initial test run.
Siemens 1FK7083-5AF71-1SG0 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
