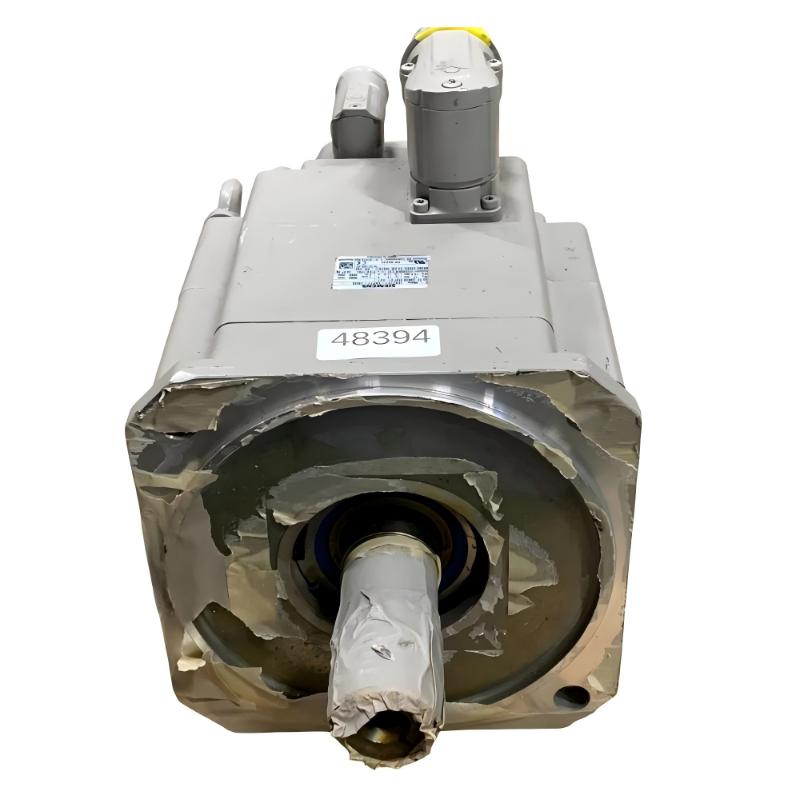

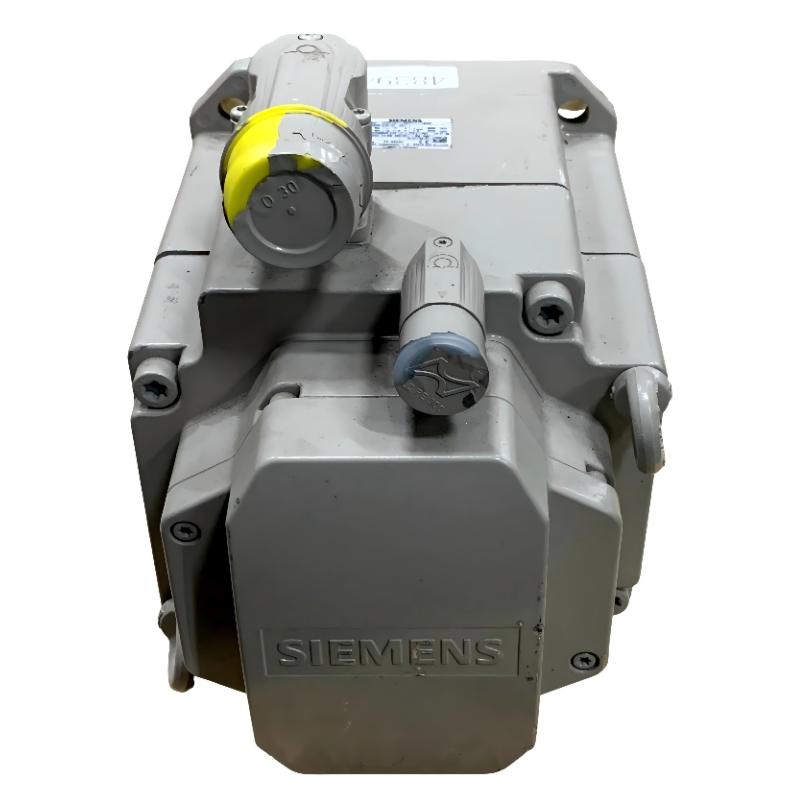

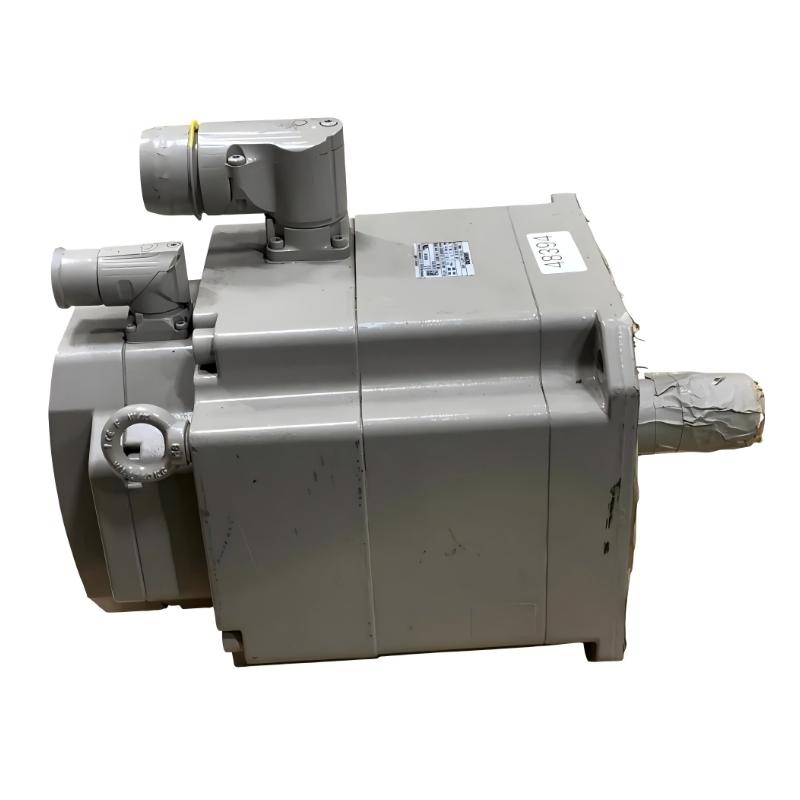

Siemens 1FK7101-5AF71-1AH0 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1FK7101-5AF71-1AH0 |
| Product Type | Servo Motor |
| Series | SIMOTICS S 1FK7 Compact |
| Brand | Siemens |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Rated Power | 4.85 kW |
| Rated Speed | 3000 rpm |
| Rated Torque | 15.5 Nm |
| Static Torque (60 K) | 22.4 Nm |
| Static Torque (100 K) | 27 Nm |
| Rated Current | 11.8 A |
| Stall Current (60 K) | 15.7 A |
| Stall Current (100 K) | 19.0 A |
| Number of Poles | 8 |
| Maximum Mechanical Speed | 5000 rpm |
| Maximum Inverter Speed | 6400 rpm |
| Maximum Torque | 80 Nm |
| Maximum Current | 63 A |
| Efficiency | 93.0% |
| Rotor Moment of Inertia | 9.23 × 10⁻³ kg·m² |
| Shaft Height | 100 mm |
| Cooling Method | Natural Cooling |
| Mounting Type | IM B5, IM V1, IM V3 |
| Encoder Type | Incremental Encoder |
| Encoder Signal | SIN/COS 1 Vpp |
| Encoder Resolution | 2048 pulses/revolution |
| Shaft Design | Plain Shaft |
| Shaft Tolerance | N |
| Holding Brake | Permanent-Magnet Brake |
| Protection Rating | IP64 |
| Connector | Power and Signal Connectors, Rotatable by 270° |
| Weight | 24.002 kg |
FAQ
1. What is the rated speed of the Siemens 1FK7101-5AF71-1AH0 servo motor?
The rated speed of the 1FK7101-5AF71-1AH0 is 3000 rpm. This operating speed is specified for the motor’s rated performance and is suitable for servo applications requiring controlled rotation, stable torque output, and accurate speed regulation.
2. What type of encoder is used on the 1FK7101-5AF71-1AH0?
The motor uses an incremental SIN/COS encoder with a 1 Vpp signal and 2048 pulses per revolution. The encoder supplies position and speed feedback to the servo drive, allowing the control system to regulate motor movement accurately during acceleration, deceleration, and continuous operation.
3. Does the 1FK7101-5AF71-1AH0 have a holding brake?
Yes. This configuration is equipped with a permanent-magnet holding brake. The brake is intended to mechanically hold the motor shaft when required, particularly when the servo drive is disabled. Brake control should be integrated according to the drive and machine safety design.
4. What cooling method does this Siemens servo motor use?
The 1FK7101-5AF71-1AH0 uses natural cooling. Heat is dissipated through the motor housing without requiring an external cooling fan under normal specified operating conditions. Adequate ventilation should be maintained, especially during continuous operation at high load.
5. Which mounting positions are supported by the 1FK7101-5AF71-1AH0?
The motor supports IM B5 mounting as well as IM V1 and IM V3 installation positions. During installation, the flange, coupling, and motor shaft should be properly aligned to minimize mechanical stress and prevent excessive radial or axial loads.
6. What should be checked when commissioning the 1FK7101-5AF71-1AH0?
Commissioning should include checking the motor identification, power wiring, grounding, encoder connection, brake wiring, drive parameters, rated current, speed limits, and feedback configuration. The holding brake should also be verified for correct release and engagement before normal machine operation.
7. What can cause encoder or servo control faults on this motor?
Typical causes include damaged encoder cables, loose connectors, incorrect feedback configuration, electrical interference, incorrect drive parameters, or mechanical problems in the coupling and driven equipment. Troubleshooting should begin with the encoder circuit and drive diagnostics before checking servo tuning and mechanical conditions.
8. What applications are suitable for the Siemens 1FK7101-5AF71-1AH0?
The motor is designed for industrial motion-control applications requiring precise speed and torque regulation together with mechanical shaft holding. Typical applications include machine tools, automated production systems, positioning equipment, packaging machinery, material handling systems, and other servo-controlled machines.
Siemens 1FK7101-5AF71-1AH0 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
