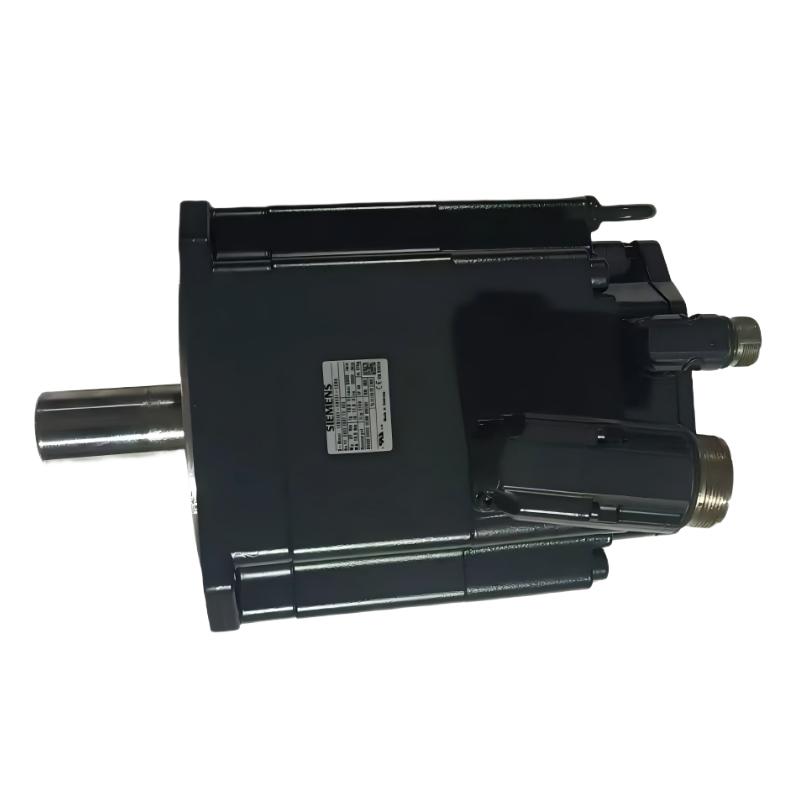

Siemens 1FK7101-5AF71-1SH0 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

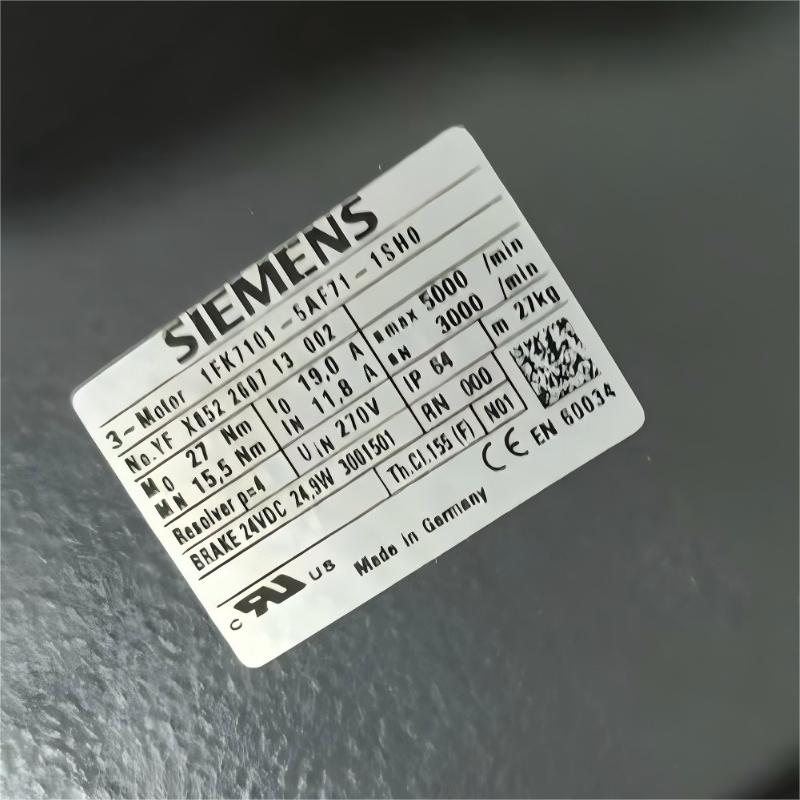

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Series | SIMOTICS S-1FK7 |
| Product Type | Synchronous Servo Motor |
| Model / Order Number | 1FK7101-5AF71-1SH0 |
| Motor Type | Permanent-Magnet Synchronous Motor |
| Rated Speed | 3,000 rpm |
| Rated Power | Approx. 4.85 kW |
| Rated Torque | 15.5 Nm |
| Standstill Torque | 27 Nm |
| Rated Current | 11.8 A |
| Number of Poles | 8 |
| Cooling Method | Natural Cooling |
| Shaft Height | 100 mm |
| Shaft End | Plain Shaft |
| Holding Brake | With Holding Brake |
| Encoder System | Multi-pole Resolver, P=4 |
| DRIVE-CLiQ Interface | Without DRIVE-CLiQ |
| Degree of Protection | IP64 |
| Mounting Type | IM B5 (IM V1, IM V3) |
| Power Connection | Power Connector |
| Signal Connection | Signal Connector |
| Connector Rotation | 270° rotatable |
| Rotor Moment of Inertia | Approx. 79.9 kg·cm² |
| Torque Constant | Approx. 1.41 Nm/A |
| Winding Resistance at 20°C | Approx. 0.15 Ω |
| Rotating Field Inductance | Approx. 3.0 mH |
| Maximum Permissible Mechanical Speed | 5,000 rpm |
| Maximum Torque | Approx. 80 Nm |
| Weight | 24.002 kg |
FAQ
1. What type of motor is the Siemens 1FK7101-5AF71-1SH0?
The Siemens 1FK7101-5AF71-1SH0 is a SIMOTICS S-1FK7 permanent-magnet synchronous servo motor designed for precision motion-control applications.
2. What is the rated speed of the 1FK7101-5AF71-1SH0?
The motor has a rated speed of 3,000 rpm and can be operated with a compatible Siemens servo drive and correctly configured motor parameters.
3. What are the rated torque and standstill torque?
The rated torque is approximately 15.5 Nm, while the standstill torque is approximately 27 Nm under the specified operating conditions.
4. Which feedback device is used by this servo motor?
This model uses a multi-pole resolver with P=4 for motor position and speed feedback. It is specified without a DRIVE-CLiQ interface.
5. Does the Siemens 1FK7101-5AF71-1SH0 include a holding brake?
Yes. The motor is equipped with a holding brake. The brake should be controlled according to the requirements of the servo drive and machine control system.
6. What cooling method does the 1FK7101-5AF71-1SH0 use?
The motor uses natural cooling. Proper ventilation and sufficient clearance around the motor should be maintained to support reliable heat dissipation.
7. What mounting configuration is supported?
The motor supports IM B5 mounting and can also be used in IM V1 and IM V3 mounting positions when the installation conditions are suitable.
8. What should be checked if the motor does not rotate correctly after installation?
Check the motor power connections, resolver wiring, drive configuration, motor parameters, brake release signal, and feedback signals. If a drive fault occurs, verify the resolver connection and motor configuration before restarting the system.
Siemens 1FK7101-5AF71-1SH0 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
