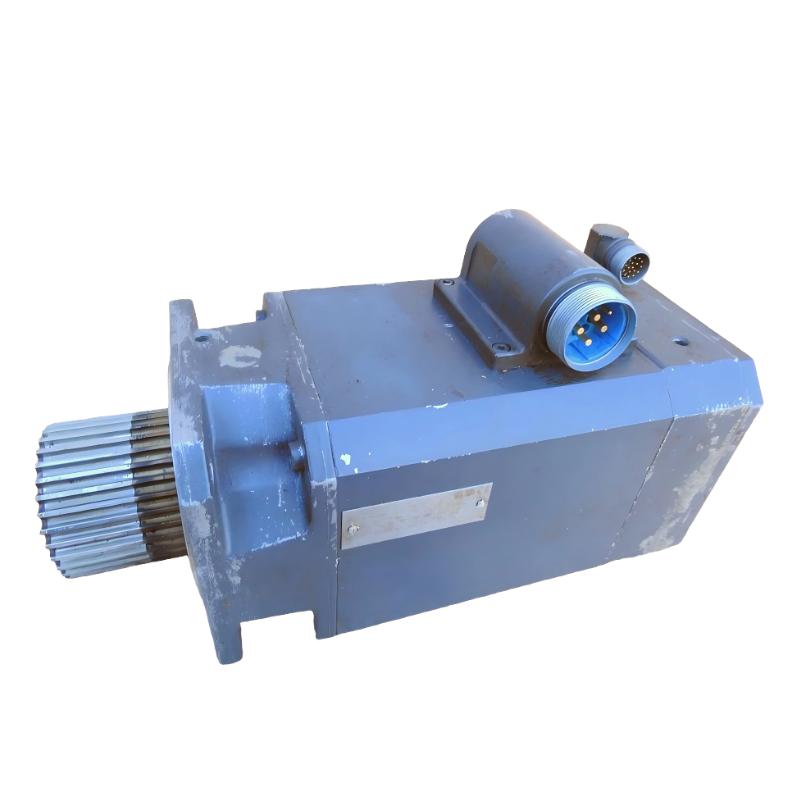

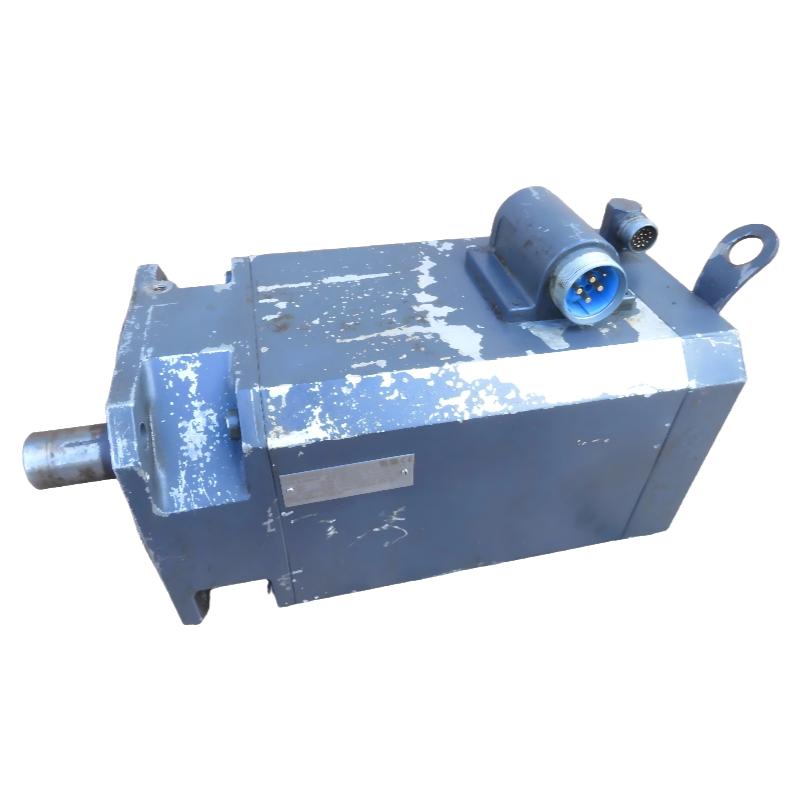

Siemens 1FT6105-1AC71-1AG1 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Series | SIMOTICS S 1FT6 |
| Product Type | Synchronous Servo Motor |
| Model / Order Number | 1FT6105-1AC71-1AG1 |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Rated Speed | 2,000 rpm |
| Standstill Torque | 50 Nm |
| Rated Torque | 50 Nm |
| Rated Current | 21.4 A |
| Cooling Method | Natural Cooling |
| Rated DC Link Voltage | 600 V |
| Number of Phases | 3 Phase |
| Mounting Type | IM B5 |
| Mounting Positions | IM V1, IM V3 |
| Encoder Type | Incremental Encoder |
| Encoder Signal | SIN/COS 1 Vpp |
| Encoder Resolution | 2,048 pulses/revolution |
| DRIVE-CLiQ Interface | Without DRIVE-CLiQ |
| Holding Brake | Without Holding Brake |
| Shaft Design | Plain Shaft |
| Connector Outlet Direction | Transverse, Right |

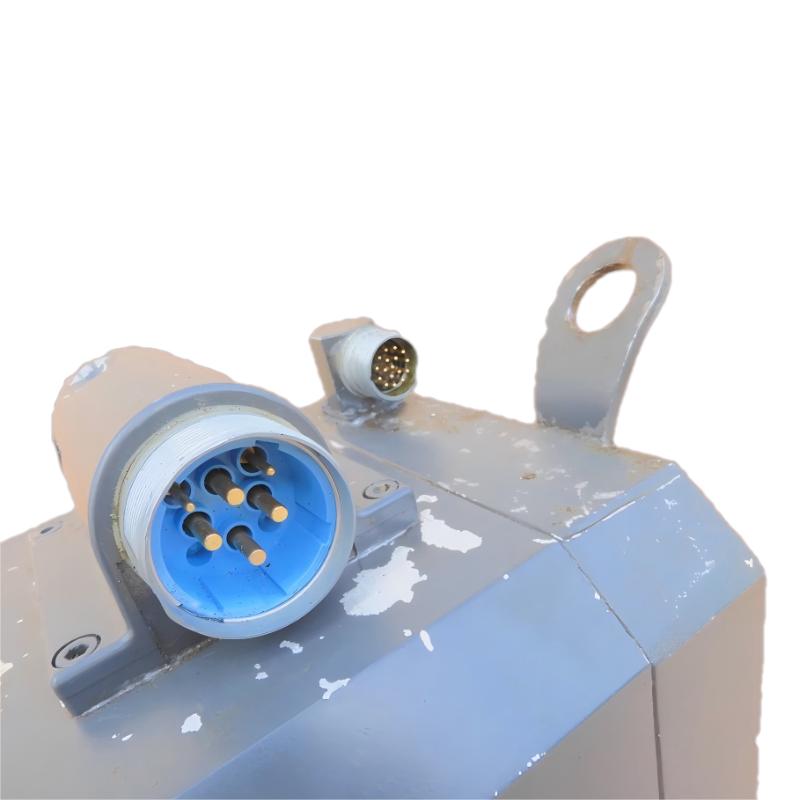

| Power Connection | Power Connector |
| Signal Connection | Signal Connector |
| Degree of Protection | IP65 |
| Vibration Severity Grade | Grade N |
| Maximum Speed | 5,600 rpm |
| Shaft Height | 100 mm |
| Installation Length | Approx. 370 mm |
| Weight | 39.502 kg |
FAQ
1. What type of servo motor is the Siemens 1FT6105-1AC71-1AG1?
The Siemens 1FT6105-1AC71-1AG1 is a SIMOTICS S 1FT6 permanent-magnet synchronous servo motor designed for industrial motion-control applications. It uses a three-phase configuration with natural cooling and provides controlled torque and speed for automated machinery, production systems, machine tools, and other precision motion applications.
2. What are the rated speed and torque of the 1FT6105-1AC71-1AG1?
The motor has a rated speed of 2,000 rpm and a rated torque of 50 Nm. The actual operating torque should be evaluated together with the machine load profile, acceleration and deceleration requirements, duty cycle, and thermal conditions. These factors are important when configuring the associated servo drive.
3. What type of encoder does the Siemens 1FT6105-1AC71-1AG1 use?
The motor uses an incremental SIN/COS encoder with a 1 Vpp signal and 2,048 pulses per revolution. The feedback system provides the servo drive with position and speed information for closed-loop control. During commissioning, encoder wiring, shielding, grounding, and drive feedback parameters should be checked carefully.
4. Does the 1FT6105-1AC71-1AG1 have a holding brake?
No. This motor configuration does not include an integrated holding brake. If the machine requires the shaft to remain mechanically secured after the motor is stopped or power is removed, an appropriate external braking or holding mechanism should be provided. The external system must be selected according to the machine load and stopping requirements.
5. What is the maximum speed of the Siemens 1FT6105-1AC71-1AG1?
The specified maximum speed is 5,600 rpm, while the rated speed is 2,000 rpm. Operation at higher speeds requires the motor, drive, coupling, bearings, and driven machine to remain within their permitted operating limits. The servo drive’s speed limit should therefore be configured according to the complete mechanical system rather than the motor specification alone.
6. What cooling method does the 1FT6105-1AC71-1AG1 use?
The motor uses natural cooling and does not require a separate forced-air cooling system for its standard configuration. Sufficient ventilation and heat dissipation around the motor should be maintained. Restricted airflow, high ambient temperature, or prolonged high-load operation can increase motor temperature and should be considered during installation and application planning.
7. Which mounting positions are supported by the 1FT6105-1AC71-1AG1?
The motor uses IM B5 mounting and supports IM V1 and IM V3 mounting positions. Proper flange installation, shaft alignment, coupling accuracy, and mechanical fastening are important during installation. Excessive radial or axial forces on the shaft should be avoided because they can increase bearing loads, vibration, and mechanical wear.
8. What should be checked when commissioning the Siemens 1FT6105-1AC71-1AG1?
Before commissioning, verify the motor identification and enter the correct motor data into the servo drive. Check the three-phase power wiring, protective grounding, encoder feedback connections, cable shielding, and connector installation. Perform an initial low-speed test to confirm the feedback signal, rotation direction, current response, and mechanical behavior. If abnormal vibration, encoder errors, excessive current, or overheating occurs, inspect the wiring, drive parameters, coupling alignment, and load conditions before continuing operation.
Siemens 1FT6105-1AC71-1AG1 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
