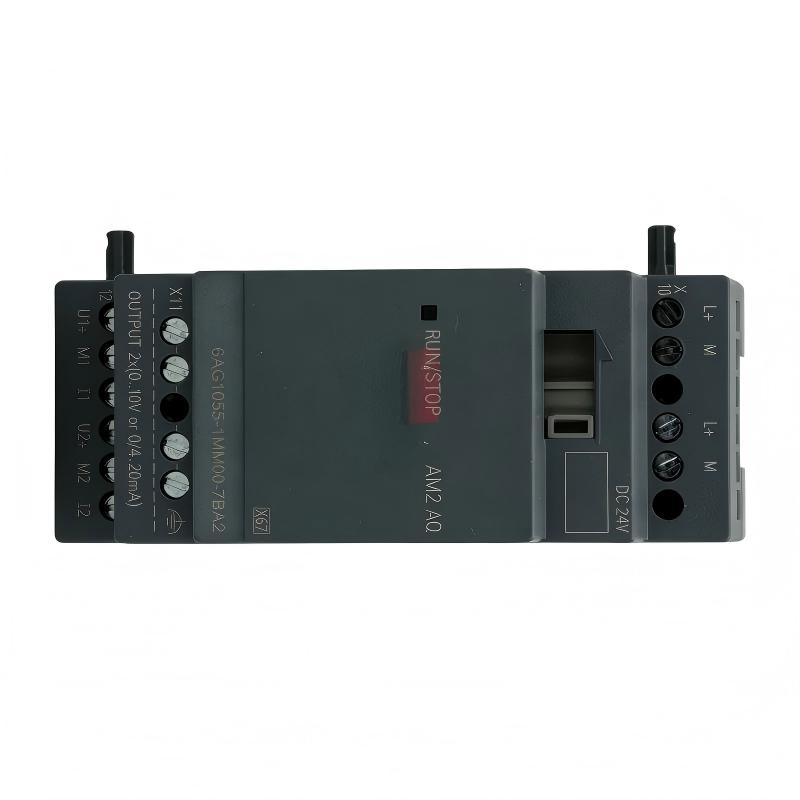

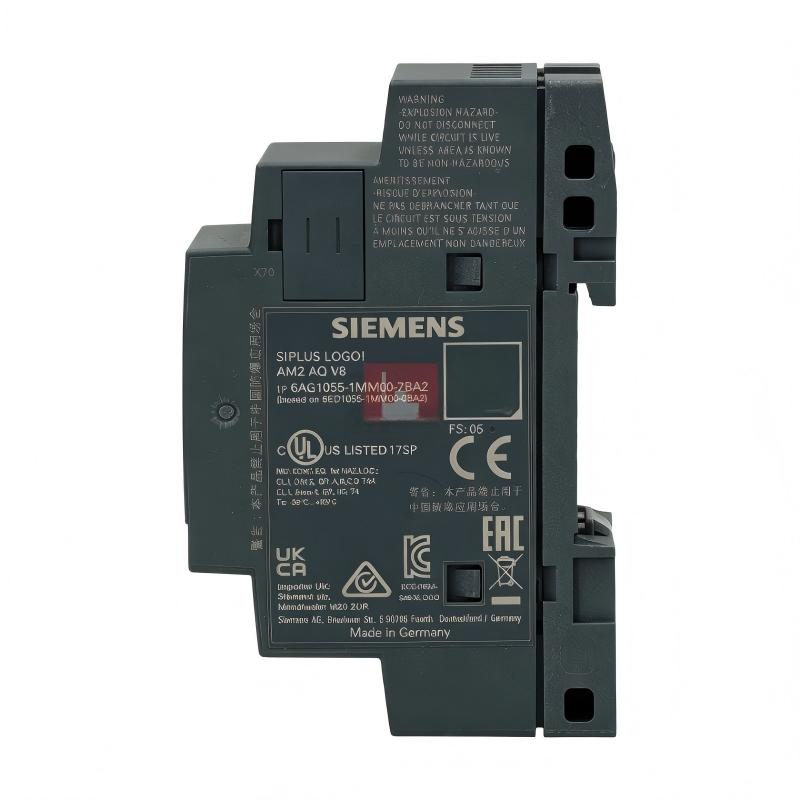

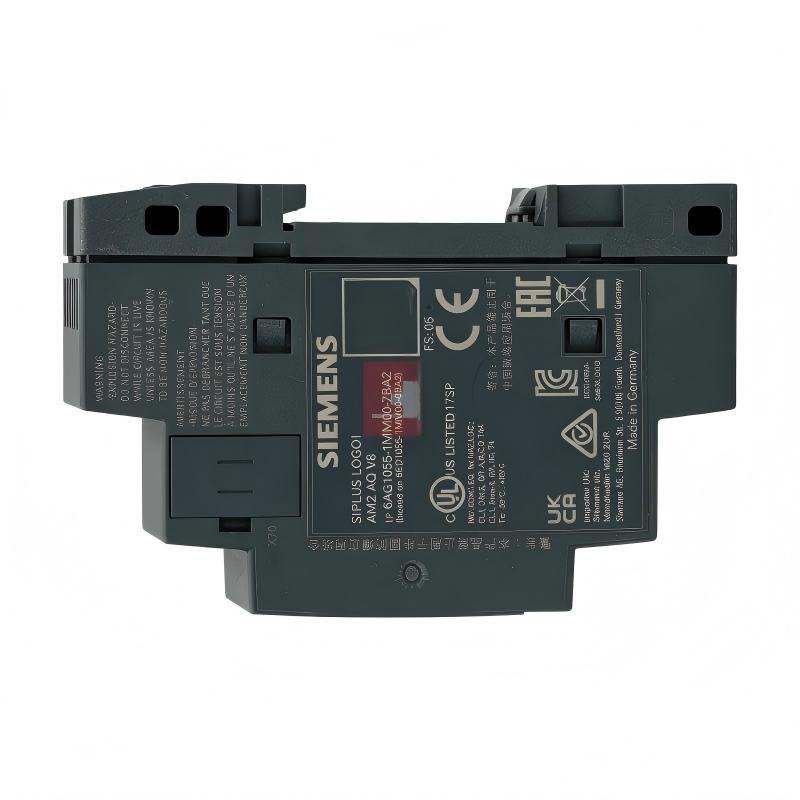

Siemens 6AG1055-1MM00-7BA2 Extension Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1055-1MM00-7BA2 |
| Product Type | Analog Output Expansion Module |
| Product Series | SIPLUS LOGO! AM2 AQ V8 |
| Base Model | 6ED1055-1MM00-0BA2 |
| Compatible Controller | Siemens LOGO! 8 |
| Number of Analog Outputs | 2 |
| Voltage Output Range | 0–10 V DC |
| Current Output Range | 0–20 mA / 4–20 mA |
| Analog Output Resolution | 10-bit |
| Rated Supply Voltage | 24 V DC |
| Typical Current Consumption | 82 mA |
| Typical Power Loss | 0.4–2.0 W; typically 2 W |
| Mounting Type | 35 mm DIN rail, 2 module widths |
| Electrical Connection | Screw-type terminals |
| Protection Rating | IP20 |
| Conformal Coating | Yes |
| Operating Temperature | -40°C to +70°C |
| Minimum Startup Temperature | -25°C |
| Application | Analog signal output for industrial automation and process control |
| Dimensions | 35.5 × 90 × 58 mm |
| Weight | 0.14 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1055-1MM00-7BA2 module?
The Siemens 6AG1055-1MM00-7BA2 is a SIPLUS LOGO! AM2 AQ analog output expansion module. It adds two analog output channels to a compatible LOGO! 8 control system for sending control signals to external equipment.
Q2: How many analog output channels does this module provide?
The module provides two analog output channels. Each channel can be configured for a supported voltage or current output signal according to the application requirements.
Q3: Which analog output signals are supported?
The module supports 0–10 V voltage output and 0–20 mA or 4–20 mA current output. The selected output type must match the receiving device’s signal requirements.
Q4: Which controllers are compatible with this expansion module?
It is designed for Siemens LOGO! 8 systems and is based on the standard module 6ED1055-1MM00-0BA2. Check the controller model and system configuration before installation.
Q5: What power supply does the module require?
The module uses a rated 24 V DC supply. Ensure the power supply meets the system requirements and that wiring follows the manufacturer’s instructions.
Q6: Can this module control a variable frequency drive or proportional valve?
Yes, it can provide a suitable analog reference signal when the receiving device accepts a supported 0–10 V or current signal. Confirm signal compatibility and configure the output range correctly before operation.
Q7: What environmental conditions can the module withstand?
The SIPLUS version supports an operating temperature range of -40°C to +70°C, with startup permitted from -25°C. Its conformal coating provides additional protection in demanding industrial environments, subject to the specified installation conditions.
Q8: What should be checked if an analog output signal is incorrect?
Verify the output channel configuration, selected signal range, wiring polarity, common reference, and receiving device settings. Also check the 24 V DC supply and the controller program to identify configuration or connection issues.
Siemens 6AG1055-1MM00-7BA2 Extension Module is in stock. Please contact us for a quick quote and competitive pricing.
