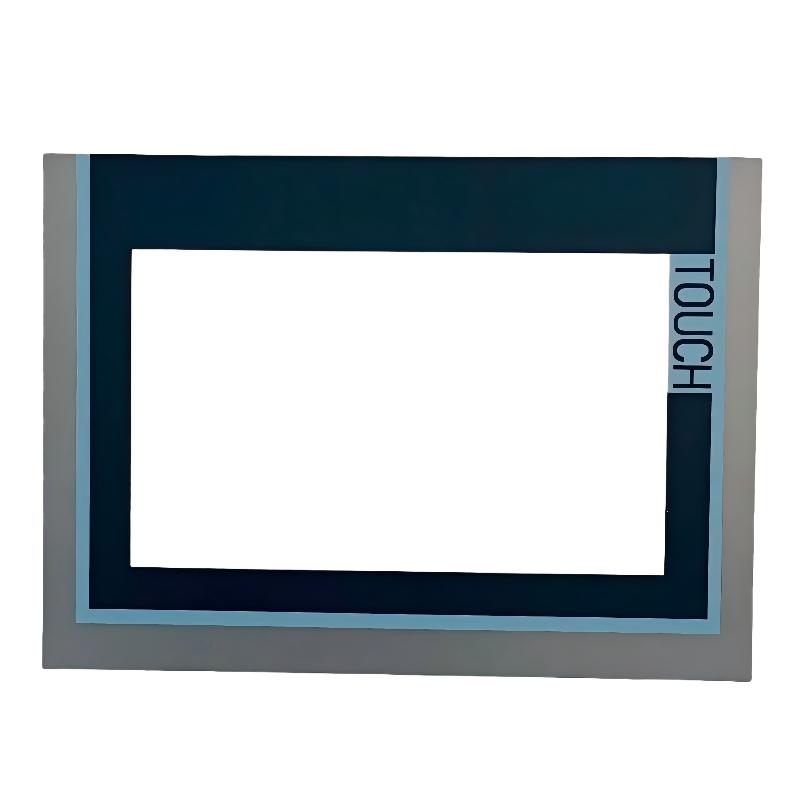

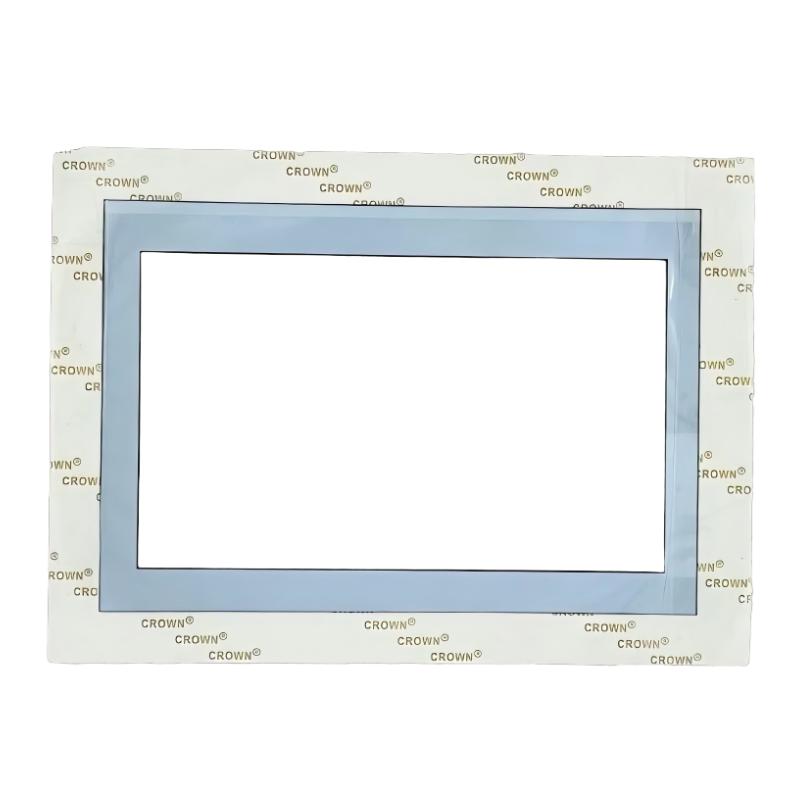

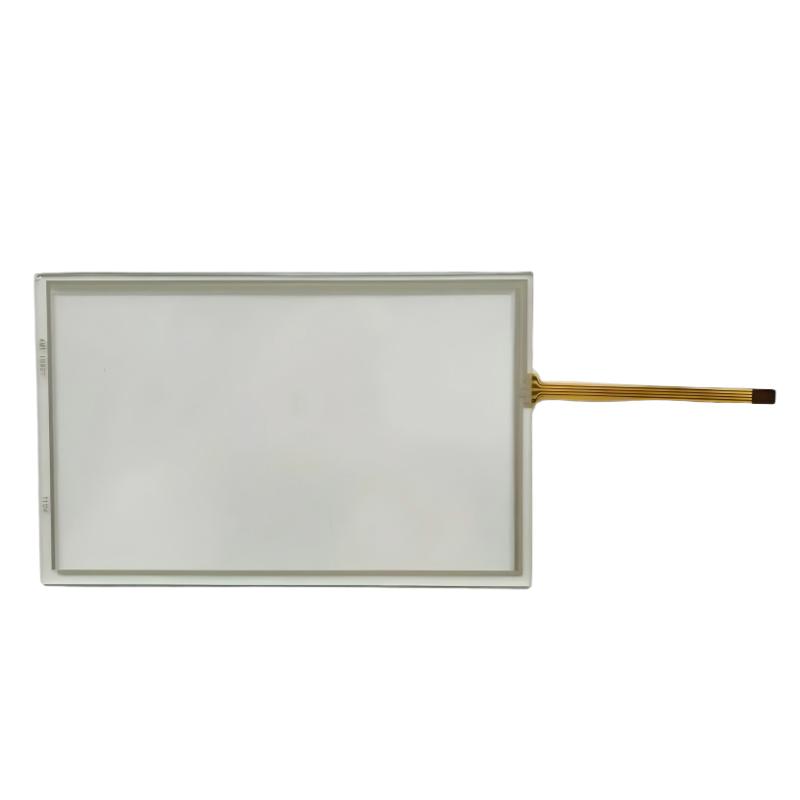

Siemens 6AG1124-0GC13-2AX0 OIT Replacement Display/Touch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6AG1124-0GC13-2AX0 |
| Product Type | SIPLUS HMI TP700 Comfort Outdoor Operator Panel |
| Product Series | SIPLUS Comfort Panels Outdoor |
| Base Model | 6AV2124-0GC13-0AX0 |
| Display Type | 7-inch widescreen TFT color display |
| Display Resolution | 800 × 480 pixels |
| Display Colors | 16.7 million colors |
| Operation | Analog resistive touchscreen |
| Function Keys | No dedicated physical function keys |
| Supply Voltage | 24 V DC |
| Permitted Supply Voltage | 19.2 to 28.8 V DC |
| Typical Power Consumption | Approx. 17 W |
| Industrial Ethernet Interfaces | 2 |
| Integrated Switch | 2-port Ethernet switch |
| RS-422/RS-485 | 1 combined interface |
| USB Interfaces | 2 × USB 2.0 |
| SD Card Slots | 2 |
| PROFINET | Supported |
| PROFINET IO | Supported |
| IRT | Supported |
| PROFIBUS DP | Supported |
| MPI | Supported |
| EtherNet/IP | Supported |
| TCP/IP | Supported |
| DHCP | Supported |
| SNMP | Supported |
| DCP | Supported |
| LLDP | Supported |
| OPC UA Client | Supported |
| OPC UA Server | Supported |
| User Memory | 12 MB |
| Operating System | Windows CE 6.0 |
| Engineering Software | WinCC Comfort V13 SP1 or later |
| Operating Temperature | -30 to +60 °C |
| Mounting Orientation | Horizontal and vertical mounting supported |
| Front Panel Material | UV-resistant aluminum |
| Protective Coating | Yes |
| Real-Time Clock | Supported with retentive data |
| Backup/Restore | Manual and automatic backup/restore supported |
| Dimensions | 270 × 170 × 85 mm |
| Weight | 1.917 kg |
FAQ
1. What is 6AG1124-0GC13-2AX0 mainly used for in industrial automation?
6AG1124-0GC13-2AX0 is a SIPLUS TP700 Comfort Outdoor operator panel designed for machine operation, process monitoring, equipment status visualization, and industrial HMI applications. It can display process values, alarm messages, recipes, diagnostic information, and machine operating states while allowing operators to enter parameters and execute configured control functions. Its Outdoor design provides enhanced environmental resistance and a wider operating temperature range for demanding industrial installations.
2. Which industrial communication protocols are supported by 6AG1124-0GC13-2AX0?
The unit supports several industrial communication technologies, including PROFINET, PROFINET IO, IRT, PROFIBUS DP, and MPI. It also supports Ethernet-based functions such as TCP/IP, DHCP, SNMP, DCP, and LLDP, as well as EtherNet/IP for suitable third-party automation systems. The actual communication method should be selected according to the PLC, network architecture, engineering software, and application requirements. Correct IP addressing, device naming, and communication parameters are essential for reliable data exchange.
3. Which PLC systems can be connected to 6AG1124-0GC13-2AX0?
The HMI can be integrated with Siemens PLC systems such as S7-1200 and S7-1500, as well as compatible S7-200 and S7-300/400 systems depending on the selected communication method and engineering configuration. It can also communicate with certain third-party controllers when the required protocol and driver are supported, including suitable EtherNet/IP-based controllers. Compatibility should always be checked against the HMI engineering software, firmware, communication protocol, and PLC project configuration.
4. What is the operating temperature range of 6AG1124-0GC13-2AX0?
The Outdoor version is designed for an operating temperature range of -30 to +60 °C. This provides a wider temperature range than many standard HMI installations. However, the actual installation should still consider cabinet temperature, direct sunlight, nearby heat sources, ventilation, and mounting conditions. Long-term operation close to the temperature limits should be evaluated carefully because extreme environmental conditions can affect display performance, touchscreen response, and electronic component reliability.
5. Which software is used to configure 6AG1124-0GC13-2AX0?
6AG1124-0GC13-2AX0 can be configured using WinCC Comfort within the appropriate TIA Portal engineering environment. The specified engineering environment should be compatible with the HMI hardware and firmware version. HMI projects can include graphical operating screens, PLC tags, alarms, recipes, data logging, user administration, communication connections, and other operator functions. Before transferring an existing project, the TIA Portal version, HMI firmware, and required hardware support packages should be checked for compatibility.
6. What should be done if the touchscreen of 6AG1124-0GC13-2AX0 becomes inaccurate?
First, inspect the touchscreen surface for dust, oil, moisture, or other contamination and clean it using an appropriate method. Check whether the panel is correctly installed and whether the power supply is stable. If touch accuracy remains poor, perform the available touchscreen calibration procedure and test different areas of the display. If a specific area continues to fail after calibration, the touchscreen hardware may require further inspection. For units operating in demanding outdoor or industrial environments, the actual temperature and environmental conditions should also be checked.
7. What should be checked when 6AG1124-0GC13-2AX0 cannot communicate with a PLC?
Troubleshooting should begin with the HMI power supply, Ethernet cables, network connectors, switch ports, and interface status. Next, verify the HMI and PLC IP addresses, subnet configuration, and PROFINET device name. If PROFINET is being used, check the device name and network topology configured in the TIA Portal project. The HMI tag connections and PLC variables should then be reviewed to confirm that the correct communication driver and data addresses are being used. If the physical network is functioning correctly but data remains unavailable, HMI diagnostic information and PLC communication status should be checked for additional fault information.
8. What should be considered when using 6AG1124-0GC13-2AX0 as a replacement HMI?
Before replacing an existing HMI, back up the original project and record the PLC communication parameters, IP address, device name, firmware version, and engineering software version. Because 6AG1124-0GC13-2AX0 is a TP700 Comfort Outdoor model, the existing project should be checked for hardware and firmware compatibility before transfer. After installation, verify the power supply and network connections, then download the compatible HMI project. Finally, test the operating screens, PLC tags, alarms, recipes, data logging, user permissions, touchscreen operation, and all important control functions before returning the equipment to normal production.
Siemens 6AG1124-0GC13-2AX0 OIT Replacement Display/Touch is in stock. Please contact us for a quick quote and competitive pricing.
