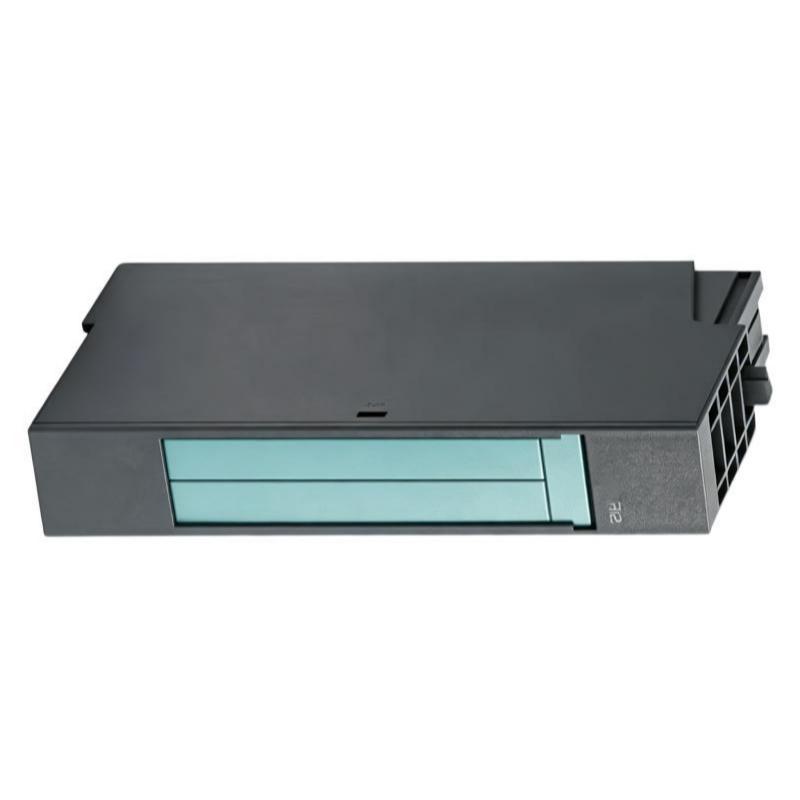

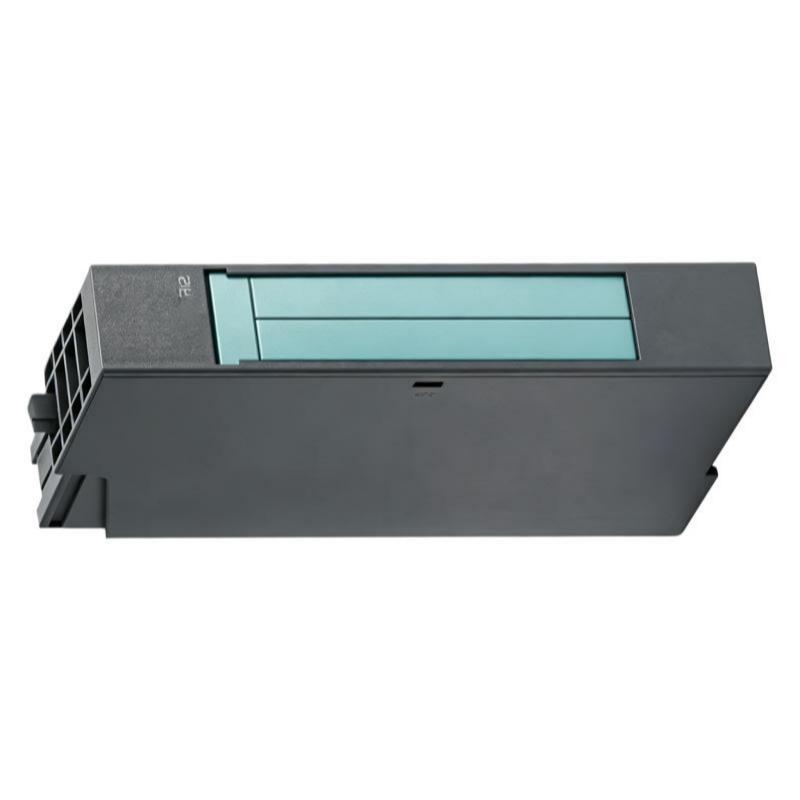

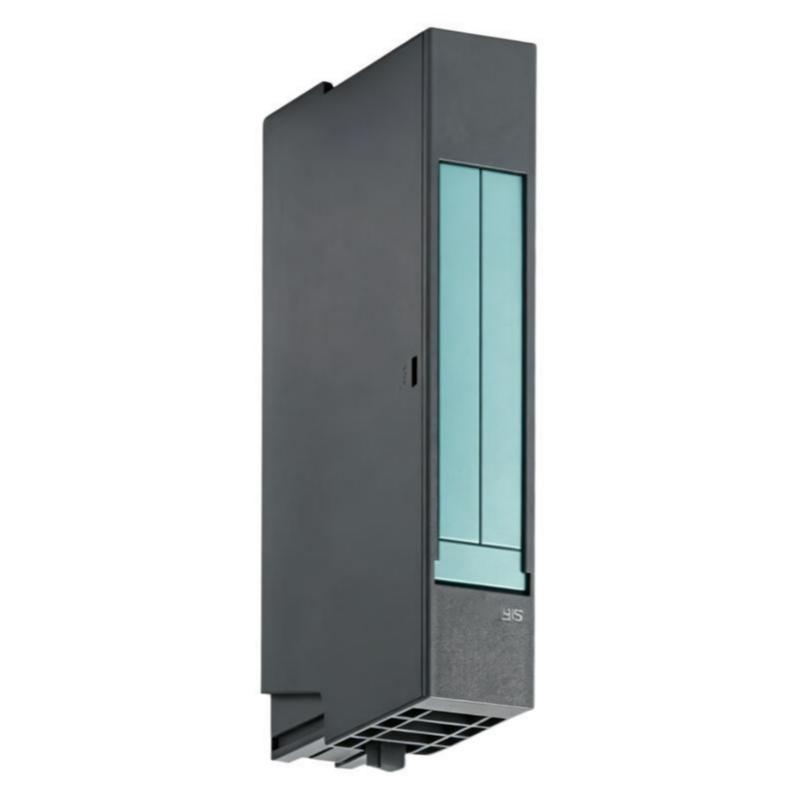

Siemens 6AG1134-4FB01-2AB0 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1134-4FB01-2AB0 |
| Product Series | SIPLUS ET 200S |
| Product Type | Analog Input Module |
| Module Designation | EM 2AI Standard U |
| Base Model | 6ES7134-4FB01-0AB0 |
| Number of Analog Inputs | 2 |
| Input Signal Type | Voltage |
| Supported Input Ranges | 1–5 V, -5 V to +5 V, -10 V to +10 V |
| Maximum Resolution | 14 bit, including overrange; effective resolution depends on the selected range |
| Measurement Principle | Integrating conversion |
| Integration Time | 16.7 / 20 ms |
| Conversion Time per Channel | Approximately 55–65 ms, depending on line frequency and configuration |
| Interference Frequency Suppression | 50 / 60 Hz |
| Input Voltage Limit | 35 V continuous; up to 75 V for a maximum of 1 ms under specified conditions |
| Load Voltage L+ | 24 V DC, supplied through the power module |
| Maximum Current from L+ (No Load) | 30 mA |
| Maximum Backplane Bus Current | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 0.6 W |
| Digital Filtering | Four settings: none, low, medium, high |
| Wire-Break Detection | Available for the 1–5 V measuring range |
| Diagnostic Functions | Group error, overflow/underflow, and configurable wire-break diagnostics |
| Maximum Shielded Cable Length | 200 m |
| Isolation | Isolation from the backplane bus; channels are not isolated from each other |
| Protective Coating | Conformal coating |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20, depending on the installed terminal assembly |
| Mounting | ET 200S terminal module |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1134-4FB01-2AB0?
A: This SIPLUS ET 200S analog input module acquires voltage signals from field instruments and converts them into digital values for a PLC or distributed control system. It is suitable for industrial measurement applications that require two voltage input channels.
Q2: How many analog input channels does the module provide?
A: The module provides two analog voltage input channels. Each channel can be configured for a supported voltage range according to the connected sensor or signal source and the requirements of the automation program.
Q3: Which voltage input ranges are supported?
A: The module supports 1–5 V, -5 V to +5 V, and -10 V to +10 V. The selected range must match the transmitter output and the channel configuration in the Siemens engineering software. Applying a signal outside the permitted limits may damage the input circuitry.
Q4: What is the resolution of the analog-to-digital conversion?
A: The maximum specified resolution is 14 bits including overrange information. The effective resolution varies with the selected measurement range and operating conditions. Correct range selection, grounding, shielding, and signal quality are important for obtaining stable measurements.
Q5: Does the module support signal filtering and noise suppression?
A: Yes. The module provides configurable digital smoothing with four settings: none, low, medium, and high. It also supports interference suppression for 50 Hz and 60 Hz frequencies. Stronger filtering can reduce fluctuations in noisy signals, but it increases the response time.
Q6: Can the module detect a broken signal wire?
A: Wire-break diagnostics are available when the 1–5 V measuring range is selected and the relevant diagnostic function is enabled. The feature is not generally available for every supported voltage range. Check the channel configuration and diagnostic settings when commissioning the module.
Q7: Which ET 200S components are required for installation?
A: The module must be installed on a compatible ET 200S terminal module and used within a properly configured ET 200S station. Select the terminal assembly and associated power module according to the wiring method, potential-group arrangement, and system design.
Q8: What should be checked if the measured analog values are incorrect or unstable?
A: Confirm the selected input range and channel parameters first. Then inspect the sensor output, terminal wiring, reference potential, cable shielding, and grounding. Check for electrical interference, loose connections, and diagnostic messages in the PLC engineering software. If readings remain incorrect, test the signal source independently and verify the module configuration before replacing the hardware.
