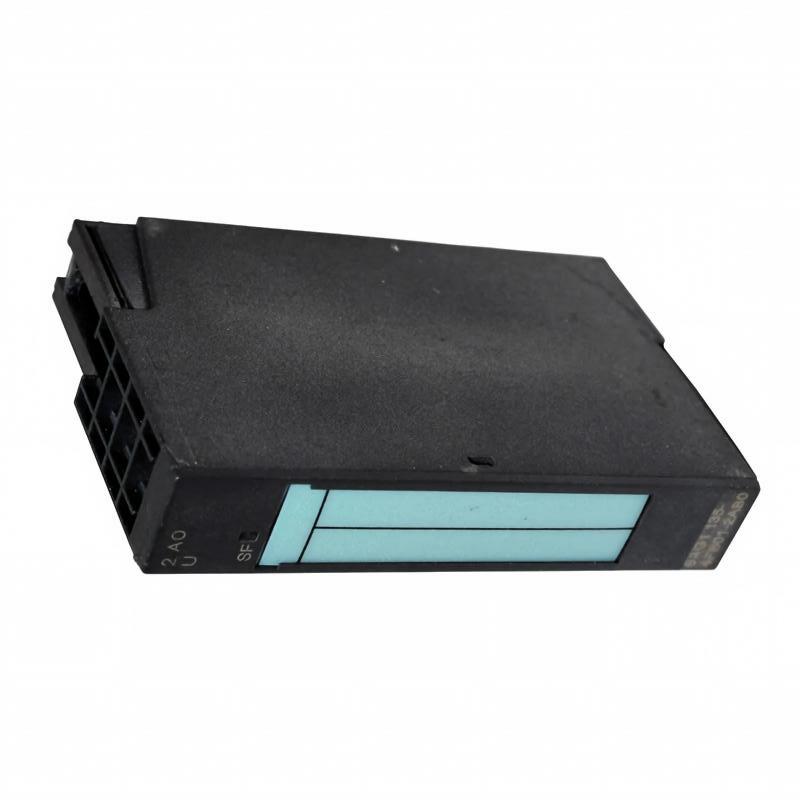

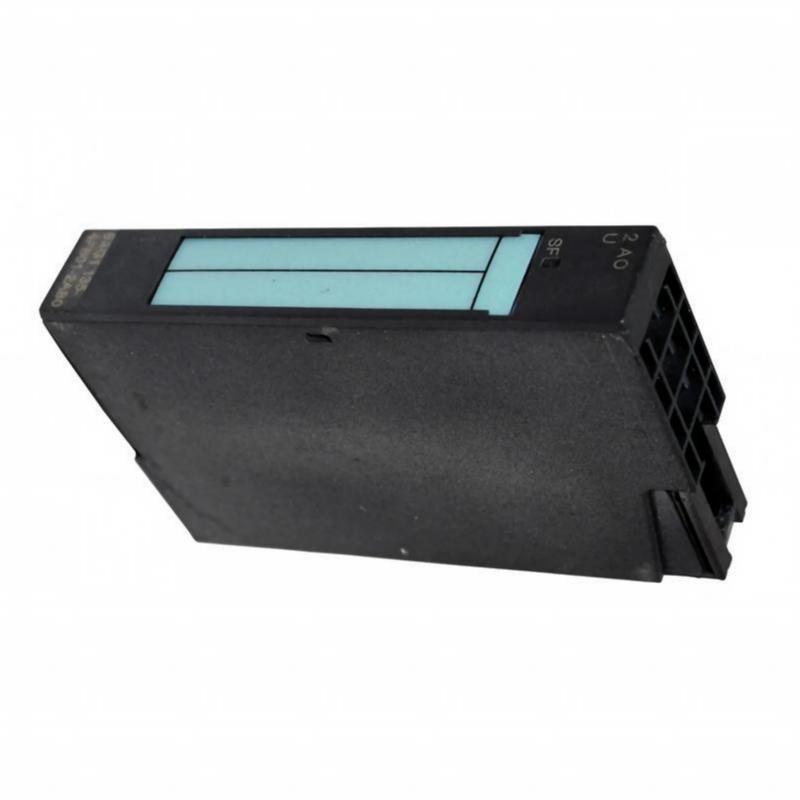

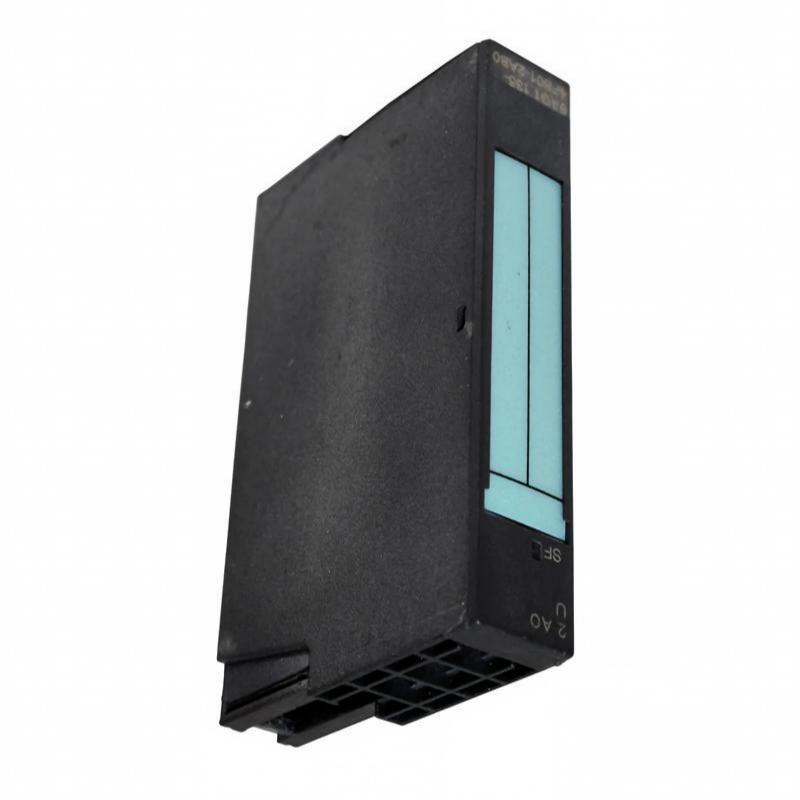

Siemens 6AG1135-4FB01-2AB0 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1135-4FB01-2AB0 |
| Product Series | SIPLUS ET 200S |
| Product Type | Analog Output Module |
| Module Designation | EM 2AO U |
| Base Model | 6ES7135-4FB01-0AB0 |
| Number of Analog Outputs | 2 |
| Output Signal Type | Voltage |
| Output Voltage Ranges | 1–5 V DC, ±10 V DC |
| Rated Load Voltage | 24 V DC, supplied by the power module |
| Reverse Polarity Protection | Yes |
| Maximum Current Consumption from Load Supply | 130 mA, without load |
| Maximum Backplane Bus Current | 10 mA at 3.3 V DC |
| Maximum Power Dissipation | 2 W |
| Maximum Output Cycle Time | 1.5 ms for all channels |
| Resolution | Up to 14 bits including sign; 12 bits for 1–5 V and 13 bits plus sign for ±10 V |
| Minimum Load Impedance | 1 kΩ |
| Maximum Capacitive Load | 1 µF |
| Maximum Short-Circuit Current | 25 mA |
| Maximum Shielded Cable Length | 200 m |
| Settling Time | 0.1 ms for resistive loads; 0.5 ms for capacitive or inductive loads |
| Basic Accuracy at 25°C | ±0.2% of output range |
| Accuracy over Full Operating Temperature Range | ±0.4% of output range |
| Diagnostic Functions | Short-circuit detection, group error diagnostics |
| Output Response to CPU STOP | Configurable substitute value, de-energized output, or hold last value |
| Environmental Protection | Conformal coating |
| Operating Temperature | -25°C to +60°C |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1135-4FB01-2AB0 module?
A: This module provides two analog voltage output channels for the SIMATIC ET 200S distributed I/O system. It converts PLC output values into voltage signals that can control compatible actuators, drives, and other industrial equipment.
Q2: Which output voltage ranges does this module support?
A: The module supports 1–5 V DC and -10 V to +10 V DC output ranges. Select the appropriate range in the hardware configuration according to the requirements of the connected device.
Q3: Can the two output channels be configured independently?
A: The output type and range can be configured through the engineering software. Set each channel according to the connected equipment and verify the configured range before commissioning.
Q4: What is the maximum load that the voltage outputs can drive?
A: The specified minimum load impedance is 1 kΩ, and the maximum capacitive load is 1 µF. Check the input impedance and capacitance of the connected device to ensure that the output remains within its operating limits.
Q5: Does the module provide short-circuit protection?
A: Yes. The voltage outputs include short-circuit protection, with a specified maximum short-circuit current of 25 mA. Short-circuit diagnostics can also help identify wiring or load faults. Remove the fault and verify the output status before returning the system to normal operation.
Q6: What happens to the analog outputs when the PLC CPU enters STOP mode?
A: The module supports configurable behavior when the CPU or master enters STOP mode. Depending on the parameter settings, the outputs can be de-energized, set to a substitute value, or retain the last value. Select the response based on the process safety requirements.
Q7: Which installation and wiring practices should be followed?
A: Install the module in a compatible ET 200S station and use the specified power module and terminal connections. Shielded cables are recommended for analog signals, with a maximum specified length of 200 m. Keep analog wiring away from high-interference power cables and follow the system grounding instructions.
Q8: How should an incorrect or unstable output signal be diagnosed?
A: Check the PLC output value, channel range configuration, load impedance, wiring polarity, and common reference connections. Inspect the module’s diagnostic indicators for short-circuit or group error messages. If the signal remains incorrect, measure the output using a calibrated multimeter and test the connected load separately.
Siemens 6AG1135-4FB01-2AB0 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
