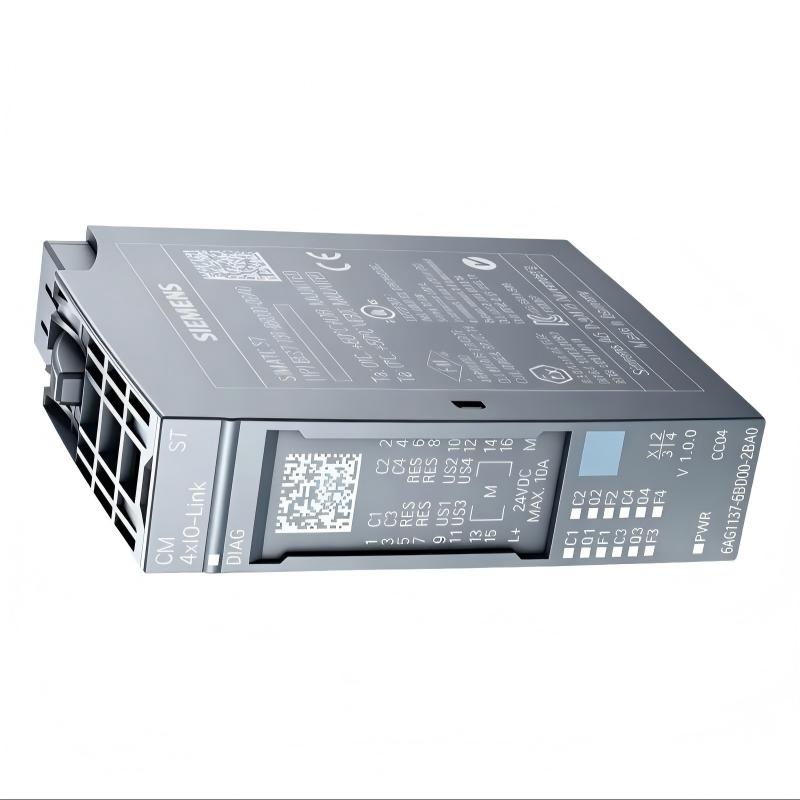

Siemens 6AG1137-6BD00-2BA0 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1137-6BD00-2BA0 |
| Product Type | IO-Link Communication Module |
| Product Series | SIPLUS ET 200SP |
| Module Designation | CM 4 x IO-Link ST |
| Base Model | 6ES7137-6BD00-0BA0 |
| Communication Function | IO-Link Master |
| IO-Link Ports | 4 |
| Simultaneously Controllable Ports | 4 |
| Supported IO-Link Protocols | IO-Link V1.0 and V1.1 |
| Transmission Rates | COM1: 4.8 kbaud; COM2: 38.4 kbaud; COM3: 230.4 kbaud |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC; at least 20.5 V when supplying IO-Link devices |
| Maximum Current Consumption | 45 mA without load |
| Sensor Supply Outputs | 4 |
| Rated Sensor Supply Current | 700 mA per channel, depending on module version and operating conditions |
| Maximum Total Sensor Supply Current | 2.1 A |
| Sensor Supply Short-Circuit Protection | Yes |
| Additional Operating Modes | IO-Link, digital input (DI), digital output (DQ) |
| Maximum DQ Output Current | 100 mA per channel |
| Minimum IO-Link Cycle Time | 2 ms, depending on process data length |
| Maximum Input Process Data | Up to 32 bytes per port; module-level limits depend on configuration and firmware |
| Maximum Output Process Data | Up to 32 bytes per port; module-level limits depend on configuration and firmware |
| Device Parameter Storage | 2 kB per port |
| Maximum Cable Length | 20 m |
| Port Types | Type A and Type B |
| Diagnostics | Supply voltage monitoring, wire-break and short-circuit diagnostics, group fault reporting |
| Status Indicators | PWR, DIAG and per-port status indicators |
| Reverse Polarity Protection | Yes |
| Compatible BaseUnit | BU type A0 |
| Color Code | CC04 |
| Engineering Software | STEP 7 / TIA Portal, subject to version compatibility |
| Protective Coating | Conformal coating |
| Operating Temperature | -40°C to +60°C for horizontal installation; maximum temperature may vary with mounting conditions |
| Protection Rating | IP20 |
| Dimensions | 15 × 73 × 58 mm |
| Weight | 0.03 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1137-6BD00-2BA0 module?
The Siemens 6AG1137-6BD00-2BA0 is an IO-Link master communication module for the SIPLUS ET 200SP distributed I/O system. It connects IO-Link sensors and actuators to the automation controller, enabling process data exchange, device parameterization and diagnostic monitoring.
Q2: How many IO-Link devices can this module connect?
The module provides four IO-Link ports, and all four ports can operate simultaneously. Each port can connect a compatible IO-Link device, provided that the power supply, cabling and configuration meet the device and module requirements.
Q3: Which IO-Link protocol versions and transmission rates are supported?
The module supports IO-Link V1.0 and V1.1, with COM1 at 4.8 kbaud, COM2 at 38.4 kbaud and COM3 at 230.4 kbaud. The actual transmission rate depends on the connected device and its configured communication mode.
Q4: What power supply does the communication module require?
The module uses a nominal 24 V DC supply and accepts 19.2–28.8 V DC. When powering IO-Link devices, the voltage at the master must meet the minimum requirement for the connected devices. Check the overall current demand and voltage drop across the wiring before commissioning.
Q5: Can the module operate in digital input and output modes?
Yes. In addition to IO-Link communication, the module supports digital input (DI) and digital output (DQ) operating modes. DQ operation is limited to a maximum of 100 mA per channel. The operating mode and port configuration must be set correctly in the engineering software.
Q6: What diagnostic functions are available?
The module supports supply voltage monitoring, wire-break and short-circuit diagnostics, group fault reporting and status indication. The PWR, DIAG and port status indicators help technicians identify communication or wiring problems. Port diagnostics are available according to the selected operating mode and configuration.
Q7: Is this module suitable for harsh industrial environments?
The SIPLUS version includes conformal coating and supports an extended operating temperature range. For horizontal installation, the specified range is generally -40°C to +60°C. Actual limits depend on mounting orientation, adjacent modules and installation conditions. The IP20 rating also means that suitable cabinet protection is required.
Q8: How should communication failures with an IO-Link device be troubleshot?
First, check the 24 V DC supply and confirm that the voltage at the connected device remains within its operating range. Then inspect the port status indicators, cable connections, device compatibility and IO-Link version settings. Verify the port configuration and process data mapping in TIA Portal, and review diagnostic messages for wire breaks, short circuits or device faults. If the issue persists, test the device and cable separately using known-good components.
Siemens 6AG1137-6BD00-2BA0 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
