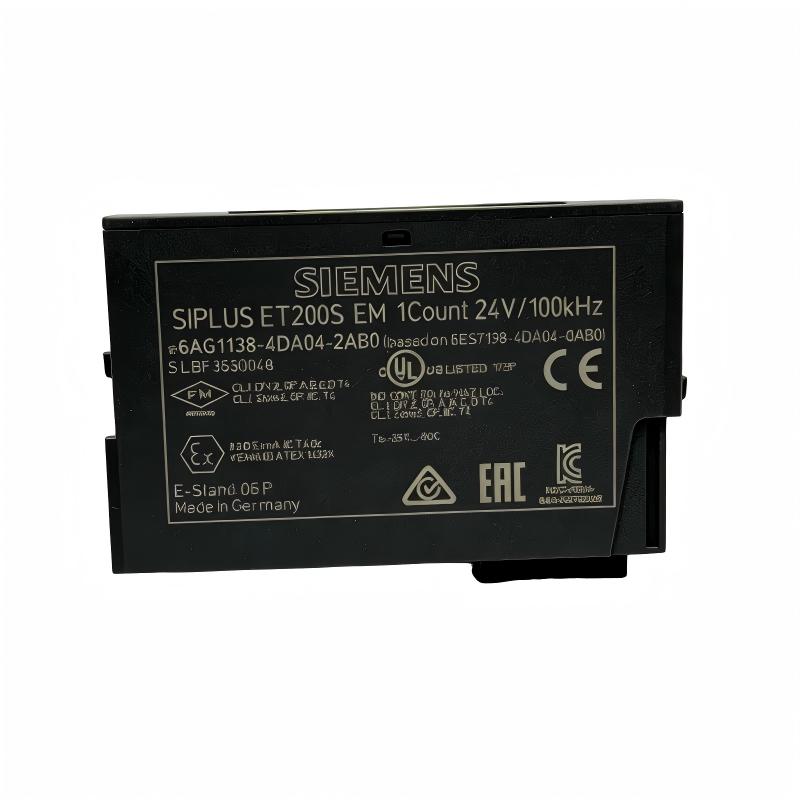

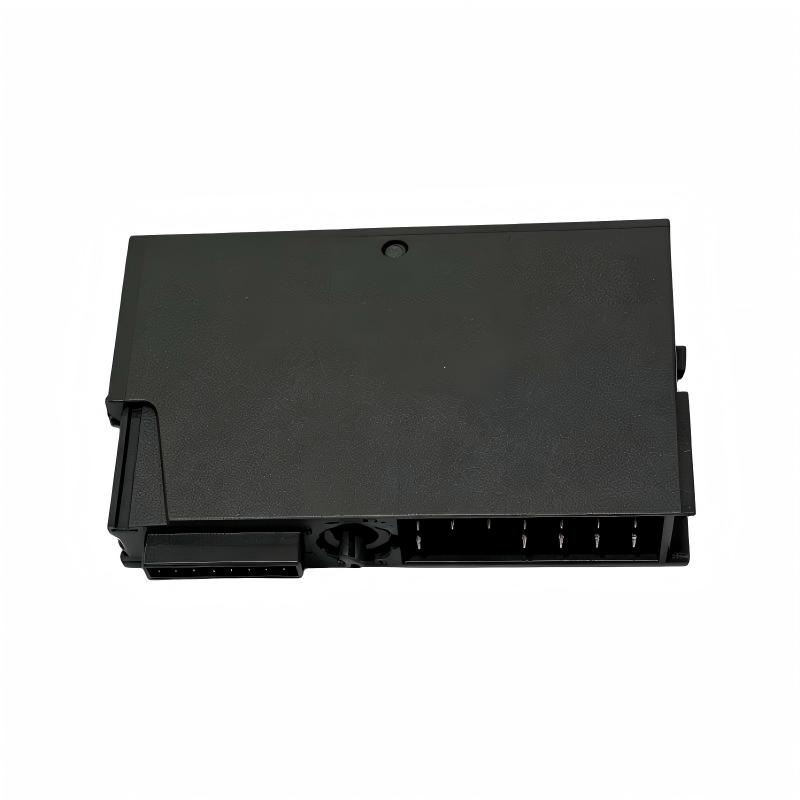

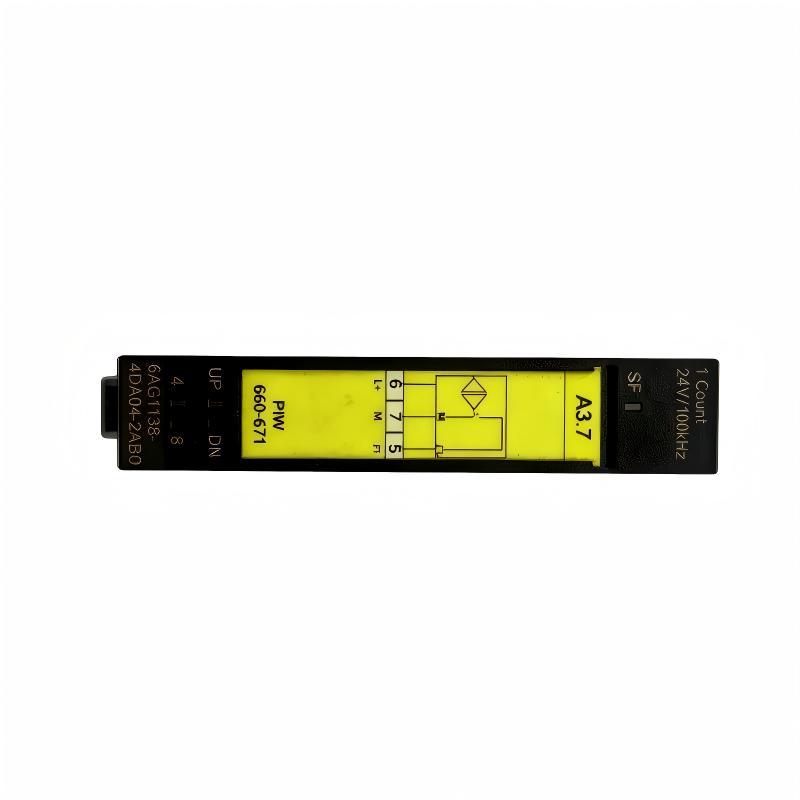

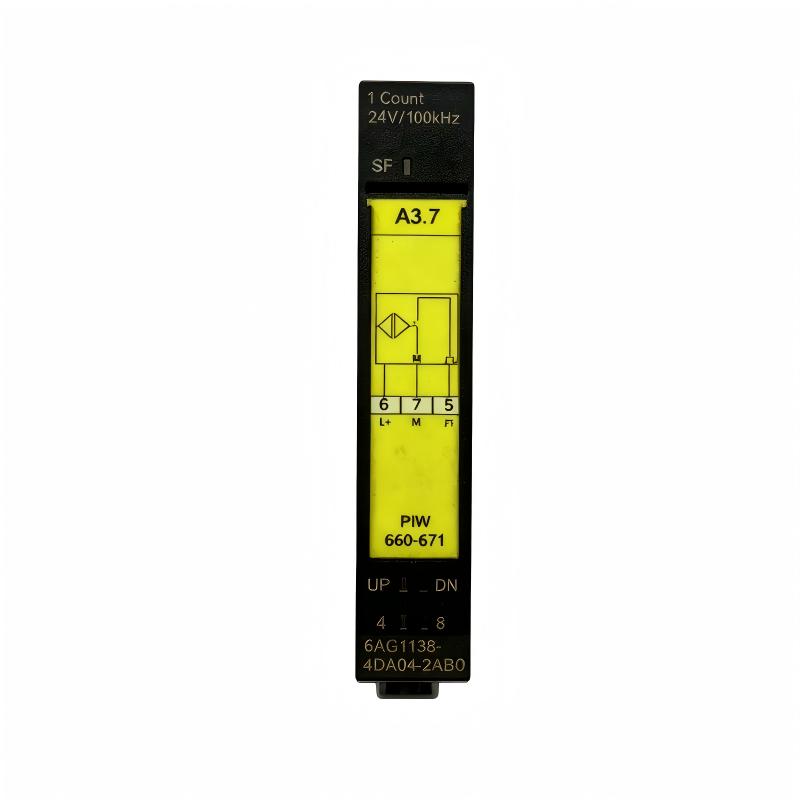

Siemens 6AG1138-4DA04-2AB0 Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1138-4DA04-2AB0 |
| Product Name | SIPLUS ET 200S EM 1 COUNT 24V/100 |
| Product Series | SIPLUS ET 200S |
| Product Type | High-Speed Counter Module |
| Base Model | 6ES7138-4DA04-0AB0 |
| Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 20.4–28.8 V DC |
| Counter Channels | 1 |
| Counter Resolution | 32 bit |
| Maximum Counting Frequency | 100 kHz |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Input Functions | Gate control, synchronization and latch function |
| Encoder Supply | 24 V DC |
| Maximum Encoder Supply Current | 500 mA |
| Input Signal “0” | -30 to +5 V DC |
| Input Signal “1” | +11 to +30 V DC |
| Minimum Pulse Width | 2.5 μs with filter disabled; 25 μs with 20 kHz filter |
| Frequency Measurement Range | 0.1 Hz to 100 kHz |
| Speed Measurement Range | 1 to 25,000 rpm |
| Diagnostic Function | Yes |
| Status Indicators | SF group fault, digital input/output and forward/reverse counting status |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes, for encoder supply and digital output |
| Typical Power Dissipation | 1 W |
| Environmental Protection | Conformal coating |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.047 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1138-4DA04-2AB0?
A1: This module is a high-speed counter for the SIMATIC ET 200S distributed I/O system. It processes 24 V pulse signals and supports counting, frequency measurement, speed measurement, synchronization and latch functions. It is commonly used where fast pulse acquisition is required for industrial monitoring and control.
Q2: What is the maximum counting frequency of this module?
A2: The module supports counting frequencies up to 100 kHz. To achieve reliable high-speed counting, check the signal source, pulse width, wiring quality and input filter settings. The selected configuration must support the pulse frequency generated by the connected sensor or encoder.
Q3: What supply voltage does the 6AG1138-4DA04-2AB0 require?
A3: The rated supply voltage is 24 V DC, with a permissible range of 20.4–28.8 V DC. Verify the polarity and supply voltage before commissioning. Incorrect wiring or voltage outside the specified range can cause malfunction or damage.
Q4: Which sensors can be connected to this counter module?
A4: The module can be used with compatible 24 V pulse-generating devices, such as proximity sensors and other industrial sensors that provide suitable digital signals. Before connection, confirm the sensor’s output type, voltage levels, pulse characteristics and wiring arrangement against the module’s electrical specifications.
Q5: How do the input filter settings affect counting performance?
A5: The input filter affects the minimum pulse width the module can reliably detect. With the filter disabled, the specified minimum pulse width is 2.5 μs; with the 20 kHz filter enabled, it is 25 μs. A shorter filter setting supports faster signals, while filtering can help reduce interference from electrical noise. Select the setting according to the actual signal and application.
Q6: What should I check if the counter does not register pulses?
A6: First, verify the 24 V supply, sensor output and common wiring. Then check whether the signal reaches the digital input, whether the pulse width meets the configured filter requirements, and whether the counter parameters are correctly set in the controller. Also confirm that the counting gate is enabled and that the module is correctly configured in the ET 200S station.
Q7: Can the module measure rotational speed and frequency?
A7: Yes. It supports frequency measurement from 0.1 Hz to 100 kHz and speed measurement from 1 to 25,000 rpm under the specified operating conditions. Measurement accuracy depends on the input signal, sensor arrangement, parameter configuration and application requirements.
Q8: What should be considered when replacing this module?
A8: Confirm the complete order number and verify that the replacement is suitable for the existing ET 200S configuration. The SIPLUS version is based on 6ES7138-4DA04-0AB0 and includes conformal coating for demanding environmental conditions. Before installation, isolate the relevant power supply, record the existing wiring and parameters, and check the module diagnostics after commissioning.
