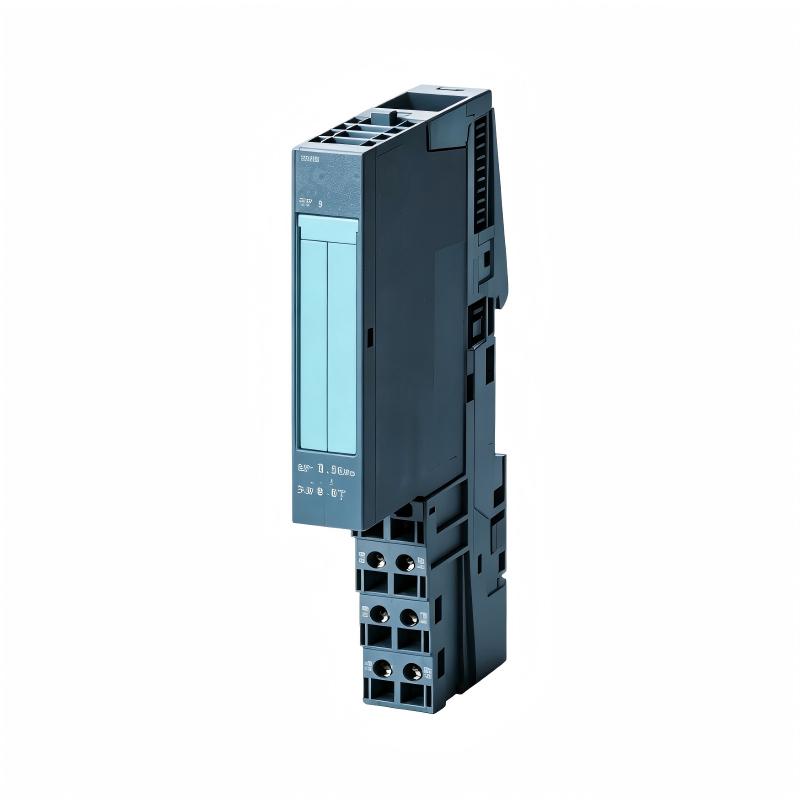

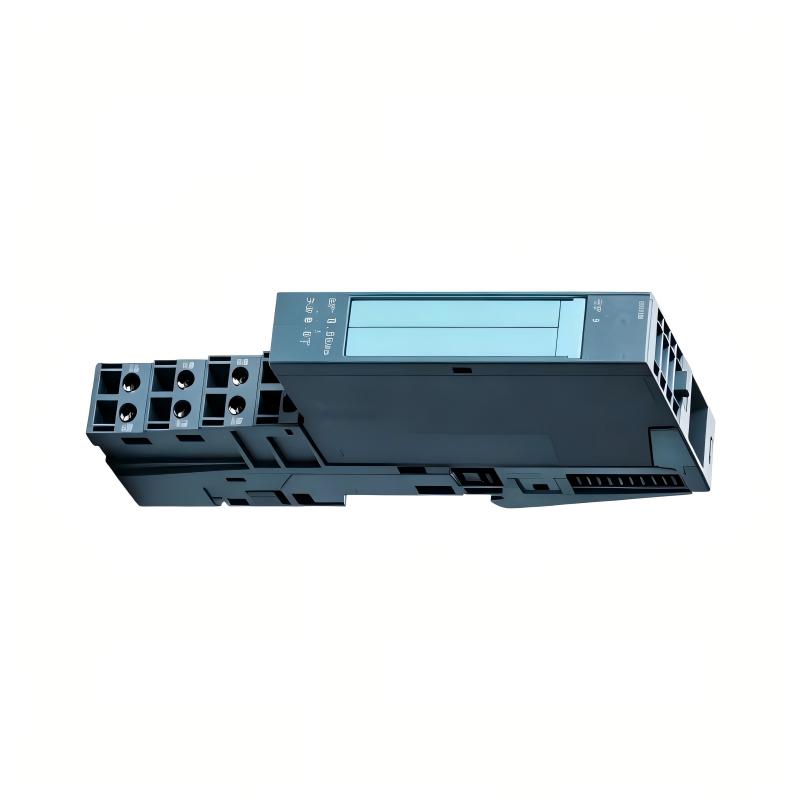

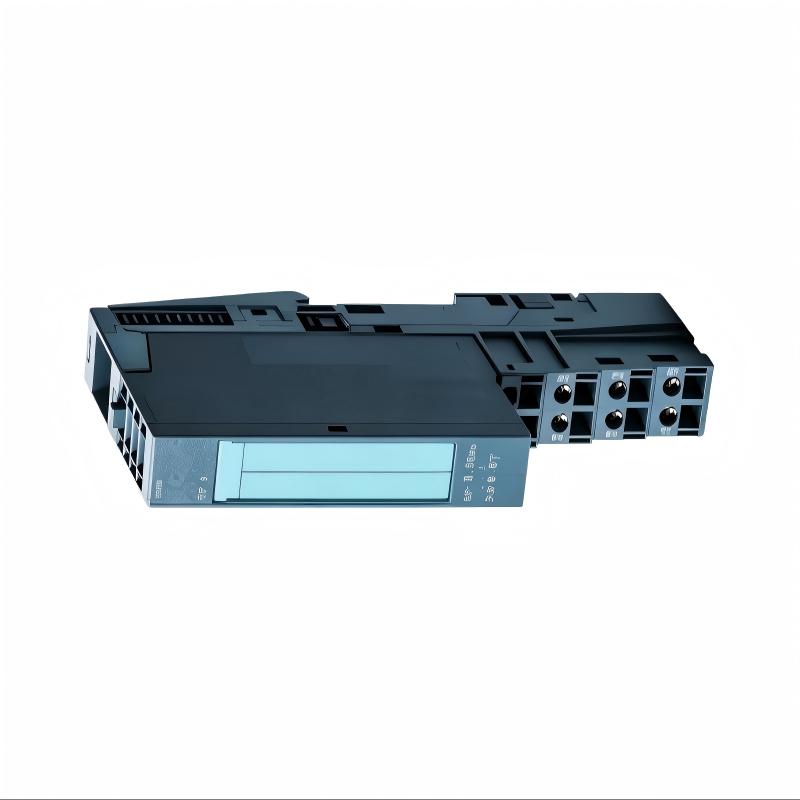

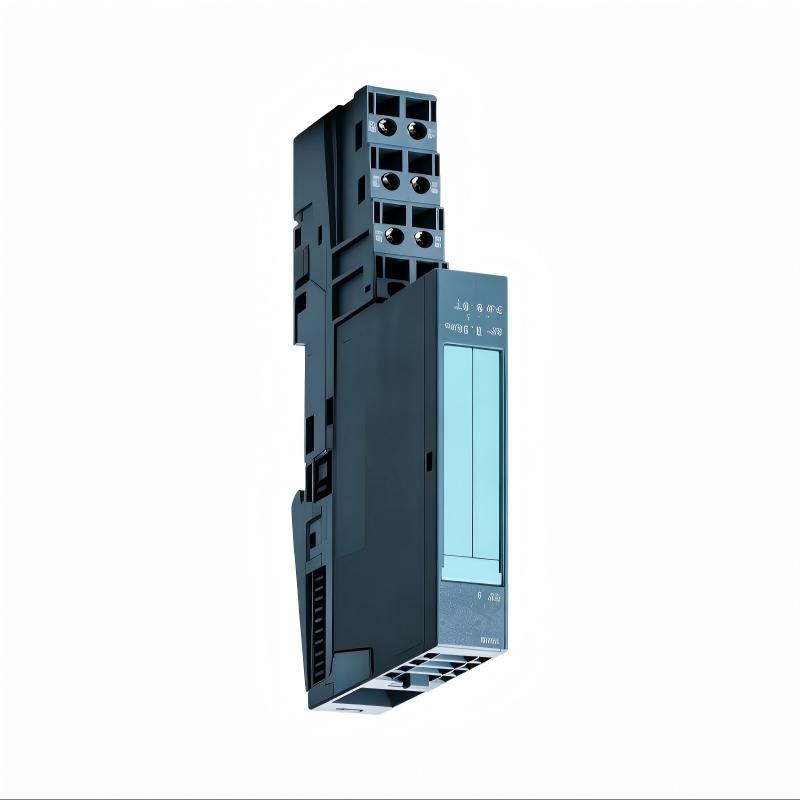

Siemens 6AG1138-4DF01-7AB0 Serial Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1138-4DF01-7AB0 |
| Product Name | SIPLUS ET 200S EM 1SI Serial Interface Module |
| Product Series | SIPLUS ET 200S |
| Product Type | Serial Communication Interface Module |
| Base Model | 6ES7138-4DF01-0AB0 |
| Number of Interfaces | 1 serial interface |
| Supported Interface Standards | RS-232C, RS-422, RS-485 |
| Communication Mode | Point-to-point communication |
| Rated Supply Voltage | 24 V DC |
| Maximum Current from L+ Supply | 120 mA |
| Maximum Backplane Bus Current | 10 mA at 3.3 V DC |
| Typical Power Dissipation | 1.2 W |
| Maximum RS-232C Cable Length | 15 m with shielded cable |
| Maximum RS-422/RS-485 Cable Length | 1200 m with shielded cable |
| Supported Communication Functions | Serial data transmission and reception |
| Protocol Support | 3964(R) and Freeport-related communication functions, depending on configuration |
| Diagnostic Indicators | RxD, TxD and SF fault indicators |
| Electrical Isolation | Serial interface isolation from internal electronics |
| Reverse Polarity Protection | Yes |
| Environmental Protection | Conformal coating |
| Operating Temperature | -25°C to +70°C |
| Maximum Installation Altitude | 5000 m, subject to applicable operating conditions |
| Installation System | SIMATIC ET 200S distributed I/O |
| Product Lifecycle | Discontinued; confirm availability and replacement suitability before ordering |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.045 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1138-4DF01-7AB0?
A1: This module provides a serial communication interface for the SIMATIC ET 200S distributed I/O system. It enables point-to-point data exchange between a PLC and compatible serial devices, such as controllers, instruments and other automation equipment. The interface supports RS-232C, RS-422 and RS-485 electrical standards.
Q2: What is the difference between RS-232C, RS-422 and RS-485?
A2: RS-232C is commonly used for short-distance communication between two devices. RS-422 supports differential signalling for improved noise immunity, while RS-485 is suitable for longer-distance industrial communication and can support multidrop network arrangements when the connected equipment and configuration allow it. Select the interface according to the remote device, cable layout and communication requirements.
Q3: Which communication protocols can this module support?
A3: The module supports serial communication functions including 3964(R) and configurable Freeport-related communication. The available protocol functions depend on the module configuration, software support and connected equipment. Before commissioning, verify that the PLC program and the remote device use compatible communication settings and protocols.
Q4: What are the maximum supported cable lengths?
A4: The specified maximum cable length for shielded RS-232C wiring is 15 m, while RS-422/RS-485 connections can support up to 1200 m under suitable conditions. Actual performance depends on baud rate, cable characteristics, grounding, electromagnetic interference and network topology. Use suitable shielded industrial communication cable and follow the interface wiring requirements.
Q5: What should I check if the PLC cannot communicate with the connected device?
A5: Check the interface selection, wiring, connector pinout, baud rate, data bits, parity and stop bits. Confirm that the PLC program uses the correct communication function and that the remote device is configured with matching parameters. The RxD, TxD and SF indicators can help identify receive activity, transmit activity or a general fault.
Q6: Can this module operate in harsh industrial environments?
A6: The SIPLUS version includes conformal coating and is specified for an operating temperature range of -25°C to +70°C. This makes it suitable for demanding environments within its specified limits. However, installation conditions, condensation, vibration and electromagnetic interference must still be considered when designing the control cabinet and communication wiring.
Q7: Is the serial interface electrically isolated?
A7: The module provides electrical isolation between the serial interface and its internal electronics. This helps reduce the effects of potential differences and electrical disturbances between connected equipment. Correct grounding, shielding and cable routing are still important for reliable communication and safe operation.
Q8: What should be considered when replacing the 6AG1138-4DF01-7AB0?
A8: The module is based on the standard 6ES7138-4DF01-0AB0, with SIPLUS conformal coating and an extended temperature specification. Before replacement, verify the interface standard, protocol requirements, wiring, PLC hardware configuration and environmental conditions. Isolate the power supply before removing the module, record the existing settings, and test data transmission and reception after installation.
