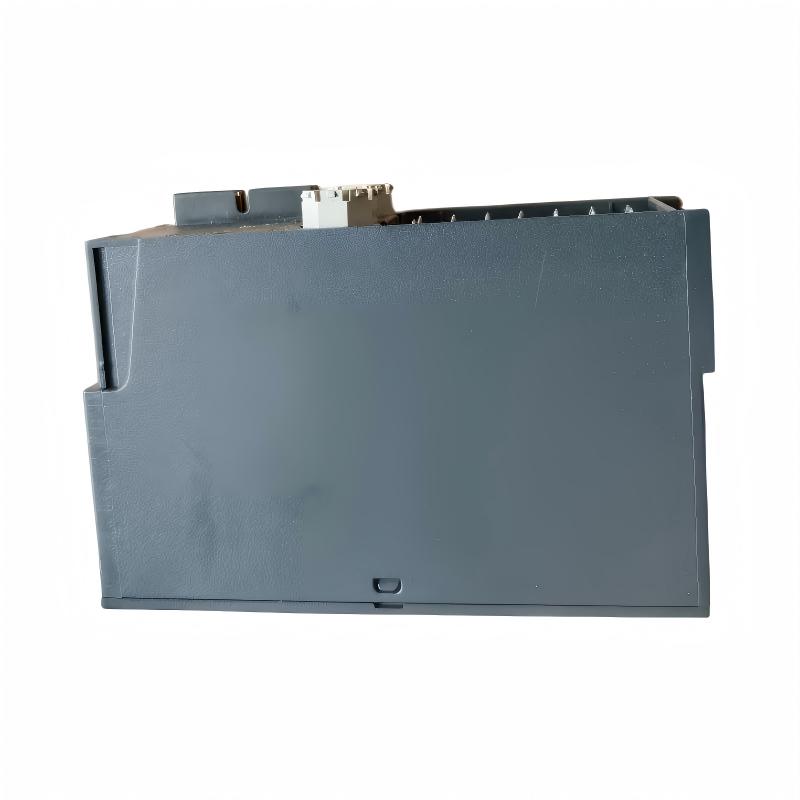

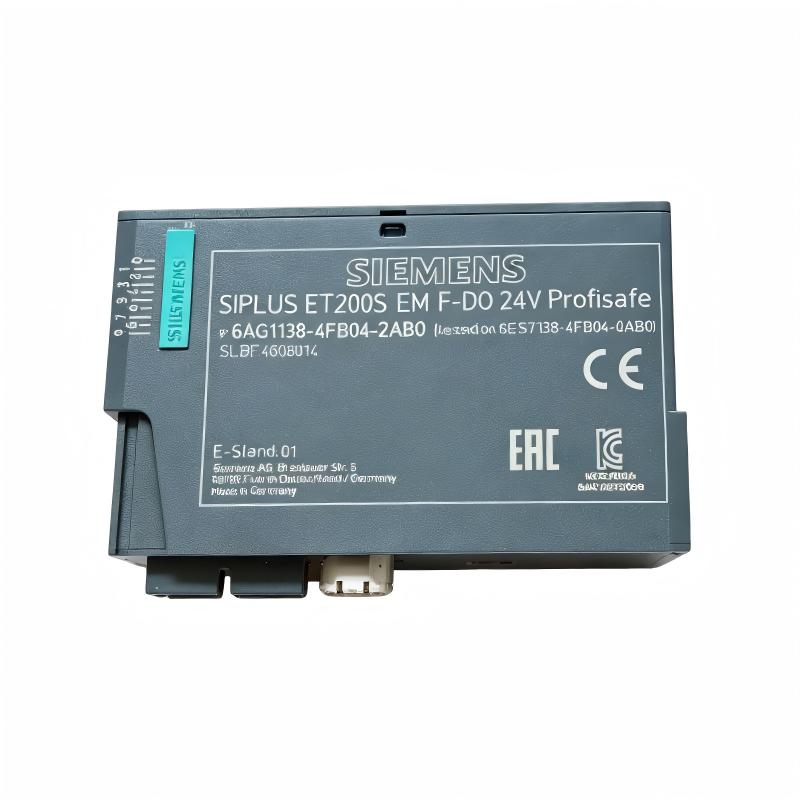

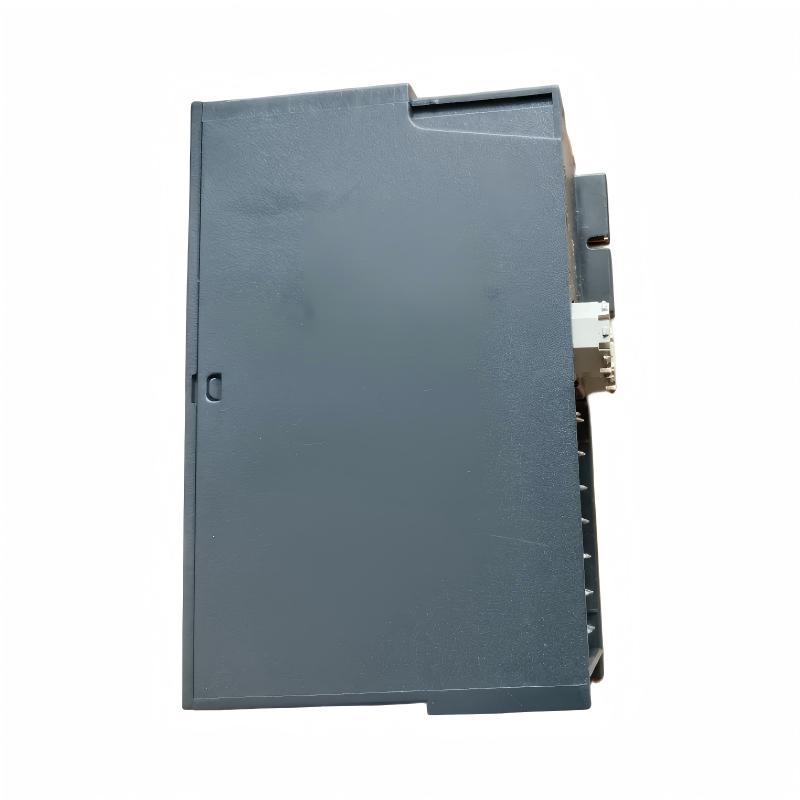

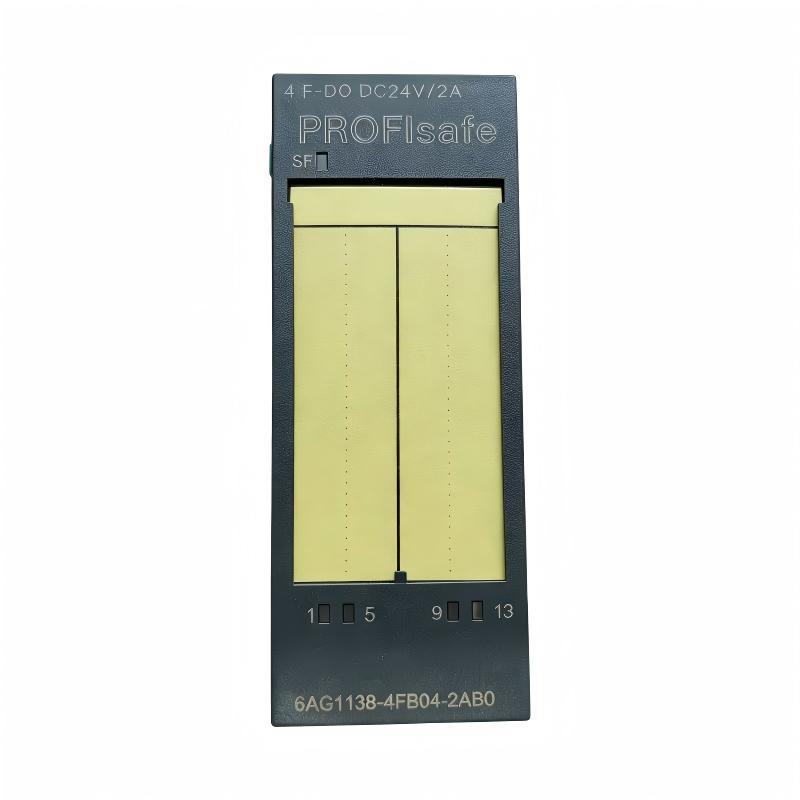

Siemens 6AG1138-4FB04-2AB0 Electronic Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1138-4FB04-2AB0 |
| Product Name | SIPLUS ET 200S F-DQ 24V PROFIsafe Electronic Module |
| Product Series | SIPLUS ET 200S |
| Product Type | Fail-Safe Digital Output Module |
| Base Model | 6ES7138-4FB04-0AB0 |
| Rated Load Voltage | 24 V DC |
| Number of Fail-Safe Digital Outputs | 4 |
| Output Type | Transistor |
| Rated Output Current | 2 A per channel |
| Permissible Output Current | 20 mA to 2.4 A per channel |
| Maximum Total Output Current | 6 A per module under specified conditions |
| Short-Circuit Protection | Yes |
| Maximum Switching Frequency — Resistive Load | 30 Hz |
| Maximum Switching Frequency — Inductive Load | 0.1 Hz |
| Maximum Switching Frequency — Lamp Load | 10 Hz |
| Maximum Lamp Load | 10 W |
| Permissible Load Resistance | 12 Ω to 1 kΩ |
| Maximum Residual Current in OFF State | 0.5 mA |
| Safety Communication | PROFIsafe |
| Safety Performance | Up to Category 4, SIL 3 and PL e when used in a properly designed and validated safety system |
| Compatible Network Configuration | ET 200S; PROFINET configurations with IM 151-3 HF |
| Typical Power Dissipation | 3.5 W |
| Environmental Protection | Conformal coating |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 |
| Product Lifecycle | Discontinued; listed by Siemens as a spare part |
| Dimensions | 30 × 81 × 52 mm |
| Weight | 0.092 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1138-4FB04-2AB0?
A1: This module provides four fail-safe digital outputs for the SIMATIC ET 200S distributed I/O system. It controls safety-related loads based on commands from a compatible safety controller through PROFIsafe communication. Typical applications include safety-related machine stopping and control of suitable actuators within a validated safety circuit.
Q2: What type of loads can the four digital outputs control?
A2: The transistor outputs operate with a rated load voltage of 24 V DC and a rated current of 2 A per channel. They can control compatible DC loads, provided the load current, inrush current and electrical characteristics remain within the module’s limits. Check the requirements of the connected actuator before wiring.
Q3: Does the module provide short-circuit protection?
A3: Yes. The digital outputs include short-circuit protection. If an output trips or fails to operate, inspect the field wiring and connected load for shorts or excessive current. Correct the underlying fault and follow the system’s approved reset and restart procedure before returning the equipment to service.
Q4: What are the switching frequency limits?
A4: The maximum specified switching frequency depends on the load type: 30 Hz for resistive loads, 0.1 Hz for inductive loads and 10 Hz for lamp loads. These limits help account for different electrical stresses during switching. Confirm the actual load characteristics and application requirements before selecting the switching rate.
Q5: How does PROFIsafe contribute to machine safety?
A5: PROFIsafe provides safety-related communication between compatible devices and the safety controller, using mechanisms designed to detect communication errors. The module can support safety functions up to Category 4, SIL 3 and PL e when incorporated into a correctly designed and validated system. The achieved safety level depends on the complete safety circuit, configuration and risk assessment.
Q6: What should I check if one output does not switch on?
A6: Check the 24 V DC load supply, output wiring, connected load and controller diagnostics. Confirm that the safety program permits the output to energise and that the required safety conditions are satisfied. Also check for short circuits, excessive load current or a fault reported by the safety system. Do not bypass safety interlocks to force an output on.
Q7: Can this SIPLUS module operate in demanding industrial environments?
A7: The SIPLUS version uses conformal coating and is specified for operation from -25°C to +60°C. It is intended for industrial environments within its rated limits. Its IP20 protection rating does not provide protection against water ingress, so suitable enclosure protection and installation conditions are necessary.
Q8: What should be considered when replacing the 6AG1138-4FB04-2AB0?
A8: Confirm the complete part number, output ratings, ET 200S hardware configuration and PROFIsafe settings before replacement. The module is based on 6ES7138-4FB04-0AB0 and includes conformal coating. Siemens lists this product as discontinued, so check availability and verify any proposed replacement against the original safety design. After installation, validate the safety configuration and test the complete safety function before restarting the machine.
Siemens 6AG1138-4FB04-2AB0 Electronic Module is in stock. Please contact us for a quick quote and competitive pricing.
