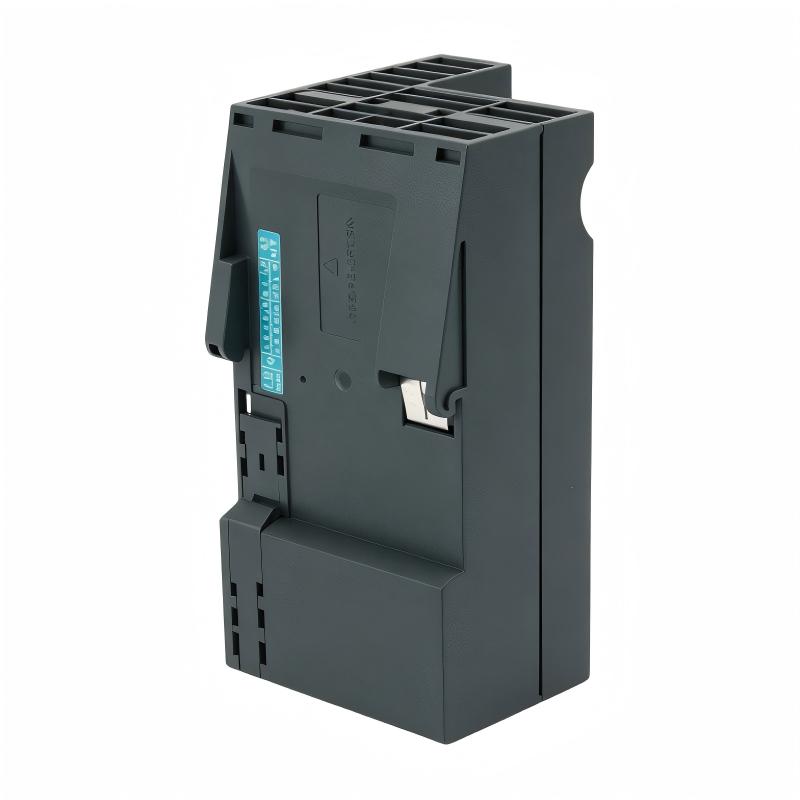

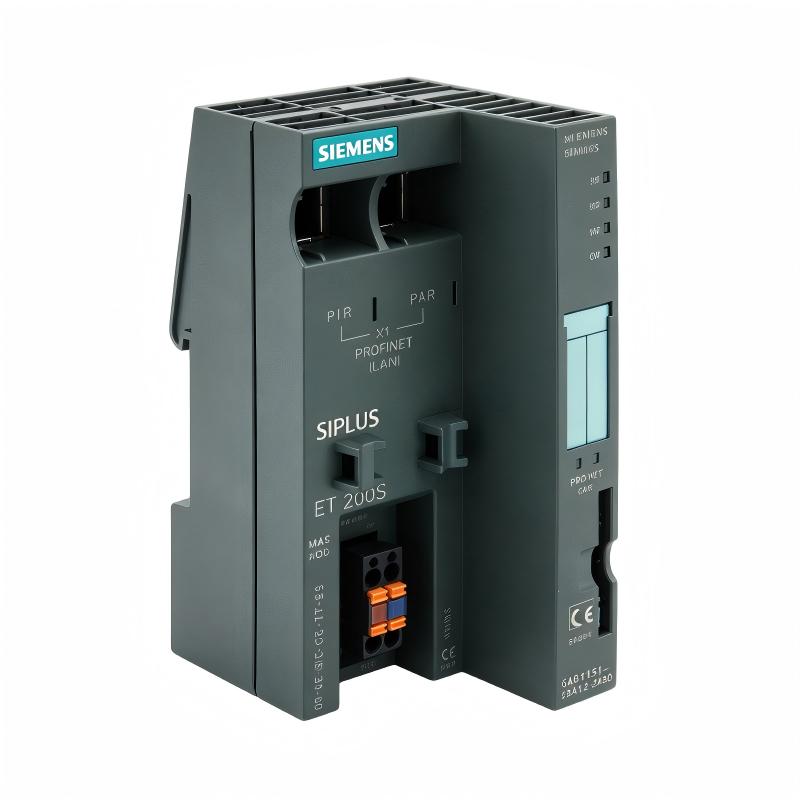

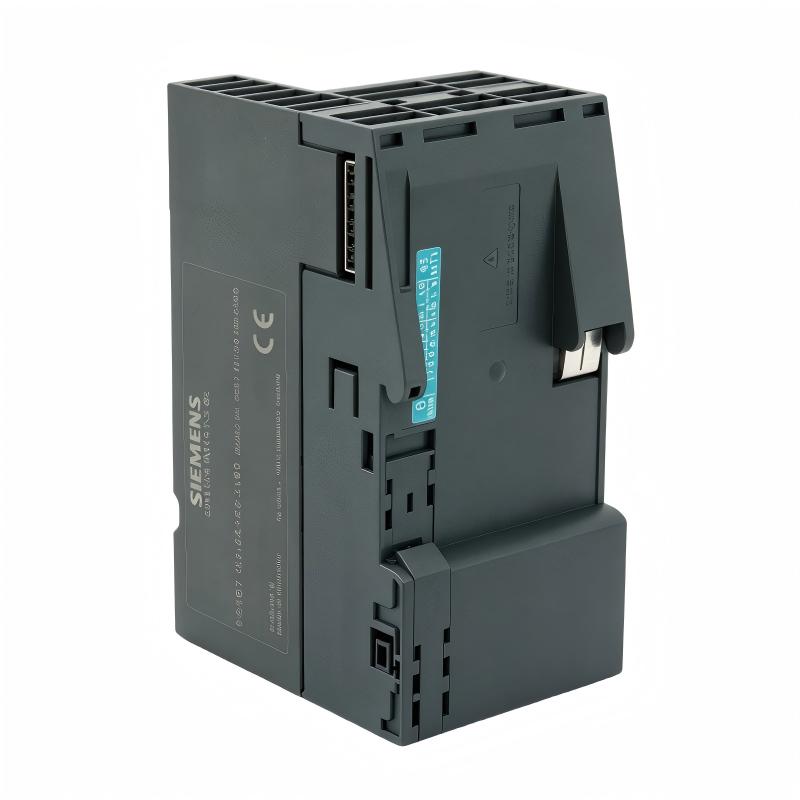

Siemens 6AG1151-3AA23-2AB0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1151-3AA23-2AB0 |
| Product Type | SIPLUS ET 200S IM 151-3 PN ST Interface Module |
| Product Series | SIPLUS ET 200S |
| Base Model | 6ES7151-3AA23-0AB0 |
| Main Function | Connects ET 200S distributed I/O stations to a PROFINET IO network |
| Communication Protocol | PROFINET IO |
| Ethernet Interface | Integrated PROFINET interface with 2-port switch |
| Network Topology | Supports line topology |
| TCP/IP Protocol Support | Not supported as a general TCP/IP communication service |
| Typical Power Dissipation | 3.3 W |
| Operating Temperature | -25 to +60°C |
| Environmental Protection | Conformal coating for enhanced environmental resistance |
| Maximum Installation Altitude | 5,000 m above sea level, subject to environmental derating requirements |
| I/O Expansion | Supports compatible ET 200S peripheral modules; configuration limits apply |
| Mounting Method | Installation within an ET 200S distributed I/O station |
| Dimensions | 60 × 119.5 × 75 mm |
| Weight | 0.204 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1151-3AA23-2AB0 interface module?
The 6AG1151-3AA23-2AB0 is a SIPLUS ET 200S IM 151-3 PN ST interface module. It connects a distributed ET 200S I/O station to a PROFINET IO controller, allowing a PLC to exchange process data with remote input and output modules.
Q2: Which communication network does this module support?
The module supports PROFINET IO communication. Its integrated two-port switch allows compatible devices to be connected in a line topology, helping simplify network cabling in distributed automation systems.
Q3: Can the 6AG1151-3AA23-2AB0 be used with Siemens SIMATIC PLCs?
Yes, it is designed for use in compatible Siemens automation architectures that support PROFINET IO. Before installation, confirm that the PLC, engineering software, device configuration, and connected ET 200S modules are compatible with the interface module.
Q4: What is the purpose of the integrated two-port switch?
The integrated switch provides two Ethernet connections for PROFINET networking. It allows network devices to be connected in a line arrangement, reducing the need for a separate external switch in suitable installations. Correct network planning and configuration are still required.
Q5: What environmental conditions can this SIPLUS module withstand?
This SIPLUS version has a specified operating temperature range of -25 to +60°C and a conformal coating designed to improve resistance to challenging industrial environments. Actual suitability depends on the site’s chemical exposure, humidity, contamination, and installation conditions.
Q6: Why might the module fail to establish PROFINET communication?
Common causes include incorrect device names, IP configuration errors, damaged Ethernet cables, loose connectors, incorrect PLC hardware configuration, or network topology problems. Check the controller’s diagnostic buffer, device identification settings, cabling, and module status indicators to isolate the fault.
Q7: What should be checked when the PLC reports an I/O station fault?
Check the interface module’s diagnostic status and confirm that the configured I/O station matches the installed hardware. Inspect the connected peripheral modules, station power supply, backplane connections, and PROFINET communication status. Correct any configuration mismatch before restarting the system.
Q8: What precautions are necessary when replacing the 6AG1151-3AA23-2AB0?
Verify that the replacement supports the existing ET 200S configuration and PROFINET architecture. Record the device name and network settings, check the hardware configuration in the engineering software, and inspect all Ethernet connections. After replacement, confirm that the station is accessible, diagnostics are clear, and input/output data are updating correctly before resuming normal operation.
Siemens 6AG1151-3AA23-2AB0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
