1. What is the main function of the Siemens 6AG1231-4HF32-4XB0 analog input module?

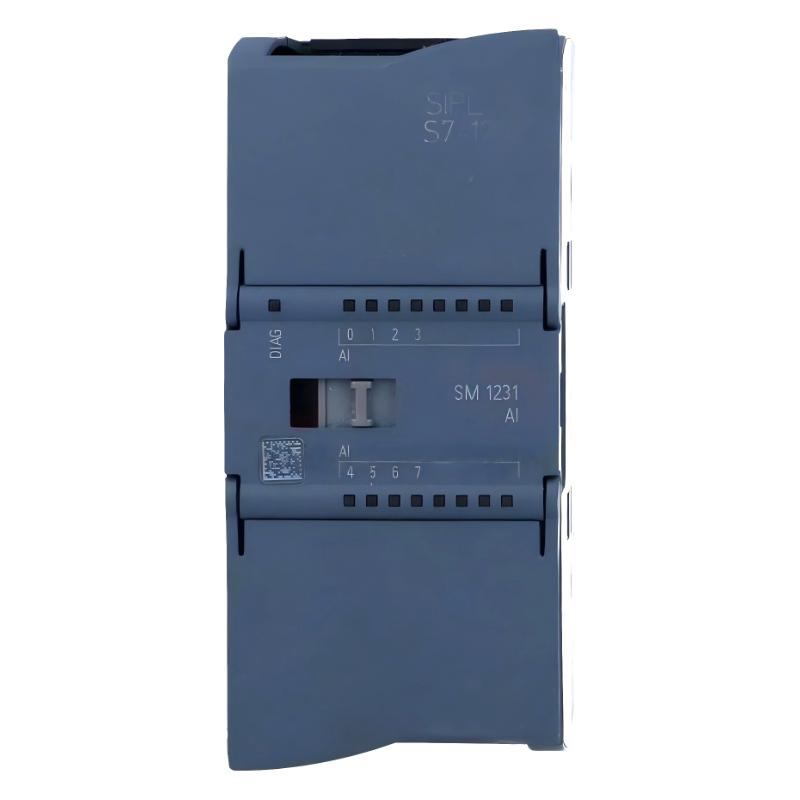

The Siemens 6AG1231-4HF32-4XB0 is a SIPLUS S7-1200 SM 1231 analog input module designed to acquire process signals and convert them into digital values for PLC processing. It provides eight analog input channels, allowing multiple field instruments to be connected to the same automation system. Typical applications include monitoring pressure, flow, liquid level, and other process variables through compatible transmitters. The module supports voltage and current inputs and can be integrated into control programs for process monitoring, data acquisition, alarm generation, and closed-loop control. Its conformal protective coating provides additional protection for electronic components in demanding industrial environments.

2. Which input signal ranges are supported by this module?

The module supports voltage input ranges of ±10 V, ±5 V, and ±2.5 V, as well as current input ranges of 0–20 mA and 4–20 mA. These options allow it to interface with a wide range of industrial transmitters without requiring additional signal conversion equipment when the instrument output is directly compatible. During commissioning, each channel must be configured for the correct signal type and measuring range. Engineers should verify the transmitter output, wiring polarity, and applicable terminal assignments before applying power. Incorrect channel configuration can produce inaccurate readings, unexpected overrange values, or diagnostic conditions that affect the reliability of the control system.

3. How does the module’s 13-bit resolution affect analog signal acquisition?

The module uses a 13-bit ADC designation, corresponding to 12 bits plus a sign bit. This determines the available digital representation of the input signal, but it does not independently define the overall measurement accuracy. Actual performance depends on the selected input range, transmitter accuracy, electrical noise, ambient temperature, and signal conditioning. For example, a pressure transmitter connected through a 4–20 mA loop must be evaluated as part of the complete measurement chain, including the transmitter’s accuracy and the PLC’s scaling calculations. For demanding applications, engineers should perform calibration checks and verify readings against a known reference rather than assuming that nominal resolution guarantees a particular measurement tolerance.

4. Can the 6AG1231-4HF32-4XB0 directly measure temperature using thermocouples or RTDs?

No. This model does not provide dedicated thermocouple or resistance temperature detector inputs. Although it supports voltage and current signals, these input modes are not equivalent to direct thermocouple or RTD measurement. To acquire temperature data, use a compatible temperature transmitter that converts the sensor signal into a supported voltage or current output, or select a dedicated Siemens temperature input module. When using a transmitter, ensure that its output range matches the configured input channel and that the PLC program correctly converts the acquired value into degrees Celsius or another required engineering unit.

5. What power supply and electrical precautions are required during installation?

The module uses a rated 24 V DC supply, with typical current consumption of 45 mA and typical backplane bus current consumption of 90 mA at 5 V DC. Before installation, verify the power supply capacity, module compatibility, terminal assignments, and cabinet wiring arrangement. Analog signal cables should be separated from motor cables, variable-frequency drive outputs, and other sources of electromagnetic interference. Use suitable shielding and grounding practices for the installation environment. The input destruction limits are 35 V for voltage inputs and 40 mA for current inputs; these values are protection limits, not normal operating ranges. Connected signals must remain within the configured input range and the manufacturer’s operating specifications.

6. How can engineers reduce measurement fluctuations and electrical interference?

Measurement stability begins with correct wiring, grounding, and signal selection. Use properly routed analog cables, avoid long parallel runs alongside high-current conductors, and ensure that terminals remain secure. Where electrical interference is unavoidable, inspect the transmitter power supply, shielding arrangement, and grounding connections before changing the PLC configuration. The module supports configurable measurement-value smoothing, which can reduce short-term fluctuations caused by noise. However, excessive smoothing may delay the response to genuine process changes. Select the smoothing level according to the process dynamics and verify the result under actual operating conditions, particularly where rapid changes must be detected by the control system.

7. What should be checked if an analog input channel reports incorrect values?

Begin by confirming that the selected input type and measuring range match the connected transmitter. Check the field wiring, terminal connections, transmitter power supply, and signal polarity. For a 4–20 mA loop, measure the actual loop current using an appropriate instrument and compare it with the expected process value. For voltage inputs, verify the signal voltage and reference connections. Then inspect the PLC hardware configuration, channel parameters, diagnostic information, and scaling logic. If several channels show similar deviations, investigate shared power supplies, grounding, and electrical interference. If only one channel is affected, focus on the corresponding transmitter, wiring, and input configuration before considering module replacement.

8. What compatibility checks are necessary when replacing this module?

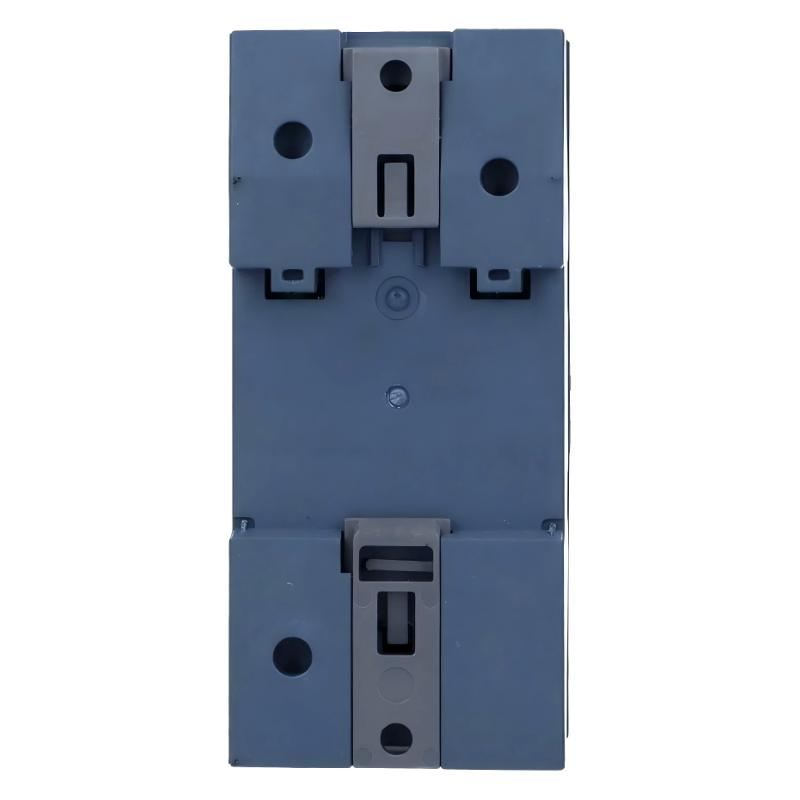

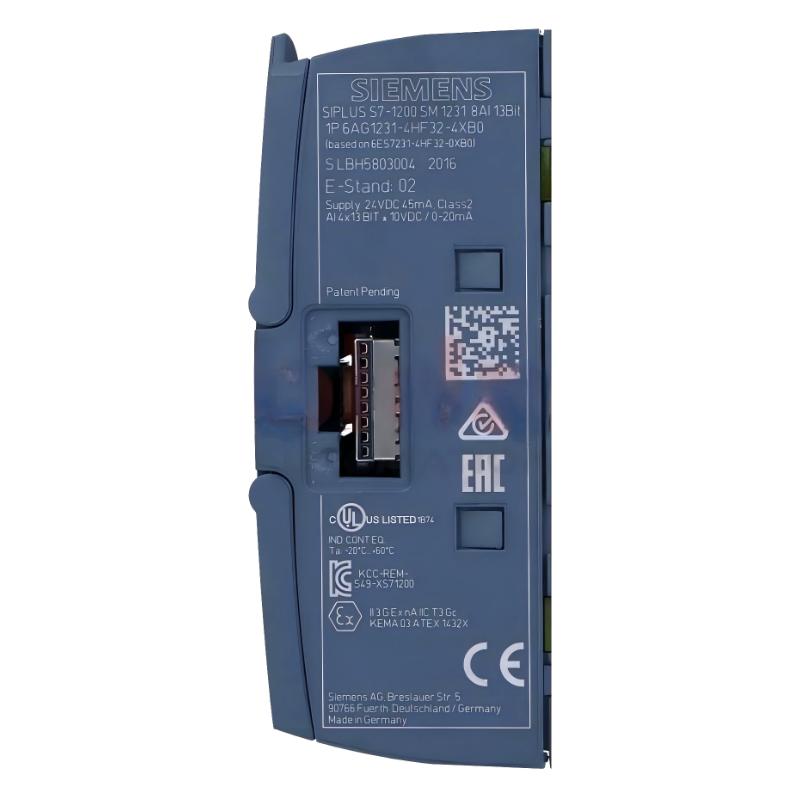

Before replacing the 6AG1231-4HF32-4XB0, confirm compatibility with the installed SIMATIC S7-1200 CPU, engineering software, hardware configuration, and firmware requirements. The standard module on which this SIPLUS version is based is 6ES7231-4HF32-0XB0, but the environmental characteristics of the SIPLUS version should also be considered when selecting a replacement. Record the existing channel configurations, signal ranges, measurement smoothing settings, and PLC scaling parameters before removing the original unit. After installation, verify all eight input channels using known reference signals and compare the PLC readings with the expected values. Complete the required diagnostics and functional checks before returning the automation system to normal operation.
