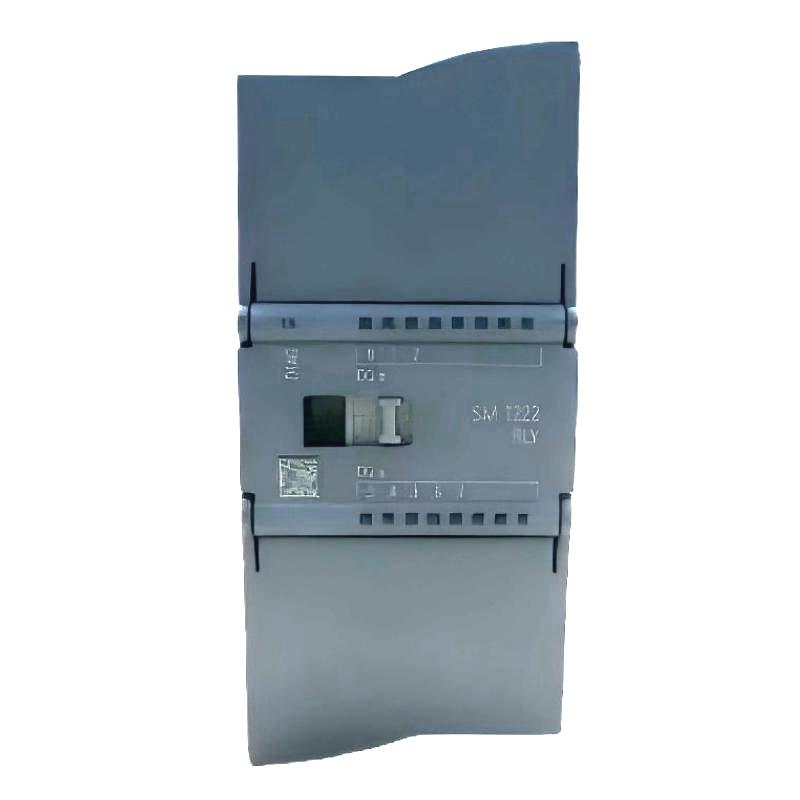

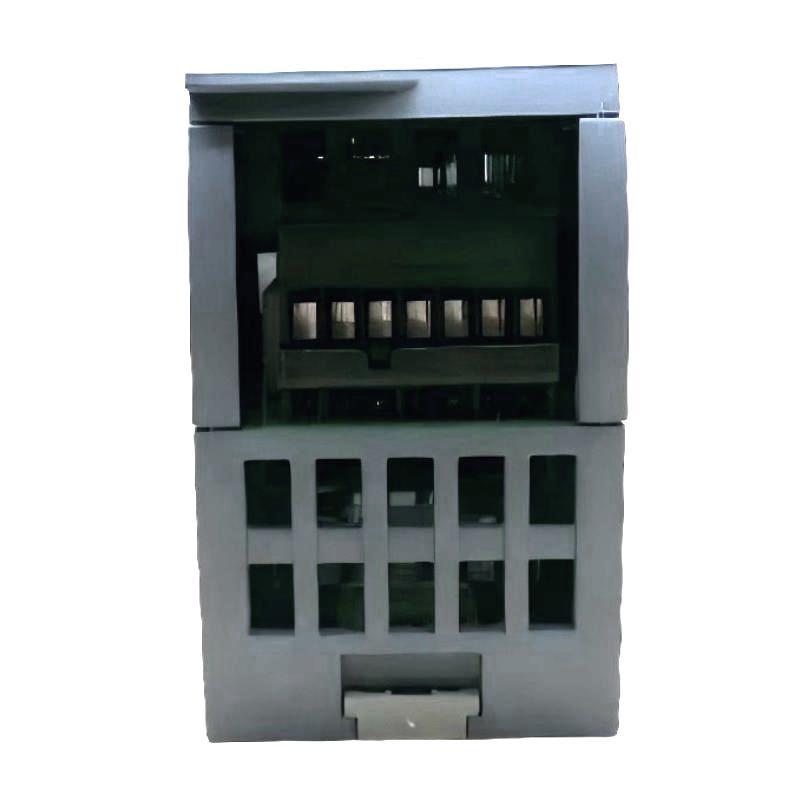

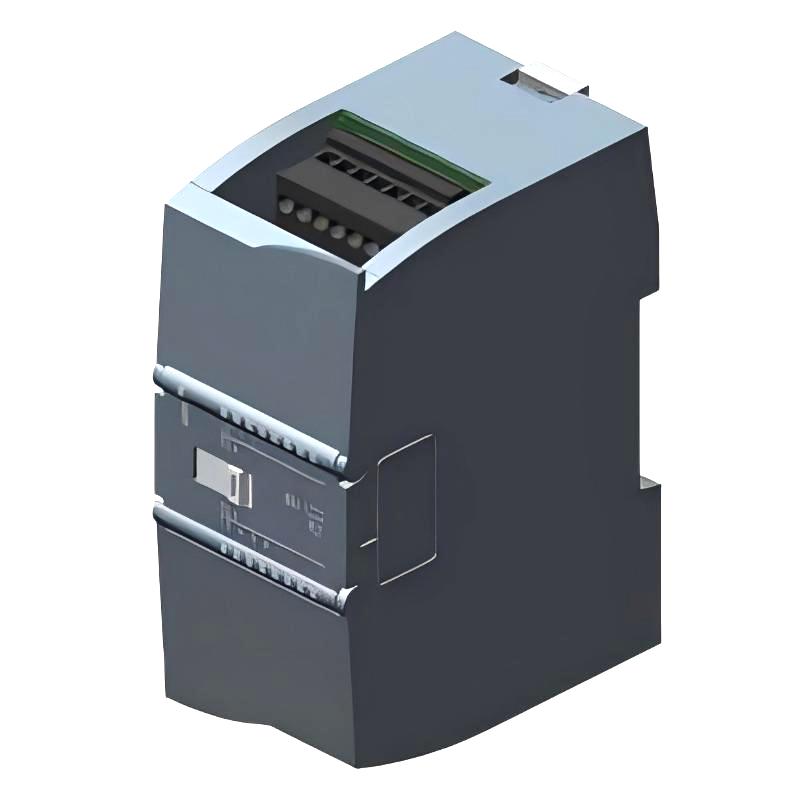

Siemens 6AG1231-5PD32-4XB0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1231-5PD32-4XB0 |
| Product Series | SIPLUS SIMATIC S7-1200 |
| Product Type | SM 1231 RTD Analog Input Module |
| Base Model | 6ES7231-5PD32-0XB0 |
| Number of Analog Inputs | 4 |
| Input Signal Type | Resistance Temperature Detector (RTD) |
| Supported RTD Sensors | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 |
| Resistance Measurement Ranges | 150 Ω, 300 Ω, 600 Ω |
| Maximum Resolution | 15 bits + sign bit |
| Temperature Unit | Configurable in °C or °F |
| Rated Supply Voltage | 24 V DC |
| Typical Current Consumption | 40 mA |
| Backplane Bus Current Consumption | 80 mA typical at 5 V DC |
| Typical Power Dissipation | 1.5 W |
| Analog Outputs | 0 |
| Voltage Input | Not supported |
| Current Input | Not supported |
| Thermocouple Input | Not supported |
| Diagnostic Functions | Supported |
| Diagnostic Alarms | Supported |
| Wire-Break Detection | Supported |
| Conformal Coating | Yes |
| Operating Temperature | -20°C to +60°C |
| Start-Up Temperature | 0°C minimum |
| Protection Rating | IP20 |
| Mounting System | SIMATIC S7-1200 |
| Dimensions | 105 × 90 × 57 mm |
| Weight | 0.197 kg |
FAQ
Q1: What is the primary function of the Siemens 6AG1231-5PD32-4XB0?
The Siemens 6AG1231-5PD32-4XB0 is a SIPLUS SM 1231 RTD analog input module designed to collect temperature data from resistance temperature detectors. It provides four input channels for monitoring multiple temperature points in industrial equipment and process systems. The PLC can use the acquired values for temperature control, alarm handling, process monitoring, and data logging.
Q2: Which temperature sensors are compatible with this module?
The module supports a range of RTD sensors, including Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, and LG-Ni1000. The sensor type must be selected correctly in the PLC configuration. Before commissioning, verify the sensor wiring and configuration against the applicable technical documentation.
Q3: What resistance measurement ranges does the module support?
The module supports resistance measurement ranges of 150 Ω, 300 Ω, and 600 Ω. The appropriate range depends on the connected sensor and the intended measurement. Configure the input channel according to the sensor specifications and verify that the selected settings match the actual installation to avoid invalid readings.
Q4: Can the 6AG1231-5PD32-4XB0 measure voltage, current, or thermocouple signals?
No. This module is specifically designed for RTD and resistance measurement. It does not directly support standard voltage inputs, current inputs, or thermocouple signals. If an application uses these signal types, select a compatible Siemens input module or a suitable signal conditioner. Confirm signal compatibility before connecting field devices.
Q5: How should the module be configured for a new RTD sensor?
Install the module in a compatible SIMATIC S7-1200 system and configure it in the PLC engineering software. Select the correct RTD sensor type, measurement range, and temperature unit. Then check the wiring and verify that the displayed temperature is consistent with the actual process conditions. Testing each channel individually can help identify configuration or wiring errors before the system enters normal operation.
Q6: What should be checked if the module reports a wire-break or diagnostic alarm?
Inspect the affected channel’s wiring, terminal connections, and sensor condition first. Check for loose connections, damaged cables, incorrect wiring, or a failed RTD sensor. Review the PLC diagnostic information to identify the channel involved, then correct the fault and confirm that the alarm clears. If the issue continues, verify the hardware configuration and test the sensor independently.
Q7: What does the conformal coating provide on the SIPLUS version?
The conformal coating provides additional protection for the electronic assembly against specified environmental influences. This version is designed for operating conditions within its stated temperature range of -20°C to +60°C. The coating does not make the module waterproof or dustproof beyond its IP20 rating, so the installation environment must still meet the product’s specified limits.
Q8: What should be verified before replacing this module?
Before replacing the 6AG1231-5PD32-4XB0, confirm compatibility with the installed SIMATIC S7-1200 CPU, mounting arrangement, RTD sensor types, and PLC hardware configuration. Also consider whether the replacement needs the same conformal coating and environmental operating range. After installation, check channel settings, diagnostic status, and sensor readings before returning the equipment to service.
Siemens 6AG1231-5PD32-4XB0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
