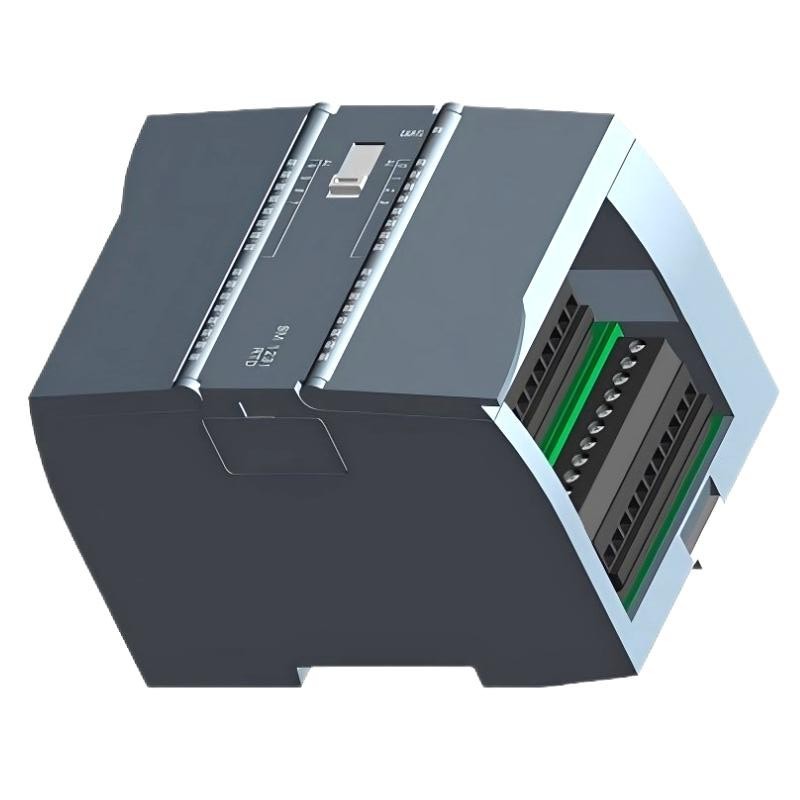

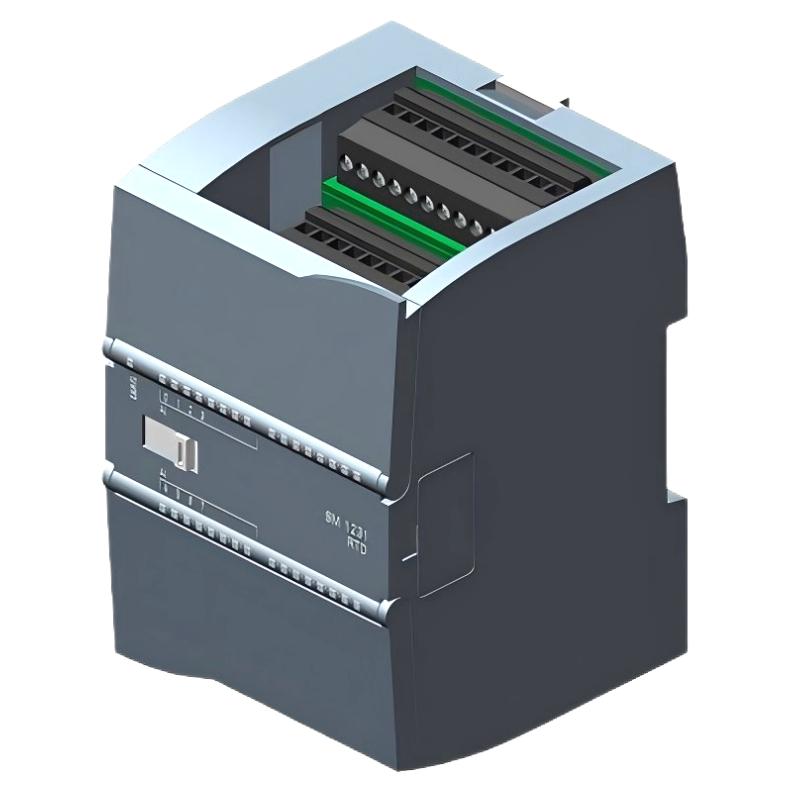

Siemens 6AG1231-5PF32-4XB0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1231-5PF32-4XB0 |
| Product Series | SIPLUS SIMATIC S7-1200 |
| Product Type | SM 1231 RTD Analog Input Module |
| Base Model | 6ES7231-5PF32-0XB0 |
| Number of Analog Inputs | 8 |
| Input Signal Type | Resistance Temperature Detector (RTD) |
| Supported RTD Sensors | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 |
| Resistance Measurement Ranges | 0–150 Ω, 0–300 Ω, 0–600 Ω |
| Maximum Resolution | 15 bits + sign bit |
| Temperature Unit | Configurable: °C or °F |
| Rated Supply Voltage | 24 V DC |
| Typical Current Consumption | 40 mA |
| Backplane Bus Current Consumption | 80 mA typical at 5 V DC |
| Typical Power Dissipation | 1.5 W |
| Voltage Input | Not supported |
| Current Input | Not supported |
| Thermocouple Input | Not supported |
| Diagnostic Functions | Supported |
| Diagnostic Alarms | Supported |
| Supply Voltage Monitoring | Supported |
| Wire-Break Detection | Supported |
| Interference Voltage Suppression | 85 dB at 50/60/400 Hz |
| Conformal Coating | Yes |
| Operating Temperature | -20°C to +60°C |
| Minimum Start-Up Temperature | 0°C |
| Protection Rating | IP20 |
| Mounting System | SIMATIC S7-1200 |
| Dimensions | 105 × 88 × 83 mm |
| Weight | 0.286 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1231-5PF32-4XB0?
The Siemens 6AG1231-5PF32-4XB0 is a SIPLUS SM 1231 RTD analog input module designed to acquire temperature signals from resistance temperature detectors. It provides eight input channels for monitoring multiple temperature points in a SIMATIC S7-1200 control system. The collected data can be used for process control, temperature alarms, equipment monitoring, and industrial data logging.
Q2: Which RTD sensor types are supported by this module?
The module supports Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, and LG-Ni1000 sensors. Select the correct sensor type in the PLC hardware configuration and confirm that the field wiring matches the sensor manufacturer’s requirements. Correct configuration is essential for obtaining reliable temperature readings.
Q3: What resistance measurement ranges are available?
The module supports resistance measurement ranges of 0–150 Ω, 0–300 Ω, and 0–600 Ω. The appropriate range depends on the connected sensor and the measurement requirements. Configure each channel according to the sensor specifications, then verify the readings during commissioning. An incorrect range or sensor configuration may result in implausible values or measurement errors.
Q4: Can this module directly measure thermocouple, voltage, or current signals?
No. The 6AG1231-5PF32-4XB0 is designed for RTD and resistance measurements. It does not directly support thermocouple, standard voltage, or current input signals. If the application uses these signal types, select a compatible input module or use an appropriate signal conditioner. Always confirm signal compatibility before connecting field devices.
Q5: What are the power supply requirements for this module?
The module uses a rated supply voltage of 24 V DC and has a typical current consumption of 40 mA. Its typical current consumption from the 5 V DC backplane bus is 80 mA, with typical power dissipation of 1.5 W. When planning a control panel, account for these values along with the power requirements of the CPU and other connected modules.
Q6: How can inaccurate or unstable temperature readings be troubleshot?
First, check that the configured sensor type and resistance range match the connected RTD. Inspect the wiring, terminal connections, cable condition, and sensor installation. Loose terminals, broken wires, a faulty sensor, or electrical interference can affect readings. Review diagnostic information in the PLC and compare the measured value with a suitable reference instrument to help locate the fault.
Q7: What are the benefits of the SIPLUS version’s conformal coating?
The conformal coating provides additional protection for the electronic assembly against specified environmental influences. This model is rated for operation from -20°C to +60°C, making it suitable for industrial environments within those limits. However, the coating does not make the module waterproof or dustproof beyond its IP20 rating. Installation conditions must remain within the product’s specified environmental requirements.
Q8: What should be checked before replacing the 6AG1231-5PF32-4XB0?
Before replacement, verify compatibility with the installed SIMATIC S7-1200 CPU, mounting arrangement, RTD sensor types, and existing hardware configuration. If the application requires SIPLUS environmental protection, confirm that the replacement meets the same requirements. After installation, check the channel settings, diagnostic status, and readings from all connected sensors before returning the equipment to service.
Siemens 6AG1231-5PF32-4XB0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
