1. What is the main function of the Siemens 6AG1231-5QF32-4XB0 module?

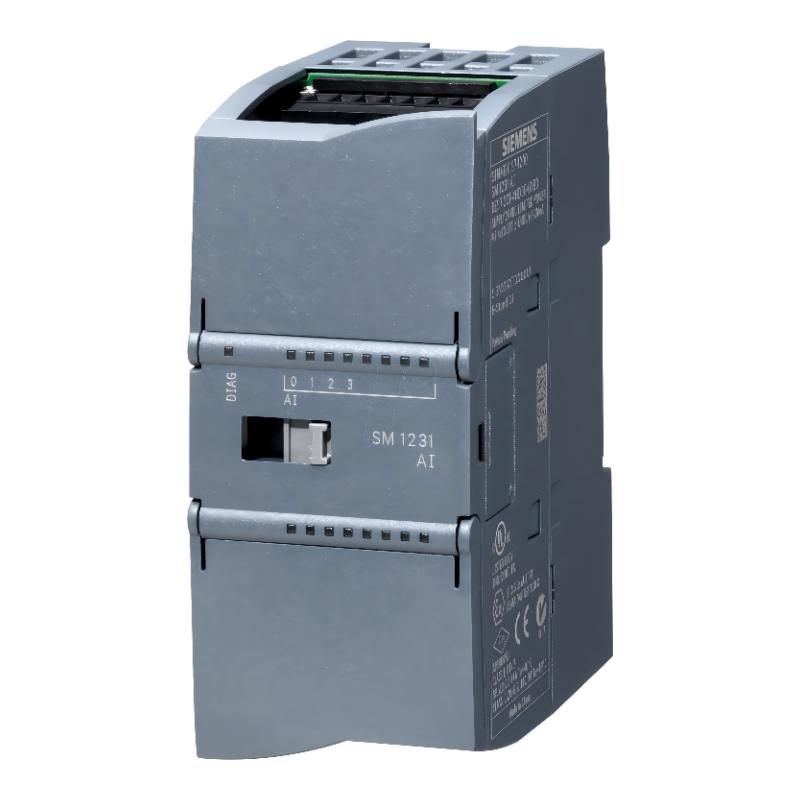

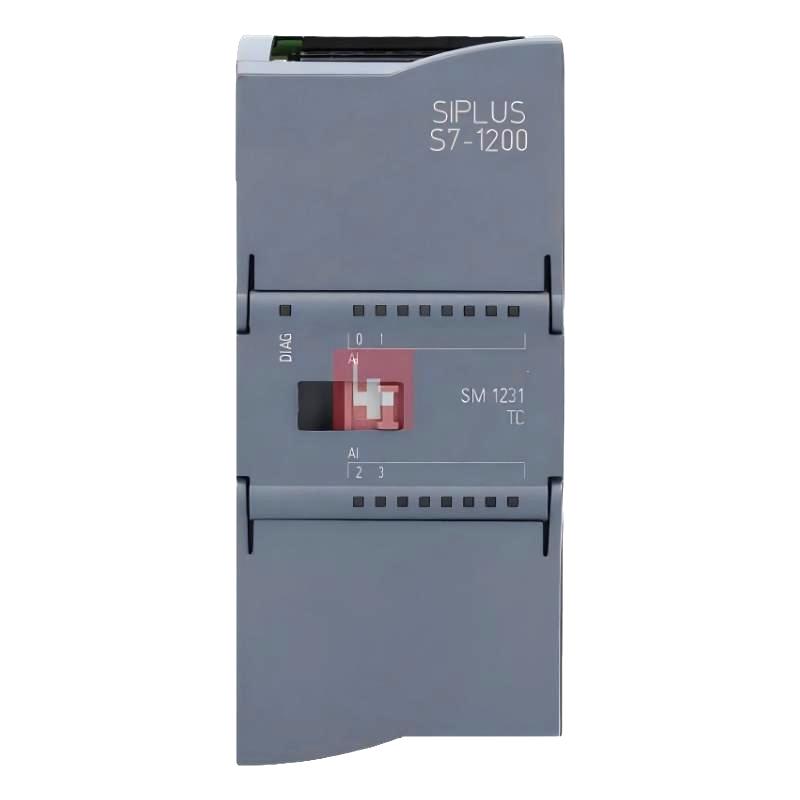

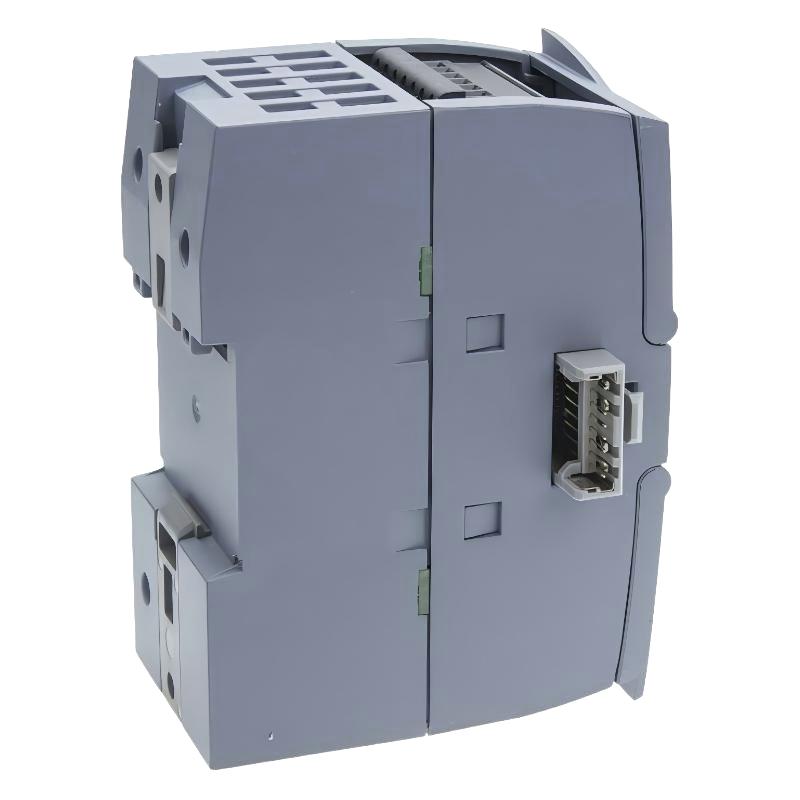

The Siemens 6AG1231-5QF32-4XB0 is a SIPLUS S7-1200 SM 1231 thermocouple analog input module designed for temperature measurement in industrial automation systems. It receives low-level electrical signals generated by thermocouples and makes the measured values available to the PLC for monitoring, control, and process management. Typical applications include industrial ovens, heating equipment, temperature-controlled production lines, and process monitoring systems. The module features conformal coating for improved resistance to specified environmental influences. Before selecting it for a particular application, engineers should verify the exact channel configuration, supported sensor types, electrical requirements, and compatibility with the installed S7-1200 hardware.

2. Which thermocouple types are supported by the 6AG1231-5QF32-4XB0?

The module supports several common thermocouple types, including J, K, T, E, R, S, B, N, C, and TXK/XK(L), subject to the applicable configuration and documentation. Each thermocouple type has its own temperature range, sensitivity, and measurement characteristics. During commissioning, the sensor type selected in the PLC engineering configuration must match the thermocouple installed in the field. Incorrect selection can cause substantial measurement errors even when the wiring is otherwise correct. Engineers should also verify polarity, extension-wire compatibility, and the required measurement units. For applications involving extreme temperatures or narrow control tolerances, the sensor’s calibrated operating range and the complete measurement chain should be evaluated together.

3. How many thermocouple signals can this module measure, and how should the channels be configured?

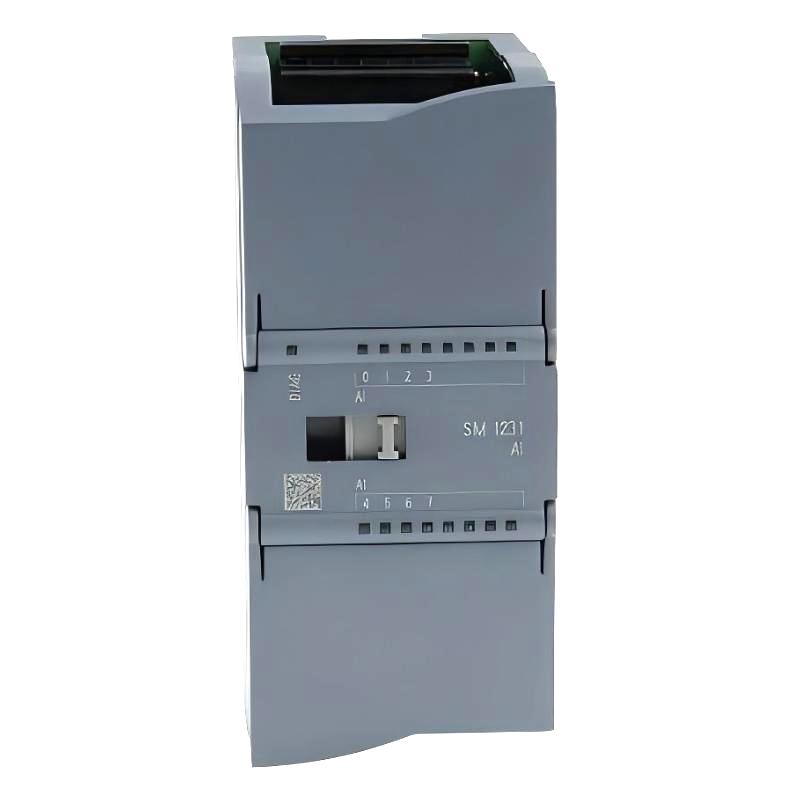

The 6AG1231-5QF32-4XB0 is associated with the SM 1231 8AI TC product designation, while its published technical specifications identify four thermocouple analog input channels. Because the designation and channel description can appear inconsistent, the exact hardware configuration should be confirmed against the product’s applicable Siemens datasheet before system design or replacement. During setup, assign the required input channels in the engineering software, select the appropriate thermocouple type, and configure temperature units and any available filtering parameters. After downloading the configuration, test each connected sensor individually and confirm that the PLC displays plausible values. This verification is particularly important when the module is used for multiple independent temperature zones or process-control loops.

4. What power supply and electrical conditions are required for normal operation?

The module’s specified rated supply voltage is 24 V DC, with typical current consumption of 40 mA and typical backplane bus current consumption of 80 mA at 5 V DC. Typical power dissipation is specified as 1.5 W. When integrating the module into an S7-1200 installation, engineers should verify the requirements of the complete PLC assembly, including the CPU, other expansion modules, and the available power supply capacity. Wiring must follow the applicable installation diagram, and signal cables should be routed to minimize interference from motors, drives, contactors, and other sources of electrical noise. Before energizing the system, check all connections and confirm that the installed hardware is compatible with the selected configuration.

5. Why might the measured temperature fluctuate or differ from the actual process temperature?

Unstable or inaccurate readings can result from incorrect thermocouple selection, reversed polarity, unsuitable extension wires, loose terminals, electromagnetic interference, or errors in the PLC configuration. Sensor placement and thermal contact with the process can also cause readings to differ from the actual temperature of the equipment being monitored. Begin troubleshooting by comparing the selected sensor type with the installed thermocouple and inspecting the complete signal path. Check whether fluctuations coincide with motor starts, variable-frequency drive operation, or switching events. Where appropriate, use a calibrated reference instrument to compare measurements under stable conditions. If the problem persists, review the configured measurement range, filtering settings, sensor condition, and module diagnostics before concluding that the input module itself is defective.

6. How should wire-break errors and other input-channel diagnostic alarms be handled?

When a wire-break alarm or another channel diagnostic appears, first identify the affected channel and record the associated diagnostic information. Inspect the thermocouple wiring, terminal connections, sensor junction, and extension cable for open circuits or intermittent contact. Verify that the selected sensor configuration is appropriate and that the signal connection follows the applicable wiring instructions. If several channels report faults simultaneously, check for common wiring problems, shared connections, or configuration issues. After correcting the suspected cause, monitor the diagnostic status and measured values to confirm that normal operation has returned. Diagnostic behavior can depend on the selected measurement settings and software configuration, so the applicable module documentation should be consulted when interpreting a specific fault indication.

7. What environmental conditions should be considered when using this SIPLUS module?

The 6AG1231-5QF32-4XB0 is designed for specified industrial environmental conditions and features conformal coating intended to improve resistance to certain contaminants and environmental influences. Its stated operating temperature range is -20°C to +60°C. However, conformal coating does not make the module immune to all forms of moisture, corrosive chemicals, conductive dust, or condensation-related problems. The control cabinet should provide appropriate mechanical protection, ventilation, and cable management. Engineers should also observe the installation instructions for unused interfaces and connector covers, where applicable. For installations exposed to salt spray, oil mist, chemically active substances, or severe contamination, confirm the precise environmental limits and restrictions before deployment rather than relying on the coating alone.

8. What should be checked when replacing or recommissioning a faulty 6AG1231-5QF32-4XB0?

Before replacement, confirm the complete part number and verify that the proposed replacement matches the existing hardware requirements. Back up the PLC program and hardware configuration, document the original wiring, and follow the site’s shutdown and electrical isolation procedures. After installing the replacement, inspect all connections, restore the correct hardware configuration, and check whether the PLC recognizes the module without errors. Verify each thermocouple channel, confirm the configured sensor types, and compare the displayed temperatures with reasonable reference values. If the module participates in temperature alarms, heating control, or process interlocks, test those functions before returning the equipment to service. If faults remain, investigate the sensor wiring, PLC configuration, power supply, and surrounding hardware before attributing the problem to the replacement module.
