1. What is the main function of the Siemens 6AG1232-4HD32-2XB0 module?

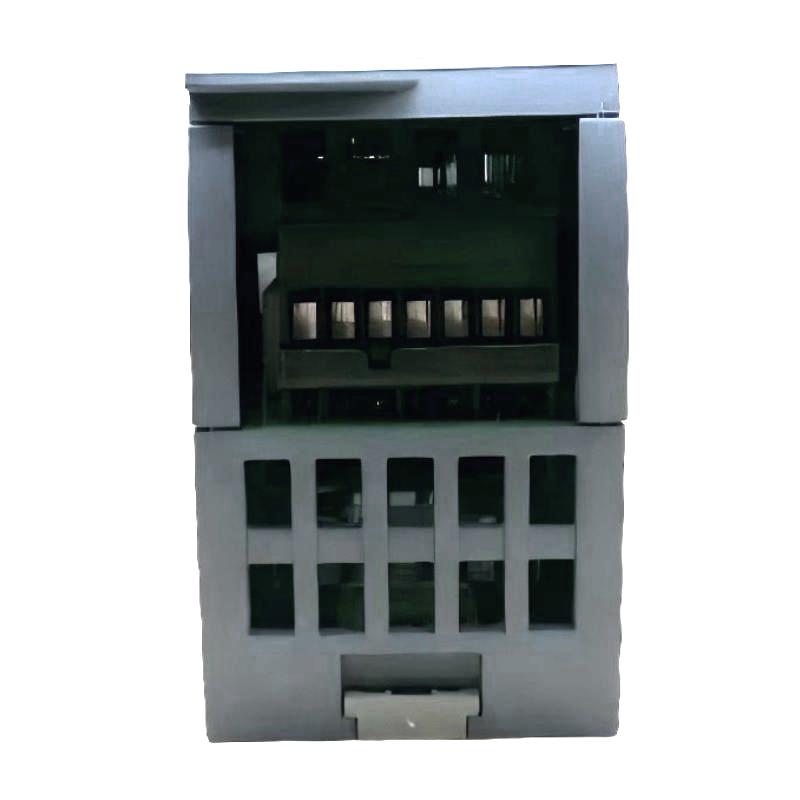

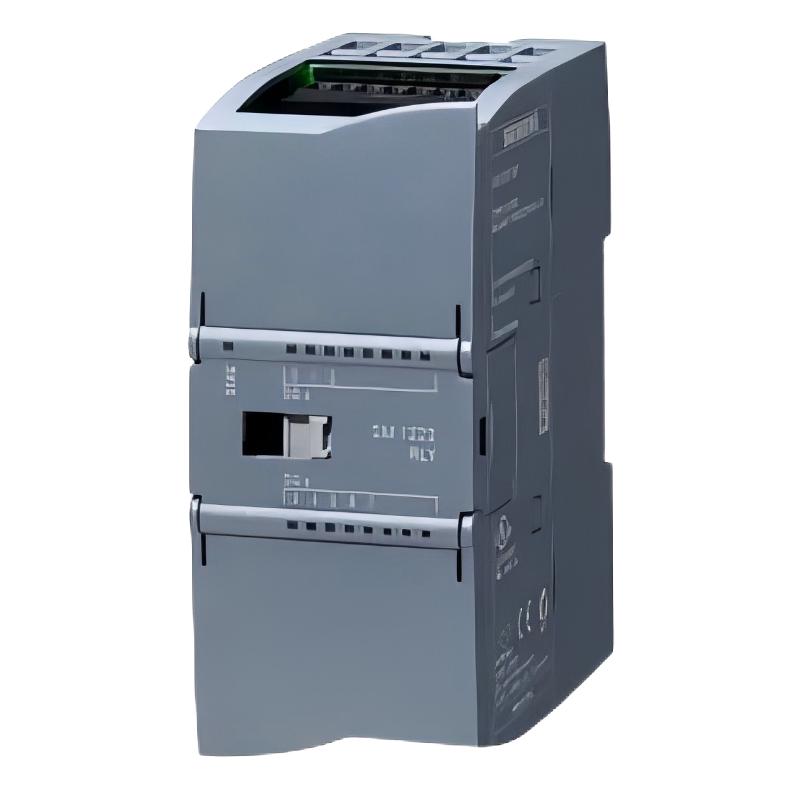

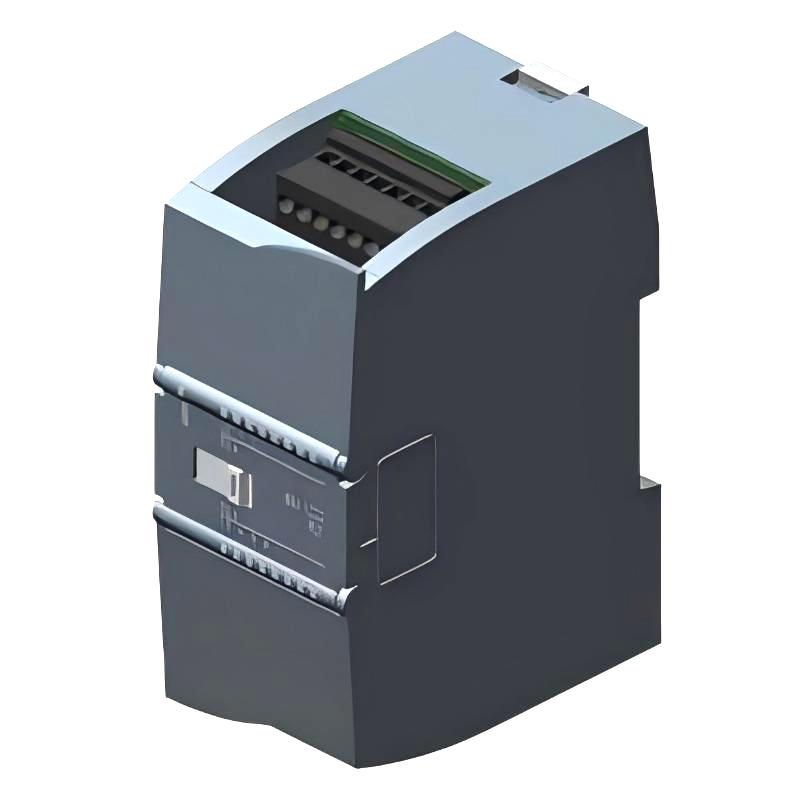

The Siemens 6AG1232-4HD32-2XB0 is a SIPLUS S7-1200 SM 1232 analog output module with four output channels. It converts digital values generated by a PLC into analog voltage or current signals for controlling external devices. Typical applications include sending speed references to compatible drives, adjusting valve positioners, and regulating industrial process variables. Its four outputs allow multiple control signals to be managed within one automation system. Before commissioning, verify the hardware configuration, signal type, and electrical requirements of each connected device.

2. Which output signals and resolutions does this module support?

The module supports voltage outputs from -10 V to +10 V and current outputs from 0 to 20 mA. Voltage output provides 14-bit resolution, while current output provides 13-bit resolution. These signal ranges are suitable for compatible industrial control equipment that accepts analog reference values. The selected output mode must match the receiving device’s input specification. During configuration, check the engineering-unit scaling and output addresses in the PLC program. Measuring the actual voltage or current during commissioning helps confirm that the module is generating the intended signal.

3. How should the module be configured in a SIMATIC S7-1200 system?

Confirm that the module is compatible with the installed S7-1200 CPU and the system’s hardware configuration. The standard reference model is 6ES7232-4HD32-0XB0, but the exact SIPLUS ordering number should be used when checking compatibility. Add the module to the hardware configuration, assign its output addresses, and configure the program to convert process values into the required output representation. Once the configuration is downloaded, check the module status and test each channel independently. Verify the measured signals and connected equipment response before returning the system to normal operation.

4. Why might the analog output differ from the PLC setpoint?

Incorrect scaling, an unsuitable output mode, wiring problems, excessive load, or a mismatch in the receiving device can cause output discrepancies. First, check the conversion between the engineering value and the digital value written by the PLC. Confirm that the output channel is configured for the intended voltage or current signal. The voltage output requires a load impedance of at least 1,000 Ω, while the current output supports a maximum load impedance of 600 Ω. Inspect the wiring and use a suitable meter to measure the signal at the module terminals. If the output remains incorrect, review diagnostic information and investigate the external circuit before replacing the module.

5. What precautions are important when using the 0–20 mA output?

Ensure that the receiving device accepts a 0–20 mA signal and that the complete current loop is wired according to the applicable instructions. Do not assume that a 0–20 mA input is interchangeable with a 4–20 mA input, as the ranges and fault-detection behavior may differ. Keep the total load impedance within the specified 600 Ω maximum. Check terminal connections and cable continuity before enabling the output. During commissioning, test several output values and confirm that the receiving device responds correctly. If the current does not reach the requested value, inspect the loop wiring, load, and channel configuration.

6. What environmental conditions is the SIPLUS version designed for?

This SIPLUS module has conformal coating intended to provide additional protection for electronic components in demanding industrial environments. Its specified operating temperature range is -40°C to +70°C, with startup permitted from -25°C. The product is designed for applications where environmental exposure may be more challenging than in a conventional installation. However, conformal coating does not eliminate the need for suitable cabinet protection, correct installation, and compliance with electrical safety requirements. At ambient temperatures above +60°C and up to +70°C, Siemens specifies that no more than 50% of the outputs may be controlled simultaneously. Check the applicable installation documentation when operating near the upper temperature limit.

7. How can output faults and diagnostic alarms be troubleshot?

Start by checking the PLC diagnostic buffer and module status information. Confirm that the controller recognizes the module and that the configured output addresses are correct. Next, inspect the supply voltage, wiring, load conditions, and selected signal type. Measure the output at the module terminals and compare it with the value requested by the PLC program. If the signal is correct at the module but incorrect at the receiving device, investigate the cable and external circuit. If the output is abnormal at the source, review the program scaling, hardware configuration, and diagnostic messages. Record the results to help identify the cause without replacing components unnecessarily.

8. What should be checked when replacing the 6AG1232-4HD32-2XB0?

Before replacement, back up the PLC program and hardware configuration, document the wiring, and follow the site’s electrical isolation procedures. Verify that the replacement module has the correct ordering number and is compatible with the installed system. After installation, check all connections and confirm that the PLC recognizes the module without unexpected diagnostic alarms. Test all four output channels across representative setpoints, measuring the actual voltage or current and confirming the response of each connected device. For critical applications, also verify interlocks, alarm handling, and safe equipment behavior before resuming production.
