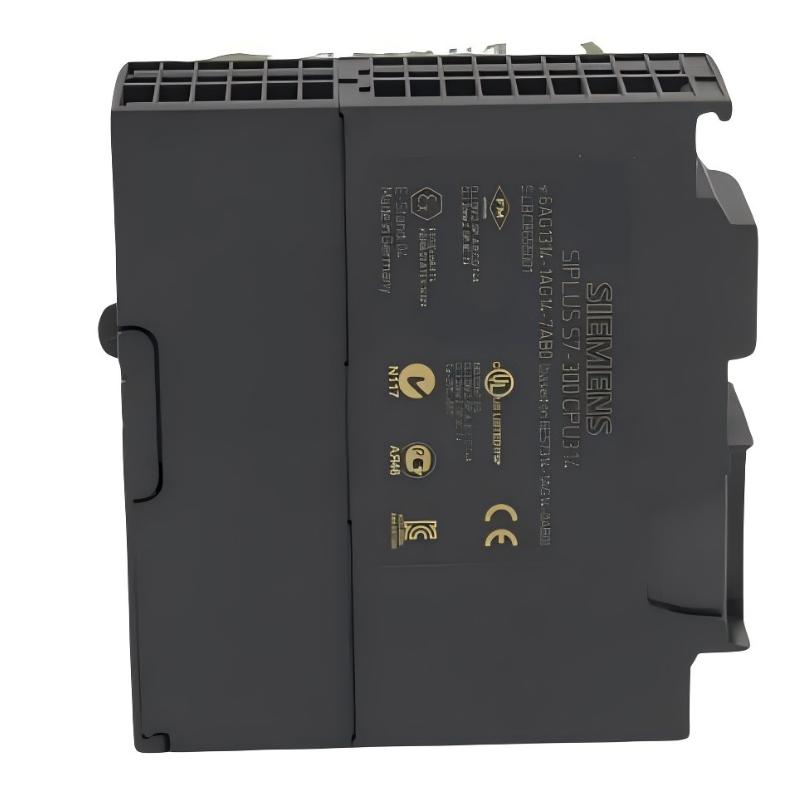

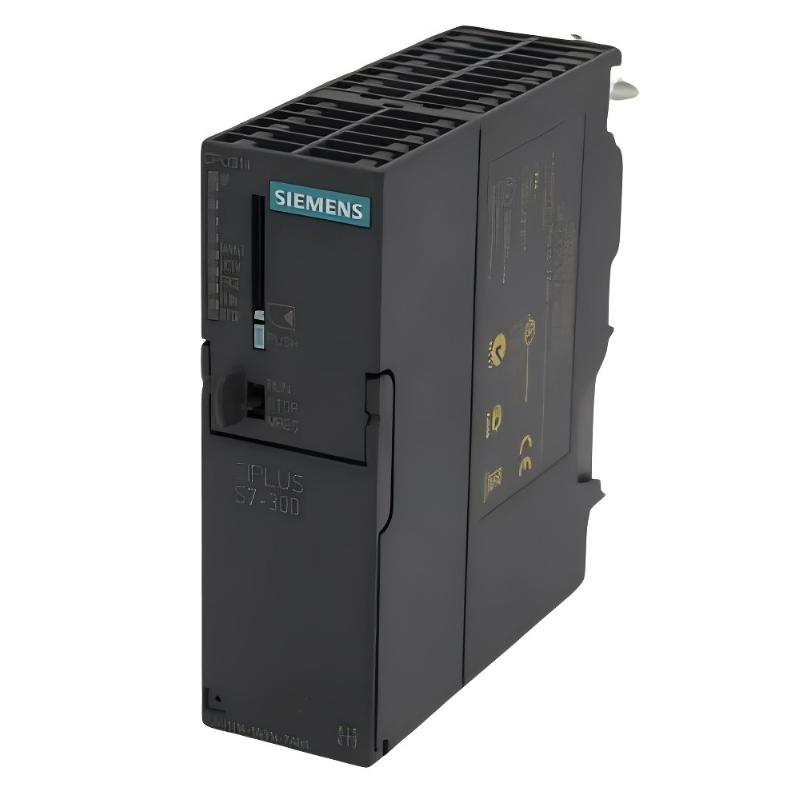

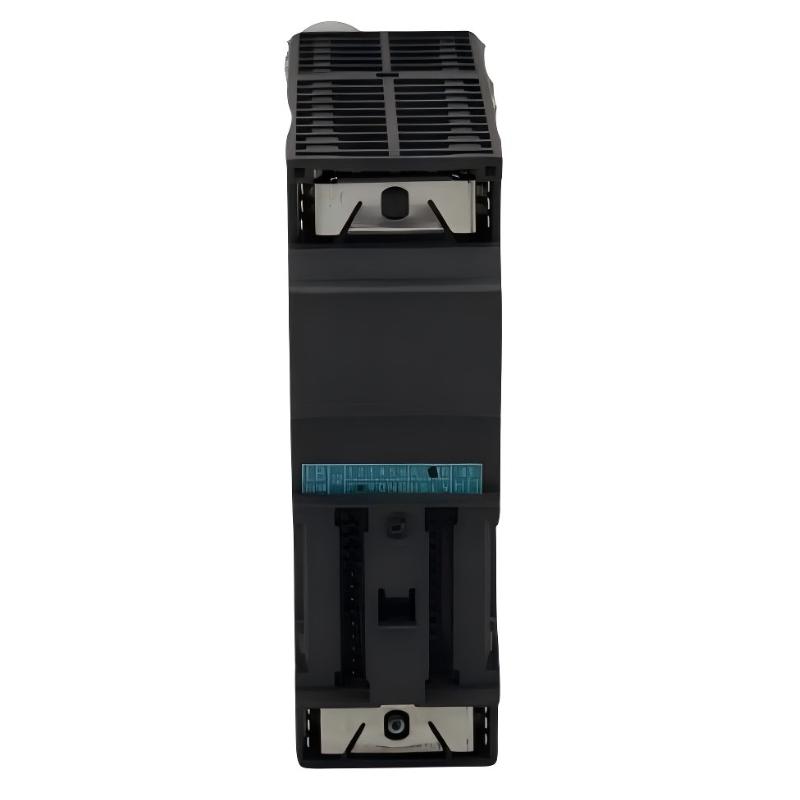

1. What is the main function of the Siemens 6AG1314-1AG14-7AB0 CPU 314?

The Siemens 6AG1314-1AG14-7AB0 is a SIPLUS S7-300 CPU 314 designed to execute control programs and coordinate automation tasks in industrial systems. It processes logic operations, manages program data, and communicates with compatible programming devices and automation components through its MPI interface. Based on the 6ES7314-1AG14-0AB0 platform, it includes 128 KB of working memory and an integrated 24 V DC power supply. Unlike compact CPUs with built-in I/O channels, this model uses compatible external signal modules for field input and output. It is suitable for modular control systems where the number and type of I/O channels are selected according to the application.

2. What communication functions are supported by the MPI interface?

The integrated MPI interface supports communication with compatible Siemens programming devices and automation equipment. Typical uses include downloading programs, monitoring variables, performing online diagnostics, and accessing controller data through supported engineering tools. The interface uses RS-485 communication, so correct cabling, network configuration, and station addressing are important for reliable operation. During commissioning, verify the communication settings in STEP 7 and confirm that the programming device can establish a stable connection with the CPU. If communication is intermittent, inspect the cable and connectors, check for address conflicts, and consider electrical interference from nearby power equipment before replacing the controller.

3. Does the CPU have integrated digital or analog I/O channels?

The 6AG1314-1AG14-7AB0 does not have integrated digital or analog I/O channels. Field signals must be handled by compatible S7-300 signal modules installed in the rack. Digital input modules acquire signals from switches, push buttons, and sensors, while digital output modules control suitable relays and actuators. Analog modules can be selected for compatible voltage, current, temperature, or other measurement signals, depending on the module type. When designing the system, confirm the required channel count, electrical ratings, signal ranges, isolation requirements, and response times. The hardware configuration in STEP 7 must accurately reflect the installed modules and their addresses to ensure reliable program execution.

4. Why does the Siemens 6AG1314-1AG14-7AB0 require a Micro Memory Card?

This CPU requires a compatible Siemens Micro Memory Card (MMC) for its specified load-memory functions. The card stores the user program and associated data, while the 128 KB working memory supports program execution. The listed maximum MMC capacity is 8 MB. Before installing or replacing a memory card, confirm compatibility and ensure that the correct user program and hardware configuration have been backed up. If the CPU reports a memory-related diagnostic error, check the card installation and verify that the stored program is suitable for the installed CPU. Maintaining a separate STEP 7 project backup reduces the risk of losing application logic during maintenance or memory-card replacement.

5. What power supply requirements should be considered during installation?

The CPU uses a 24 V DC supply arrangement with a permissible voltage range of 19.2–28.8 V DC. Its rated current consumption is approximately 650 mA, typical no-load current consumption is about 140 mA, and typical power dissipation is 4 W. The power supply must maintain stable voltage under operating conditions and provide sufficient capacity for the CPU and associated system components. Before energizing the equipment, verify polarity, wiring, terminal connections, and appropriate circuit protection. If the CPU restarts unexpectedly or behaves intermittently, measure the supply voltage under load and inspect for loose connections, voltage drops, or an overloaded power supply. The power requirements of other rack modules must also be included in the system design.

6. Which STEP 7 versions are compatible with this CPU?

The specified engineering software includes STEP 7 V5.5 SP1 or later, or STEP 7 V5.2 SP1 or later with hardware support package HSP 218. Compatibility should be confirmed against the installed CPU firmware and the engineering environment used by the maintenance team. Before downloading a program, verify that STEP 7 recognizes the correct CPU model and that the hardware configuration matches the physical installation. Compile the project and resolve configuration errors before transferring the program. For an existing production system, save a copy of the original project and record any relevant hardware or communication settings before making changes. This makes it easier to restore the previous configuration if commissioning or troubleshooting does not proceed as expected.

7. What environmental protection does the SIPLUS version provide?

The SIPLUS version incorporates conformal coating to provide additional protection for electronic circuitry in specified industrial environments. Its stated operating temperature range is -25°C to +70°C, subject to the applicable product conditions. This protection can be useful where temperature variation and environmental stresses are concerns, but it does not make the CPU waterproof or eliminate all risks from condensation, corrosive substances, or conductive contamination. Appropriate enclosure protection, ventilation, grounding, and electrical noise control remain necessary. Before installing the unit in a specialized environment, confirm that the complete order number meets the site’s temperature, environmental, and regulatory requirements. Following the manufacturer’s installation instructions helps maintain reliable operation over the service life of the equipment.

8. How should common faults on the Siemens 6AG1314-1AG14-7AB0 be diagnosed?

Begin by checking the 24 V DC supply, CPU status indicators, diagnostic buffer, and Micro Memory Card. If the CPU fails to start, verify the supply voltage, memory-card installation, user program, and hardware configuration. For communication problems, inspect the MPI cable, connector condition, station addresses, and engineering software settings. If external I/O modules do not operate correctly, check their power supply, rack position, module compatibility, wiring, and address assignments in STEP 7. Intermittent faults may also result from loose terminals, electrical interference, or unstable supply voltage. Record diagnostic messages before changing settings, and back up the original project before replacing hardware. After corrective action, test communication, field signals, and the complete control sequence before returning the system to normal operation.
