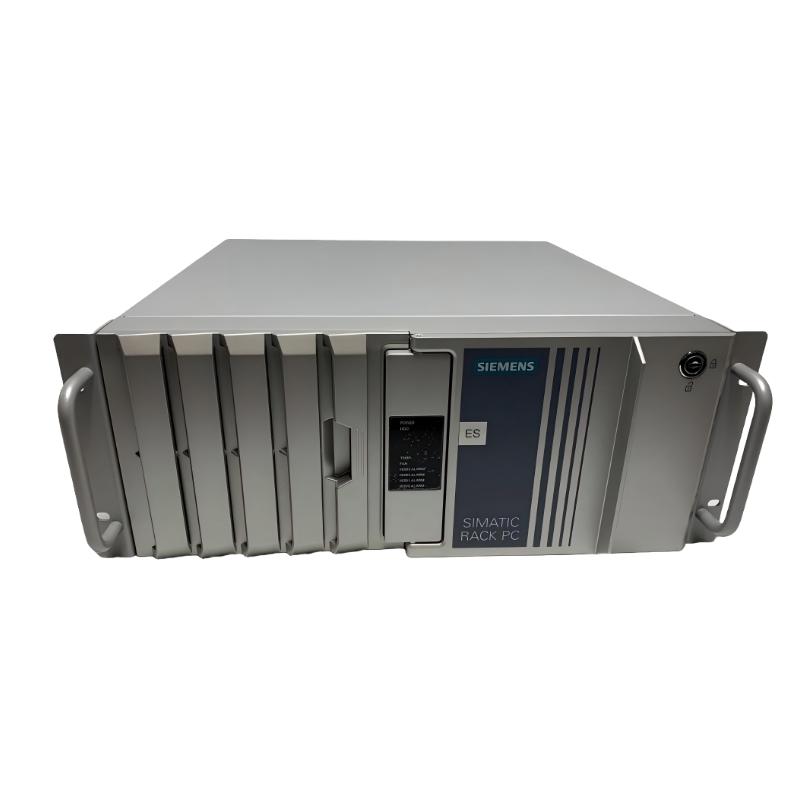

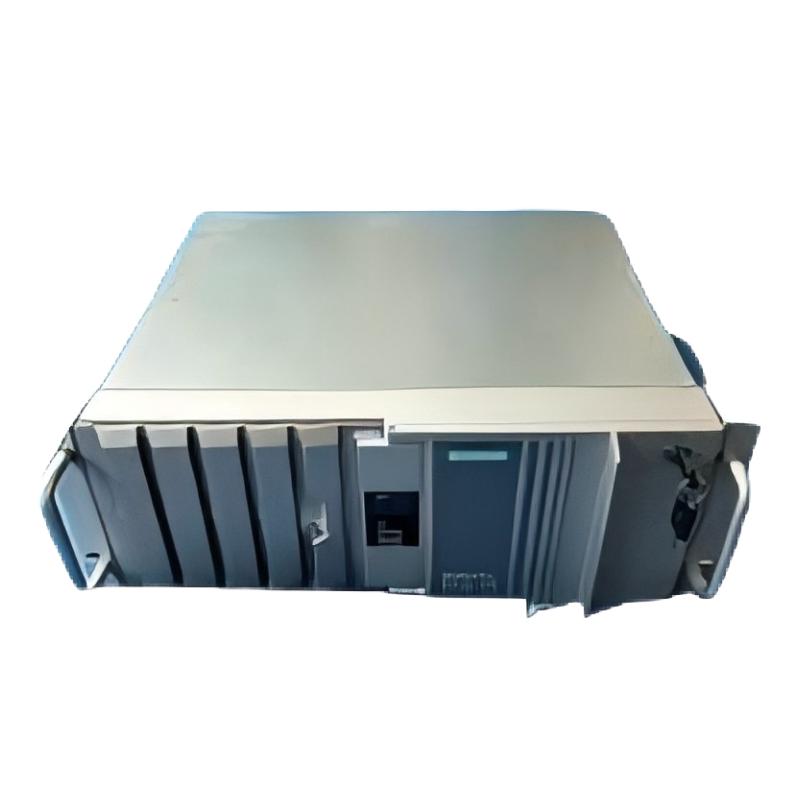

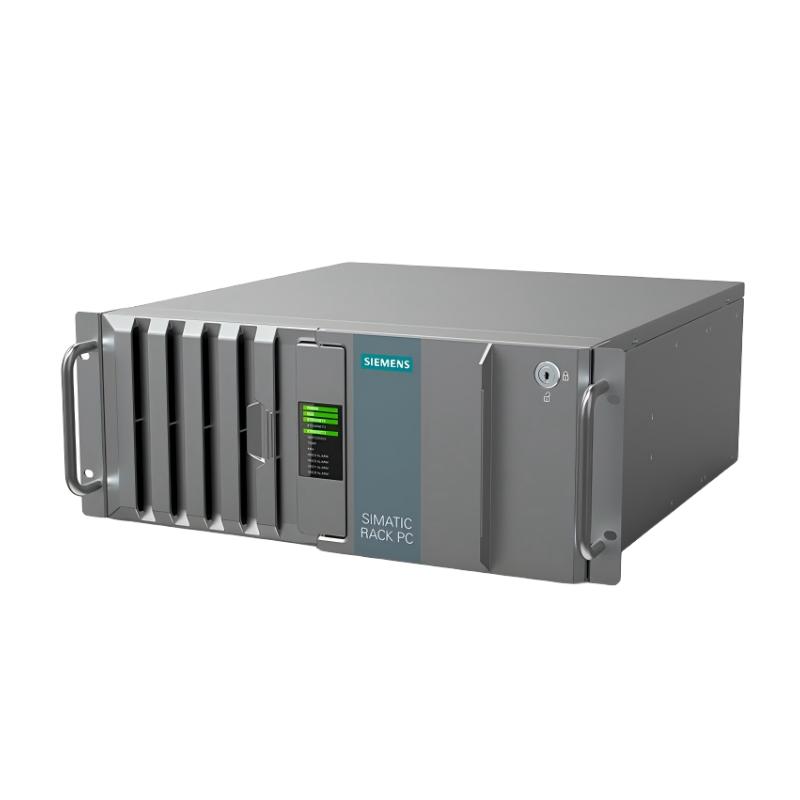

Siemens 6AG4114-3JA03-4DX3 Rack-Mount Industrial Computer
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Siemens 6AG4114-3JA03-4DX3 |
| Product Series | SIMATIC IPC847E |
| Product Type | Rack-Mount Industrial Computer |
| Rack Format | 19-inch, 4U |
| Processor | Intel Core i7-8700 |
| CPU Configuration | 6 Cores / 12 Threads |
| Base Frequency | 3.2 GHz |
| Turbo Frequency | Up to 4.6 GHz |
| Cache | 12 MB |
| Chipset | Intel C246 |
| Main Memory | 32 GB DDR4 SDRAM, 2 × 16 GB, Dual Channel |
| Storage | 1 TB 3.5-inch SATA HDD |
| Network Interfaces | 3 × Gigabit Ethernet, IE/PN, RJ45 |
| Serial Interface | 1 × COM1, RS-232 |
| Display Interfaces | 1 × DVI-D, 2 × DisplayPort |
| USB Interfaces | 2 × USB 3.0 front; 4 × USB 3.1 rear; 2 × USB 3.1 Type-C rear; 1 × USB 3.1 internal |
| Audio Interfaces | Microphone Input, Line Input, Line Output |
| Graphics | Intel UHD Graphics 630 |
| Expansion | PCI and PCIe expansion capability |
| Power Supply | 100/240 V AC, 50/60 Hz, autoranging |
| Power-Failure Ride-Through | Approx. 20 ms |
| Monitoring Functions | Temperature Monitoring, Fan Monitoring |
| Watchdog | Integrated Hardware Watchdog |
| Mounting | 19-inch rack mounting; horizontal or vertical installation |
| Front Protection | IP41 |
| Rear Protection | IP20 |
| Typical Applications | SCADA, HMI, Industrial Data Acquisition, Production Monitoring, PC-Based Automation |
| Dimensions | 444 × 430 × 177 mm |
| Weight | 17 kg |
FAQ
1. What is the Siemens 6AG4114-3JA03-4DX3 used for?
The 6AG4114-3JA03-4DX3 is a SIMATIC IPC847E 19-inch, 4U rack-mount industrial computer designed for SCADA, HMI, industrial data acquisition, production monitoring, industrial networking, and PC-based automation applications.
2. Which processor is installed in the 6AG4114-3JA03-4DX3?
This configuration uses an Intel Core i7-8700 processor with 6 cores and 12 threads. It provides a 3.2 GHz base frequency, up to 4.6 GHz Turbo frequency, and 12 MB cache, with support for Intel Turbo Boost, VT-x/VT-d, and Intel Active Management Technology.
3. How much memory and storage does this configuration provide?
The 6AG4114-3JA03-4DX3 is configured with 32 GB DDR4 SDRAM using two 16 GB modules in Dual Channel mode. Storage is provided by a 1 TB 3.5-inch SATA hard disk drive.
4. What communication interfaces are available?
The industrial computer provides three Gigabit Ethernet IE/PN RJ45 interfaces for industrial network communication. It also includes one COM1 RS-232 serial interface for compatible serial equipment.
5. Which display interfaces are included?
The system provides one DVI-D interface and two DisplayPort interfaces. These can be used to connect industrial monitors, HMI displays, engineering stations, and other compatible display devices.
6. Does the 6AG4114-3JA03-4DX3 support expansion cards?
Yes. The SIMATIC IPC847E platform supports PCI and PCI Express expansion. Additional communication, fieldbus, data acquisition, motion-control, or other specialized cards can be installed according to the available slot configuration.
7. What monitoring and diagnostic functions are provided?
The IPC847E includes temperature monitoring, fan monitoring, LED status indication, and an integrated hardware Watchdog. These functions help monitor system operating conditions and support fault diagnosis during continuous industrial operation.
8. What power supply and installation options are supported?
The computer uses a 100/240 V AC autoranging power supply at 50/60 Hz and provides approximately 20 ms of stored-energy time during short mains interruptions. It supports both horizontal and vertical installation and can be mounted in a standard 19-inch rack.
Siemens 6AG4114-3JA03-4DX3 Rack-Mount Industrial Computer is in stock. Please contact us for a quick quote and competitive pricing.
