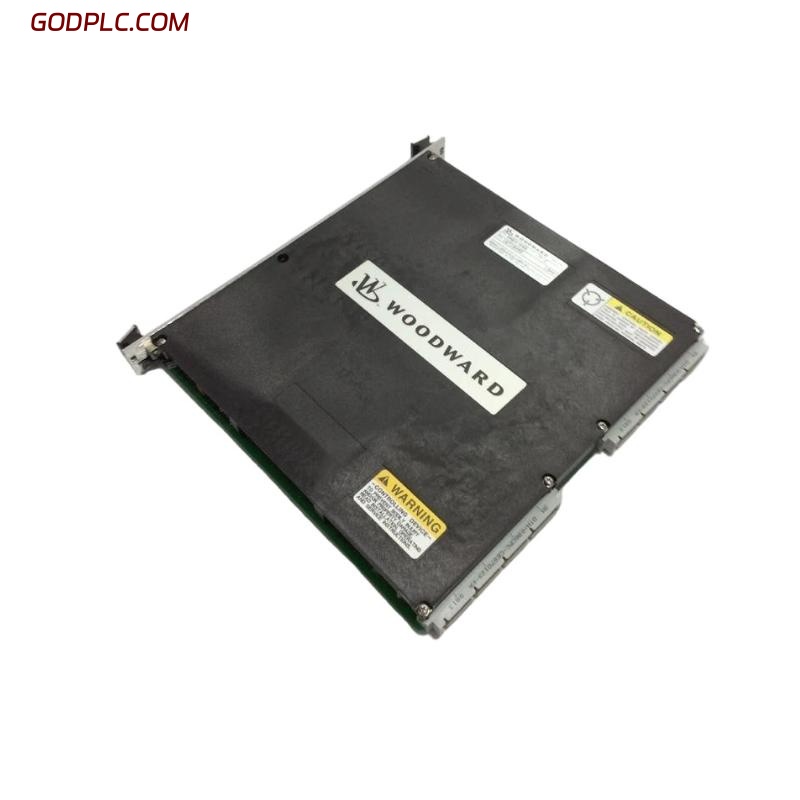

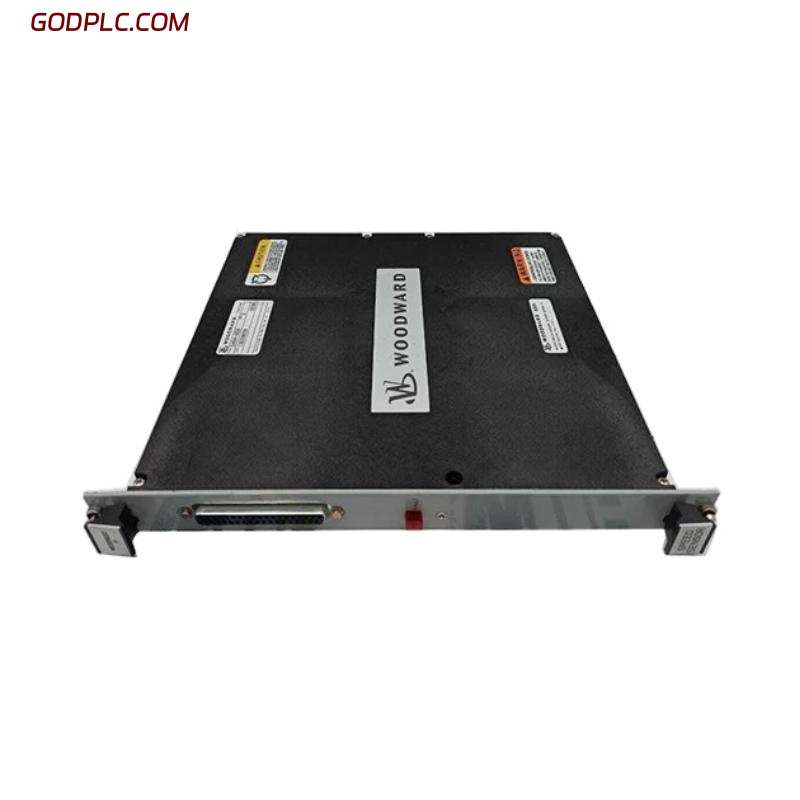

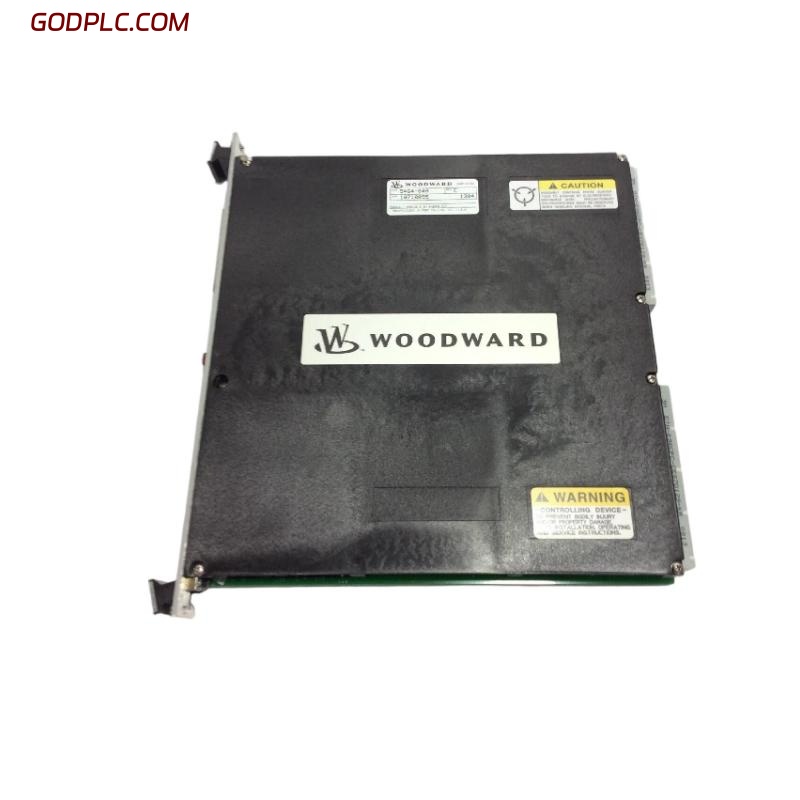

Woodward 5464-648 Analog 8-Channel Output Module
Product Overview
The Woodward 5464-648 Analog 8-Channel Output Module is designed to provide reliable, high-accuracy analog output signals for use in Woodward industrial control systems. With eight independent analog output channels, this module enables precise control of actuators, valves, and other field devices. Built to meet the demands of harsh industrial environments, the 5464-648 ensures stable signal output and seamless integration with complex process control systems.
Key Features
-
8 Independent Analog Output Channels – Allows simultaneous control of multiple field devices with precision
-
High Accuracy and Stability – Provides consistent output performance, ensuring precise control in critical processes
-
Flexible Signal Output – Supports industry-standard output ranges such as 0–20 mA or 4–20 mA for compatibility with various devices
-
Robust Industrial Design – Built to withstand vibration, temperature extremes, and electrical interference in demanding environments
-
Diagnostic Monitoring – Integrated fault detection and status indicators for enhanced system reliability
-
Seamless System Integration – Compatible with Woodward control platforms for easy installation and configuration
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 160 x 120 mm |
| Weight | 0.91 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Outputs | 8 Analog Output Channels |
| Output Signal Range | 0–20 mA or 4–20 mA (software selectable) |
| Output Load Resistance | 0 to 750 Ω |
| Accuracy | ±0.1% of full scale |
| Isolation Rating | 1500 V RMS between channels and ground |
| Power Supply | 24 VDC (nominal) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Meets industrial standards for durability |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Woodward control systems and platforms |
| Mounting | Rack or panel-mounted within control system |
Industry Applications
-
Power Generation – Provides accurate output for actuator control in turbines, generators, and auxiliary systems
-
Oil & Gas – Supports precise control of valves, pumps, and instrumentation in upstream and downstream operations
-
Process Industries – Enables high-precision analog control for manufacturing, refining, and chemical processing
-
Marine and Transportation – Ensures reliable output signals for critical control systems on vessels and mobile platforms
-
Water Treatment – Controls dosing pumps, valves, and monitoring equipment in water purification processes
The Woodward 5464-648 Analog 8-Channel Output Module delivers reliable, precise analog output essential for effective process control and automation. Its rugged construction, high accuracy, and compatibility with Woodward systems make it a trusted solution for demanding industrial environments.
Woodward 5464-648 Analog 8-channel Output Module is in stock. Please contact us for a quick quote and competitive pricing.
