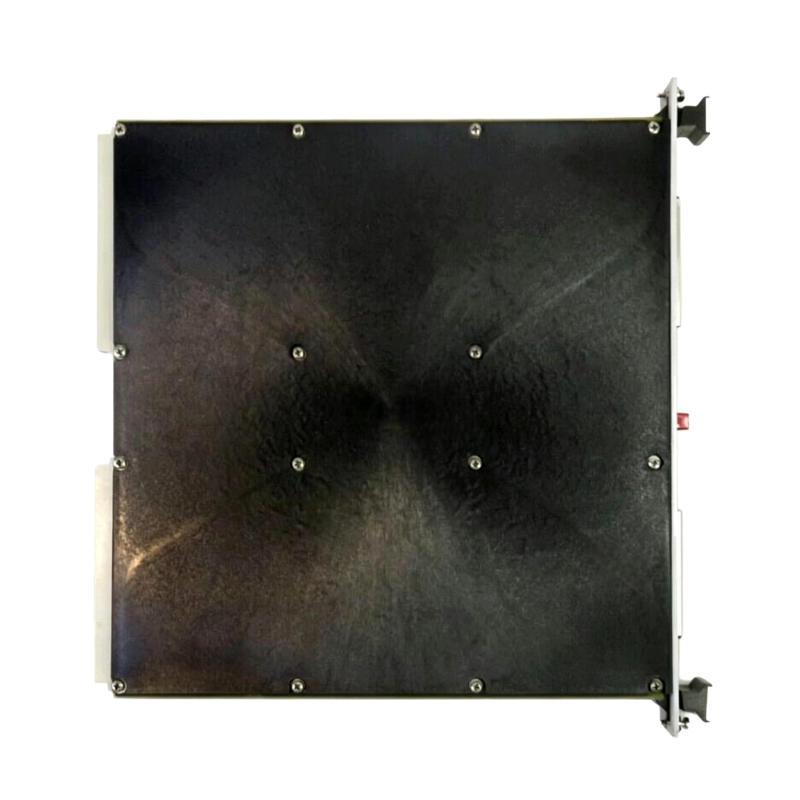

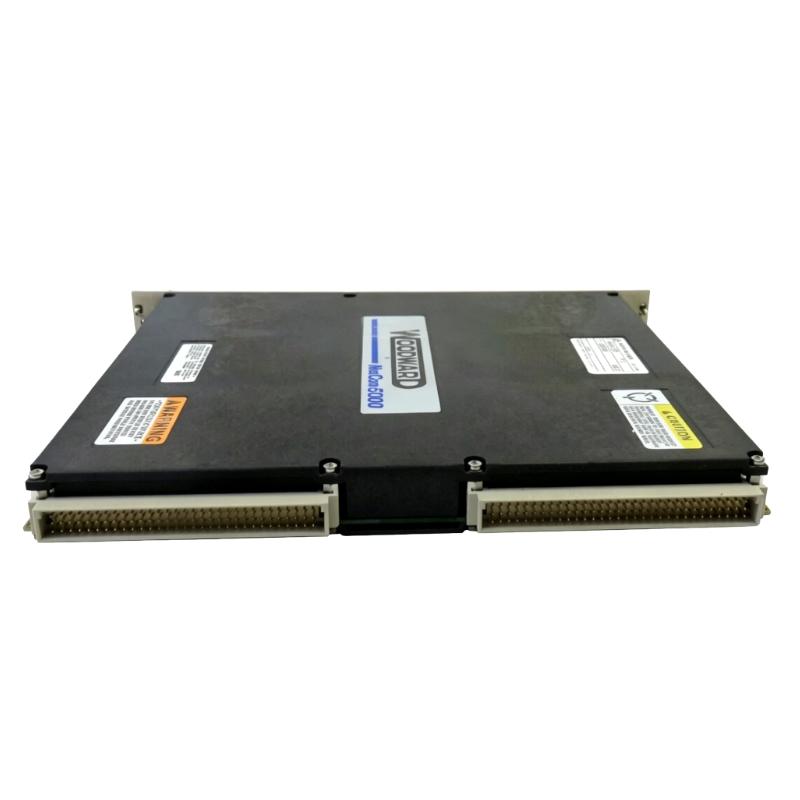

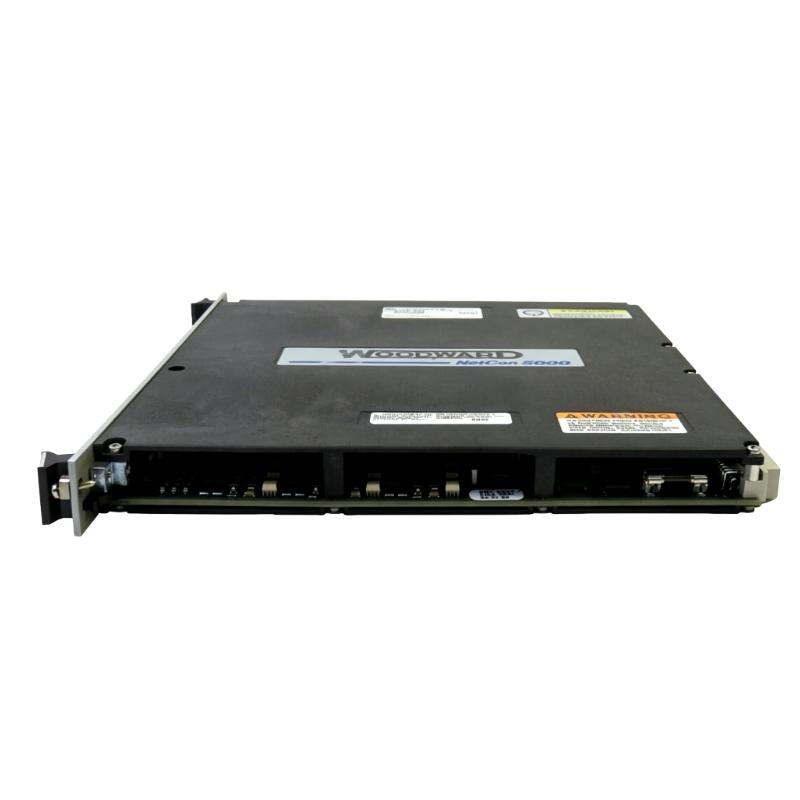

Woodward 5466-256 Discrete I/O Modules
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5466-256 |
| Brand | Woodward |
| Product Type | MicroNet Field Termination Discrete I/O Module |
| System Series | MicroNet |
| I/O Type | Discrete Digital Input/Output |
| Discrete Inputs | 48 channels |
| Discrete Outputs | 24 channels |
| Input Type | Optically isolated discrete inputs |
| Input Update Time | 5 ms |
| Input OFF Threshold | 8 VDC at 1.5 mA |
| Input ON Threshold | >16 VDC at 3 mA |
| Typical Input Current | 4 mA at 24 VDC |
| External Input Voltage | 18–32 VDC |
| Input Isolation | 500 VDC to earth ground; 1000 VDC to control common |
| Time-Stamping Resolution | 500 μs |
| Isolated 24 VDC Contact Supply | 400 mA maximum |
| Output Update Time | 5 ms |
| Output Isolation | Isolation provided through the associated relay/field termination assembly |
| Typical Applications | Gas turbine control, steam turbine control and MicroNet industrial control systems |
| Installation | MicroNet control chassis / compatible field termination assembly |
| Field Connection | High-density analog/discrete cables and compatible field termination modules |
| Software Compatibility | MicroNet systems; compatibility depends on system hardware and Coder software version |
| Operating Temperature | Approximately -40 to +70°C |
| Dimensions | 180 × 50 × 120 mm |
| Weight | 2.72 kg |
FAQ
1. What is the main function of the Woodward 5466-256?
The Woodward 5466-256 is a MicroNet discrete I/O module used to interface digital field signals with a MicroNet control system. It provides 48 discrete input channels and 24 discrete output channels, allowing the controller to monitor switches, relay contacts, interlocks and equipment status while also transmitting discrete control commands to field devices.
2. How many discrete inputs and outputs does the 5466-256 provide?
The module provides 48 discrete inputs and 24 discrete outputs. The inputs are primarily used for collecting ON/OFF status signals from field devices, while the outputs are used for discrete control functions. This high-density configuration is suitable for turbine and other industrial control applications requiring a large number of digital signals.
3. Are the discrete inputs on the 5466-256 electrically isolated?
Yes. The discrete inputs use optically isolated circuitry. The specified isolation is 500 VDC to earth ground and 1000 VDC to the control common. This isolation helps protect the MicroNet control electronics from electrical disturbances and differences between field wiring and control-system circuits.
4. How are ON and OFF input states detected?
For the 24 VDC input configuration, an input voltage of approximately 8 VDC at 1.5 mA is recognized as OFF, while an input above 16 VDC at 3 mA is recognized as ON. Typical input current is approximately 4 mA at 24 VDC. During commissioning, the actual field voltage should be measured if the displayed input state does not correspond to the physical device state.
5. What is the response time of the 5466-256 discrete I/O channels?
The discrete inputs and outputs have an update time of approximately 5 ms. This allows the module to handle status monitoring, interlocks, alarms and other digital control functions with relatively fast signal updates. Overall system response also depends on the MicroNet controller application logic and the connected field equipment.
6. How should an abnormal discrete input signal be diagnosed?
First verify that the field device is actually generating the expected ON/OFF signal. Then measure the voltage at the relevant field termination point and check the 18–32 VDC input supply, wiring, terminals and contact condition. If the field signal is correct but the software status remains incorrect, check the channel configuration, cable connections, field termination assembly and MicroNet diagnostic information.
7. Can the 5466-256 be used in newer MicroNet control systems?
Compatibility depends on the specific MicroNet hardware and software configuration. The 5466-256 belongs to the MicroNet discrete I/O product family, and different generations of MicroNet systems use different I/O module and field termination configurations. Before replacement or retrofit, the CPU type, chassis configuration, field termination hardware and Coder software version should be checked.
8. What are the typical applications for the 5466-256 output channels?
The 24 discrete outputs can be used for ON/OFF control functions involving relays, interlocks, alarms, shutdown circuits and other digital control equipment. In turbine control systems, these outputs may be assigned to equipment control or protective logic according to the MicroNet application program and the associated field termination and relay configuration.
Woodward 5466-256 Discrete I/O Modules is in stock. Please contact us for a quick quote and competitive pricing.
