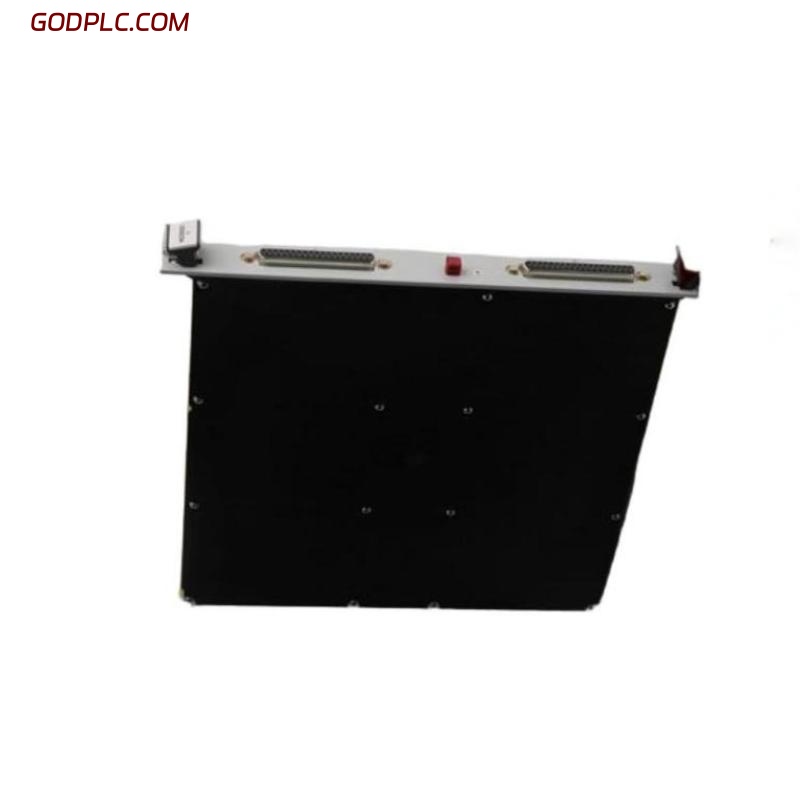

Woodward 5466-316 Analog Combination Module
Product Overview
The Woodward 5466-316 Analog Combination Module is a multifunction analog input/output module designed for use in Woodward’s control platforms. It provides reliable acquisition and output of analog signals such as 4–20 mA and 0–10 V, enabling real-time monitoring and control in critical industrial applications. The module supports both analog input and output channels in a compact format, allowing for flexible and scalable I/O expansion in process and machinery control systems.
Key Features
-
Combination Analog I/O – Supports both input and output channels in a single module.
-
High Accuracy – Delivers precise signal measurement and output control.
-
Wide Signal Compatibility – Compatible with standard industrial signal ranges (e.g., 4–20 mA, 0–10 V).
-
Seamless System Integration – Designed for direct use with Woodward control systems.
-
Robust Industrial Design – Withstands electrical noise, vibration, and environmental stress.
-
LED Diagnostics – Onboard indicators for channel status and fault identification.
-
Modular Expansion – Easily integrates into distributed control architectures.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 245 × 25 × 261 mm |
| Weight | 0.85 kg |
Analog I/O Specifications
| Item | Specification |
|---|---|
| Analog Input Channels | 4–8 (model dependent) |
| Analog Output Channels | 2–4 (model dependent) |
| Input Signal Types | 0–10 V, 4–20 mA |
| Output Signal Types | 0–10 V, 4–20 mA |
| Accuracy | ±0.1% full scale |
| Resolution | 12–16 bits |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 (panel-mounted configuration) |
Power Requirements
| Item | Specification |
|---|---|
| Power Input | 24 V DC (nominal) |
| Power Consumption | Approx. 10 W |
Industry Applications
-
Power Generation – Monitors and regulates analog signals from sensors and actuators.
-
Oil & Gas – Provides precise control over flow, pressure, and temperature measurements.
-
Industrial Machinery – Enables analog feedback and control for motion systems.
-
Chemical and Process Control – Manages continuous process variables.
-
Marine and Transportation – Used in analog signal interfacing for engine and auxiliary systems.
The Woodward 5466-316 Analog Combination Module is a high-performance analog I/O solution designed to support demanding control applications. With its reliable signal processing, wide compatibility, and seamless integration with Woodward systems, it is an ideal choice for expanding the capabilities of industrial automation platforms.
Woodward 5466-316 Analog Combination Module Fast Shipping! is in stock. Please contact us for a quick quote and competitive pricing.
