ABB PM856K01 3BSE018104R1 processor unit kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview

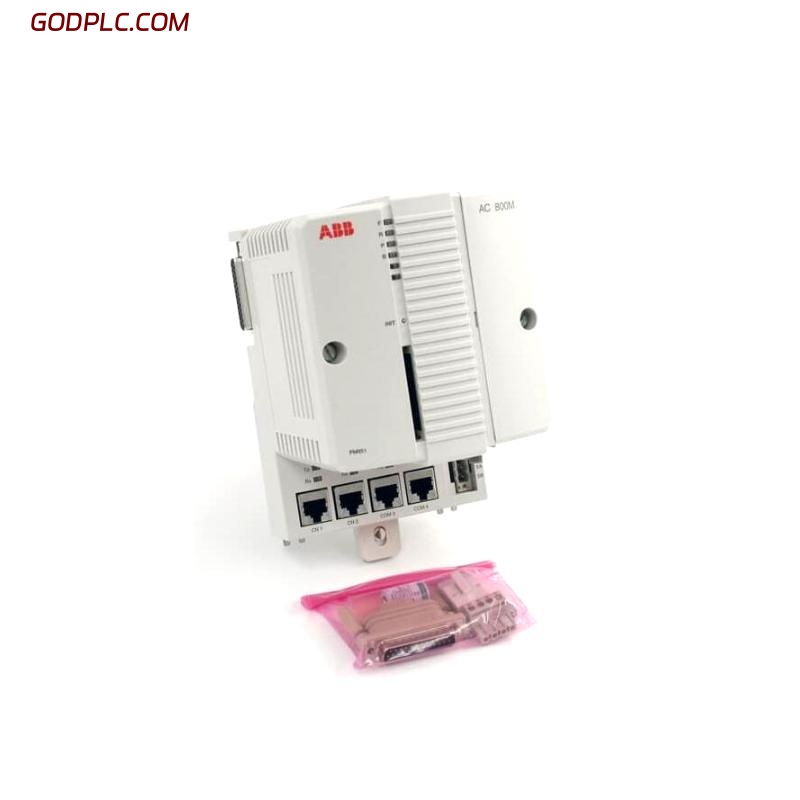

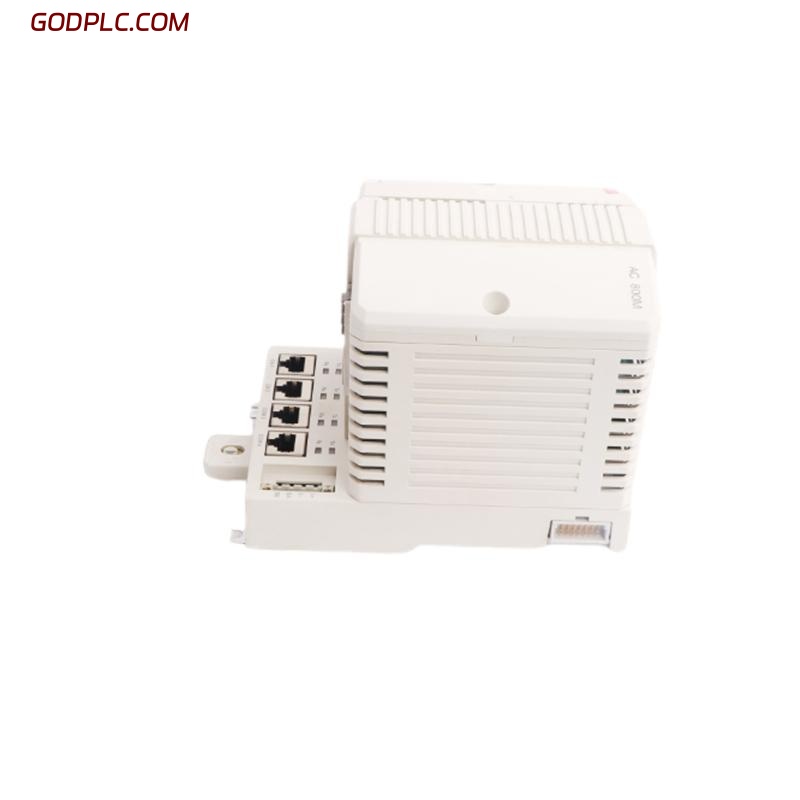

The ABB PM856K01 (3BSE018104R1) is a high-performance processor unit kit serving as the central CPU component within the ABB AC 800M control system. It includes a CPU module, DIN-rail baseplate, bus terminators, backup battery and power plug, enabling seamless integration, reliable processing, and modular deployment in industrial automation environments.
Main Features
-
High-speed microprocessor (PowerPC/MPC860 family) delivering superior processing for complex control logic.
-
Modular kit includes CPU, TP830 baseplate, CEX and ModuleBus terminators, memory backup battery, and power connector.
-
Dual communication interfaces: two Ethernet ports and serial ports (RS-232C) for network and tool connectivity.
-
Compact, rugged IP20 design with DIN-rail mounting, supporting reliable operation in control cabinets.
-
Memory with battery backup ensures retention of programs and data during power interruptions.
-
Certified to industrial standards, including EMC, IEC 60947-2, UL 508, CE, and RoHS.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Approx. 19 cm × 13 cm × 12 cm |
| Weight | Approx. 0.9 kg to 1.1 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | PM856K01 / Ordering No. 3BSE018104R1 |
| Product Type | Processor Unit Kit (CPU module + accessories) |
| Origin | Sweden / Switzerland |
| Mounting | DIN-rail via TP830 baseplate, IP20 rated |
| Operating Temp | –25 °C to +60 °C |
| Storage Temp | –40 °C to +70 °C |
| Certifications | IEC 60947-2, UL 508, CE, RoHS |
Processor and Memory
| Item | Specification |
|---|---|
| Processor | PowerPC / MPC860 microprocessor; clock typically 24 MHz (some versions up to 48 MHz) |
| Memory | RAM: 16 MB (approx. 7 MB available for application); Flash for firmware storage; battery-backed memory retention |
Communication & Interfaces
| Interface | Details |
|---|---|
| Ethernet | 2× RJ-45 ports (CN1, CN2), IEEE 802.3, 10 Mbit/s |
| Serial Ports | COM3: RS-232C with modem control; COM4: isolated RS-232 for configuration tool |
| Storage | CompactFlash interface for program/data storage |
Industry Applications
The ABB PM856K01 processor unit finds widespread use across industrial and process automation fields, including:
-
Process control systems in oil & gas, petrochemical, and power generation facilities.
-
Manufacturing automation requiring reliable CPU performance within distributed control systems.
-
Water and wastewater treatment, environmental monitoring, and critical infrastructure management.
-
Industrial systems demanding modular scalability, high uptime, and precise control logic execution.
ABB PM856K01 3BSE018104R1 processor unit kit is in stock. Please contact us for a quick quote and competitive pricing.
