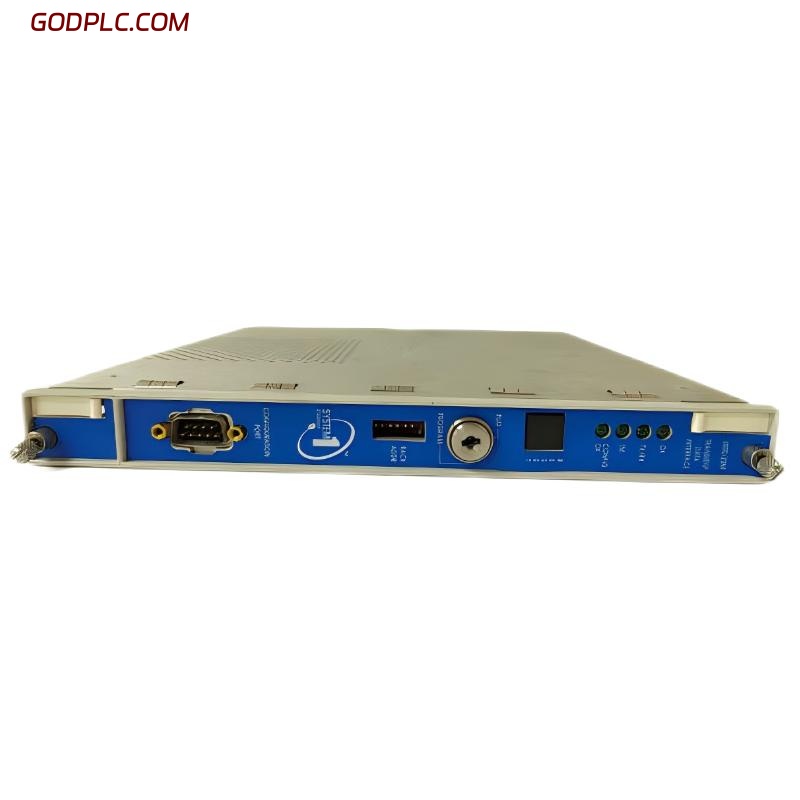

Bently Nevada 3500/22 138607-01 Transient Data Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Bently Nevada 3500/22 138607-01 Transient Data Interface Module
Product Overview
The Bently Nevada 3500/22 138607-01 Transient Data Interface (TDI) is an advanced communication module designed for the 3500 Machinery Protection System. Acting as the central data concentrator, it integrates machinery protection with condition monitoring by collecting system data and transmitting it to System 1 software. With its dual functionality, it simplifies rack architecture by combining both communication and interface functions, providing high reliability and improved system efficiency in critical machinery applications.
_
Main Features
Centralized communication interface for the entire 3500 rack
Integration of protection and monitoring data into a single module
High-speed data transfer to System 1 machinery condition monitoring software
Hot-swappable design for minimal downtime during maintenance
Dual communication ports supporting both Ethernet and Modbus protocols
Comprehensive diagnostics to ensure system integrity and early fault detection
Designed for critical rotating machinery with maximum reliability
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| _ |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Model Number | 3500/22 138607-01 |
| Product Type | Transient Data Interface Module (TDI) |
| Mounting | 3500 rack slot installation |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| _ |
Electrical Characteristics
| Item | Specification |
|---|---|
| Communication Ports | Ethernet (10/100Base-T), Modbus |
| Supported Protocols | TCP/IP, Modbus TCP, Modbus Serial |
| Power Supply | From rack backplane (no external power required) |
| Data Interface | High-speed transient and static data transfer |
| Configuration | Via 3500 rack and System 1 software |
| _ |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–2000 Hz, 0.7 g |
| Shock Resistance | 30 g, 11 ms half-sine |
| Protection Class | IP20 (when installed in rack) |
| _ |
Industry Applications
The Bently Nevada 3500/22 138607-01 TDI is widely used in:
Oil & Gas: Compressor and turbine protection with integrated condition monitoring
Power Generation: Generator, turbine, and auxiliary system monitoring
Petrochemical: Machinery health management in refining and chemical plants
Metals and Mining: Continuous monitoring of rotating equipment in harsh environments
Pulp & Paper: Protection of high-speed rotating equipment such as refiners and turbines
Bently Nevada 3500/22 138607-01 Transient Data Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
