Bently Nevada 3500/61 163179-02 Temperature Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview

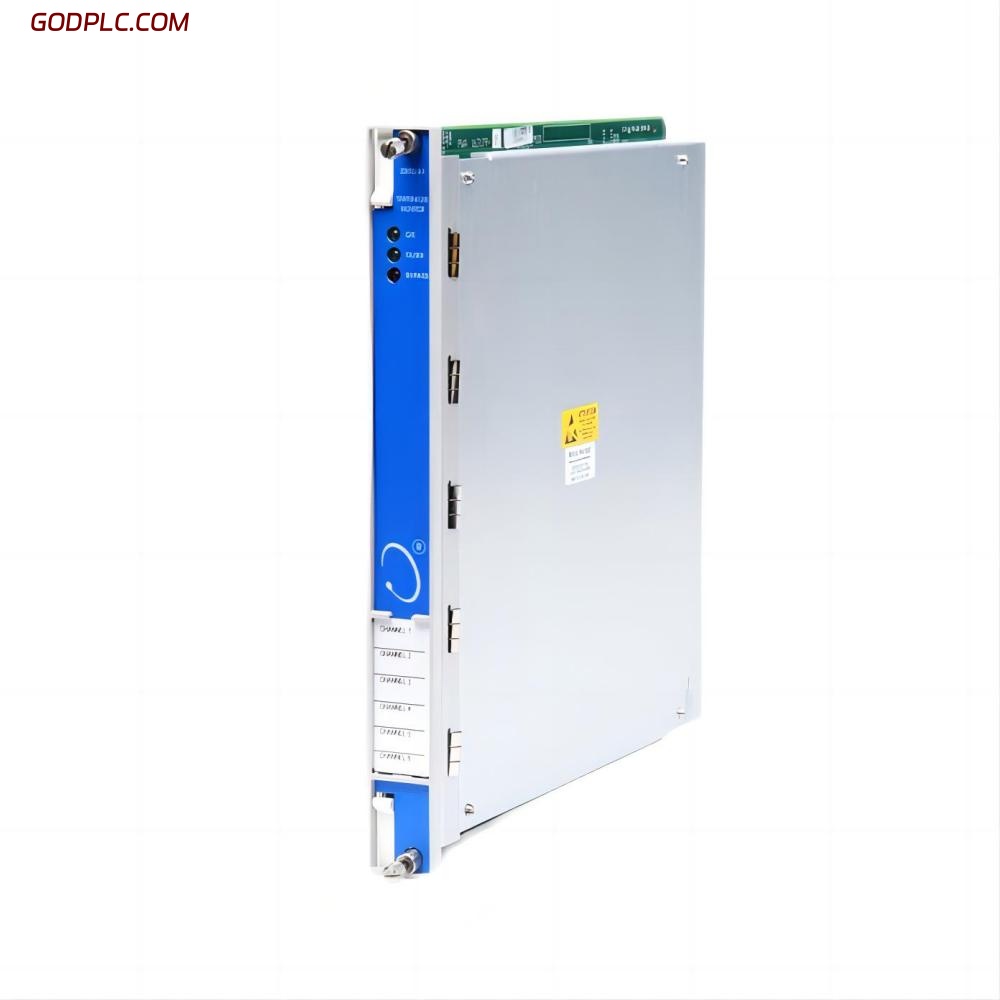

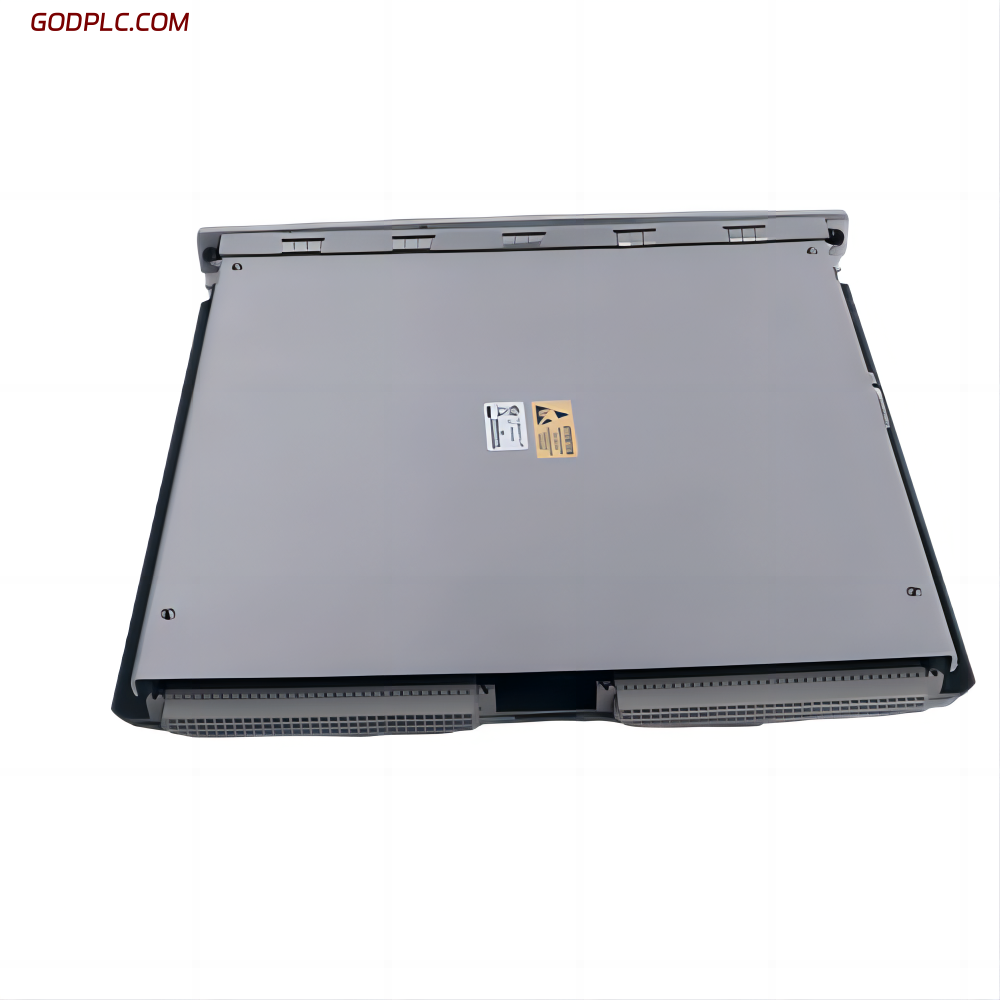

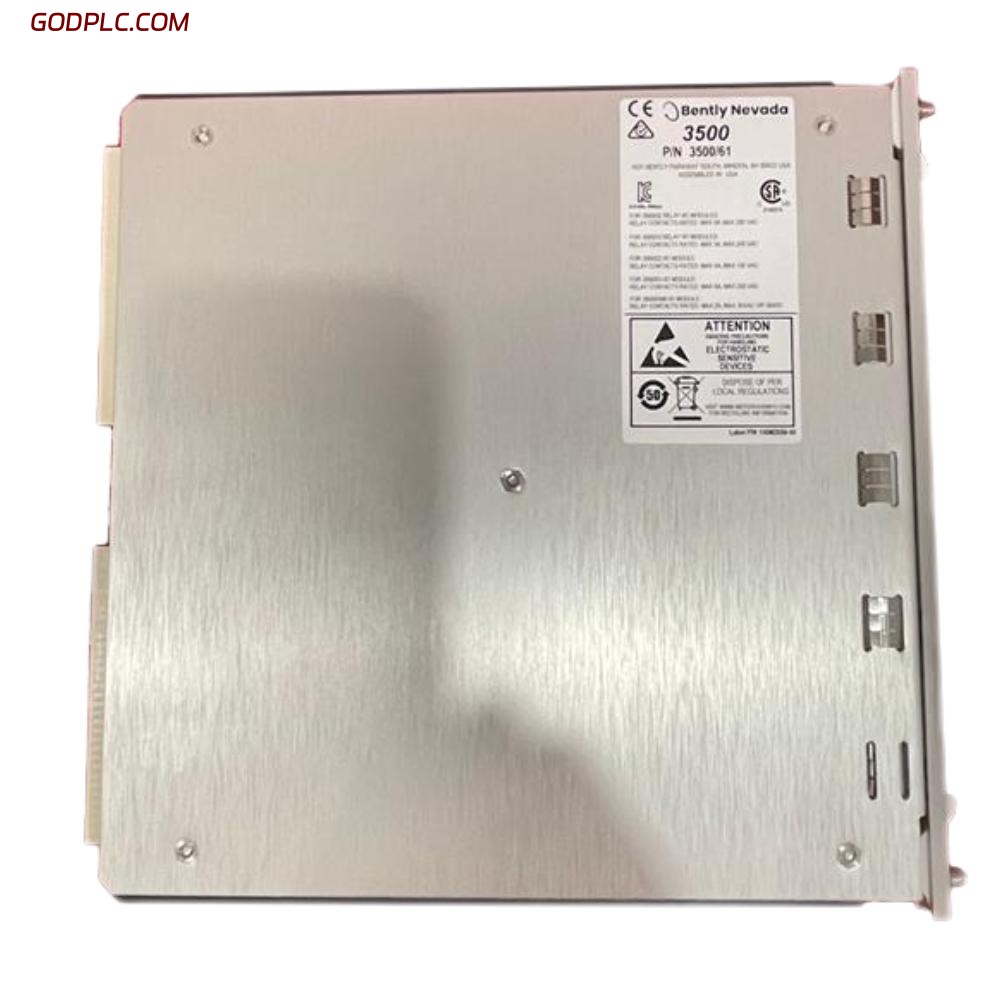

The Bently Nevada 3500/61 (Part Number 163179-02) is a six-channel temperature monitor module used in the 3500 Series Machinery Protection System for continuous temperature measurement and protection of rotating machinery.
This module version (163179-02) is equipped with isolated I/O, providing electrical isolation between channels, sensors, and the system backplane. It enhances noise immunity, minimizes ground loop interference, and ensures accurate readings in electrically noisy industrial environments.
The 3500/61 accepts inputs from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), converting sensor signals into precise temperature values. Each channel continuously compares measured values against Alert and Danger thresholds to detect overheating or abnormal operation.
In addition, each channel provides a 4–20 mA output proportional to the measured temperature, allowing integration with external control or monitoring systems.
Key Features
-
Six fully independent, electrically isolated input channels.
-
Supports RTD and Thermocouple inputs.
-
Provides two alarm setpoints per channel (Alert and Danger).
-
4–20 mA output available on each channel.
-
Field-configurable for input type, temperature range, and scaling.
-
Isolation between channels and to backplane to reduce electrical interference.
-
Designed for continuous monitoring in critical industrial environments.
-
Integrates seamlessly with the Bently Nevada 3500 Series rack system.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/61 | Six-channel temperature monitor |
| Part Number | 163179-02 | Isolated I/O version |
| System Compatibility | Bently Nevada 3500 Series | Full-height rack module |
| Number of Channels | 6 channels | Independently configurable |
| Input Types | RTD or Thermocouple | Field-selectable |
| Supported RTDs | Pt100, Nickel, Copper | 2-, 3-, or 4-wire configurations |
| Supported Thermocouples | Types E, J, K, T | Field-configurable |
| Recorder Output | 4–20 mA per channel | Scalable to temperature range |
| Input Isolation | 500 V channel-to-channel and channel-to-backplane | Enhanced noise immunity |
| Accuracy | ±3 °C typical at 25 °C | Depending on input type and configuration |
| Alarm Setpoints | Two per channel (Alert and Danger) | User-programmable |
| Signal Processing | Linearization and filtering | Per-channel processing |
| Power Consumption | Approx. 9 W | Typical for full operation |
| Operating Temperature Range | –30 °C to +65 °C | Continuous operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module size |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical module weight |
| Mounting Type | Full-height rack slot | Installed in 3500 rack |
| Compliance | API 670, CE, CSA, ATEX | Meets industry protection standards |
Bently Nevada 3500/61 163179-02 Temperature Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
