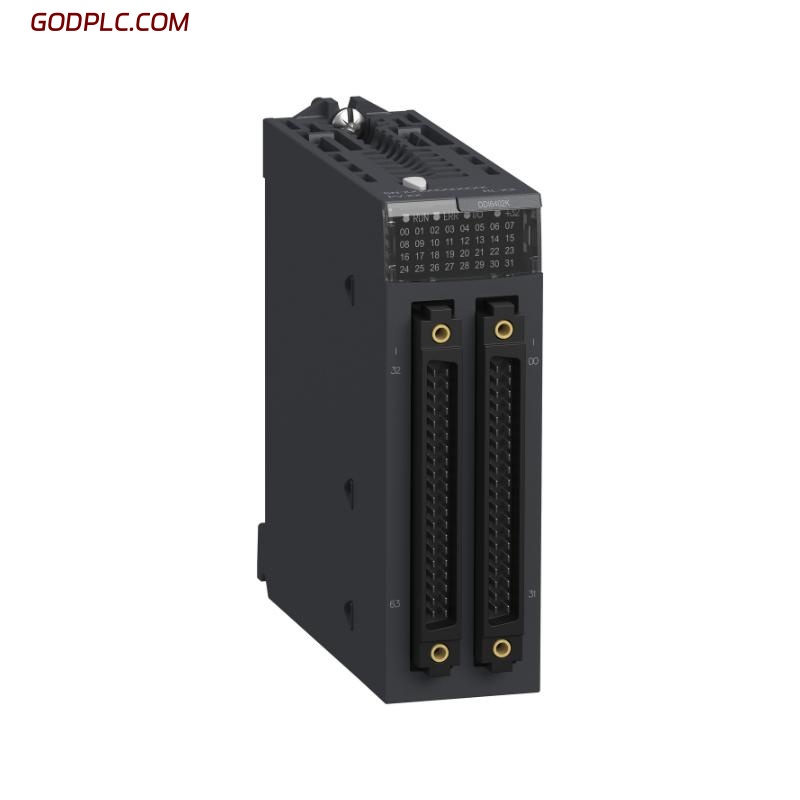

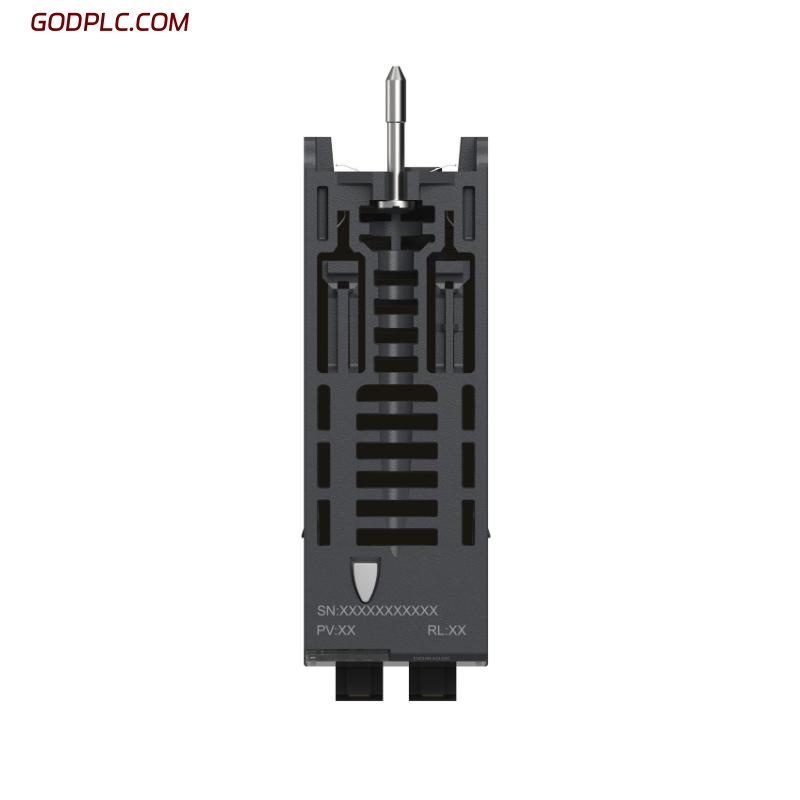

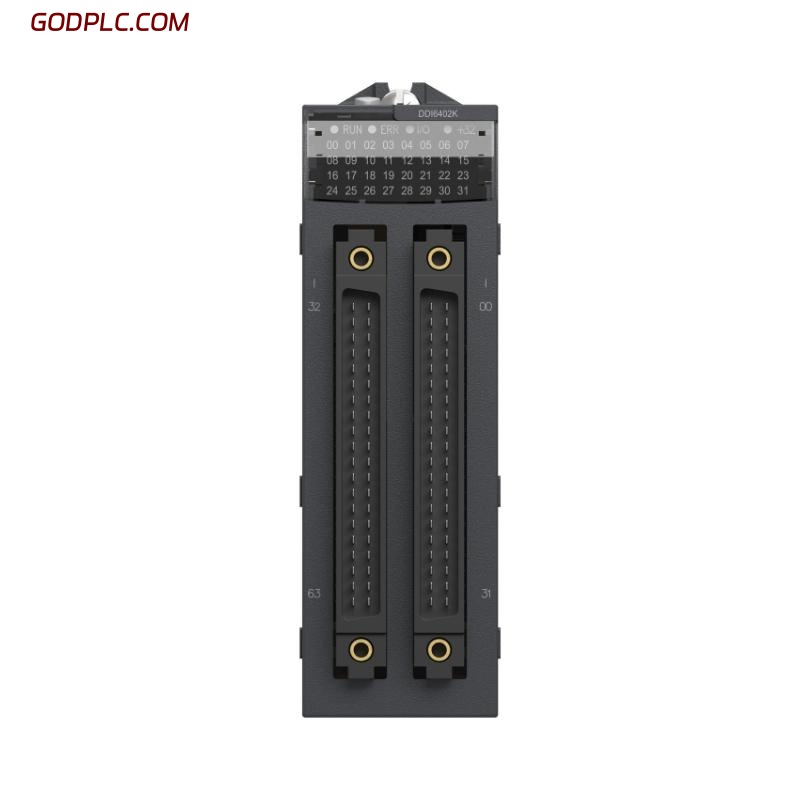

Schneider BMXDDI6402K Discrete Input Module
Product Overview
The Schneider BMXDDI6402K is a high-density discrete input module designed for use with the Modicon M340 programmable logic controller (PLC) series. It offers 64 digital inputs in a compact form factor and supports 24 VDC sink input logic. This module is ideal for large-scale signal acquisition applications where space efficiency and input channel count are critical.
Key Features
-
64 discrete input channels
-
24 VDC sink-type input
-
Compact and space-saving module design
-
LED indicators for channel group status
-
Optimized for high-density wiring with HE-10 type connectors
-
Diagnostics for error detection
-
Backplane hot-swappable for reduced downtime
-
Suitable for use in harsh industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.145 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Rated Input Voltage | 24 VDC ±20% |
| Input Type | Sink (NPN) |
| Number of Inputs | 64 channels |
| Input Impedance | Approx. 3.5 kΩ |
| Input Current | 5 mA typical at 24 VDC |
| Isolation | 500 V RMS between channels and logic |
| Input Delay | 4 ms (OFF to ON and ON to OFF) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Shock/Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| PLC Compatibility | Modicon M340 |
| Backplane Bus | X-Bus |
| Connector Type | HE-10 40-pin connectors (x2) |
| Hot-Swappable | Yes |
| Diagnostic Capability | Yes (group-level diagnostics) |
Industry Applications
-
Automotive Manufacturing – High-channel input acquisition for assembly lines
-
Material Handling Systems – Input detection from multiple sensors and devices
-
Oil and Gas Facilities – Signal monitoring from multiple field instruments
-
Pharmaceuticals – High-speed logic control for packaging lines
-
Data Centers – Digital signal integration for facility automation systems
The Schneider BMXDDI6402K discrete input module delivers exceptional channel density and reliable 24 VDC sink-type input handling, making it an optimal solution for complex automation systems requiring efficient and scalable input management.
Schneider BMXDDI6402K Discrete Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
